How do I draw a column in MeasureSquare 8?
In this article, we will show you three ways to draw or represent a column in your takeoff, and what the differences are between them.
This article applies to MeasureSquare 8 Build 8941.
There are three methods you can draw a column or pillar in your takeoff so that any flooring material underneath will be excluded. However, each way is different in the effect it creates. Depending on the situation, you may want to choose one method over the others.
Method 1: Insert Hole

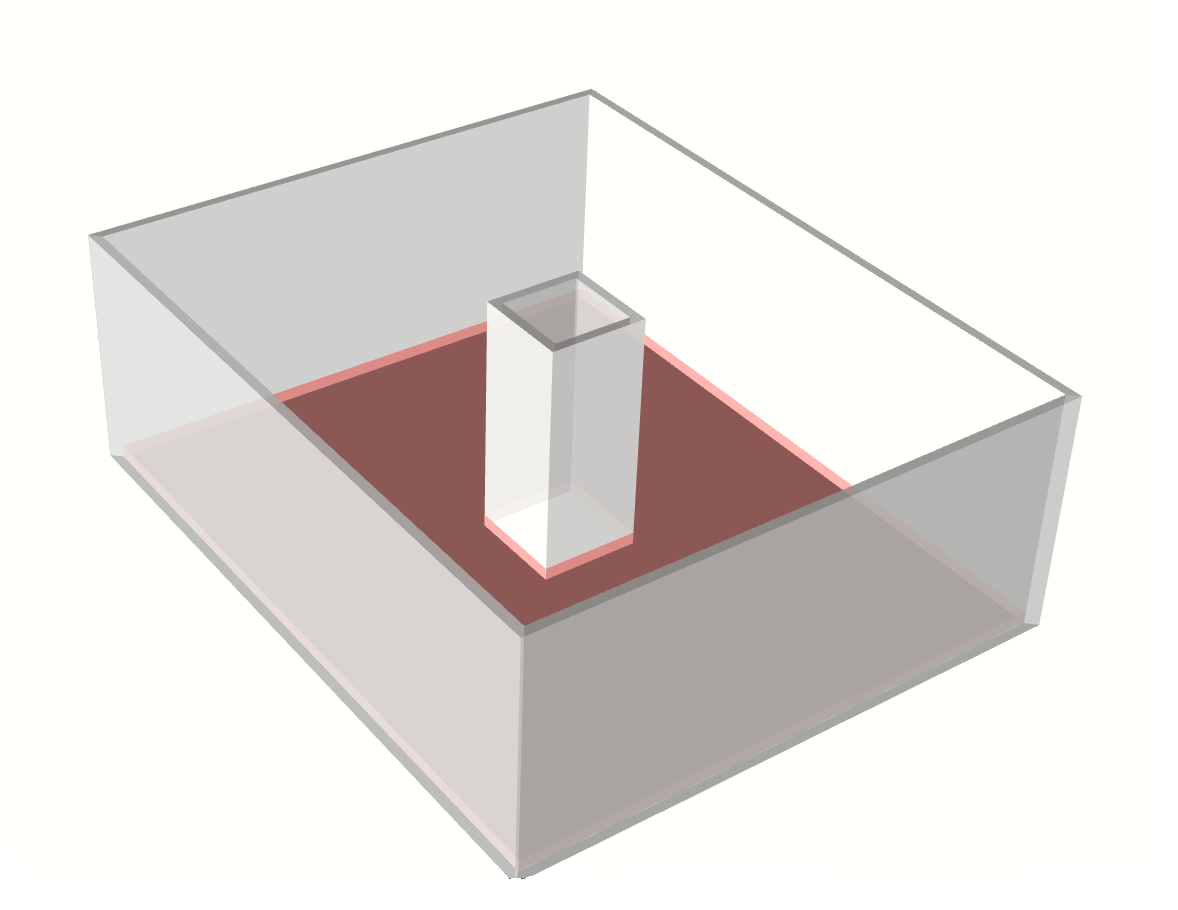

The Insert Hole method is the best way to represent a column. It essentially creates a hole in your floor plan which excludes any flooring material, and creates walls bordering the hole from floor to ceiling. This makes it the most visually accurate out of all three methods. More importantly, this also allows you to apply self-coving to the column. For more details on how to insert a hole, please follow these instructions:
Method 2: Elevation
An elevation is typically used to create countertops, cabinets, or other raised platforms. You may use an elevation to draw a column in a similar fashion, and even change its height so that it goes from floor to ceiling. Unlike the Insert Hole method, you cannot apply any self-coving to an elevation. If you want to apply coving, use the Insert Hole method instead. To learn how to create elevations, please check out this link:
Method 3: Divider

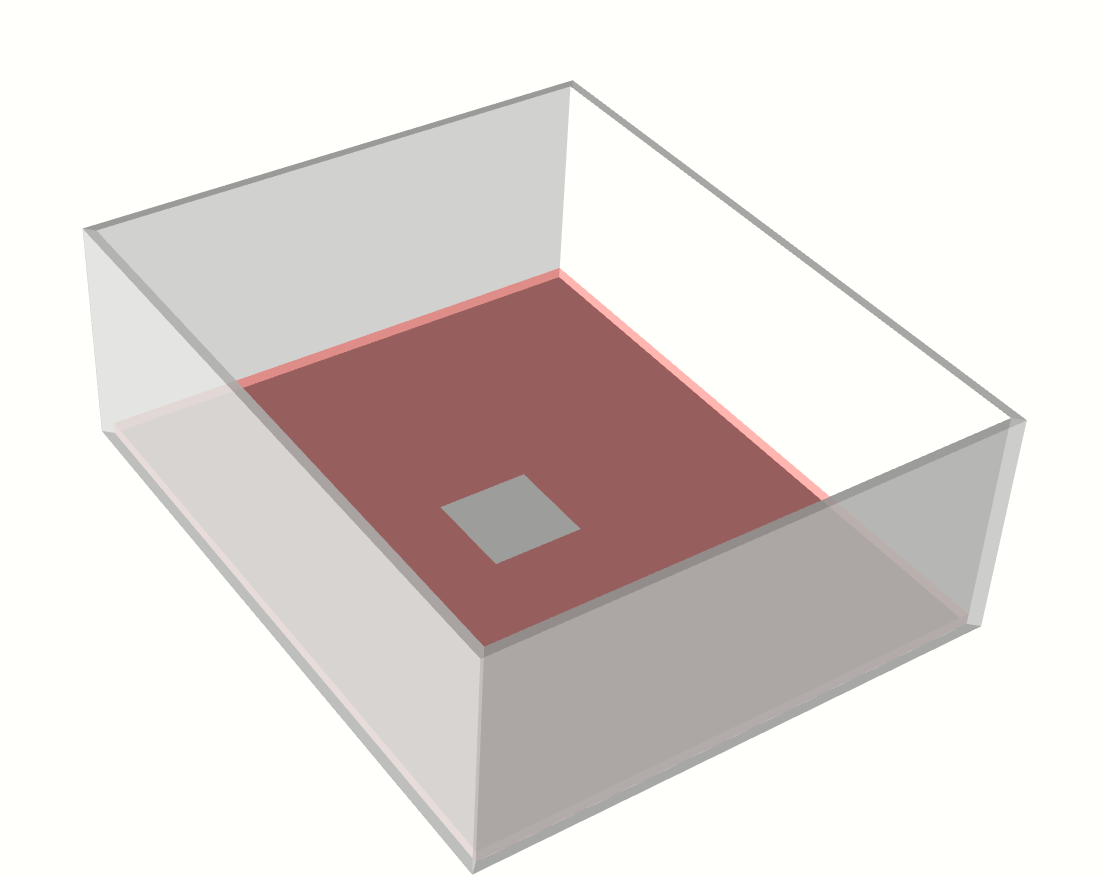

Using a divider is the most basic way to represent a column. MeasureSquare will create a space on the floor and prevent material from being added to the area, except when you add flooring to that area intentionally. Unlike the other two methods, no vertical object is created to represent the column, so there is no way to add wall material. Learn how to use a divider here:
