How Do I Separate a Floor Into Multiple Areas in MeasureSquare 8?

In this article you will learn how to use our Divider Tool in order to separate a room into multiple areas in order to apply different products to different areas.

For all MeasureSquare 8 Desktop versions

​

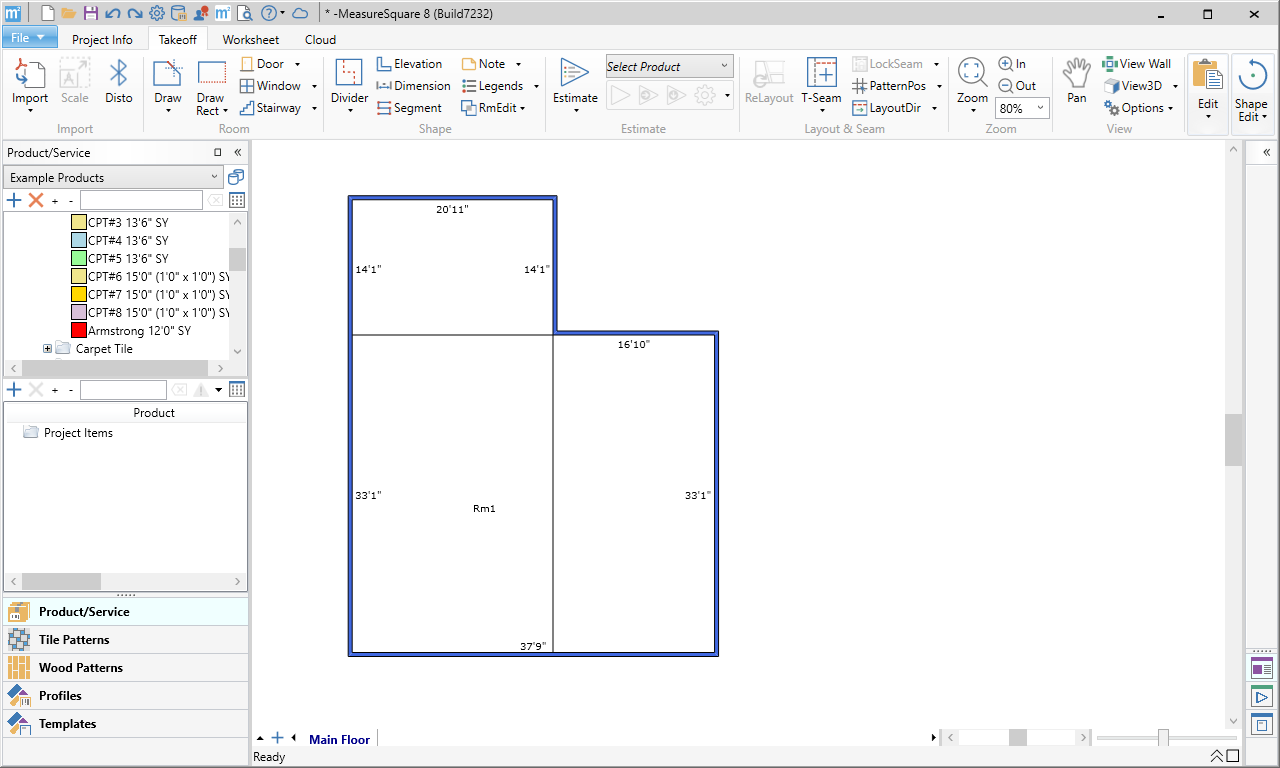

Step 1: Have room drawn out and ready to be split into the correct areas.

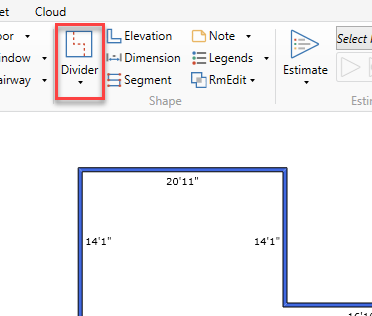

Step 2: Select the 'Divider' tool in the tool bar.

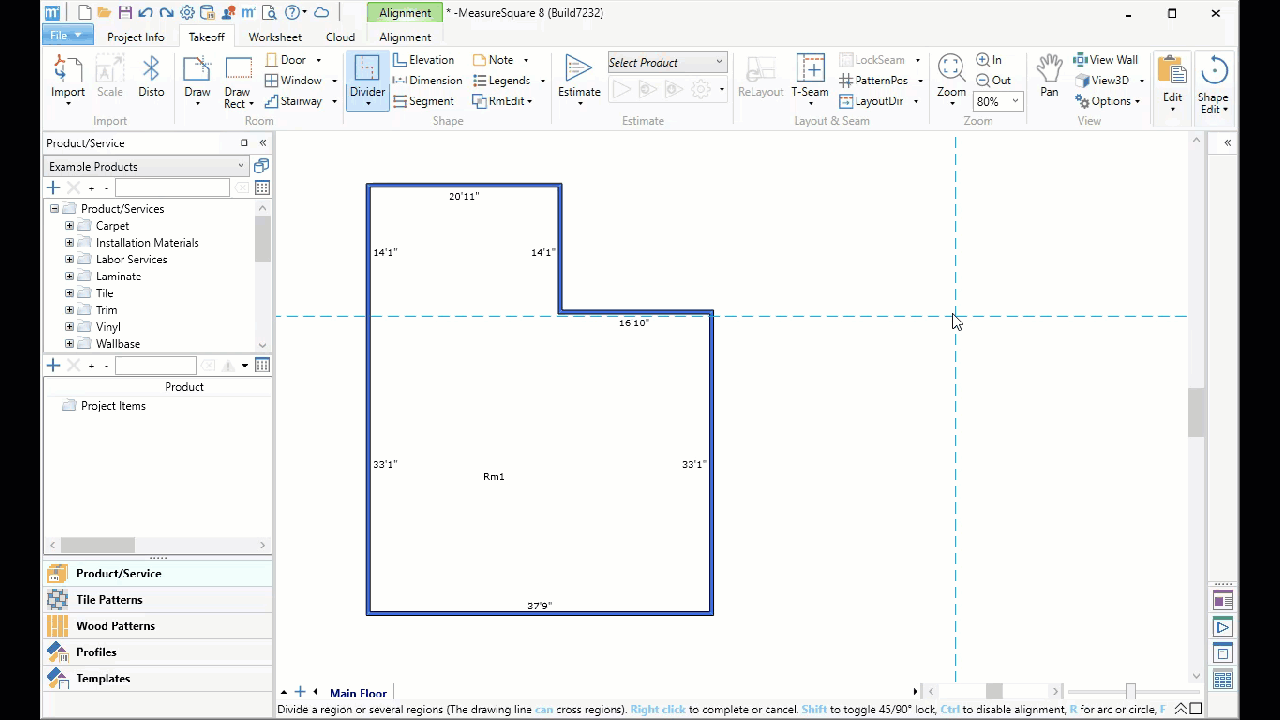

Step 3: Just like using the 'Draw' tool, select the correct location that you would like to draw and connect to the opposite wall that will be divided out.

Step 4: Once completed with drawing out the areas you can right click for the tool to close out as well.

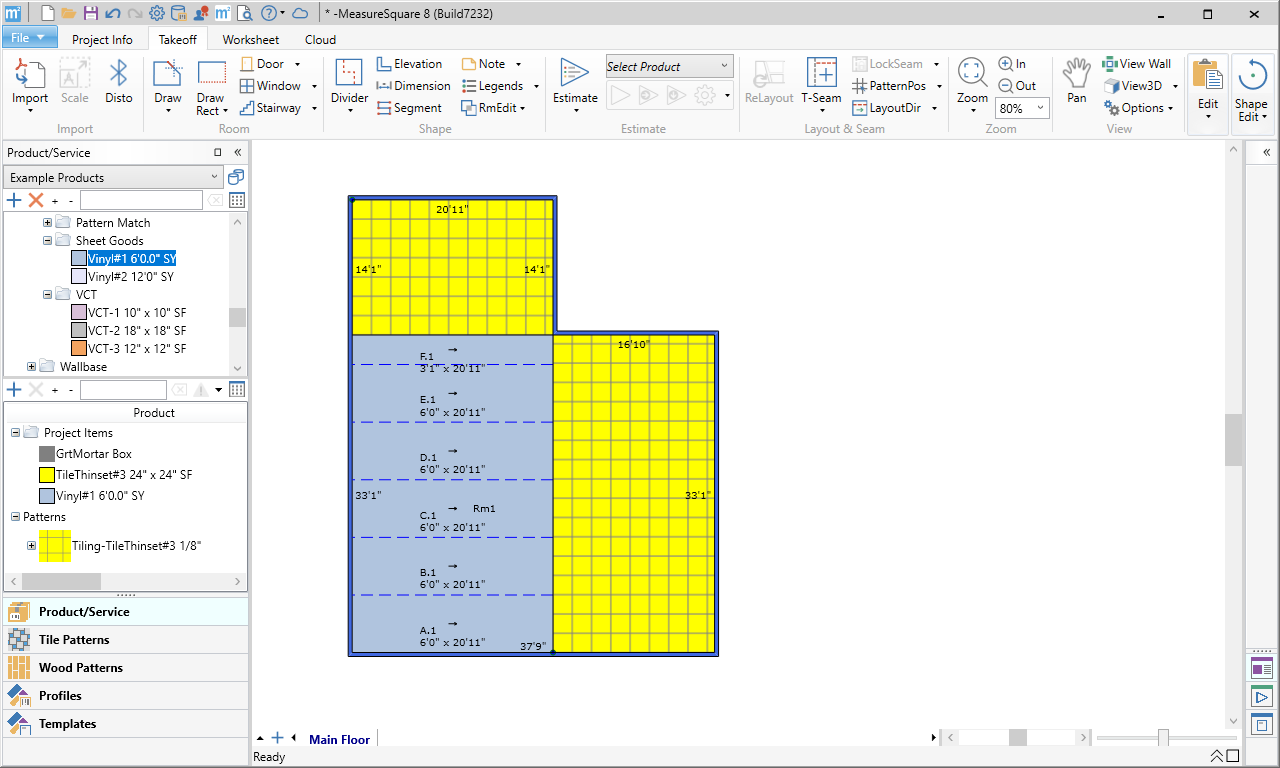

Step 5: After you are done you then can apply products to the their correct locations.

This video follows the same steps as above.
