Creating a 3D Snapshot in MeasureSquare Stone

This article will provide a guide on how to create a 3D snapshot into Shop Drawing.

Before shooting a 3D snapshot of the slab, a KB article will be provided on how to display an Image of your Slab (Cut to Size product): How to Display an Image of the Slab in MeasureSquare Stone?

Shoot a 3D Snapshot inside the View3D tool

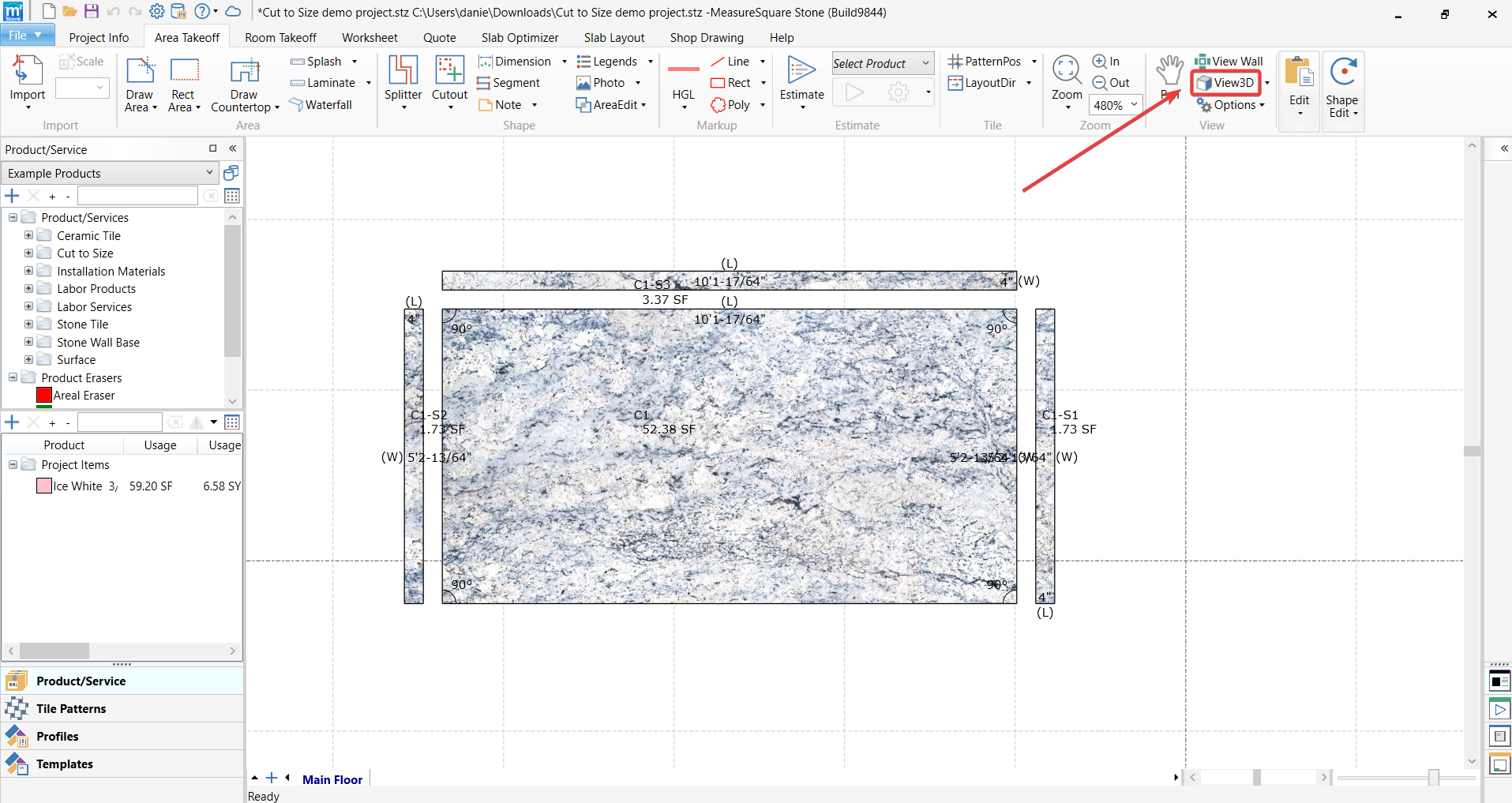

In the Area Takeoff tab, Click the View3D tool in the View Section in the Top Ribbon.

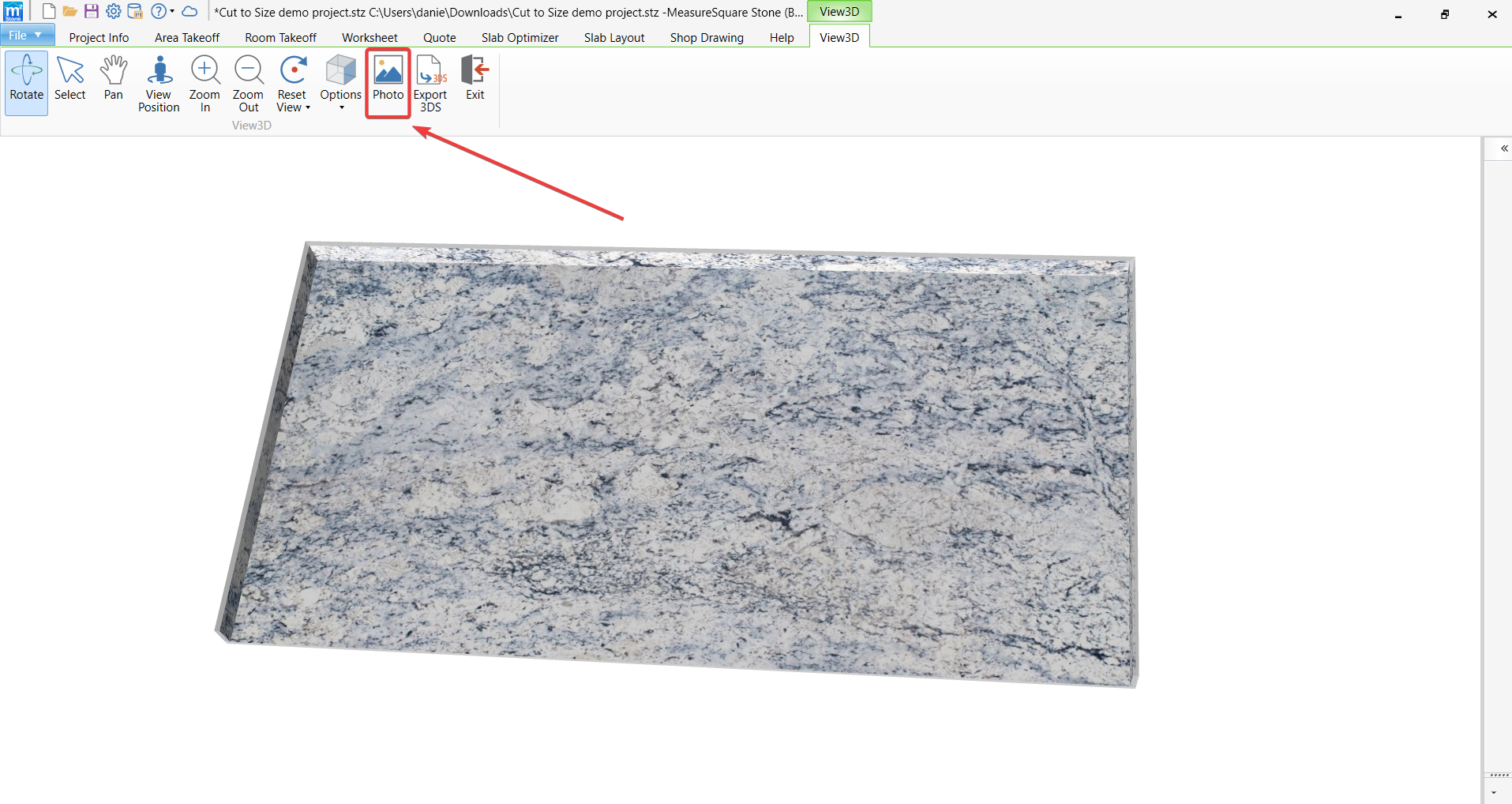

Inside the View3D tool, Click the Photo tool in the top menu to take the Snapshot of the Slab in 3D.

Notice that the Rotate tool is highlighted in blue in the top menu, click & hold the left click to rotate the Orientation of the Slab along with click & hold the scroll wheel to pan around.

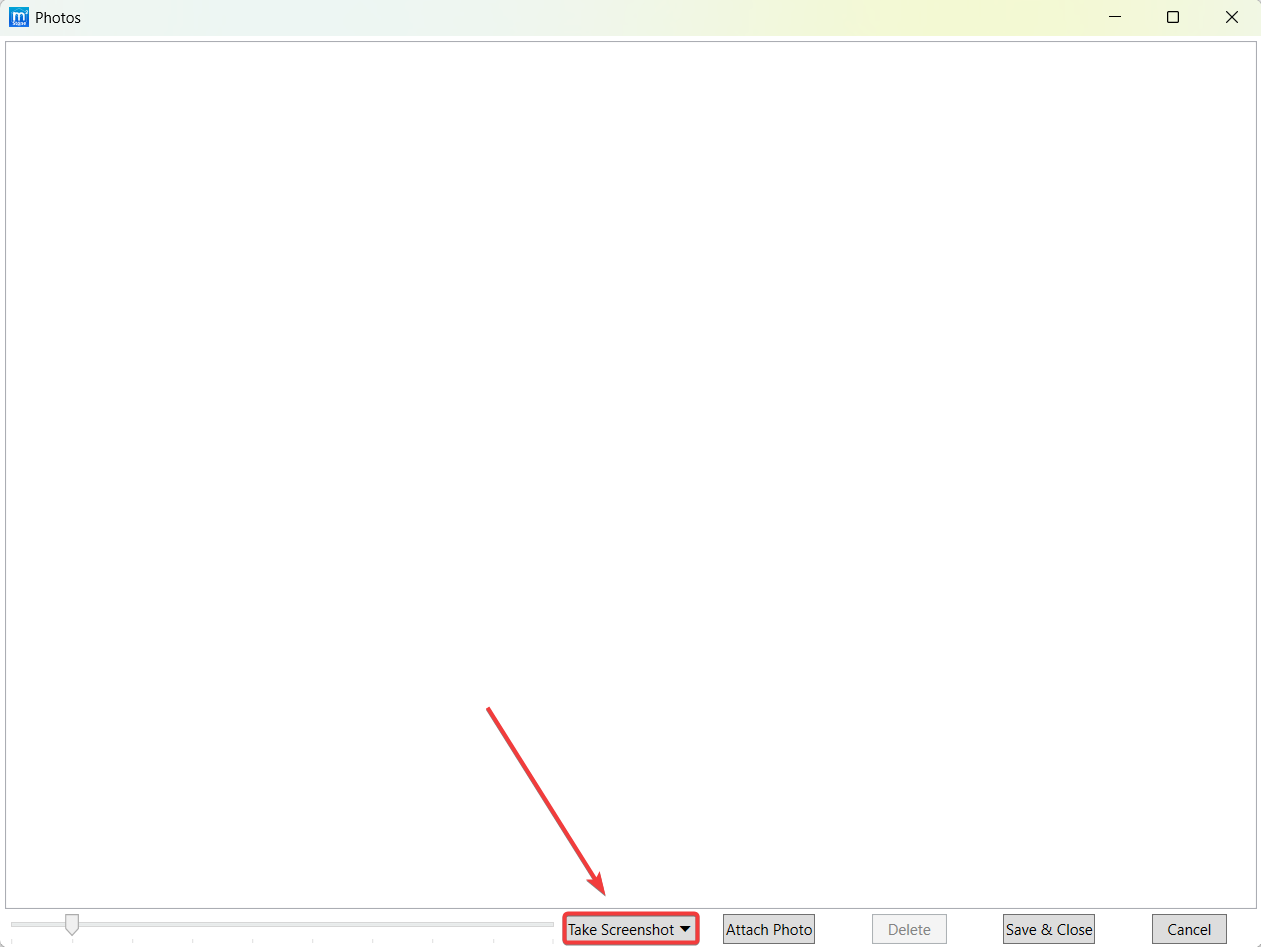

Afterwards, the Photos window will popup and click Take Screenshot tool to proceed taking a Snapshot of the 3D Slab.

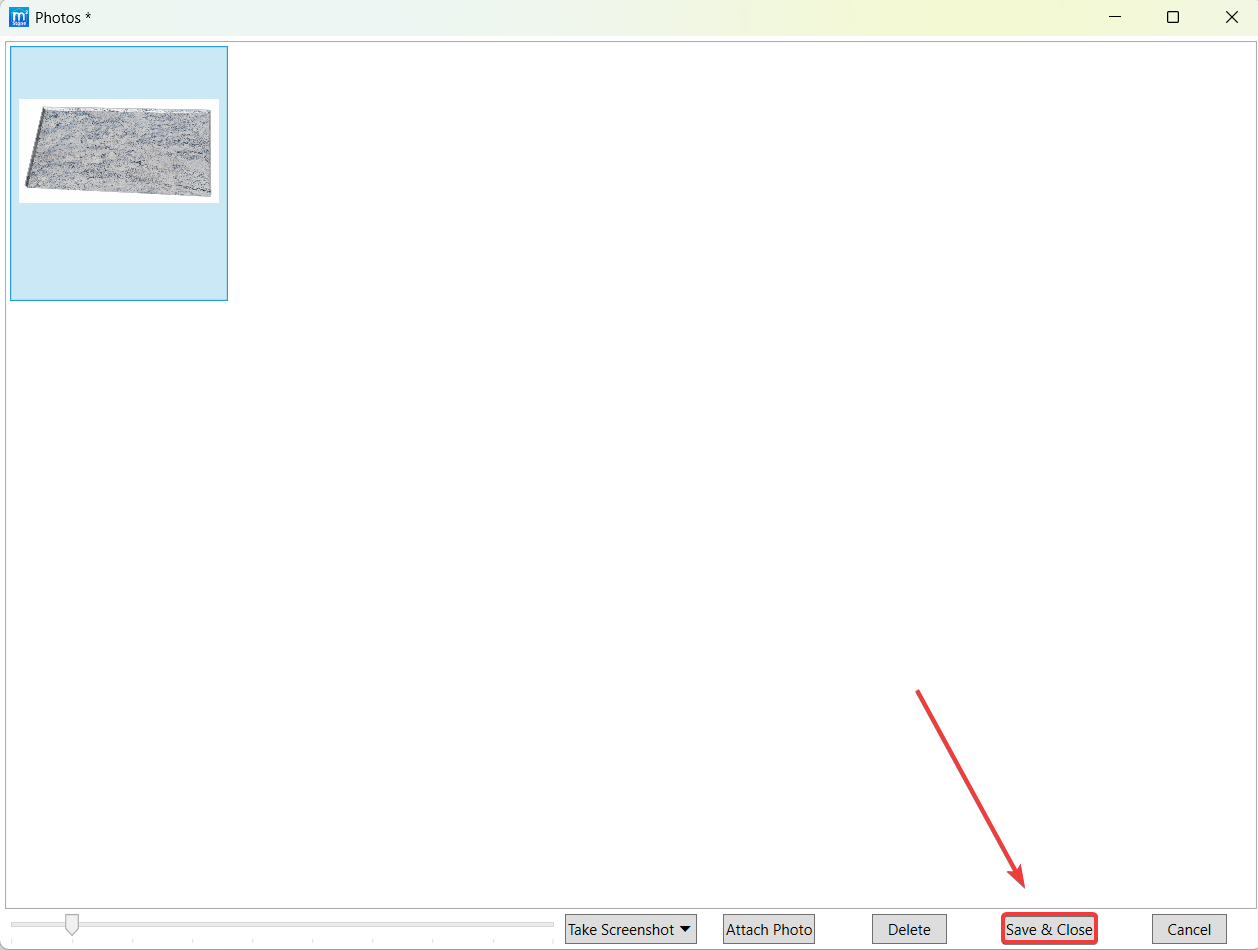

After taking a 3D Snapshot of your Slab, the Snapshot will be stored inside the Photos' Storage and Click Save & Close to ensure saved photo.

If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 ext. 3 or email support@measuresquare.com.
