Bringing a 3D Snapshot to Shop Drawing in MeasureSquare Stone
This article will provide a guide on how to bring 3D Snapshot from View3D to Shop Drawing.
Before bringing a 3D Snapshot of the Slab to Shop Drawing, a KB article will be provided on how to Create a 3D Snapshot of the Slab: Creating a 3D Snapshot in MeasureSquare Stone
Bring a 3D Snapshot to Shop Drawing

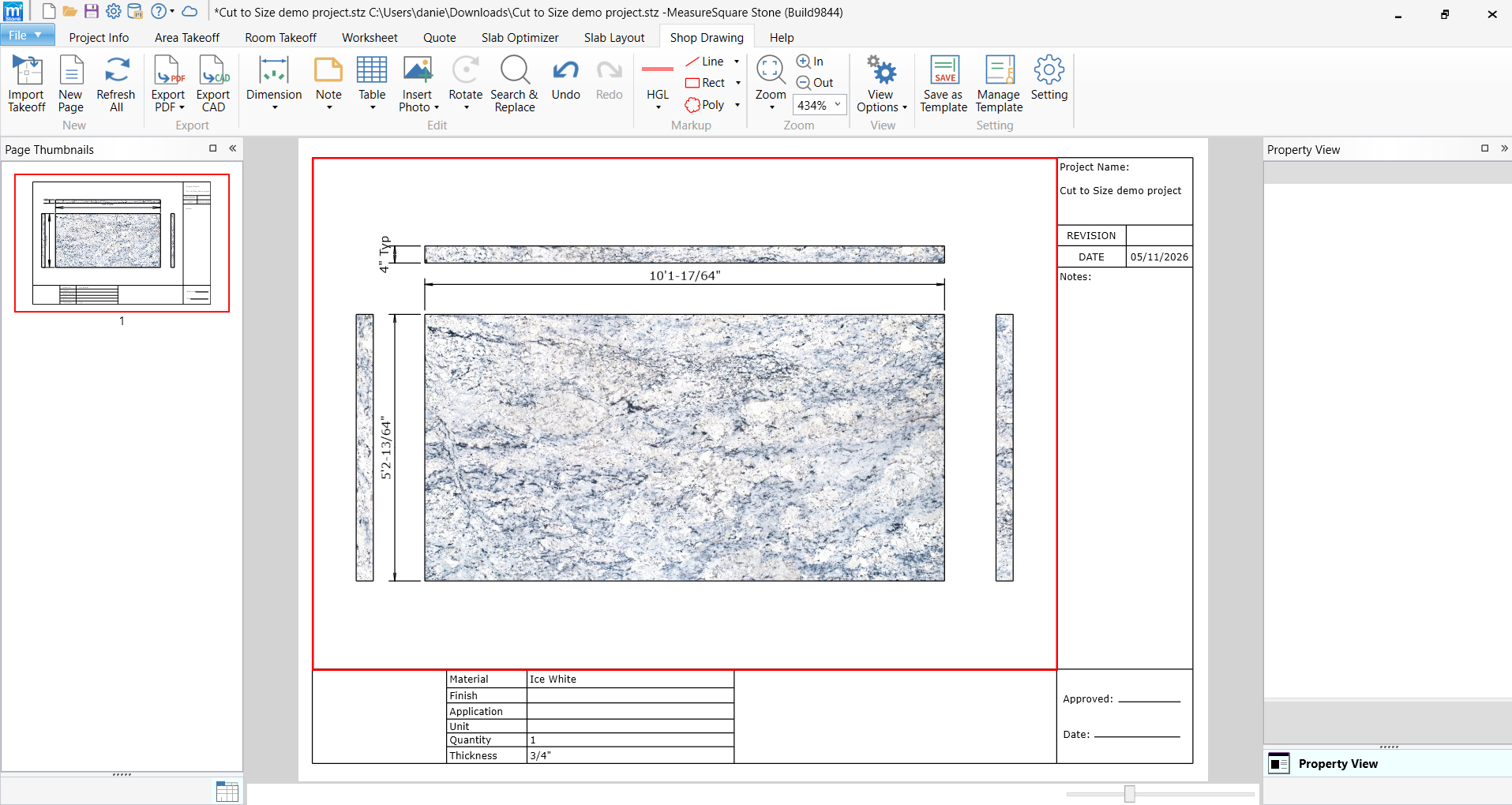

Inside Shop Drawing, Click the Slab Image table in the Shop Drawing Template, ensure that the table border is highlighted in red to use the scroll wheel to increase the size of slab image and highlight the entire slab/splash/laminate to move it around to it's desired spot.

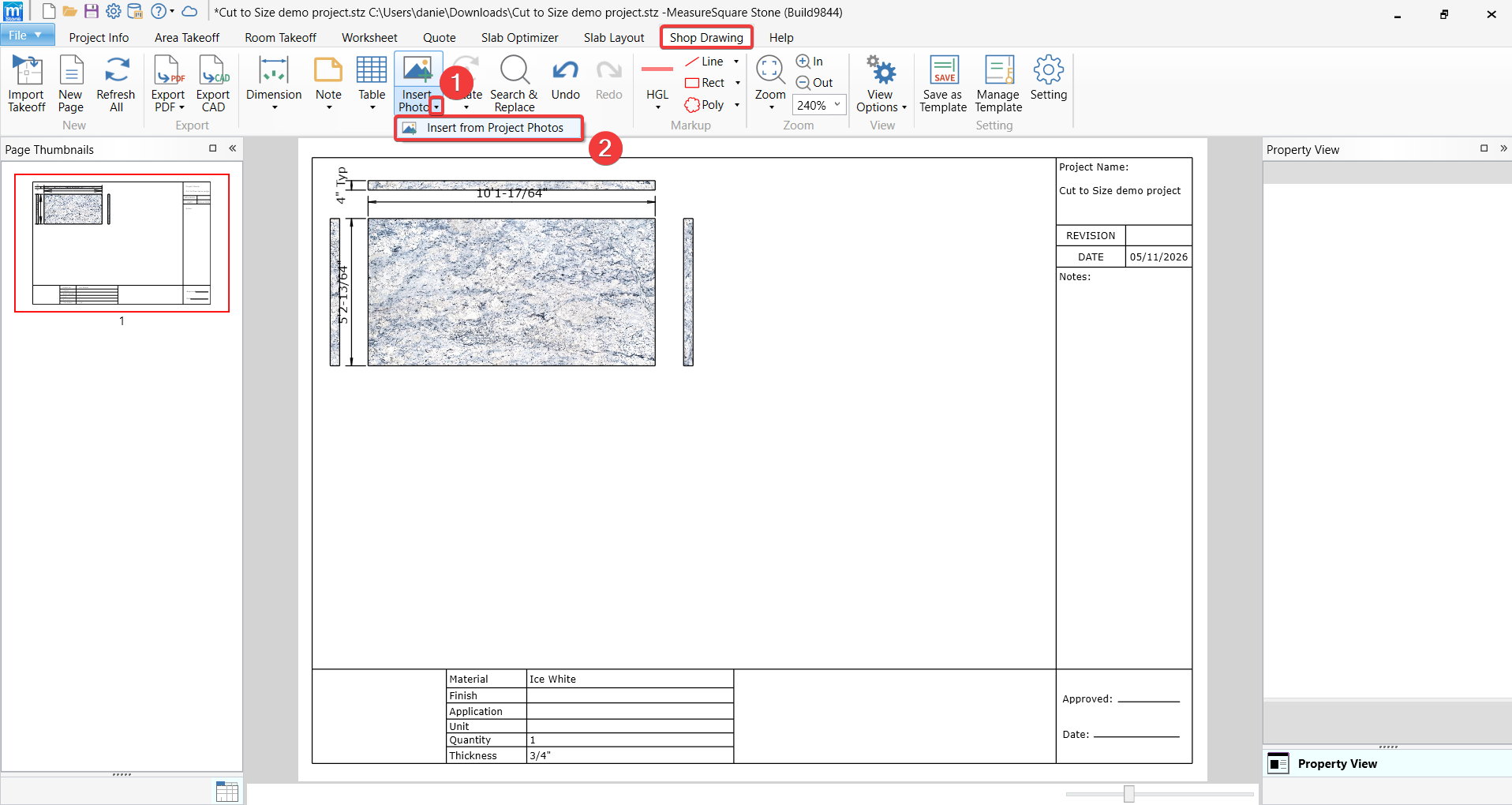

In the Insert Photo dropdown menu (1), Click Insert from Project Photos (2).

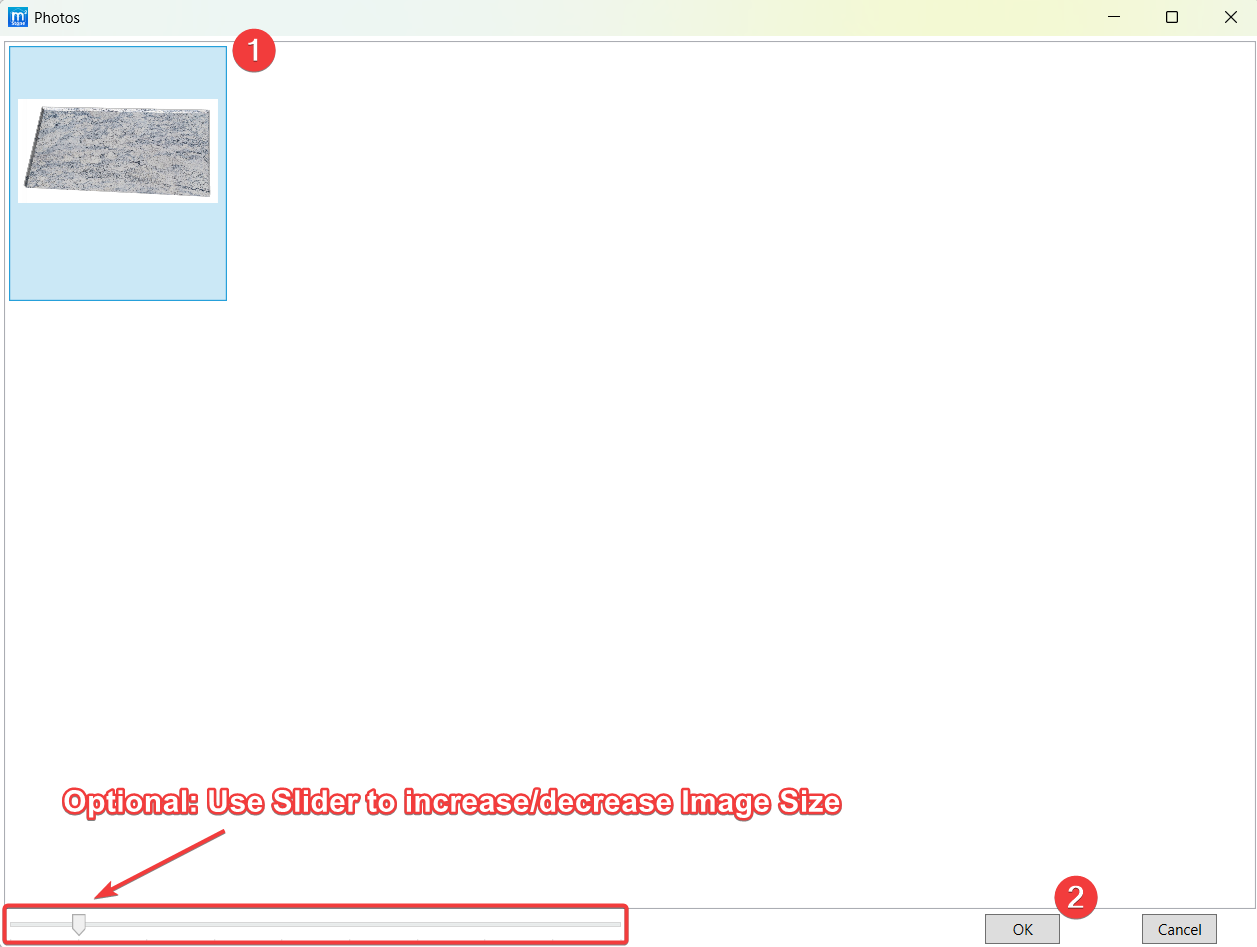

In the Photos window, click on the 3D Snapshot of the Slab (1), make sure the snapshot is highlighted in order to bring it over to the Shop Drawing by clicking OK (2).

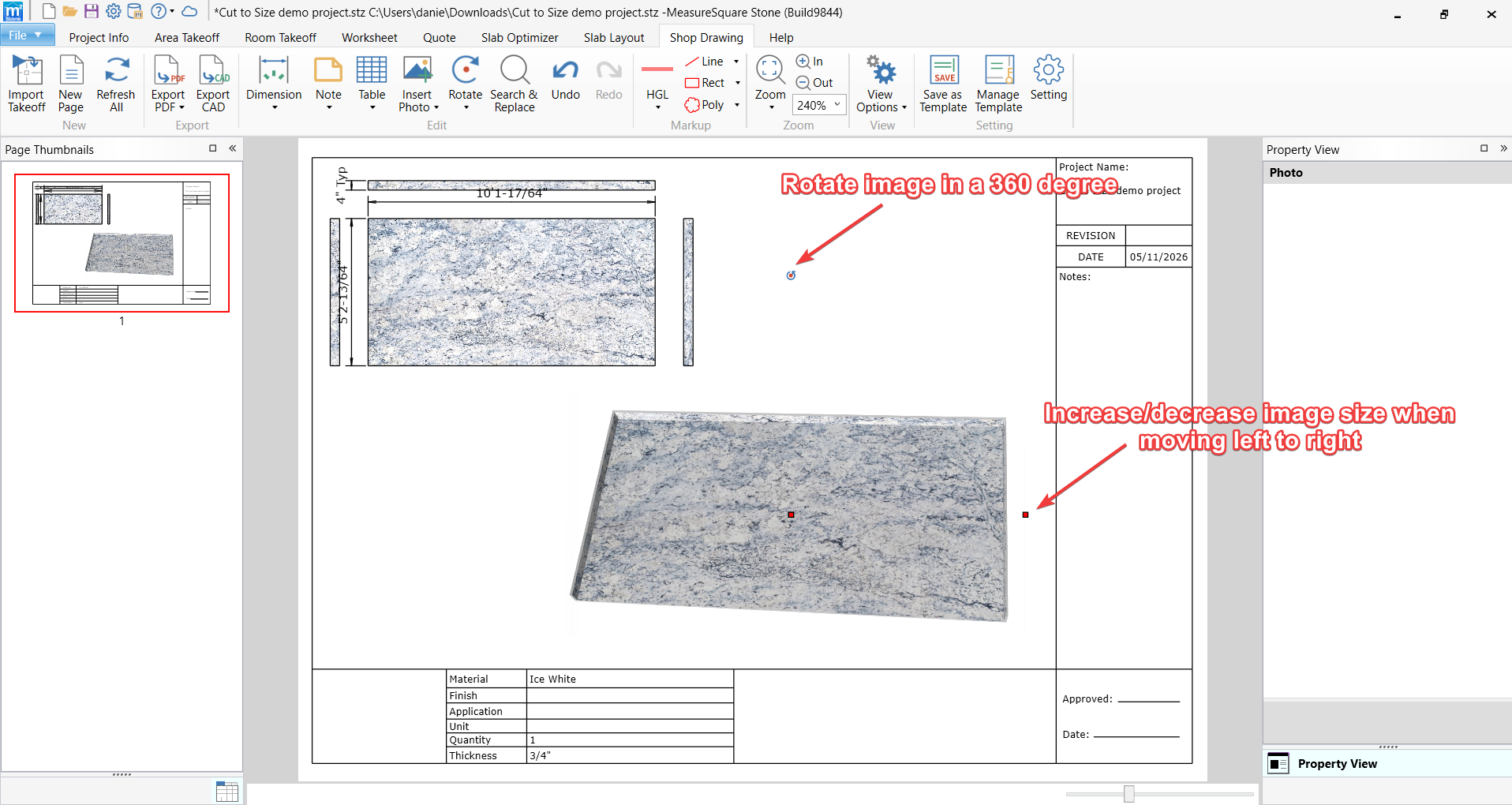

The 3D Snapshot of the Slab will show up in the Shop Drawing.
If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 ext. 3 or email support@measuresquare.com.
