What to Do If the Tile Pattern Doesn't Show on the Print Report in MeasureSquare 8

This article explains what to do when the tile pattern does not appear on your print report in MeasureSquare 8. This usually happens because the pattern is too small to render at the selected paper size. Below are two ways to make the pattern visible.

Why the Tile Pattern Doesn't Show

The tile pattern is not showing because it is too small to render on the current paper size. Increasing the paper size gives the pattern enough space to display. If you prefer to share the pattern digitally, you can also generate a 3D rendering instead.

Option 1: Change the Paper Size

Go to File > Print to open the MeasureSquare Print window.
Select the Printers & Settings tab.

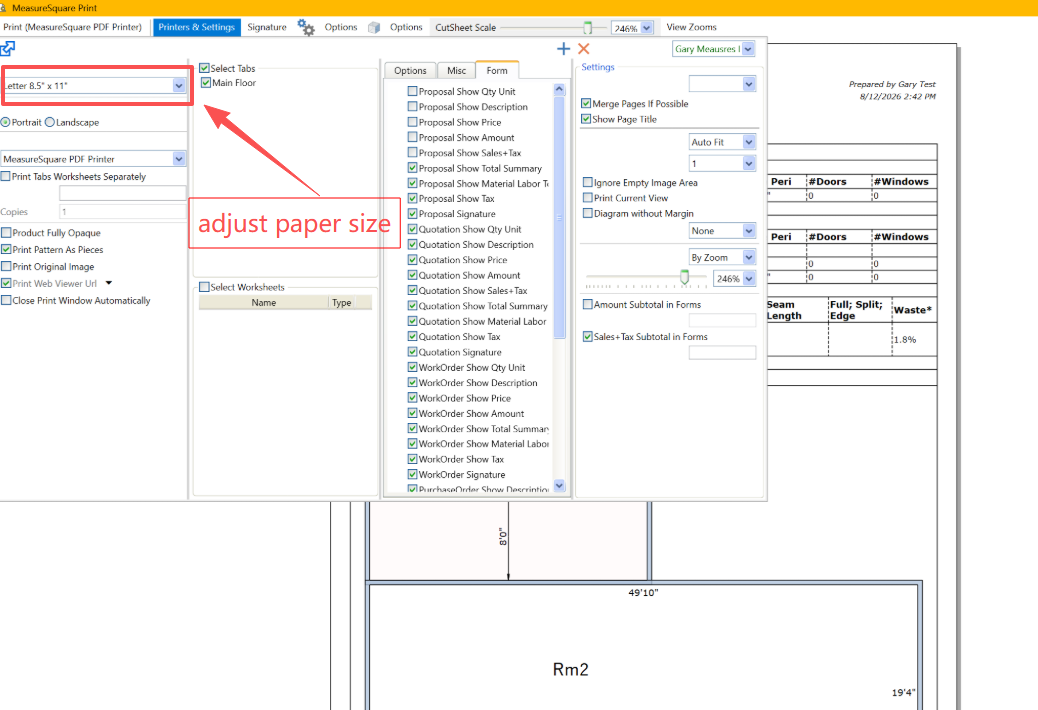

Open the Paper Size dropdown at the top left of the window (see Screenshot 1).

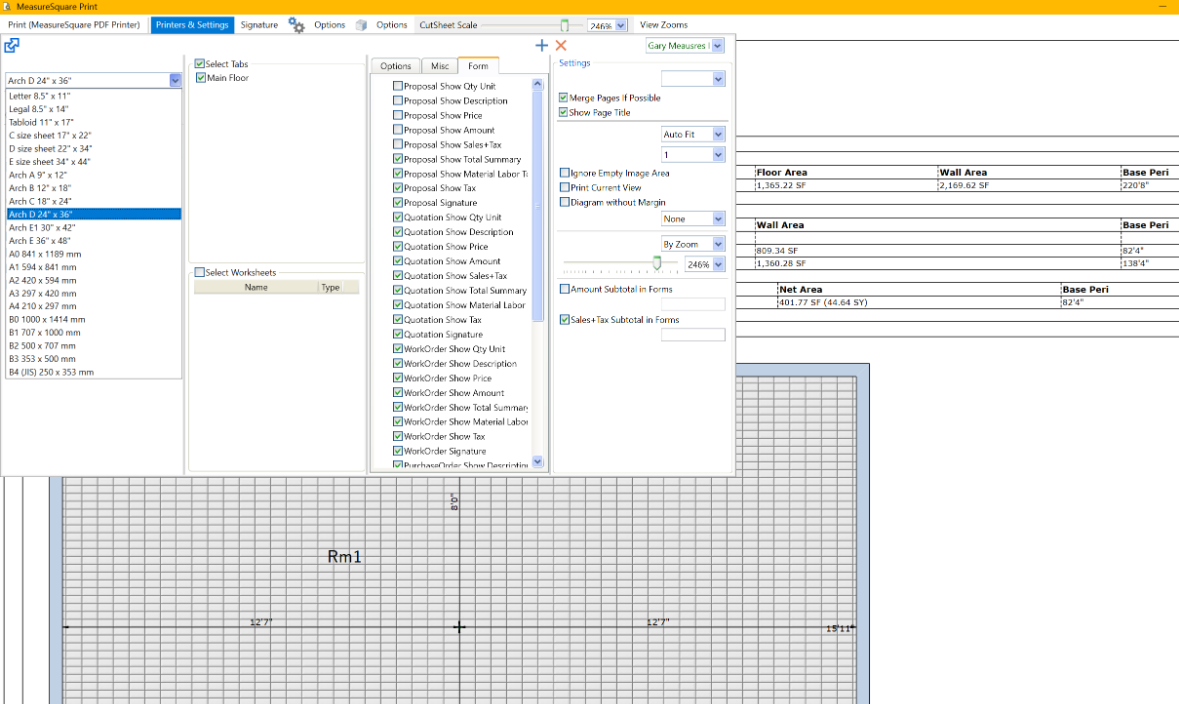

Select a larger paper size, such as Arch D (24" x 36").
Confirm the tile pattern now displays on the diagram (see Screenshot 2).

Tip: A larger paper size gives the pattern more room to render. If the pattern still does not appear, try an even larger size from the list.

Option 2: Share a 3D Rendering with a QR Code

If you would rather view or share the pattern digitally, generate a QR code that opens a 3D rendering of your floorplan.

For full instructions, see the related article:
How to Generate a QR Code for 3D Viewer of My Diagram Floorplans on MeasureSquare 8?

Note: If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 press 3 or email support@measuresquare.com.
