My plan is not displaying correctly in 3D View. How do I fix it?

This article will cover some steps to resolve an incomplete 3d view display error.

Method 1: Switch Graphics Performance options.

1. Go to your Start Menu.

2: Type Settings and open the Settings app.

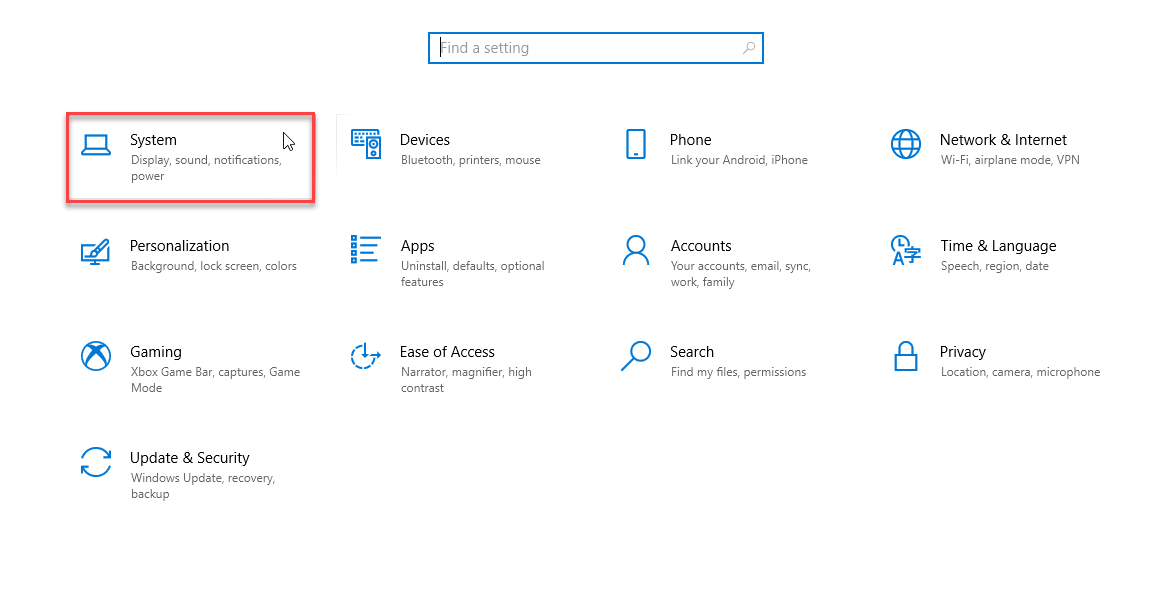

3: Select  System Settings followed by Display.

4. Select Graphics Settings

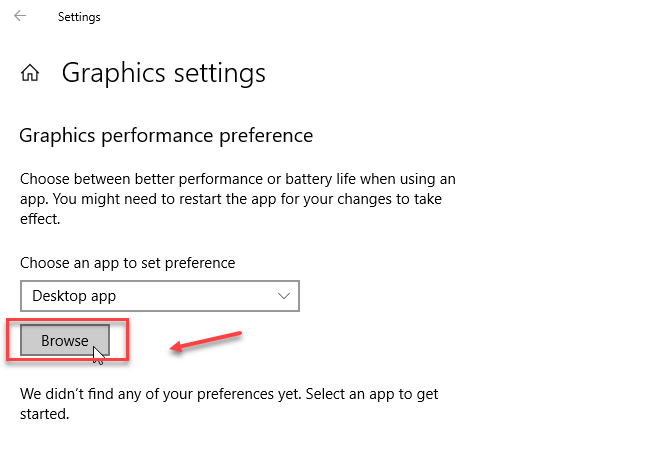

5. Make sure Desktop is selected under "Choose an app to set preference" Select Browse.

6. Find MeasureSquare on your system (Windows (C:)\Program Files (x86)\Measure Square Corp\ MeasureSquare.net\Measuresquare.exe). Select Options.

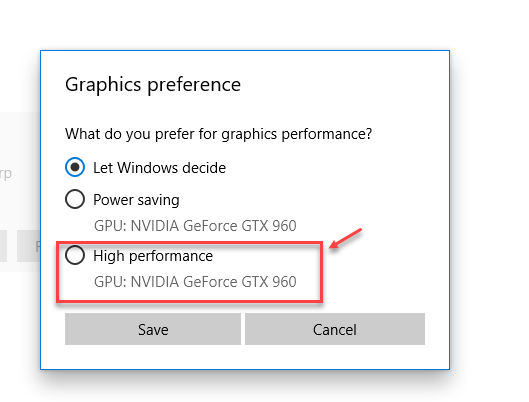

7. Switch Graphics Preference from "Let windows decide" to High Performance.

Method 2: Ensuring Windows is up to date.

Please note: This method is for Desktop users only.

Sometimes, 3D view may appear to glitch due to an outdated Windows Client.

1. Go to your Start Menu.

2. Type Settings and open the Settings app.

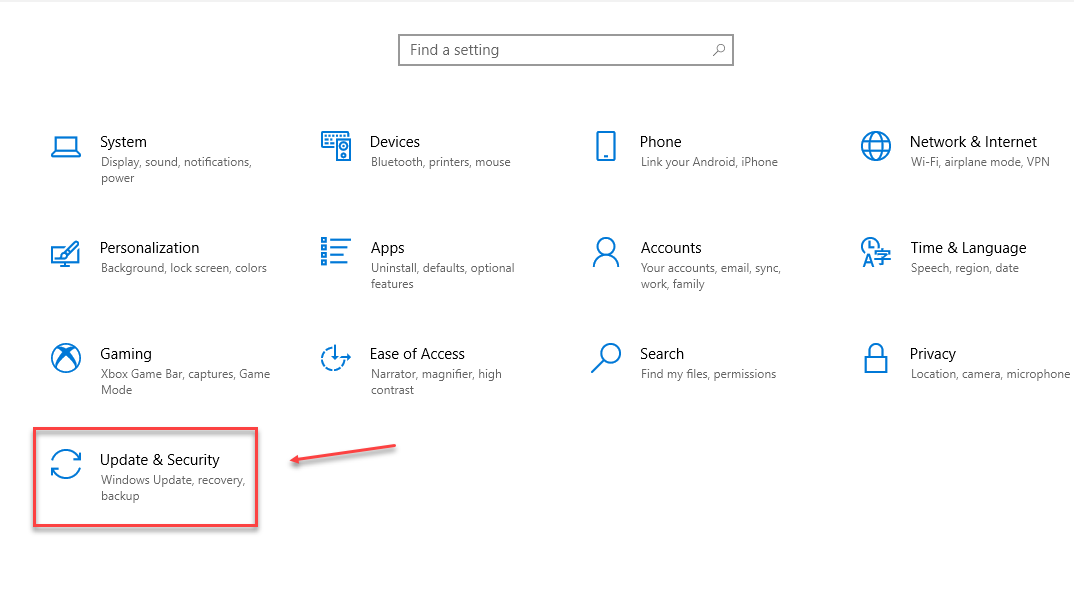

3. Select Update and Security.

Step Four : If it says updates are available, select Check For Updates and install any outstanding updates.

Method 3: Update Your Graphics Card and Drivers

1. Go to your Start Menu.

2. Type *Device Manager* and open it from the Start Menu.

3.  Find *Display adapters* and  expand to see the Device Driver.

right click and select Update Driver.

Method 4: No GPU mode

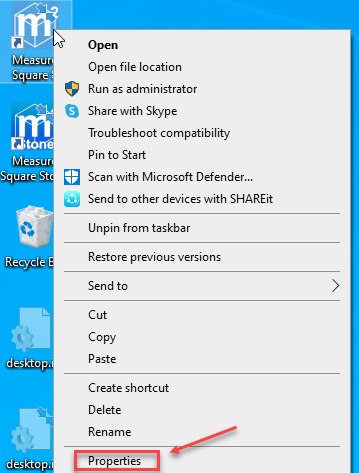

1. Click on the Measure Square shortcut on your desktop. Right click and select Properties.

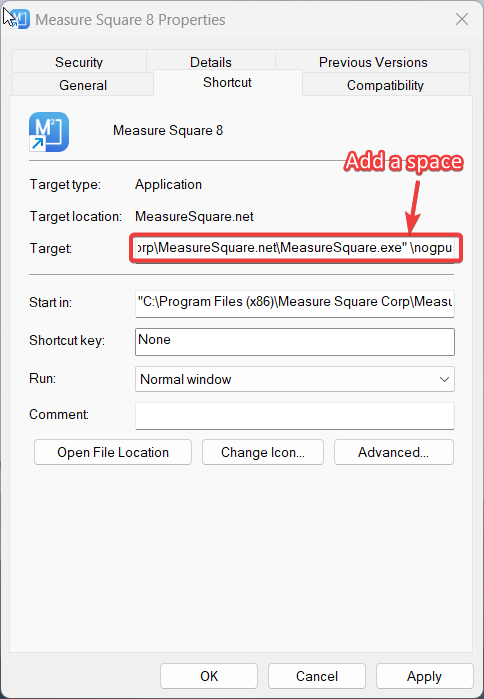

2. Type in \nogpu at the end of the Target extension.

There should be a space before \nogpu.  So the target extension should show \MeasureSquare.exe" \nogpu
