This article will show you how to access and toggle on/off View Options for Shop Drawings in MeasureSquare Stone.

View Options

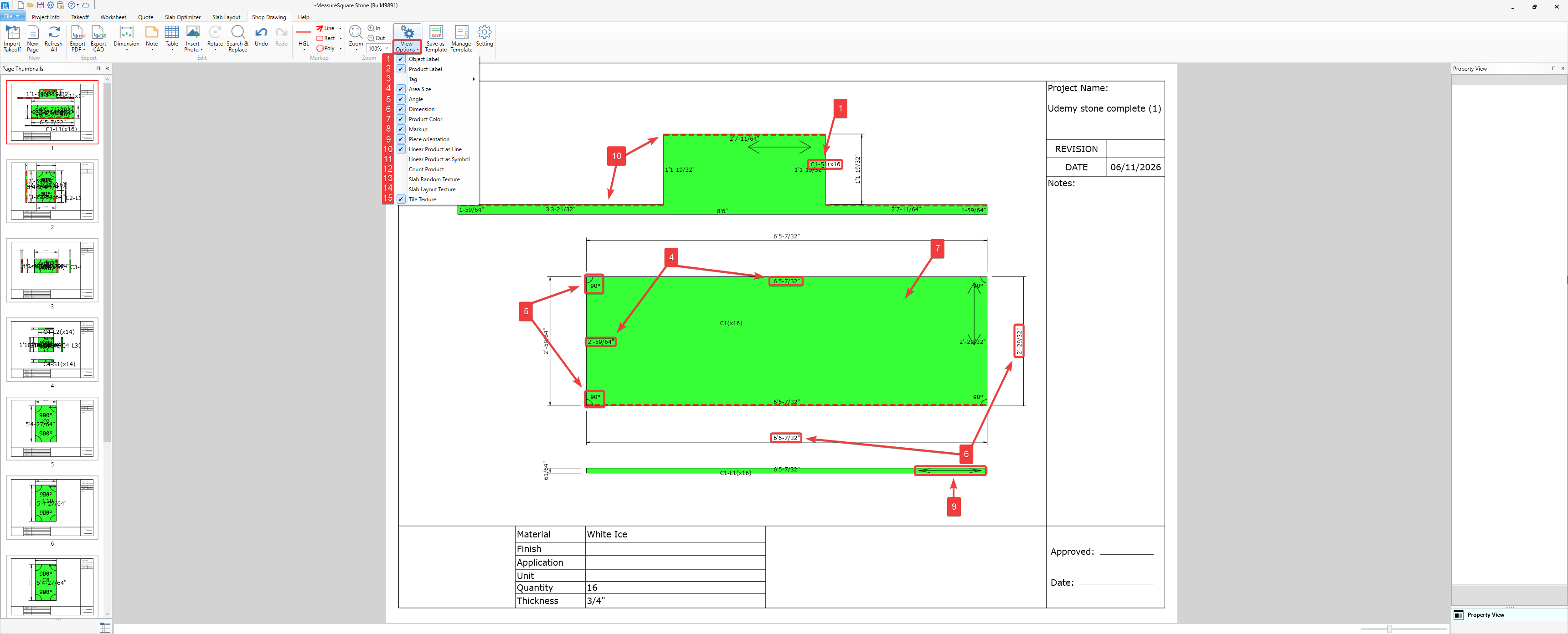

Click View Options. Each option can be toggled on or off by clicking on it.


Additional options

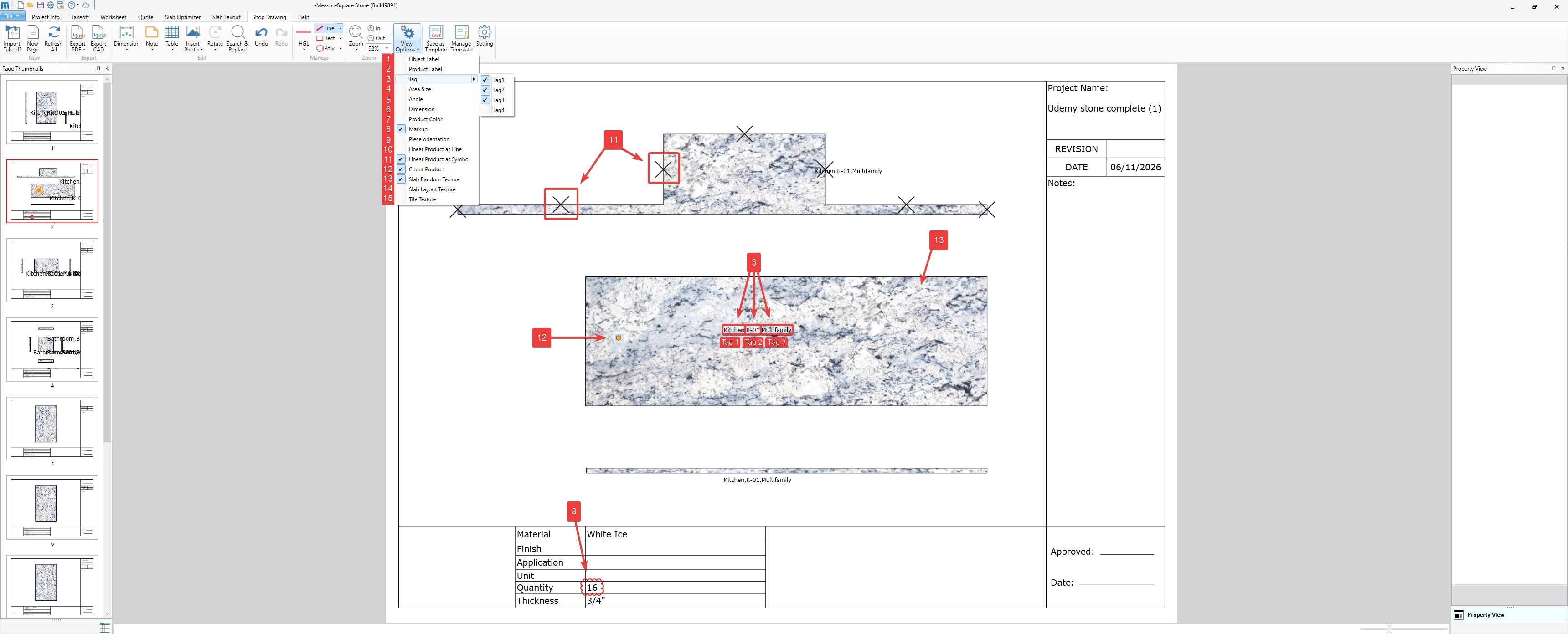

-Tags can be toggled on by hovering over Tags, then clicking each Tag you would like to display.
-Markups and count products can be toggled on or off
-Linear Product as Symbol will display linear products as symbols
-Slab Random Texture will display product texture
