How to use the Square Off Wedge Cuts option in MeasureSquare Mobile

This article will show you how to set up the Square Off Wedge Cuts option for your roll goods

This article applies to iPad iOS

You may want to use this option to increase your waste margin to handle more complex cuts on your roll goods.

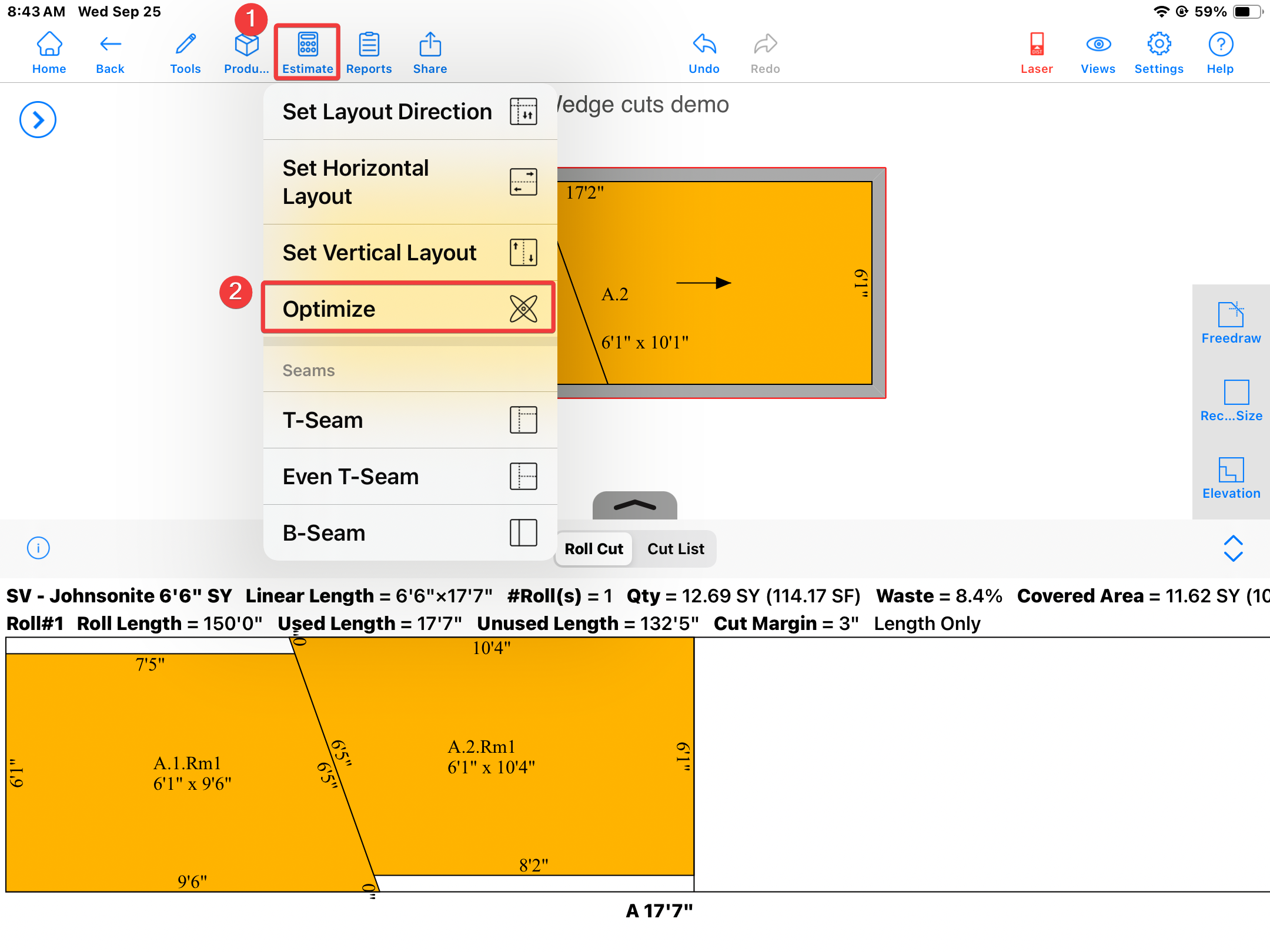

Step 1: Select the Estimate icon on the top bar, then select the Optimize option in the drop down.

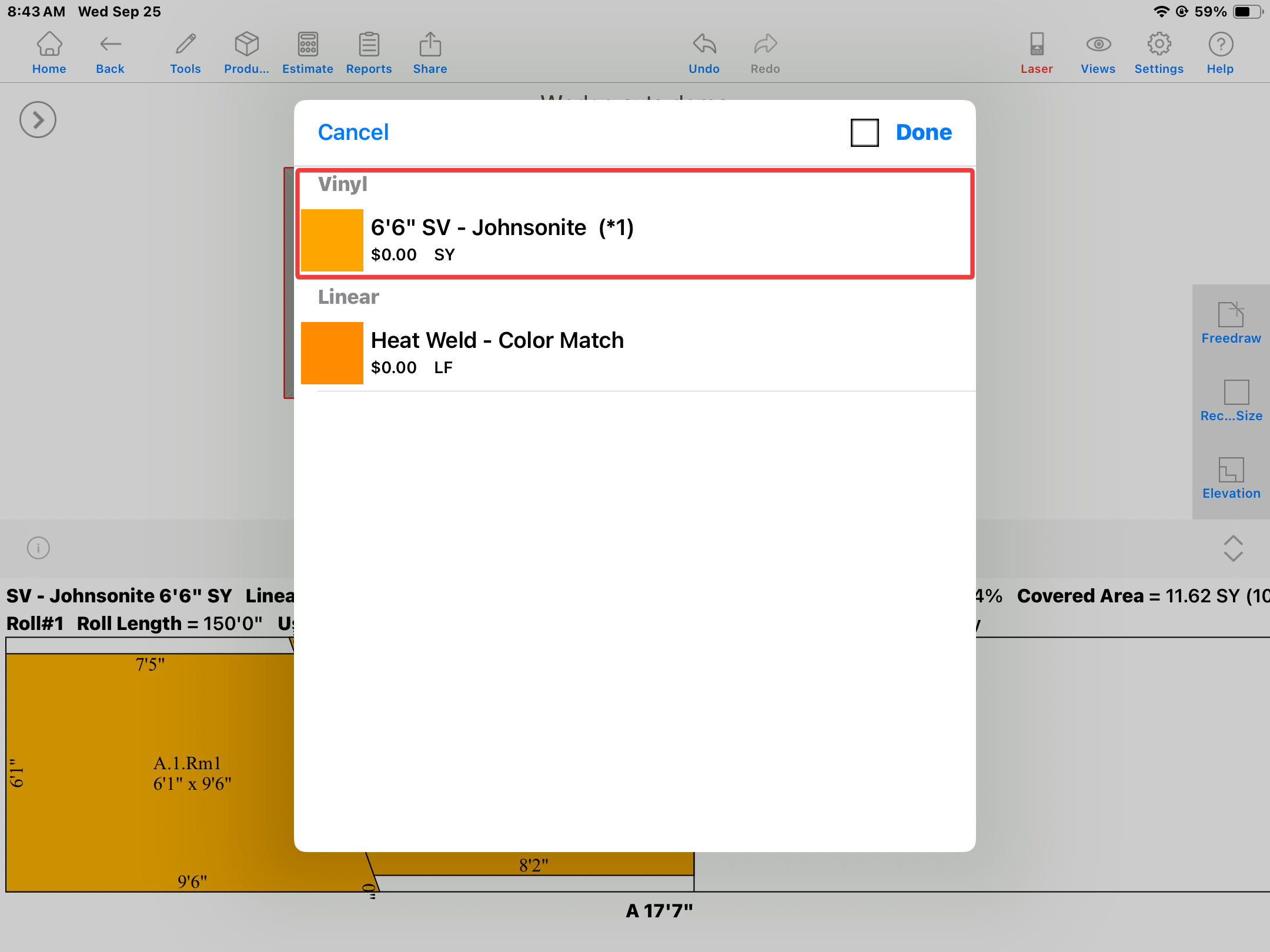

Step 2: Select the roll good product you want to apply this setting to.

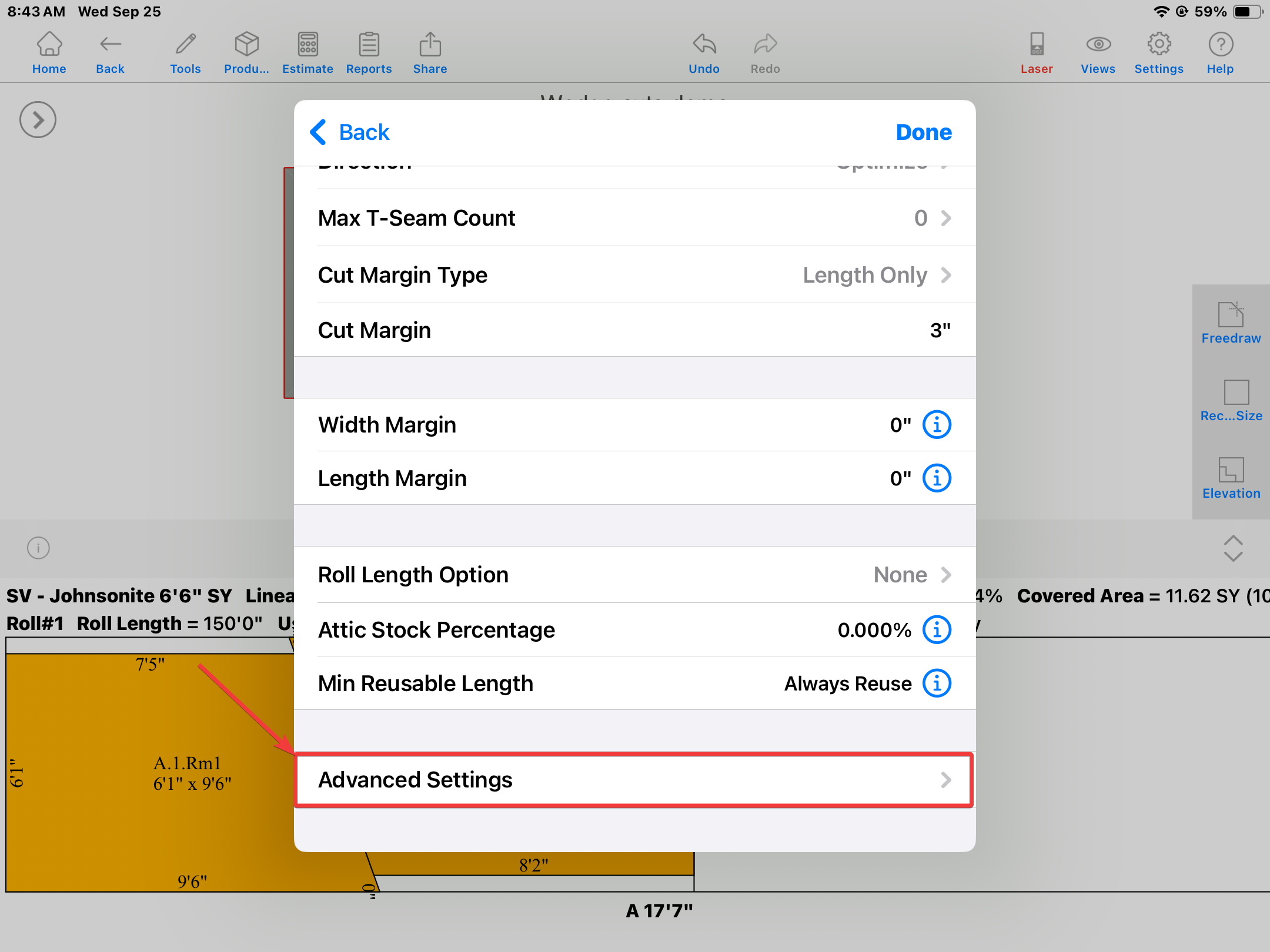

Step 3: Go to Advanced Settings

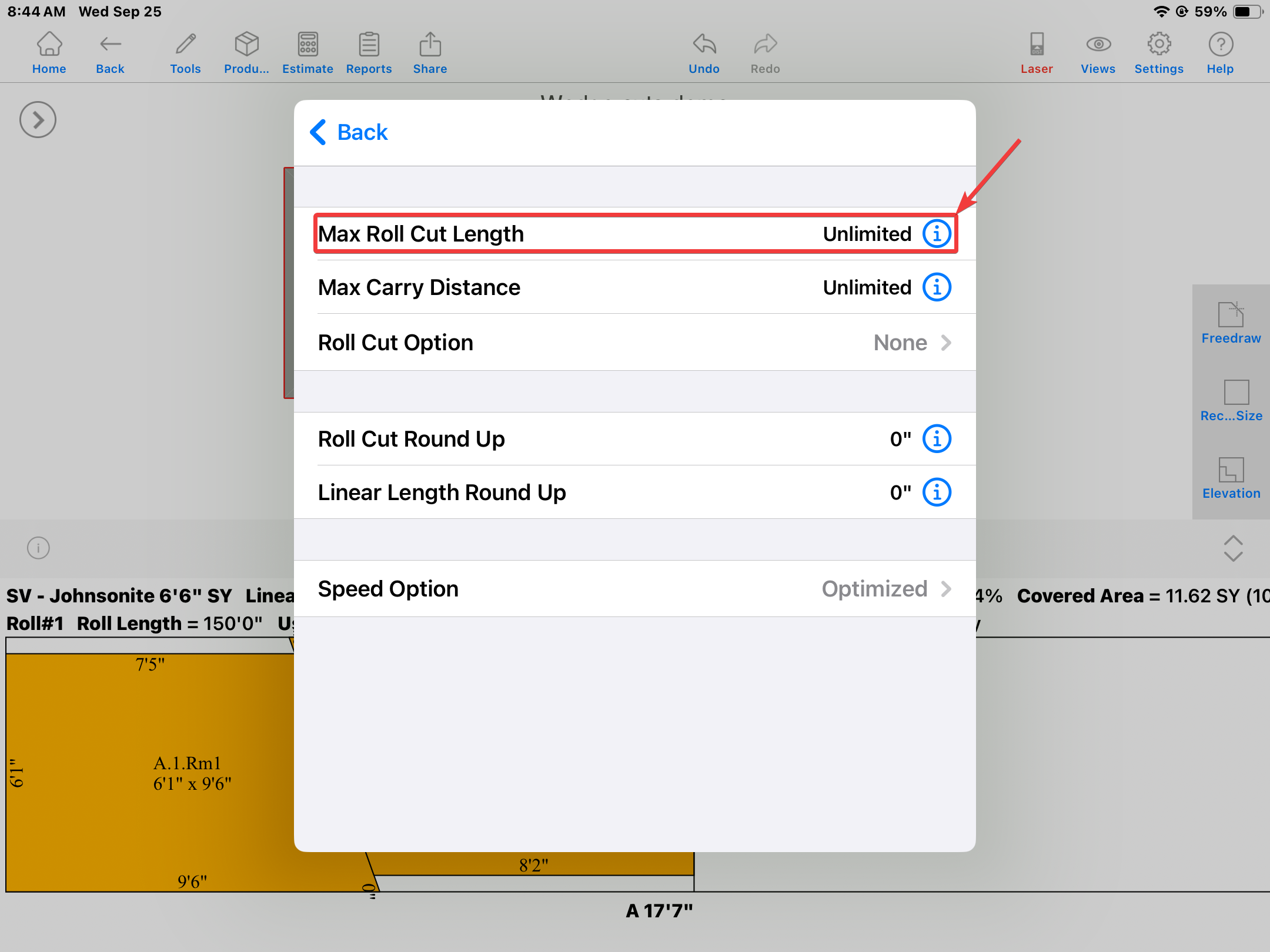

Step 4: Go to the Max Roll Cut Length option by selecting the "i" icon.

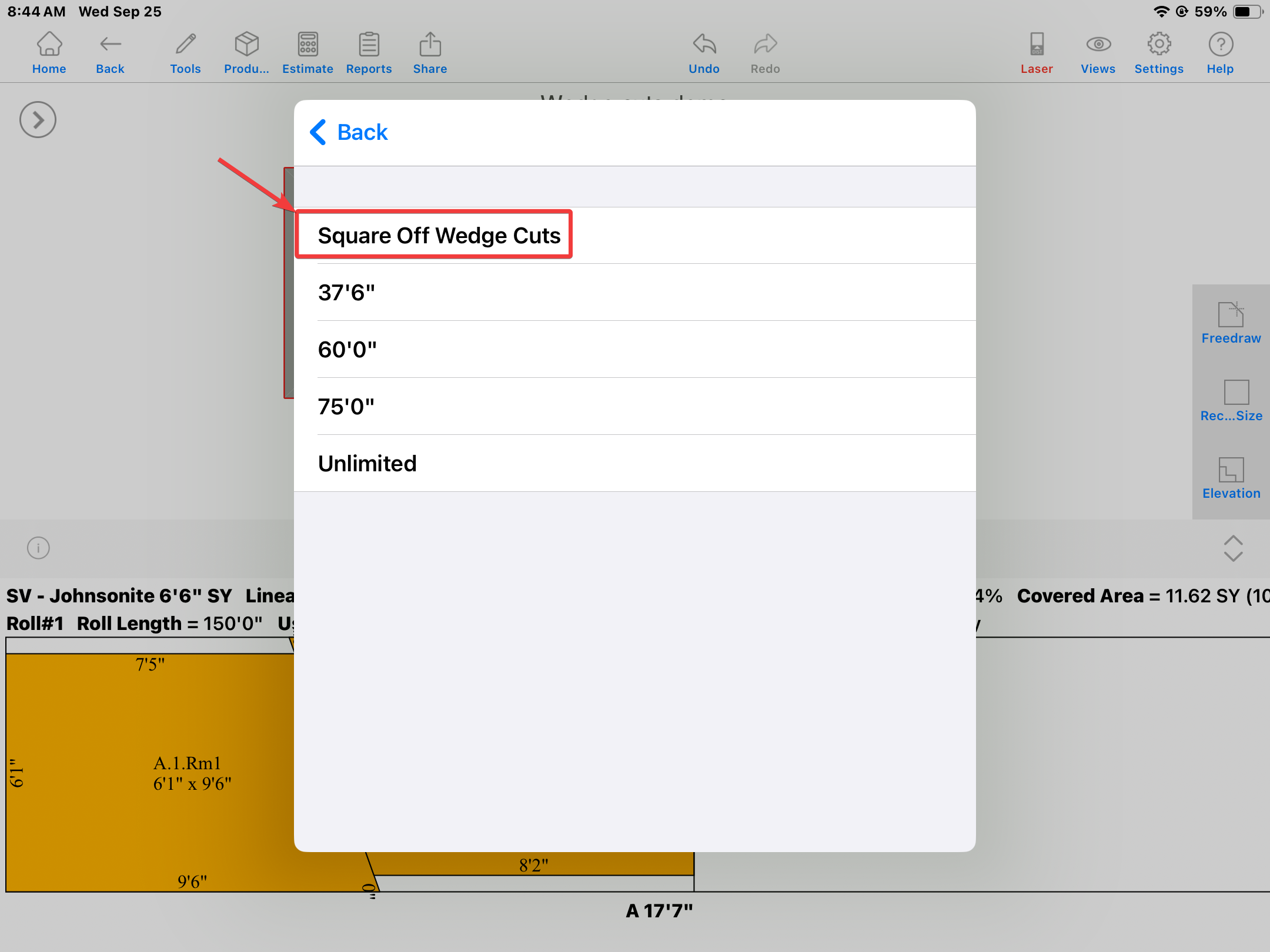

Step 5: Select the Square Off Wedge Cuts option.

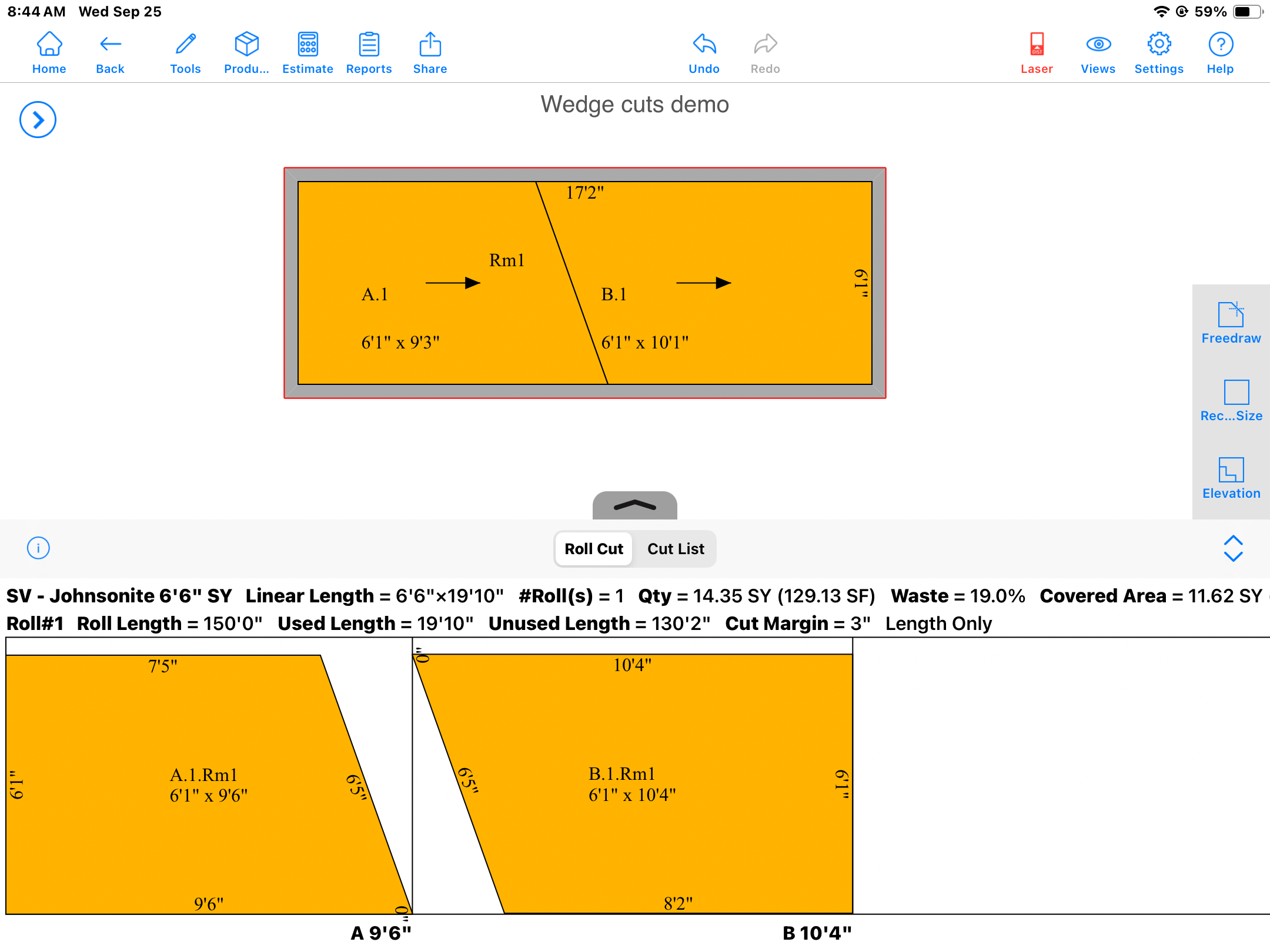

The cuts are now squared off and allocated to their own section of the roll.
