How to Use Set Arc in MeasureSquare Stone

How to Use Set Arc in MeasureSquare Stone

In this article, we will walk you through the Set Arc tool in MeasureSquare Stone. The Set Arc tool converts a straight edge of a countertop into a curved arc, which is useful for designing countertops with rounded edges, curved bar tops, or any non-rectangular edge profiles.

Set Arc (Freeform)

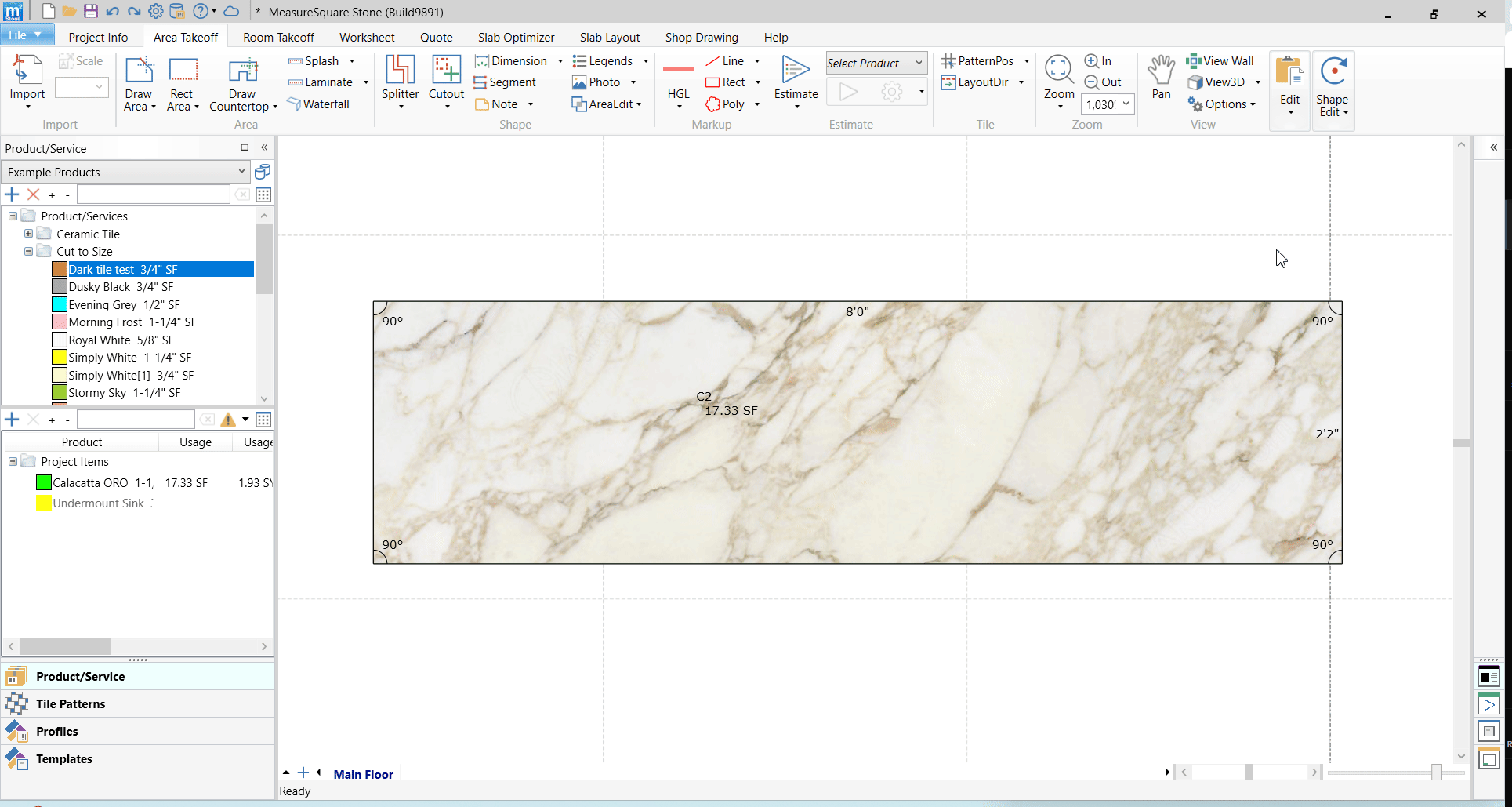

Step 1: Select a countertop area on the takeoff.
Step 2: Click the main Set Arc button (not the dropdown arrow) directly inside Shape Edit.
Step 3: Click on the straight edge you want to curve, then drag outward to shape the arc. A red arc line will appear showing the curve, with a green guide line displaying the arc dimension. Release to apply.



Set Arc By Radius

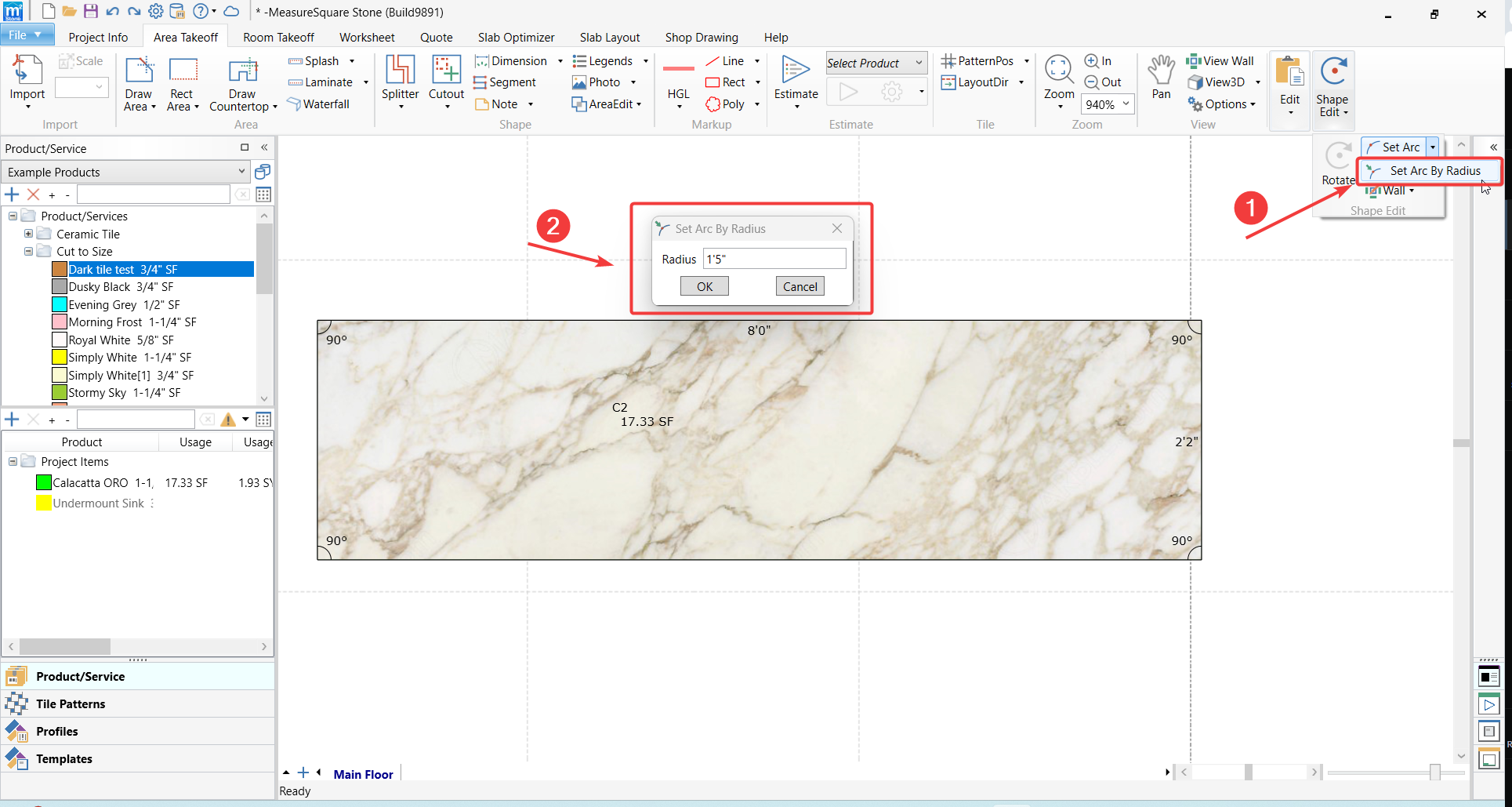

Step 1: Click the dropdown arrow next to the Set Arc button and select Set Arc By Radius.
Step 2: The Set Arc By Radius dialog will appear — enter a Radius value (e.g., 1'5") and click OK.

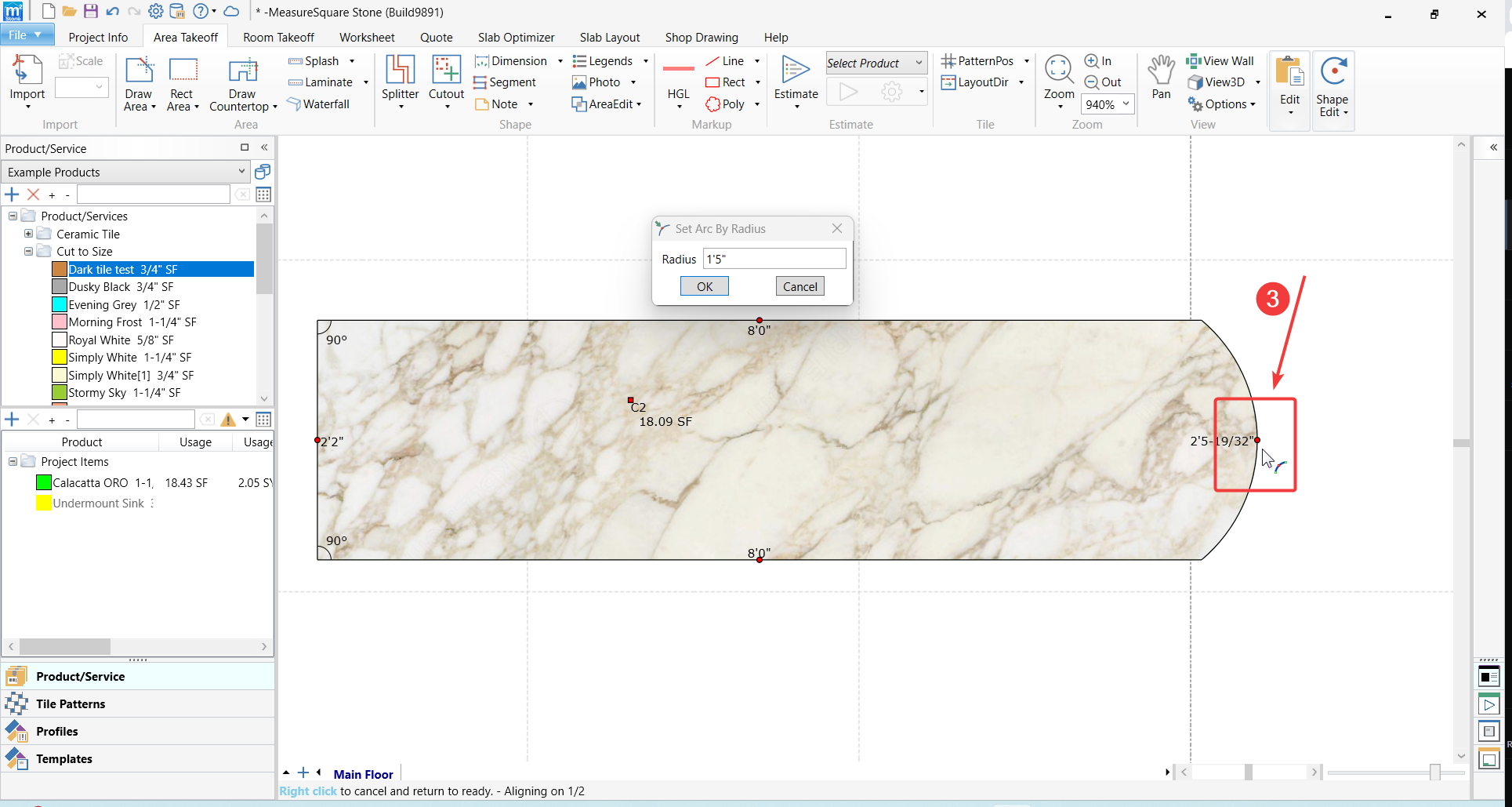

Step 3: Click on the handle or straight edge you want to curve. The edge will be converted into an arc with the exact radius you specified.



For any further questions, please reach out to our Support team
Monday – Friday from 7:30am–4:30pm PST: (626) 683-9188 ext. 3
