How to use MeasureSquare CRM's AI Plan Analyzer to extract information from your plans and finish schedules
This article will guide you through the process of using MeasureSquare CRM's AI Plan Analyzer to extract valuable information from your project plans and finish schedules. The AI Plan Analyzer automates the extraction of data such as room dimensions, finish types, and material specifications, streamlining your workflow and improving accuracy.
---
Steps to Use the AI Plan Analyzer

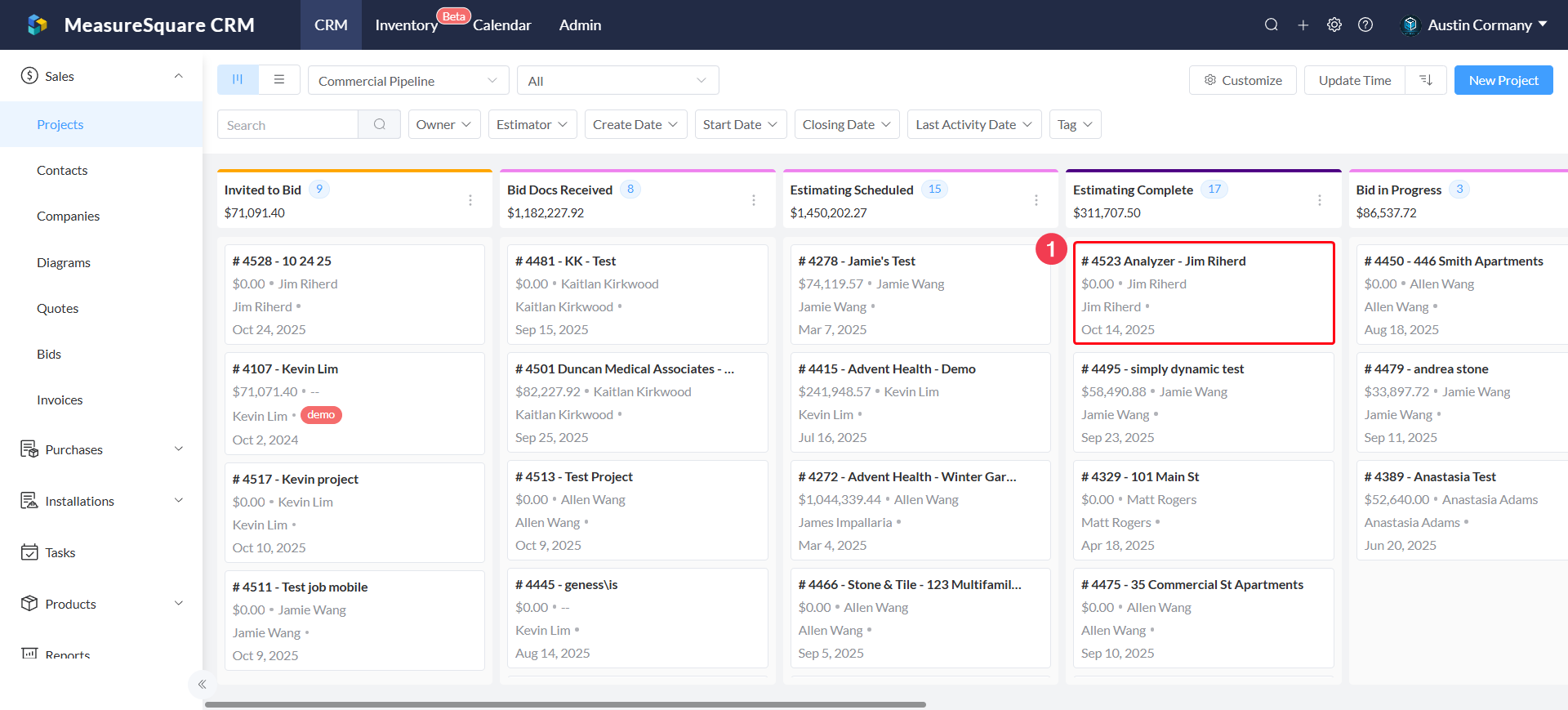

Step 1: Locate Your Project
1. Log in to MeasureSquare CRM.
2. Navigate to the Projects section from the left-hand menu.
3. Select or create your project to begin
---
Step 2: Upload Your Plans

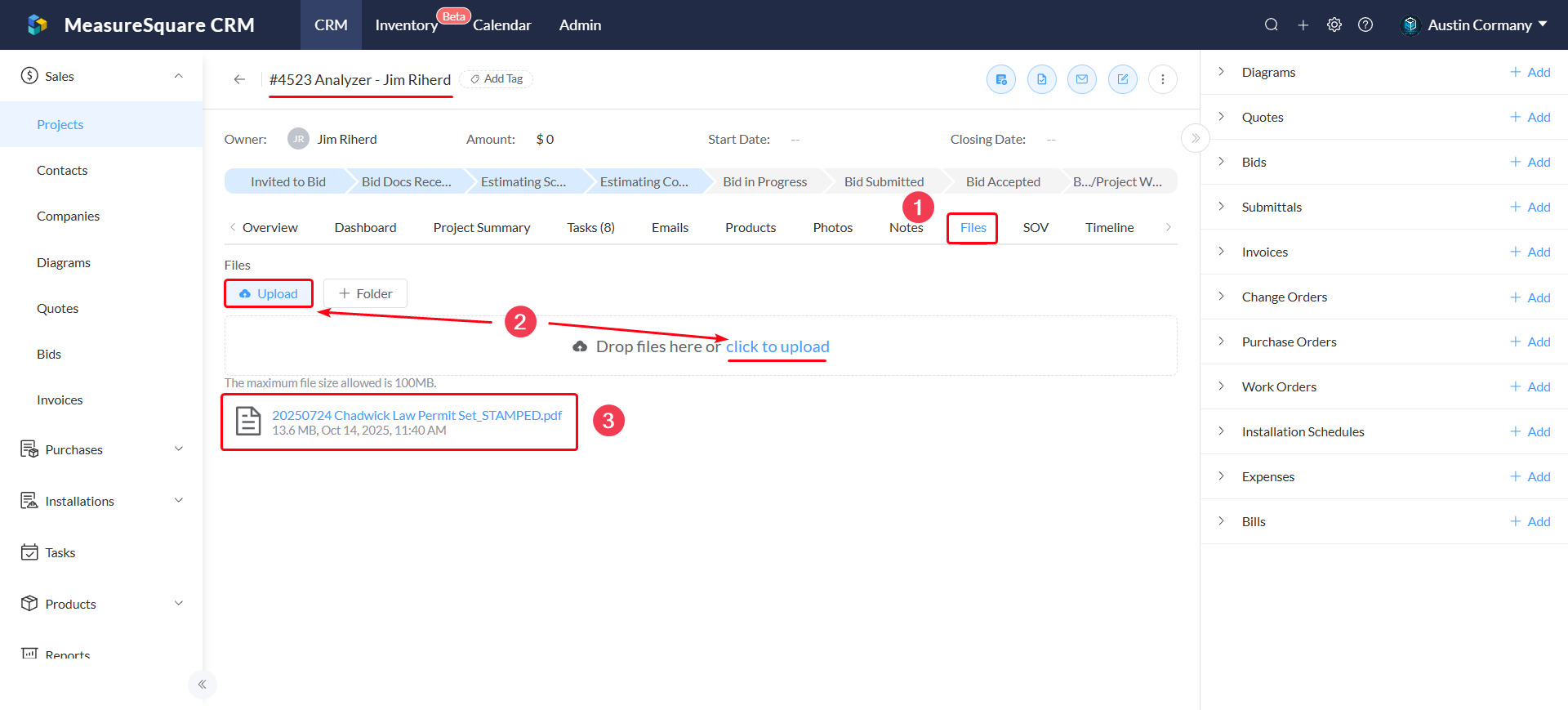

1. Click on the Files tab in the project view (highlighted in the screenshot).
2. Click Upload or drag and drop your plans/finish schedules into the upload area.
- Supported file formats include PDF, DWG, and JPEG.
3. Once uploaded, the file will appear in the Files section.
Step 3: Open the AI Plan Analyzer
1. Click on the uploaded file to open it in the AI Plan Analyzer.
2. The file will open in the analyzer interface, displaying the plan or finish schedule.
Step 4: Extract Information

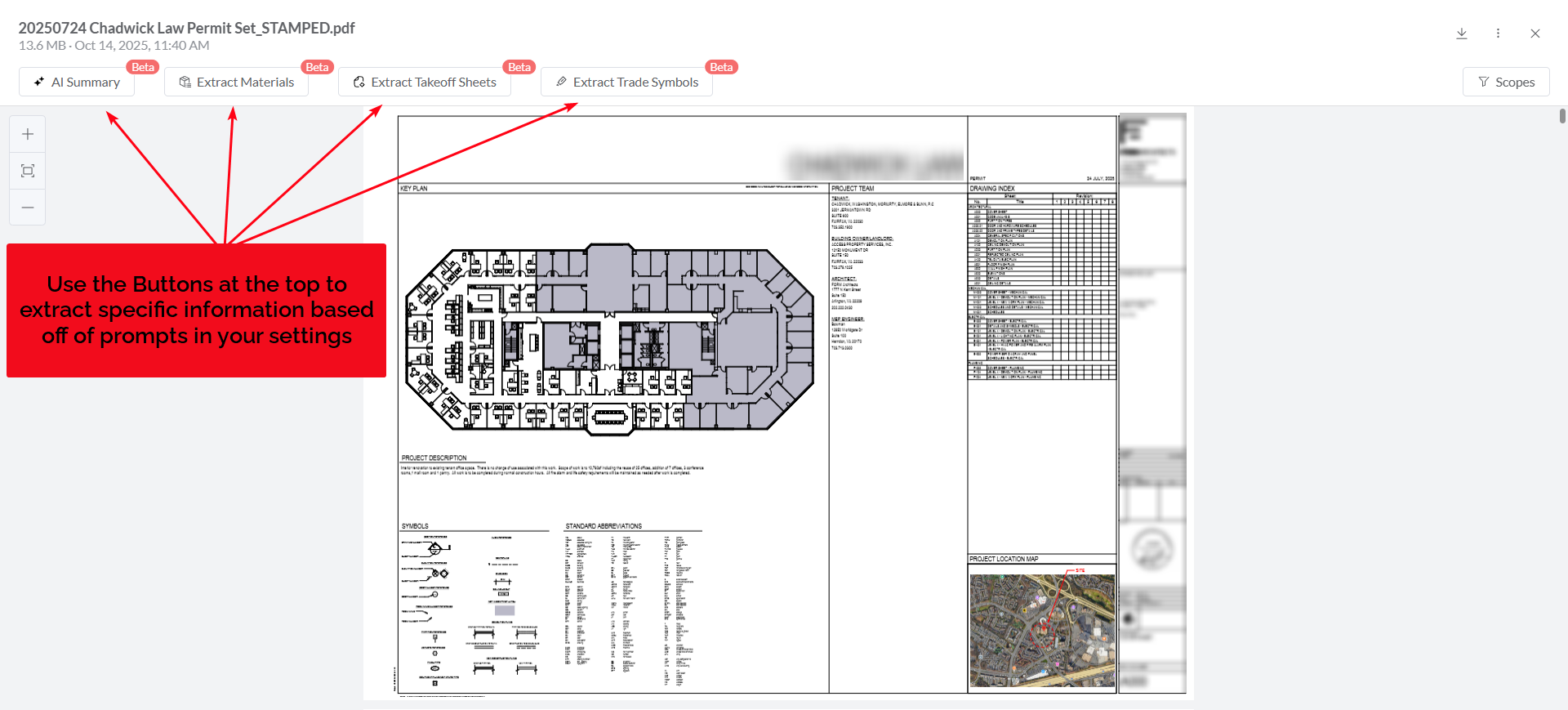

1. Use the AI Plan Analyzer Toolbar at the top of the screen to extract specific information:
- AI Summary: Automatically generates a summary of the plan, including key details like room names, dimensions, and finish types.
- Extract Materials: Identifies and organizes material specifications from the finish schedule.
- Extract Takeoff Sheets: Extracts detailed takeoff information for accurate material calculations.
- Extract Trade Symbols: Identifies and categorizes trade symbols from the plan for further analysis.
Tips for Using the AI Plan Analyzer
- Ensure Clear Plans: Upload high-quality plans to improve the accuracy of the AI extraction process.
- Verify Scaling: Always check the scale of your plans to ensure accurate measurements.
- Use Custom Prompt: We have input generic prompts that we feel will help most businesses. Feel free to adjust these settings to return different results!
1. Open Settings
2. Go to Preferences
3. Add to or Overwrite existing Prompts
4. Save changes before exiting
---
Note:
If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 ext.3 or email support@measuresquare.com.
