How to use Full Color and Product Hatching in MeasureSquare 8

How to use Full Color and Product Hatching in MeasureSquare 8

In this article we will show you how to set up for Color and Hatching visual representations of your products


Notes

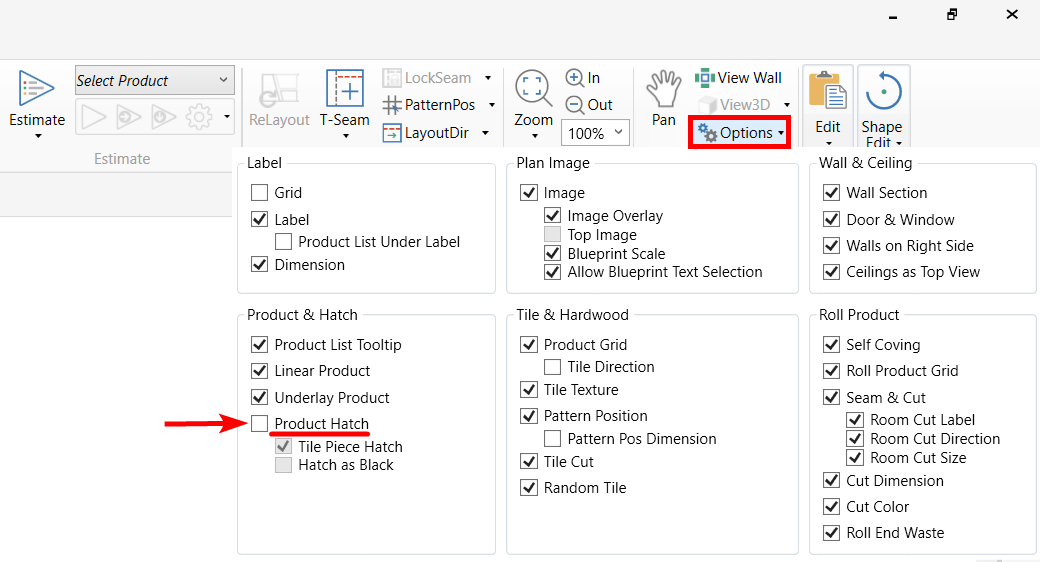

Note: In order for Hatch to show in the program, you will need to enable the view option for Product Hatch

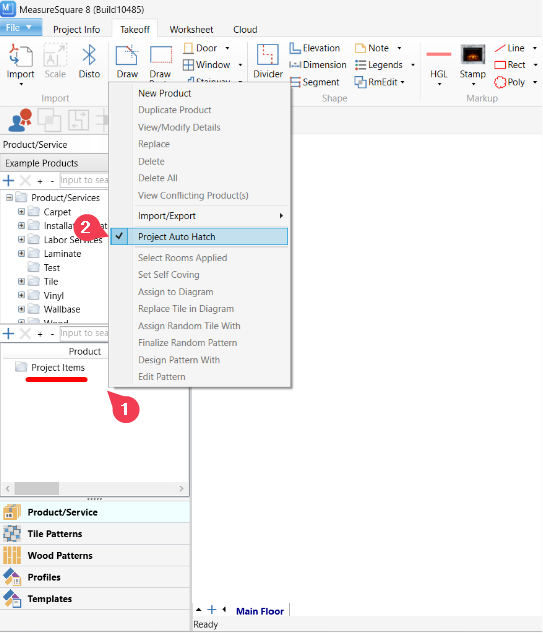

Step 1: To change the Default from Hatch to Full color, Right click anywhere inside the project items list and toggle off the option for Project Auto Hatch.




InfoOnce we have added some products to the project, we can start making adjustments

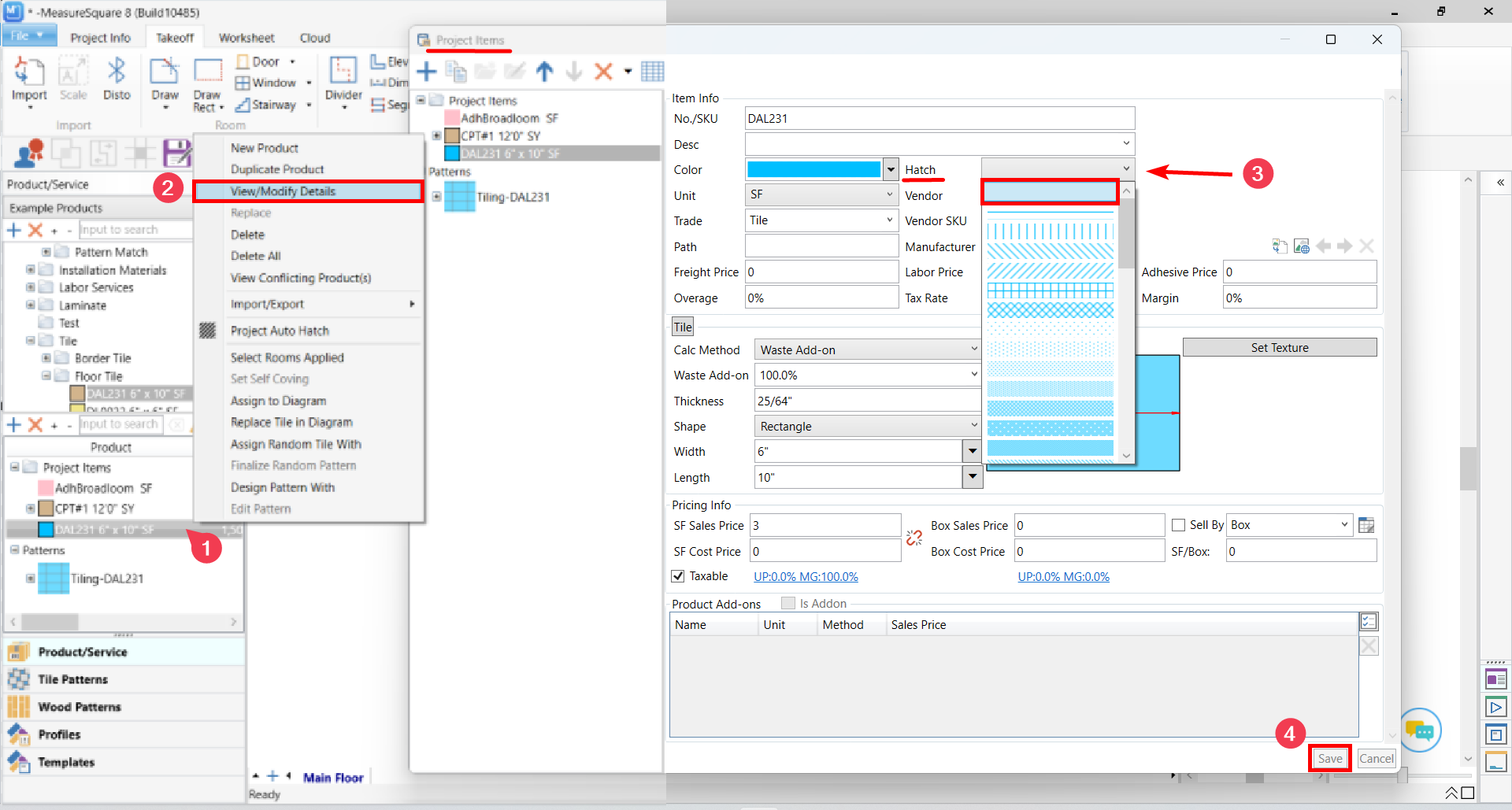

Step 2: Open the View/Modify Details window adjust the hatch for each product as needed.
              - Remember to save your changes
Info
Info: Blank hatch [3] style is full color. This is the Top/First option in the menu.

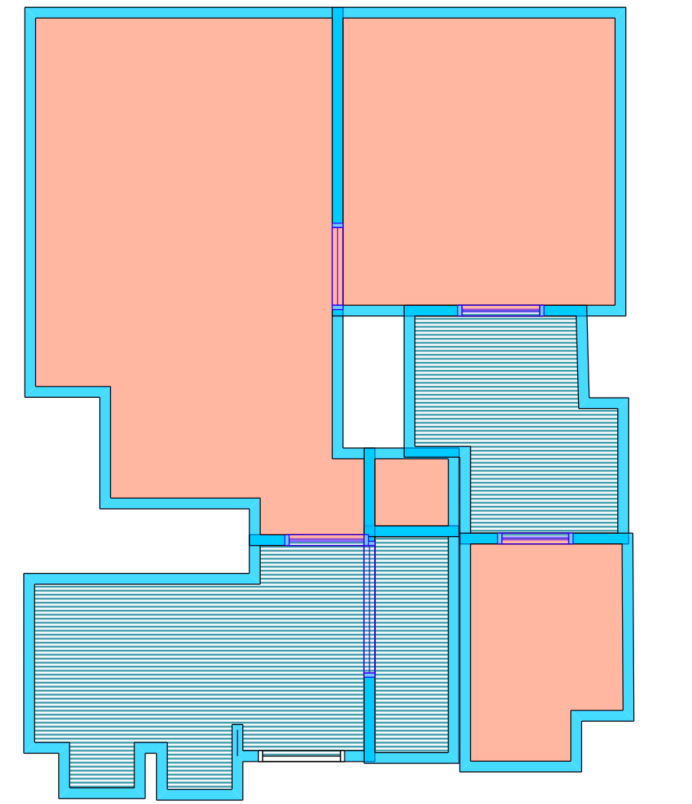

Here is an example of a mix of solid color and Hatch Materials inside a MeasureSquare project:
