How to use Butterfly Self Cove for vinyl installation in MeasureSquare 8?
In this article, you will learn how to use the Butterfly Self Cove for vinyl installation in MeasureSquare 8.
What is a Butterfly corner?
Full Butterfly Corner: a V-shaped piece of material that wraps around a concave corner.
Half Butterfly Corner: a triangular piece that wraps around an internal corner which is finished at 45 degree.
Only work if there are Concave corners in your room
How to use Butterfly Self Cove in MeasureSquare 8?
Step 1: select a room that already has a vinyl / Carpet product applied, navigate to the Property view at the right-hand side of the screen.
Step 2: specify the desired Self-Coving Size, then enable the Butterfly Self Cove option located below the Self-Coving Size setting.
Comparison before and after applying the Butterfly Self Cove:

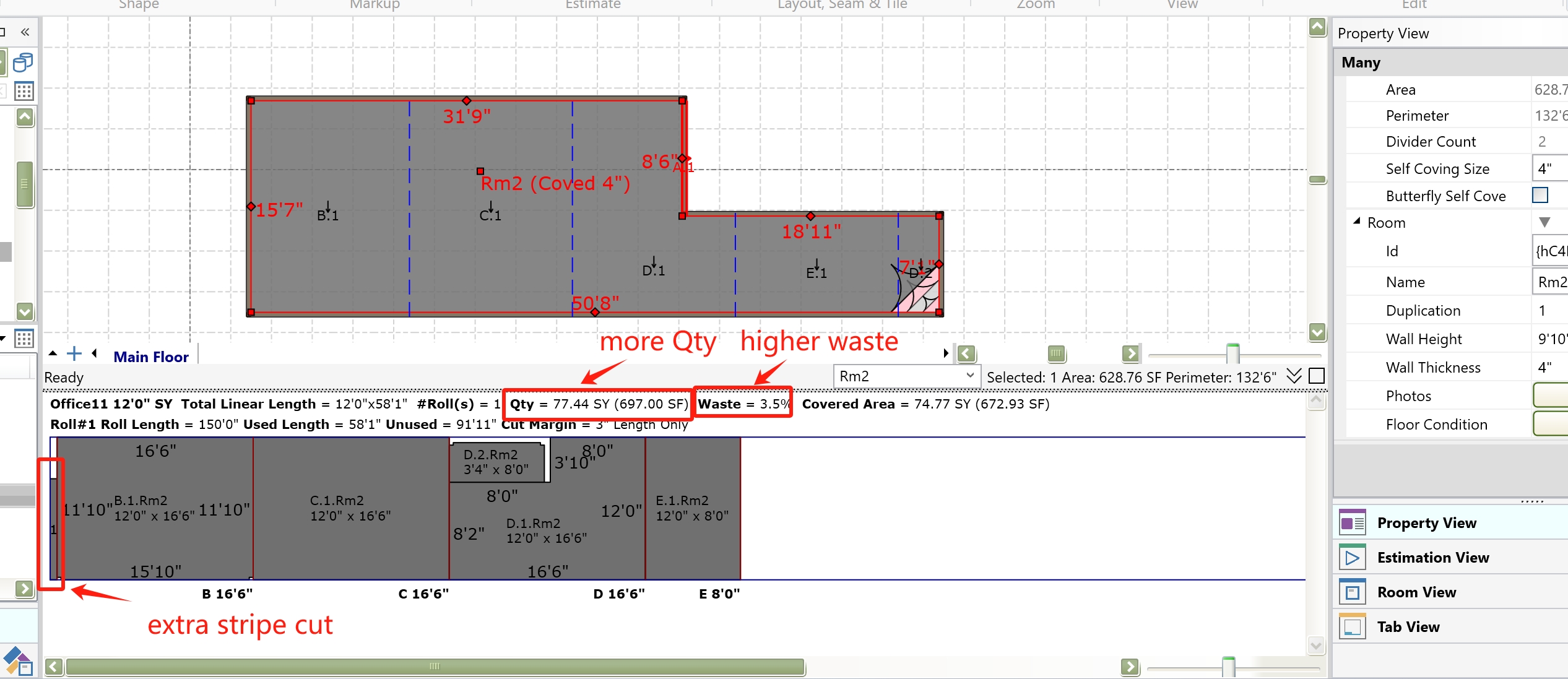

Before applying Butterfly Self Cove:
- extra stripe cut
- more product usage
- higher waste

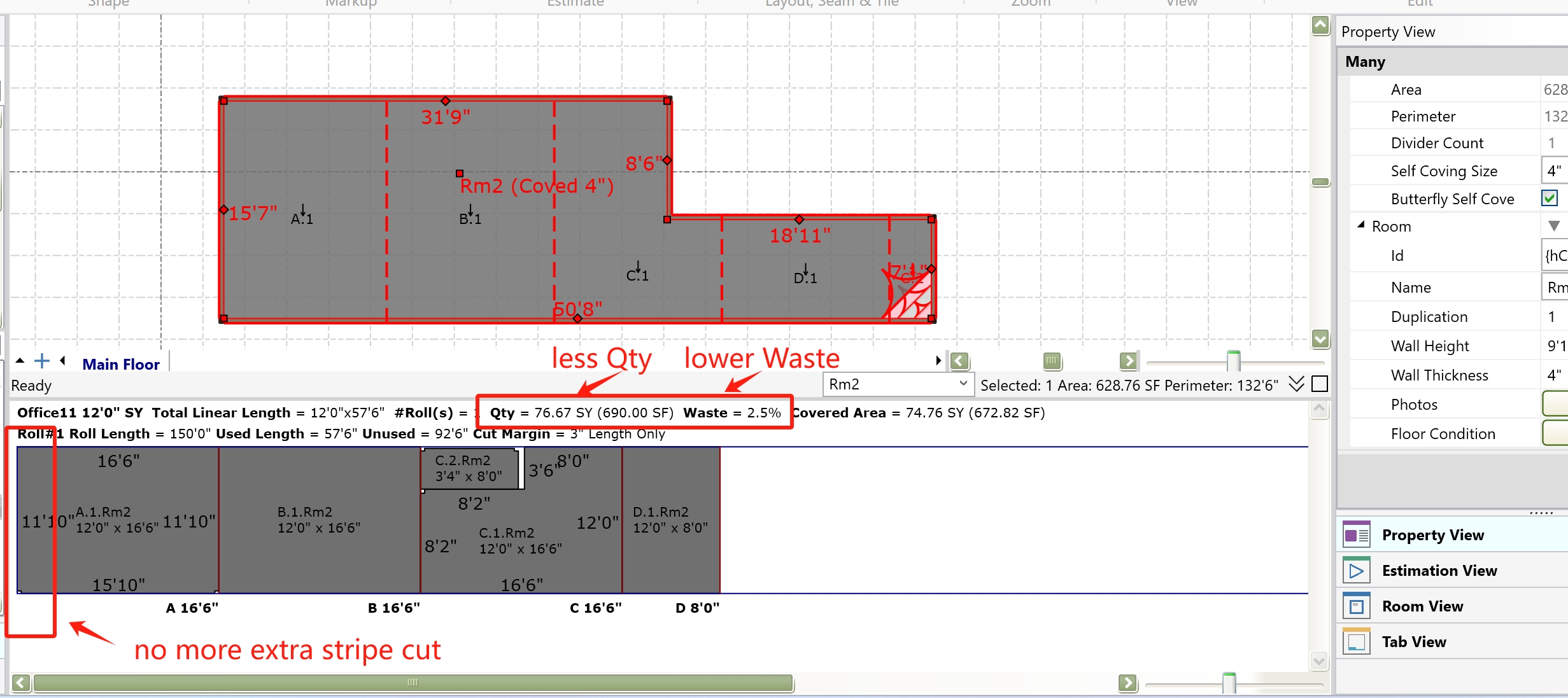

After applying Butterfly Self Cove:
- no more stripe cut
- less product usage
- lower waste
