How to use a photo to display your tile pattern in MeasureSquare Mobile

How to use a photo to display your tile pattern in MeasureSquare Mobile

In this article we will show you how to edit the tile texture so that you can display your pattern instead of the tile grid

Alert
Important: This article only applies to Tile type products (Carpet tile, Ceramic tile, and Vinyl tile)
If, After the Texture has been applied and you are not able to see it in your diagram, you must enable tile textures from the view settings

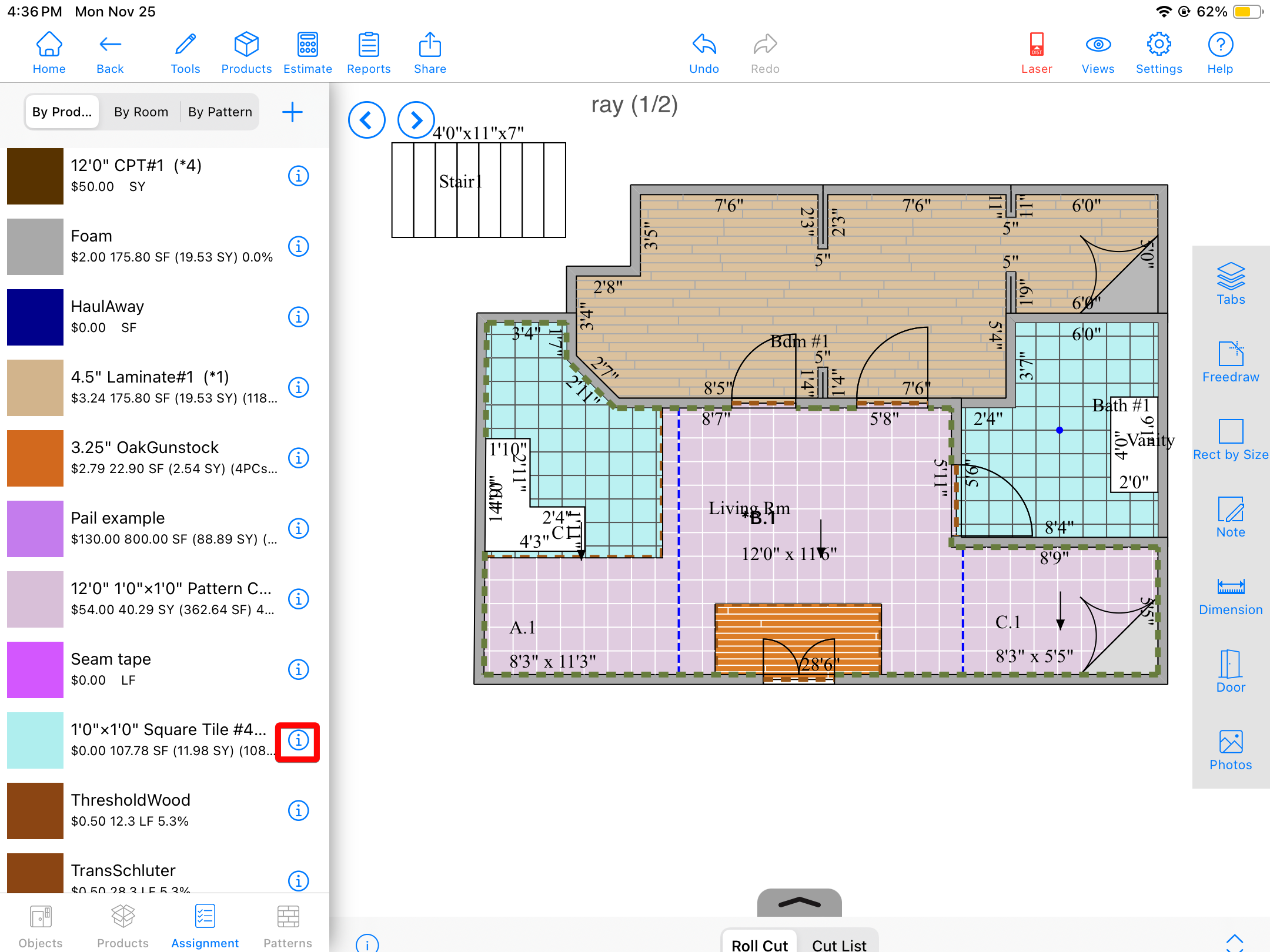

Step 1: Open the product edit menu for your desired product

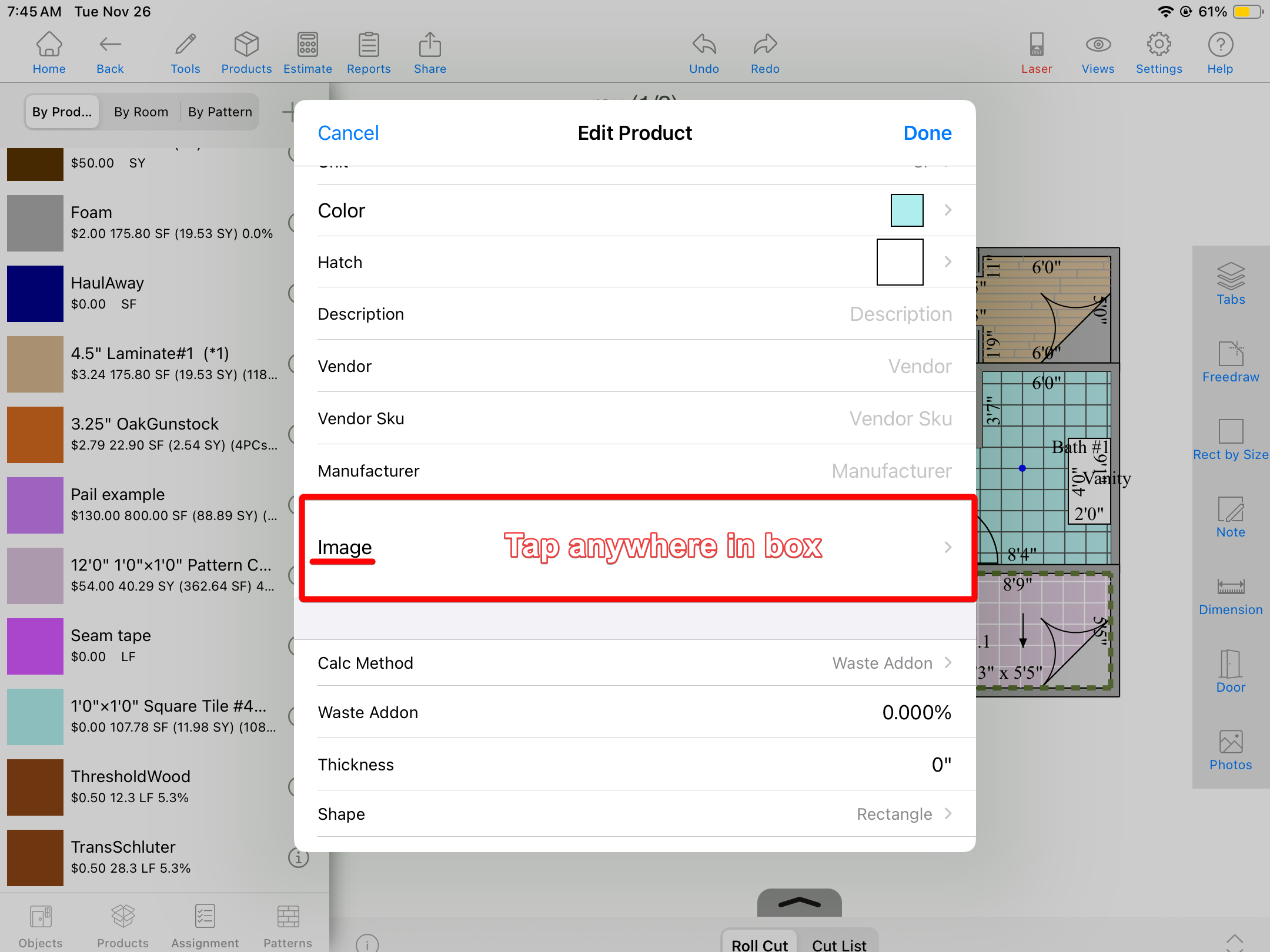

Step 2: Tap in the area for Image

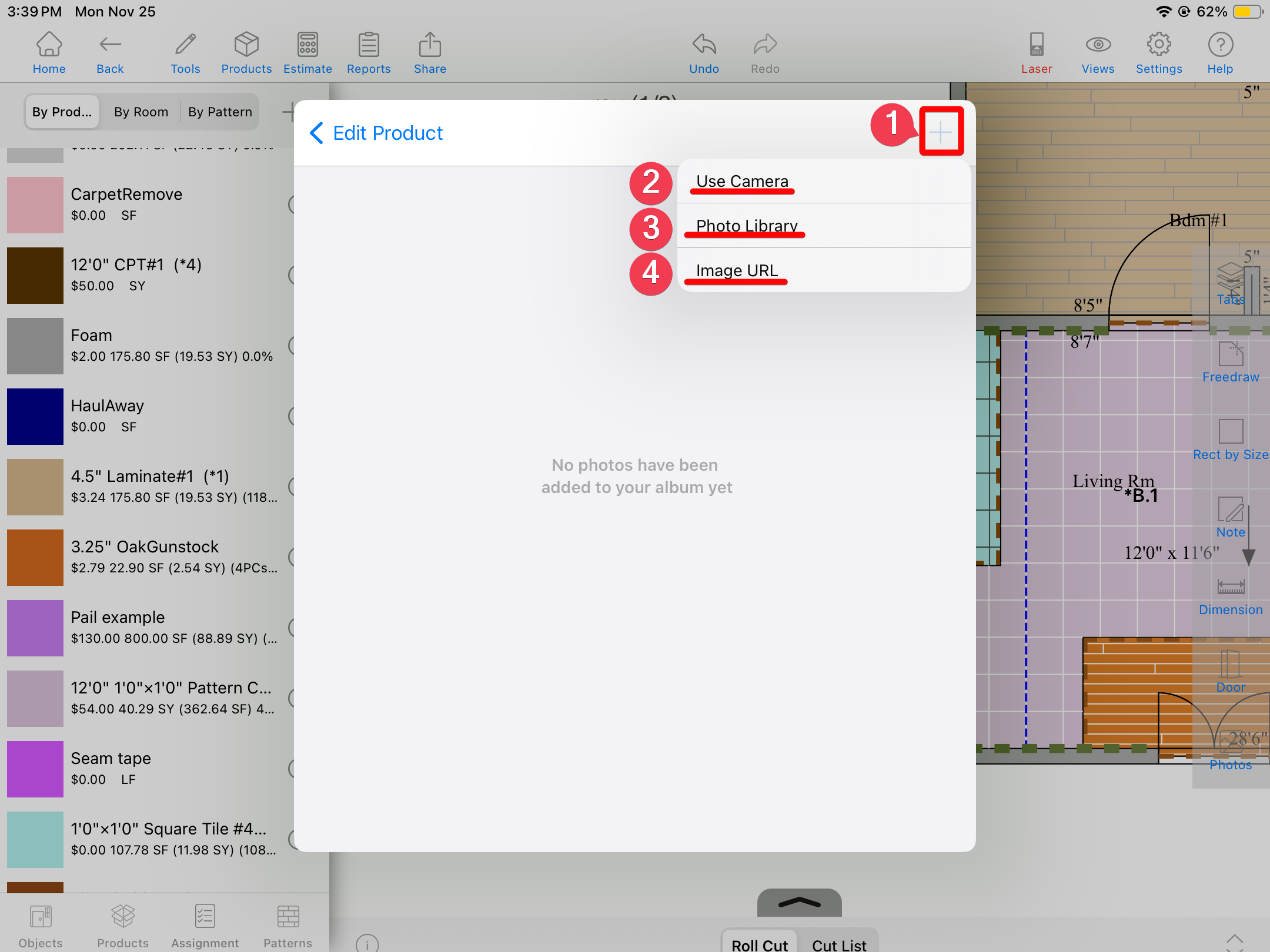

Step 3: Tap the plus button and select your desired method for adding in the image



Camera: Take a picture of your pattern using the camera on your device. You may then use or re-take the picture until the quality is to your liking

Photo Library: Select a saved image from your camera roll



Info
Info: Using the Link will require the image link, not the link to the website where the image is hosted

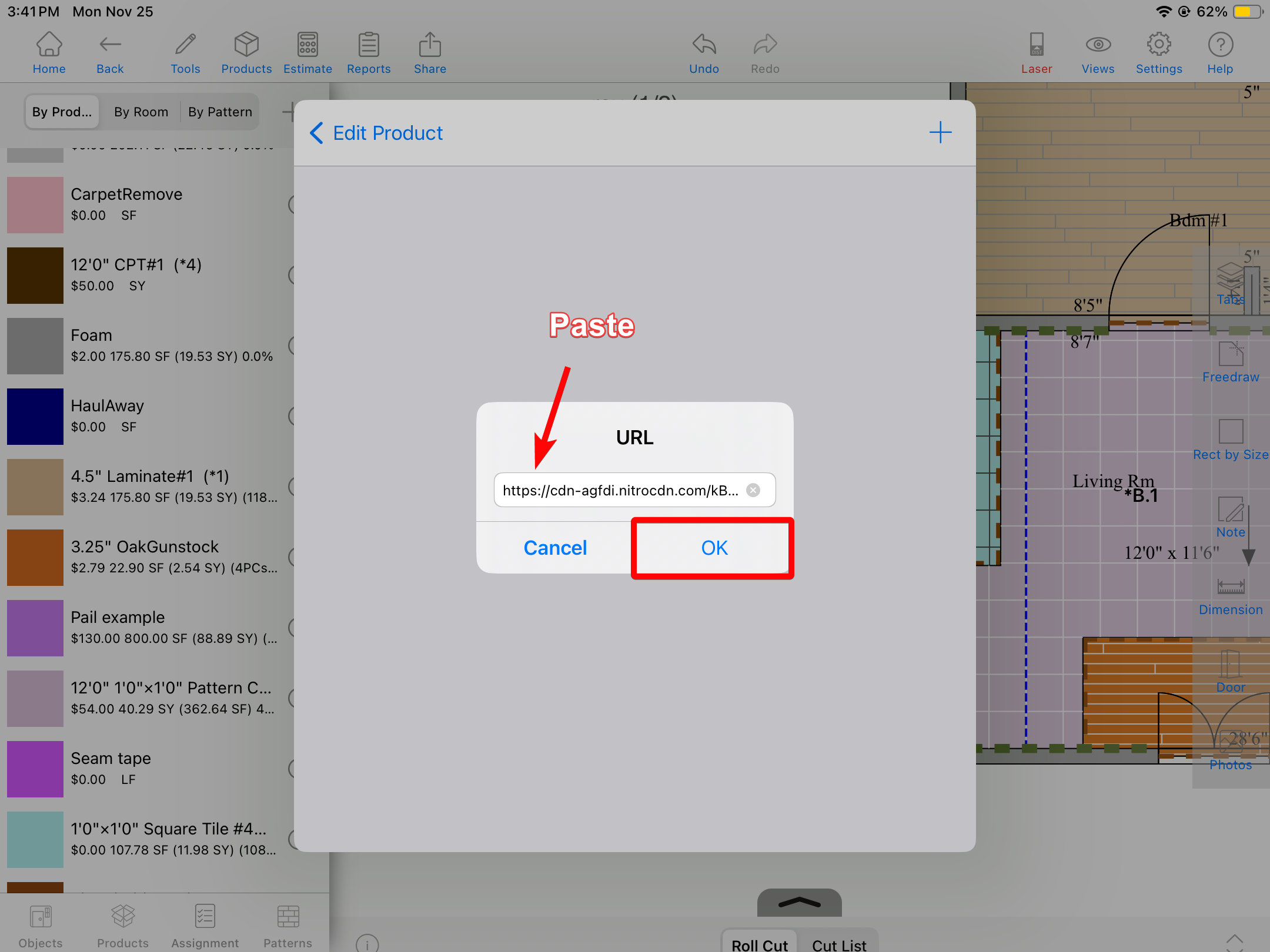

Image Url: Paste a URL link to the image



Step 4: Return to the product edit menu and Scroll down to Tile Texture

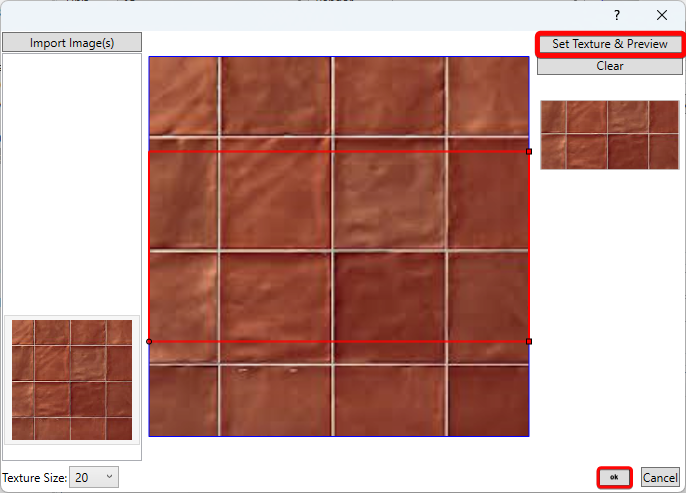

Step 5: Resize the window and confirm your selection of the image area to use



Idea

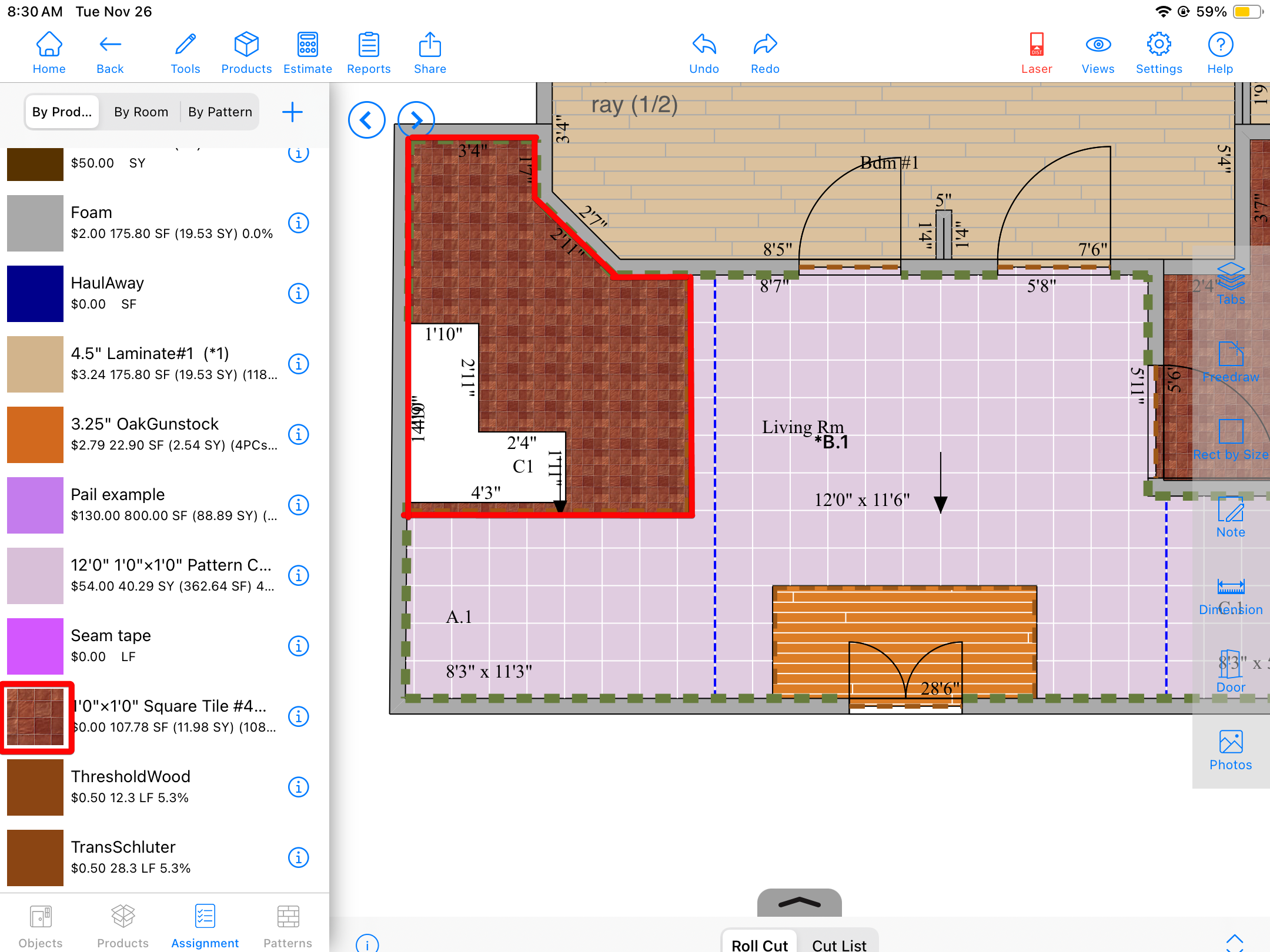

Enjoy your new display
