How to Toggle takeoff Dimensions On and Off in MeasureSquare 8

How to Toggle takeoff Dimensions On and Off in MeasureSquare 8

This article will guide you through the process of toggling room dimensions on and off in MeasureSquare 8. This feature allows you to show or hide dimension labels displayed on your floor plan layout.

Steps to Toggle Dimensions On and Off on the takeoff

Step 1: Open the view Options Panel

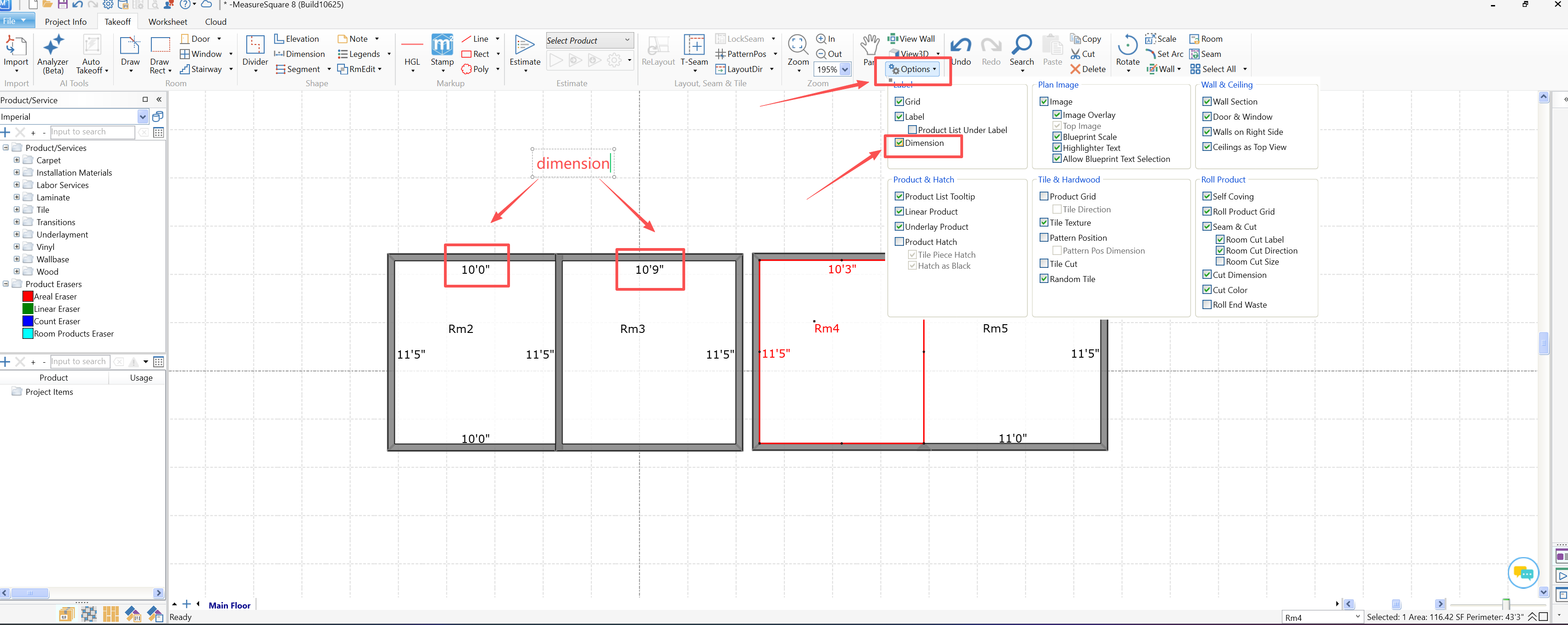

  • In the Takeoff view, click on Options to open the label display settings panel.

Step 2: Toggle the Dimension Setting

  • Check or uncheck the Dimension checkbox to show or hide dimensions on the floor plan.
    • ✅ Checked – Dimensions will be visible on all rooms.
    • ☐ Unchecked – Dimensions will be hidden from the floor plan view.
