How to set customized Scale for floorplan in MeasureSquare 8
This article will guide you through the process of setting a customized scale for a floorplan in MeasureSquare 8. This feature allows you to define a custom blueprint scale to ensure accurate measurements for your project.
---
Steps to Set Customized Scale for Floorplan

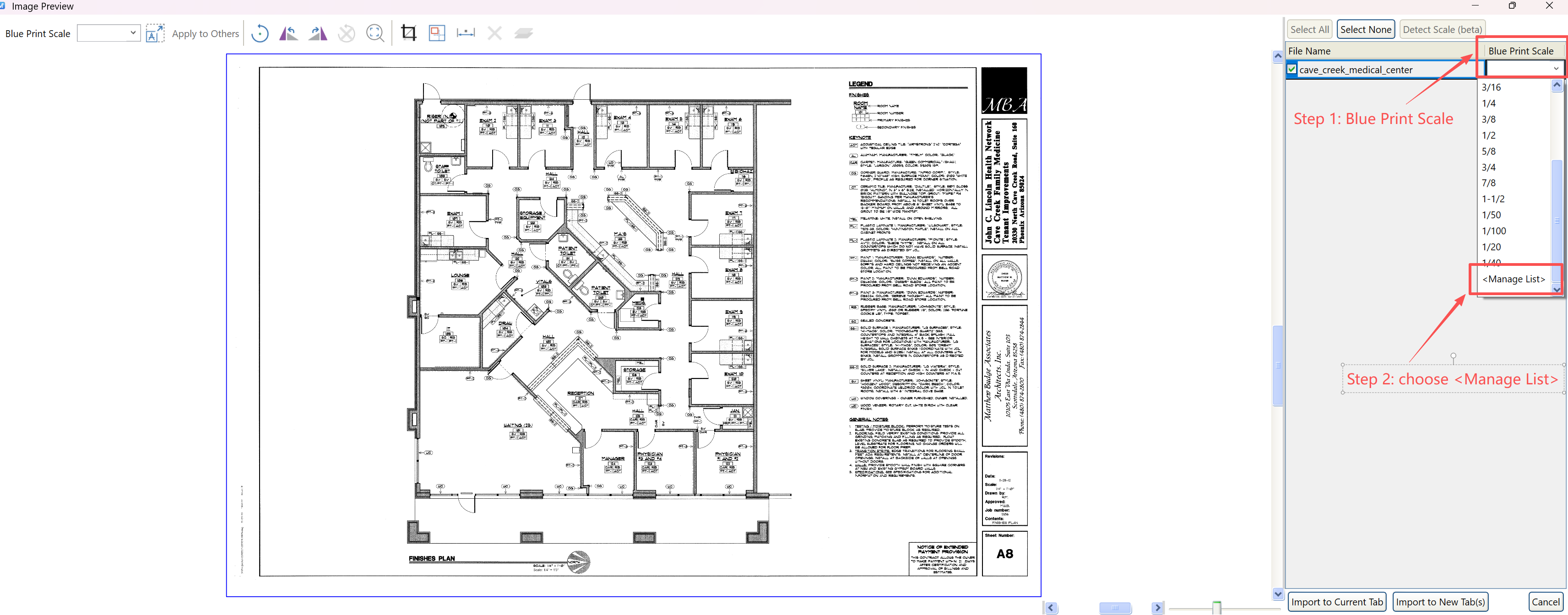

Step 1: Access the Blueprint Scale Dropdown
- Locate the Blueprint Scale dropdown menu at the top left of the screen.
- Click the dropdown arrow to view the available scale options.
Step 2: Choose "Manage List"
- Scroll to the bottom of the Blueprint Scale dropdown menu and select Manage List.
---

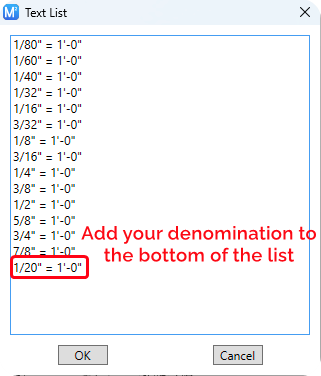

Step 3: Add a Custom Scale
- In the Text List window, scroll to the bottom of the list.
- Add your custom scale in the format 1/N, where N represents the number of feet in the real world that corresponds to 1 inch on the plan. For example:
- 1/20 means 1 inch on the plan equals 20 feet in the real world.
- Click OK to save your changes.
---
Note: If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 press 3 or email support@measuresquare.com.
