How to Save Room Templates and Wall Profiles in MeasureSquare Stone?
This article will guide you through the process of saving room templates and wall profiles in MeasureSquare Stone.
Steps to Save Room Templates
Step 1: Add a Room Template
Right-click on the room you want to save as a template, then select Add Room Template from the dropdown menu.
If you want to include all areas inside of the room as part of your Room Template list, you need to highlight the entire room.
Step 2: Name the Room Template

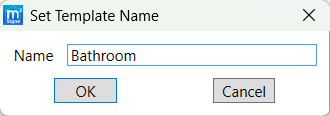

In the Set Template Name dialog box, enter a name for the room template (e.g., "Bathroom") and click OK.
Step 3: Verify the Saved Room Template

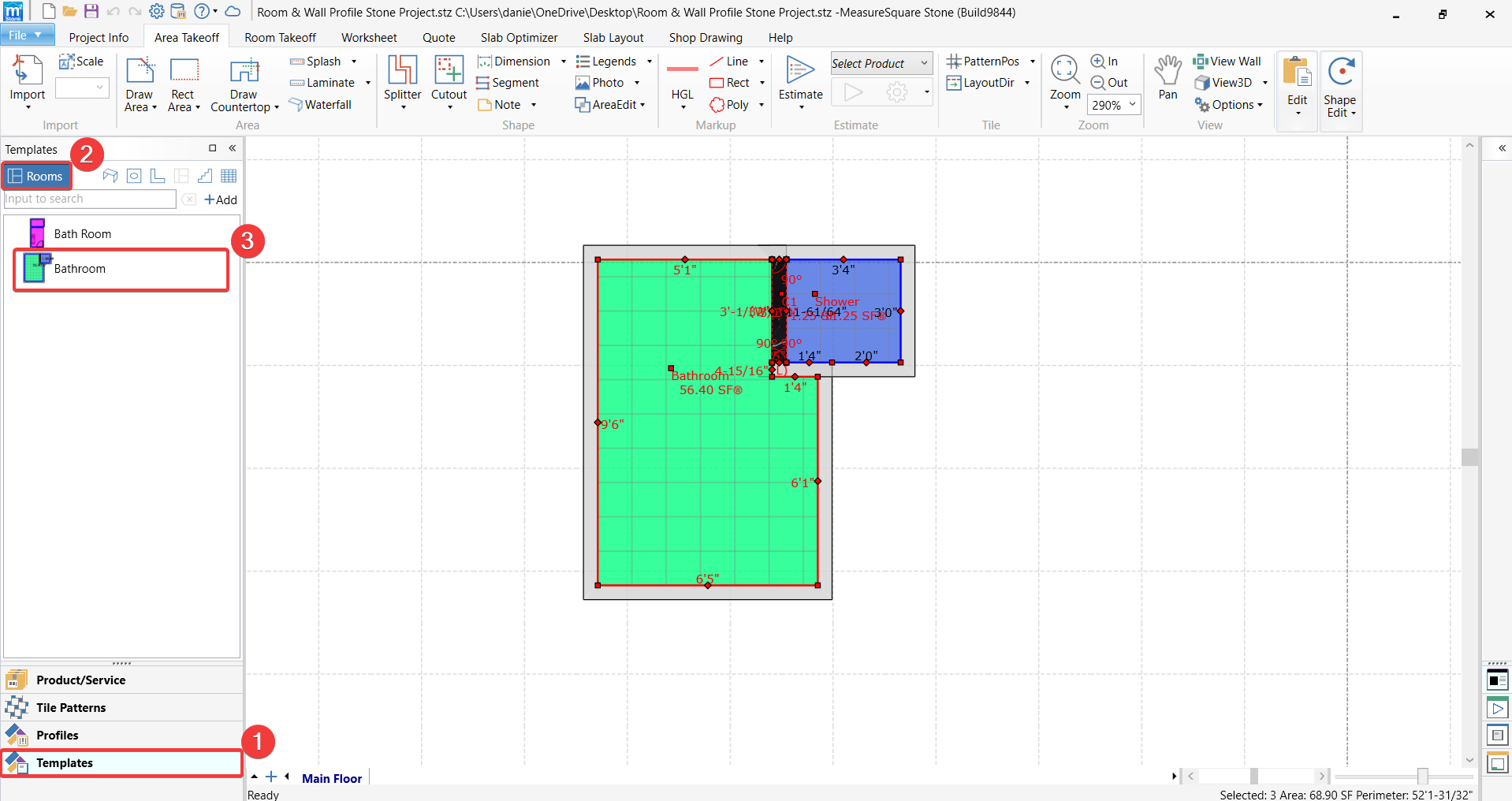

Navigate to the Templates panel on the left-hand side of the screen. Click Rooms (1), and you will see the saved room template listed (2).
Steps to Save Wall Profiles
Step 1: Switch to Wall View

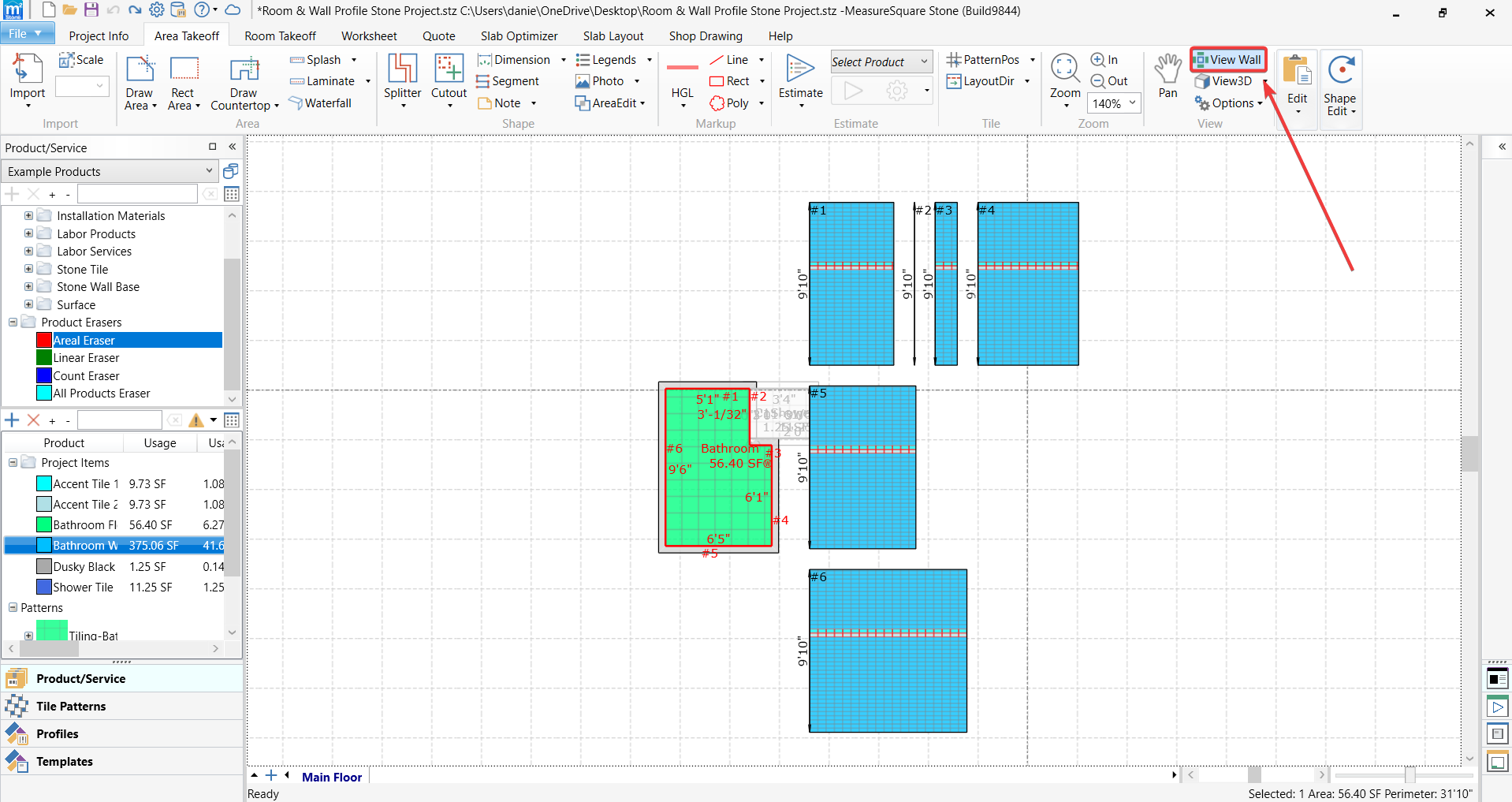

Click the View Wall button located in the toolbar to switch to the wall view.
Step 2: Add a Wall Profile

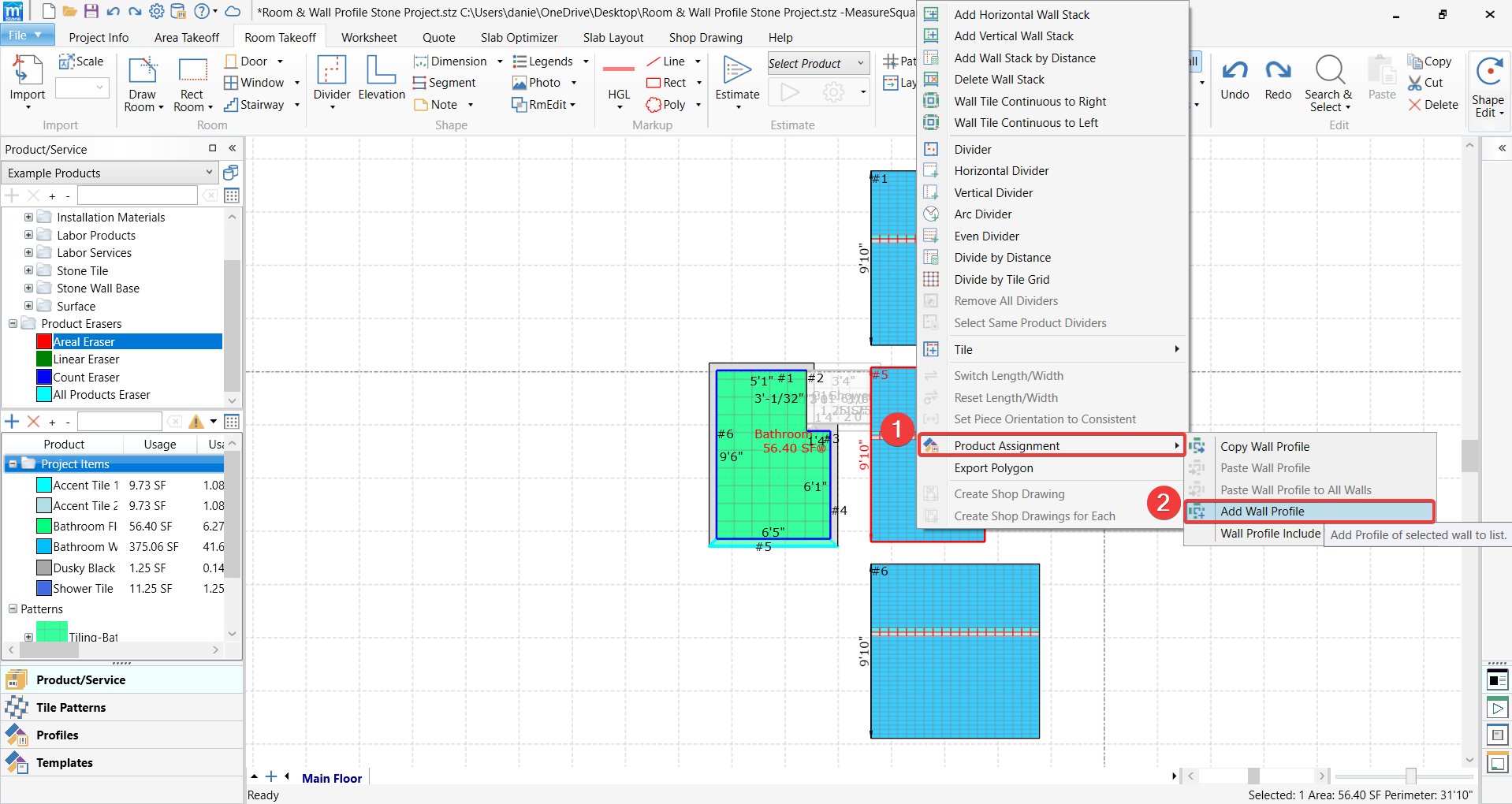

Right-click on the wall you want to save as a profile, then select Product Assignment > Add Wall Profile from the dropdown menu.
Step 3: Name the Wall Profile
In the Set Profile Name dialog box, enter a name for the wall profile (e.g., "Bathroom Wall") and click OK.
Step 4: Verify the Saved Wall Profile

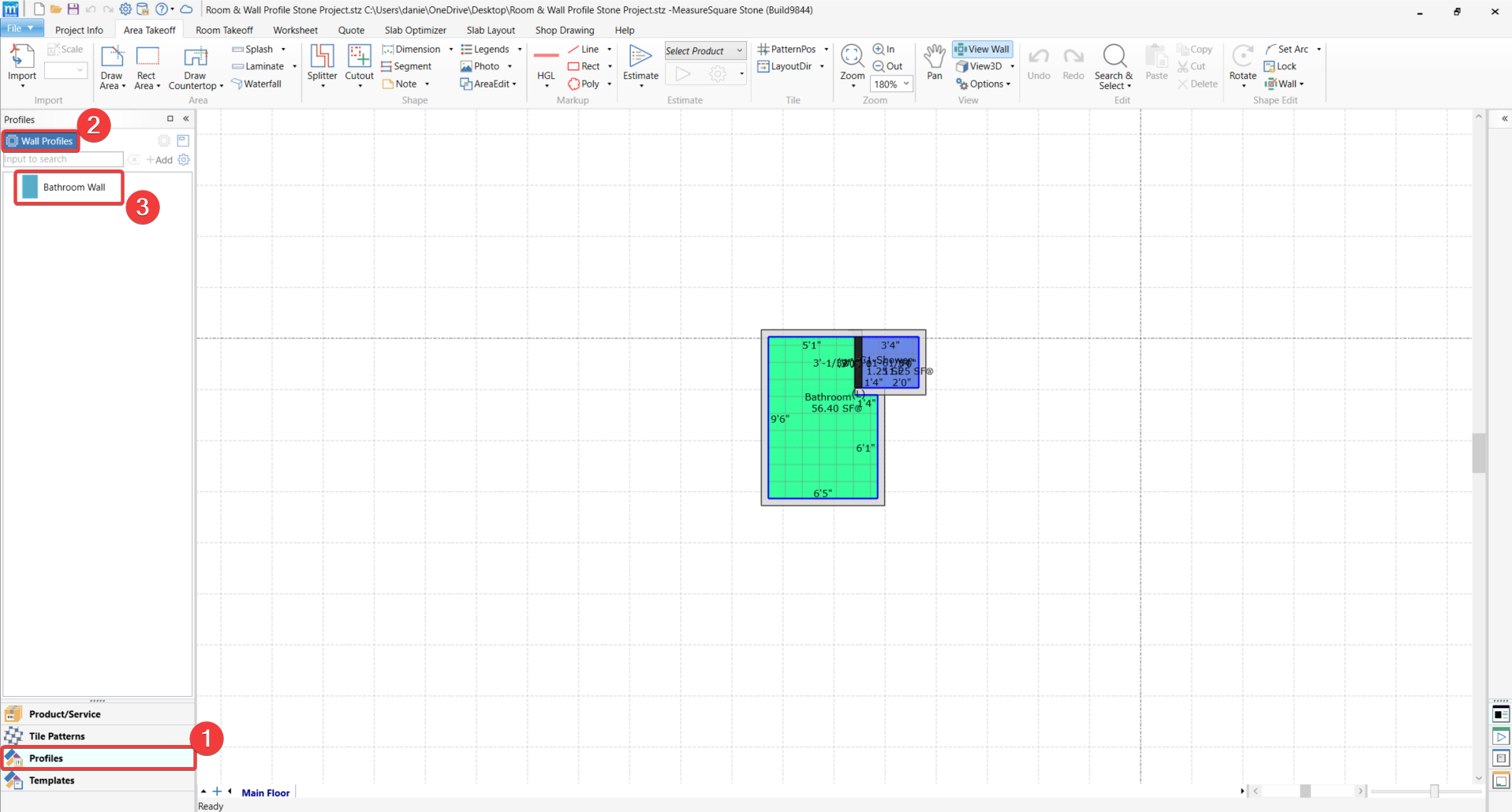

Navigate to the Profiles panel on the left-hand side of the screen. Click Wall Profiles (1), and you will see the saved wall profile listed (2).
When you save your Room Templates and Wall Profiles, it is saved in the Stone software and it carries over to future projects.
Note: If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 ext.3 or email support@measuresquare.com.
