How to rotate/correct a skewed plan to an arbitrary angle in MeasureSquare 8?

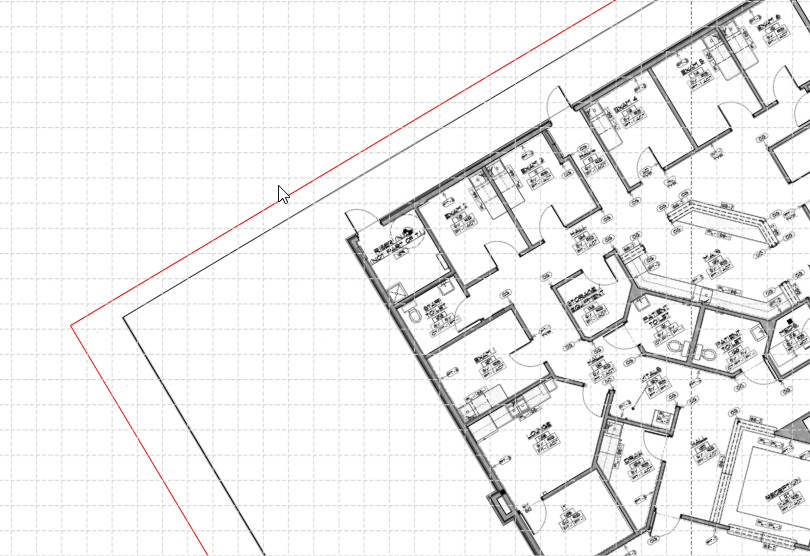

In this article, we're going to show you how to rotate your plan to an arbitrary angle.

This article applies to all versions of MeasureSquare 8

To rotate your plan to an arbitrary angle, please follow the steps below:

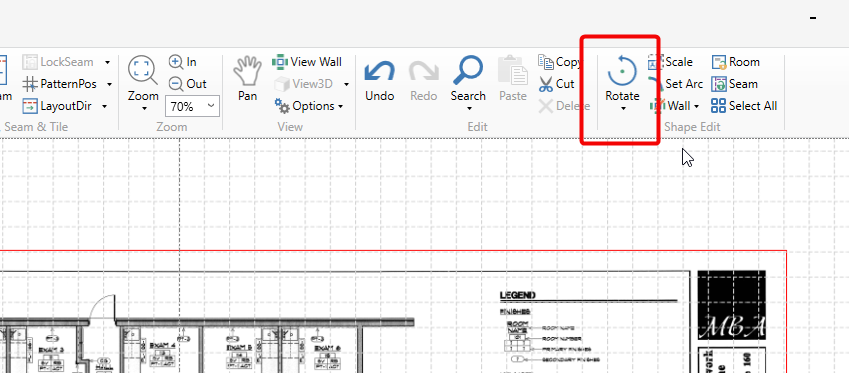

1. Click Rotate, then left-click on the starting point of the plan and then left click again on the other point of the plan.

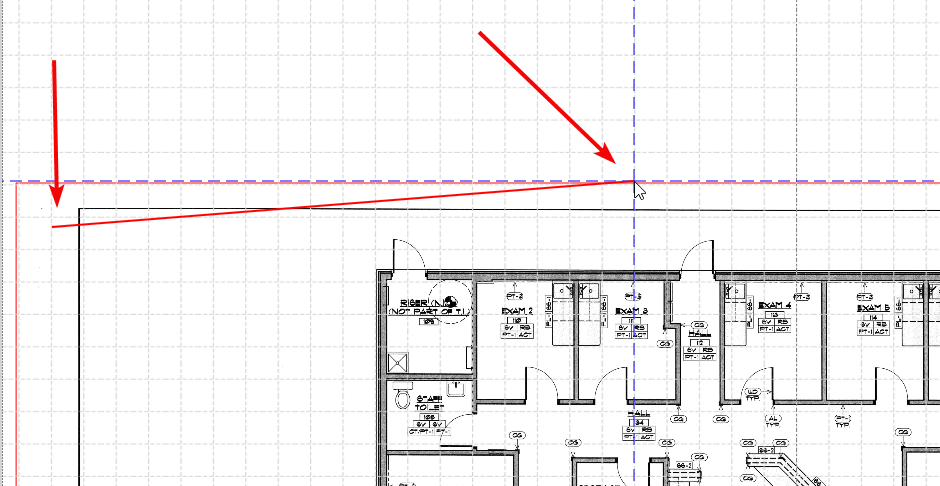

2. Using the crosshair, left-click on the starting point of the plan and then left click again on the other point of the plan.

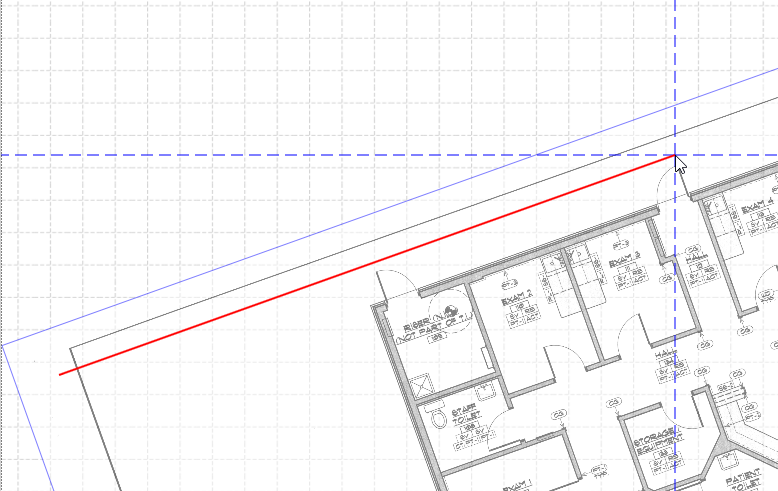

3. Now move your mouse to rotate the blueprint. Left click again when when your blueprint is in the proper orientation.

4. The finished result is below.
