How to Print the Cut Sheet View and Set the Scale Type in MeasureSquare 8
This article will guide you how to print the cut sheet view and set the different scale types in MeasureSquare 8.
This article applies to MeasureSquare 8.
Step 1: Open a project and click on File

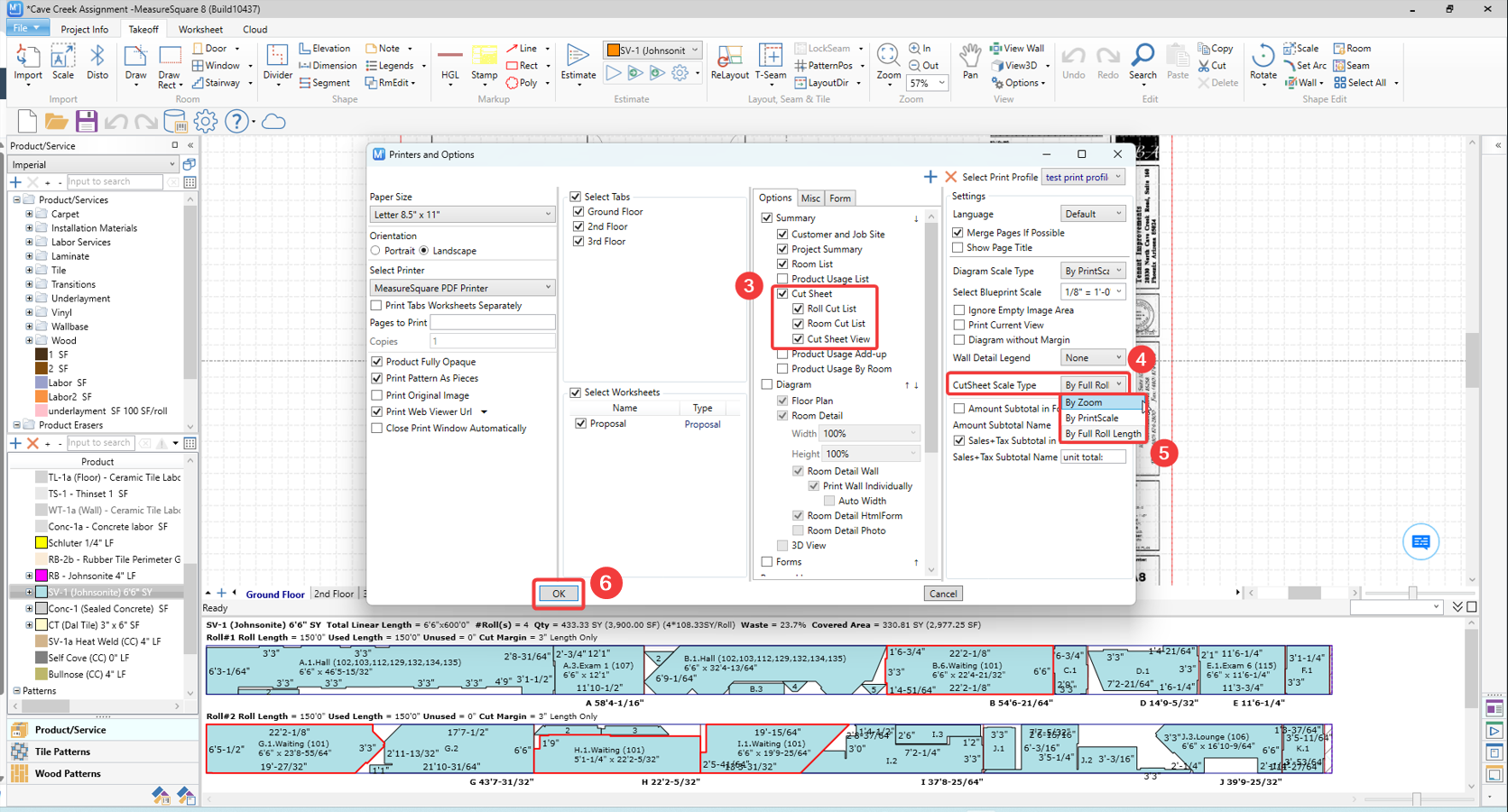

Step 2: Select Print to open the 'Printers and Options' window
Step 3: Under the Options section, tick on Cut Sheet and Cut Sheet View to have it displayed in the Print Report.
Step 4: Select the dropdown beside Cut Sheet Scale Type
Step 5: Choose from the three options:
(a) By Zoom - Scales the cutsheet based on the current zoom level used when the cutsheet was generated
(b) By Print Scale - Scales the cutsheet according to the defined print scale (e.g., 1/8" = 1'-0")
(c) By Full Roll Length - Scales the cutsheet to fit the full roll length of the material, showing the entire roll proportionally on the page
Step 6: Click on OK to Save
If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 ext.3 or email support@measuresquare.com.
