How to Merge two Rooms for MeasureSquare Stone?
In this article, you will learn how to Merge Separate Rooms into One in MeasureSquare Stone
Important: Merging may remove any previously Drawn elevations, dividers, or internal walls. Merging should always be done immediately following your takeoff to avoid duplication of efforts.Step 1: Ensure the two rooms you want to merge are adjacent. If a door exists between them, it can remain applied.

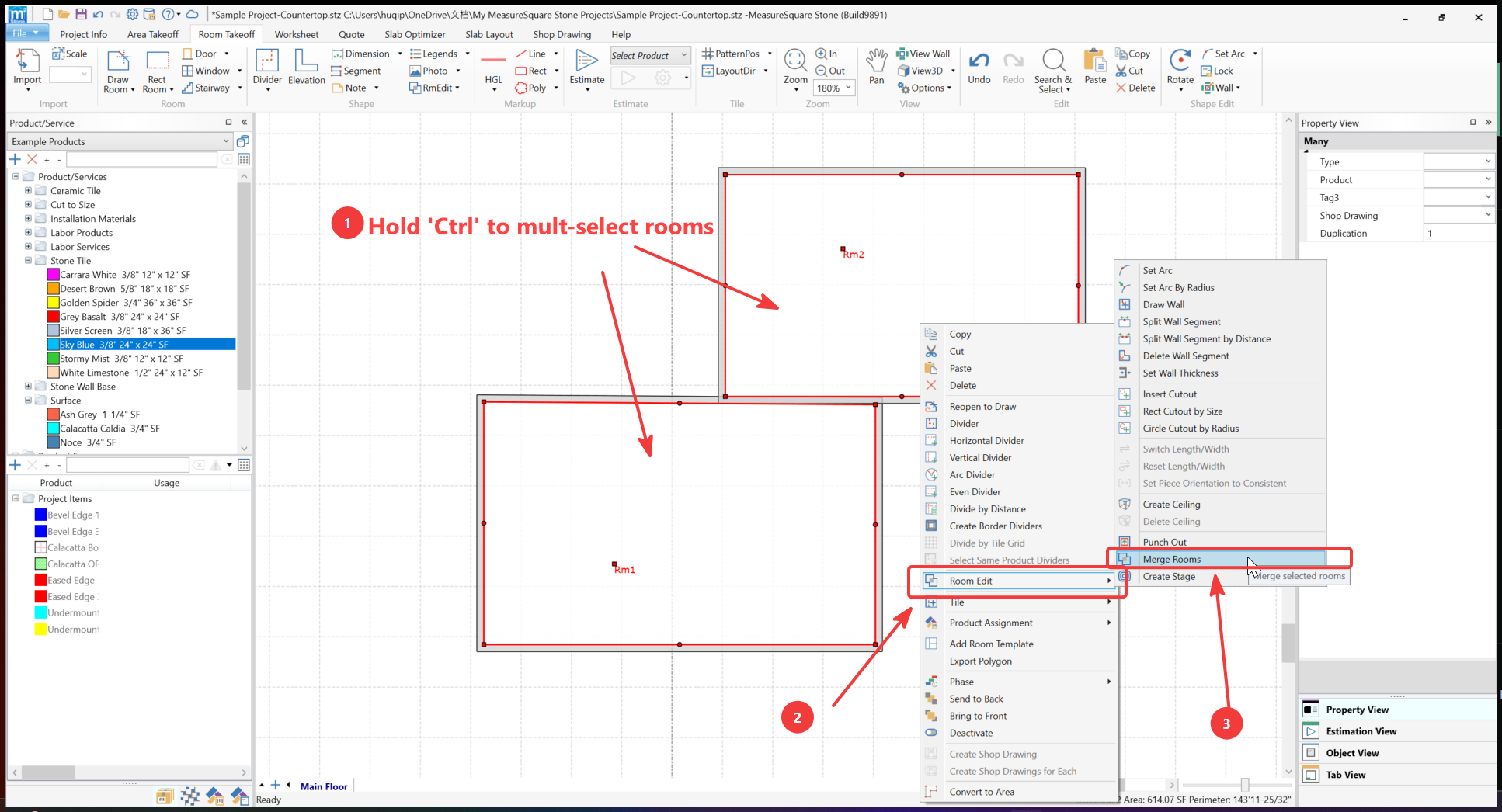

Step 2: Hold down the Ctrl key and select both rooms.
Step 3: Go to RmEdit > Select Merge rooms

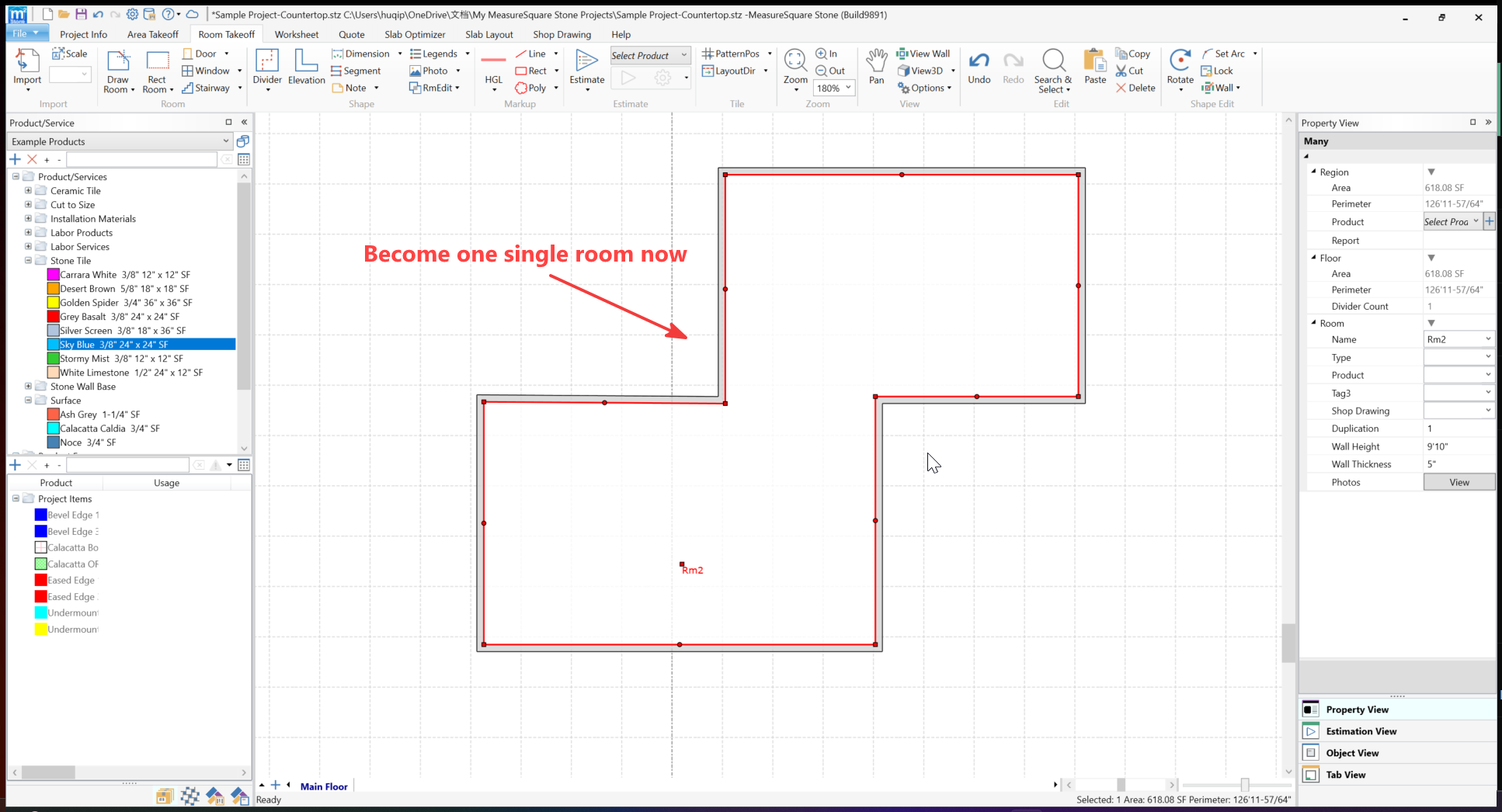

Result: it becomes one big room after merge
Note: After merging, the shared wall between the rooms will be removed. However, if a door is applied between the rooms, only the door area will be removed—the rest of the shared wall will remain intact, creating an opening where the door was.
In this video, we'll demonstrate how to merge two separate rooms into a single space
