How to load data into the Slab Optimizer to generate the slab cuts for MeasureSquare Stone?
In this article, we will walk you through how to load data into the slab optimizer tab to generate the slab cuts report.
This article applies to MeasureSquare Stone Desktop

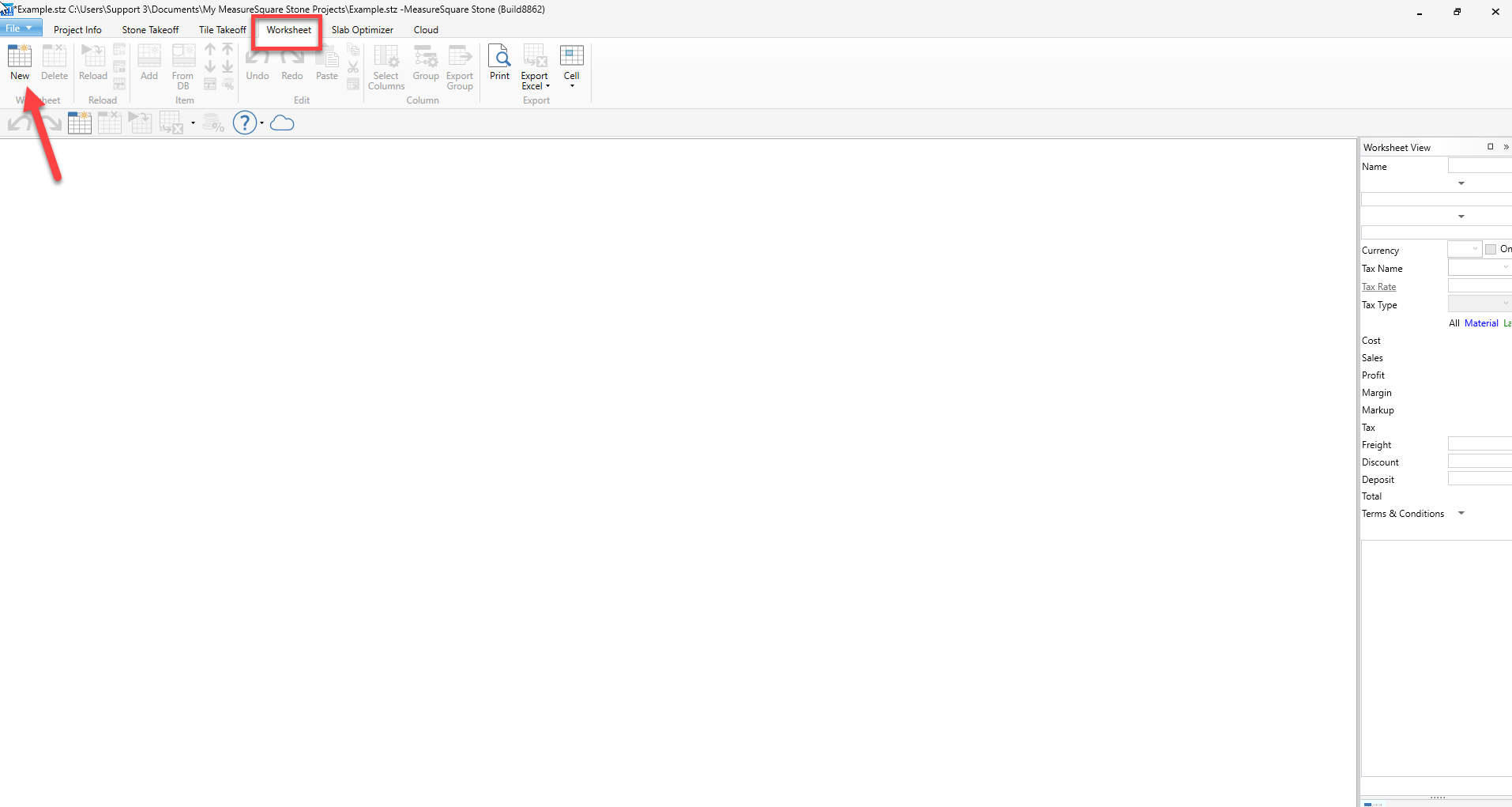

Step 1: Click on the Worksheet Tab > Click New to generate a worksheet
Step 2: Click on the Slab Optimizer tab > Click on Load Data > A window will pop up asking to select the worksheet you want. Select the one that you want > Click Ok
Step 3: Fill out the Cut Options > Click on Start Cut to generate the slab cuts
After you generated the slab cuts report and you would like to do an update report because you made some changes to your takeoff. Make sure, you go back to the Worksheet Tab, Click on New to create a new worksheet and then repeat steps 2 & 3 above again.
