How to integrate MeasureSquare 8 with C/F Data Systems STRUCTURE Construction Software.

How to integrate MeasureSquare 8 with C/F Data Systems STRUCTURE Construction Software.

This article shows you how to export estimation data from MeasureSquare to STRUCTURE Construction Software.


Important: You should have already contacted STRUCTURE support to configure your account settings before attempting to export your data to MeasureSquare.

1. In the Takeoff tab of your MeasureSquare 8 project, create your product by going to Project Items and clicking on the plus ("+") icon to create an new item


2. Using the Template Code from Structure, add it to the product name in MeasureSquare with a number and a dash. Then match the Template Code with the Trade field. Save.

Example: If the below product Carpet Solid A has Template Code called "CPT" in STRUCTURE,  then the product No./SKU in MeasureSquare might be "CPT1- Carpet Solid A". The Trade in MeasureSquare should be "CPT" as well.



3. Repeat Step 1 till you finish creating all products.


4. Import blueprints and take off the plans as usual. Estimate all products quantities.

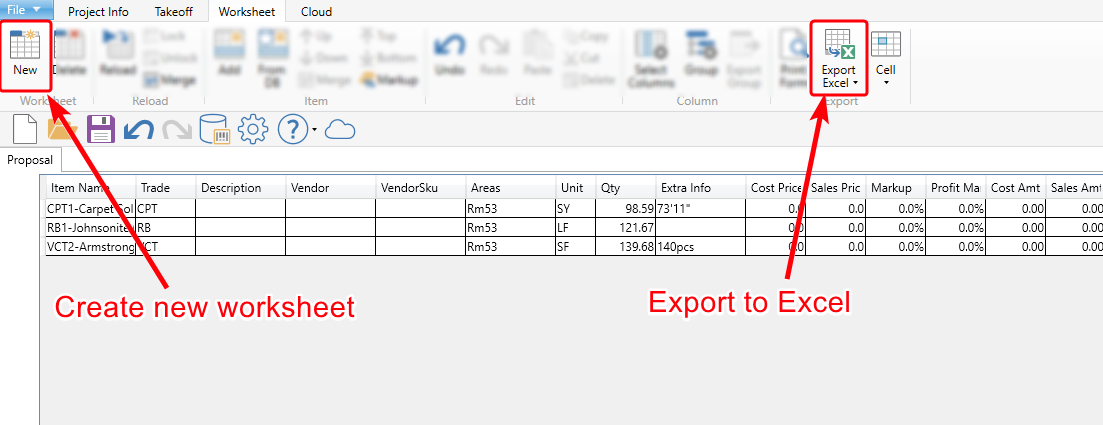

5. In the Worksheet Tab, Click New to create a new worksheet and click OK on the pop-up window. Once your estimation data appears in the worksheet, click on Export to Excel then save the Excel file locally on your computer.

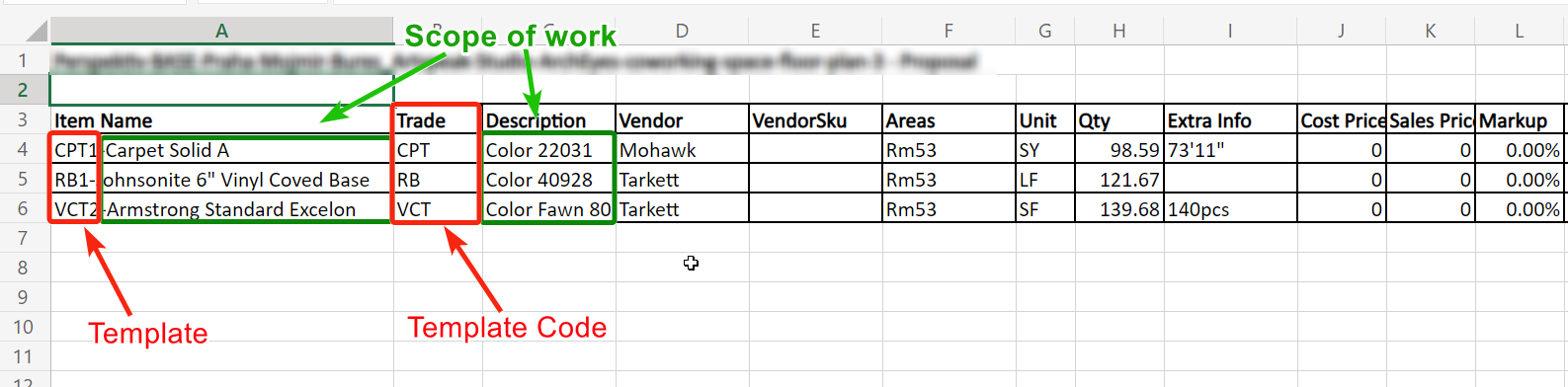

The exported results are shown below. The columns named Item Name, Trade, Description, and Qty will be exported to STRUCTURE.



6. Open STRUCTURE and create a new bid, with project name and details, then click the Import Item button. Select the file created in Step 5, then you are done.

Structure import
