How to import and scale a Blueprint in MeasureSquare Mobile for iPad?

In this article, we're going to show you how to import and scale your blueprint  in MeasureSquare on the iPad

This article applies to MeasureSquare Mobile App for IOS

Import Image

Step 1: Tap on Tools > Import Image

 Step 2: It will then open your photos app. Tap on the correct blueprint image > Then tap  Done to import it

Import PDF

Step 1: Repeat the same step 1 above  >  Tap on Import PDF > It will then open your Files folder > Tap on the blueprint you would like to import > Tap Done

Email blueprint

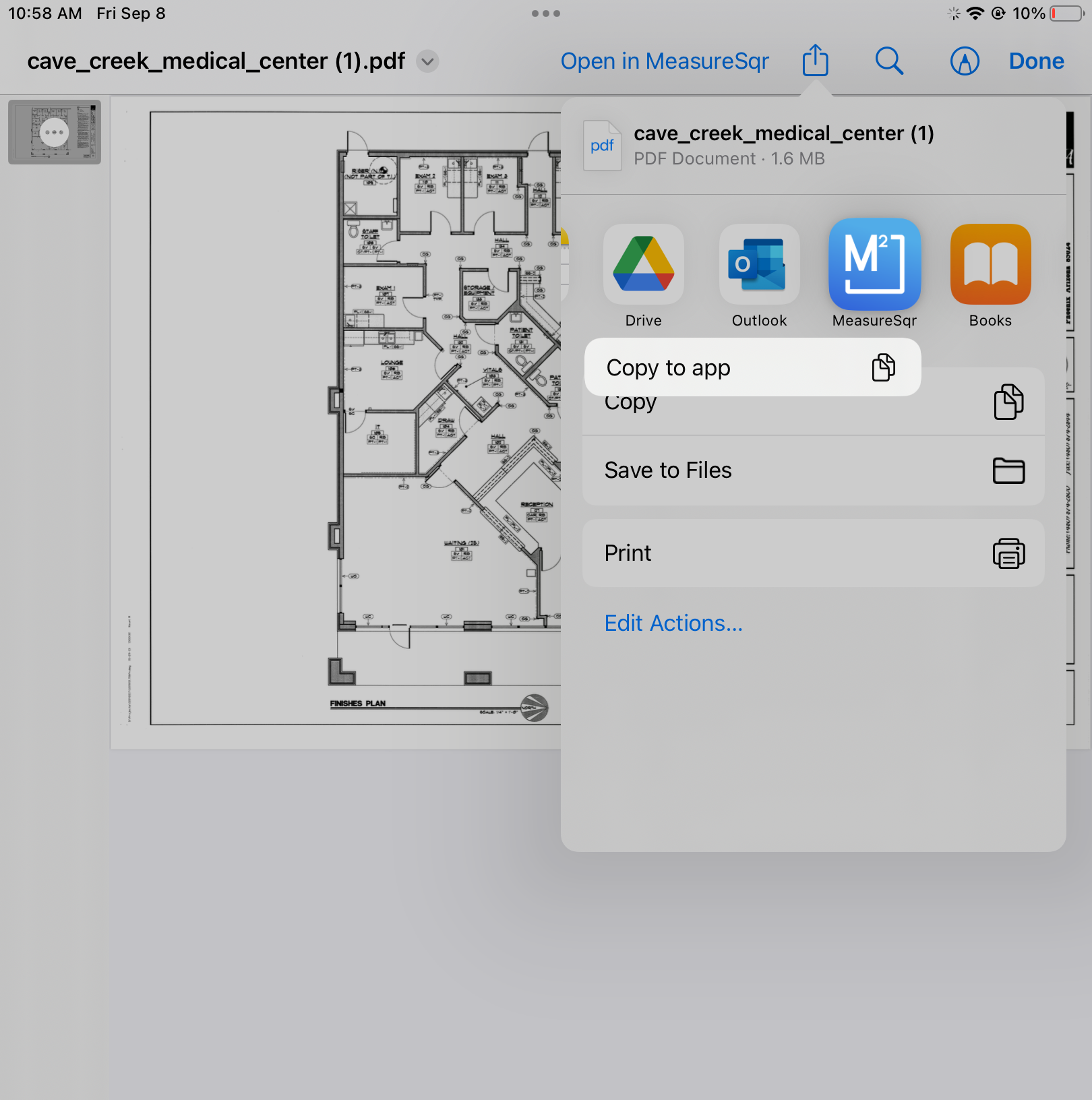

Step 1: Email yourself a copy of the blueprint -> Open email press on the attached blueprint -> Choose to Open in or Copy to MeasureSquare App.

Note: For the option to copy to MeasureSquare app, long press the app icon in the share menu.

Step 2: Select pages that you want to import to MeasureSquare App -> Tap Done.

Scale Blueprint

Step 1: Tap Tools -> Set Scale.

Step 2 : Pick the two known points and enter the dimension once the window appears, minimize the keyboard first and then tap Done.

Step 3: Use Dimension Line to double check your scale.
