How to draw a room inside another room in MeasureSquare Stone? (Punch out tool)
In this article, we're going to show you how to draw or embed a room inside another room using the punch out tool in MeasureSquare Stone.

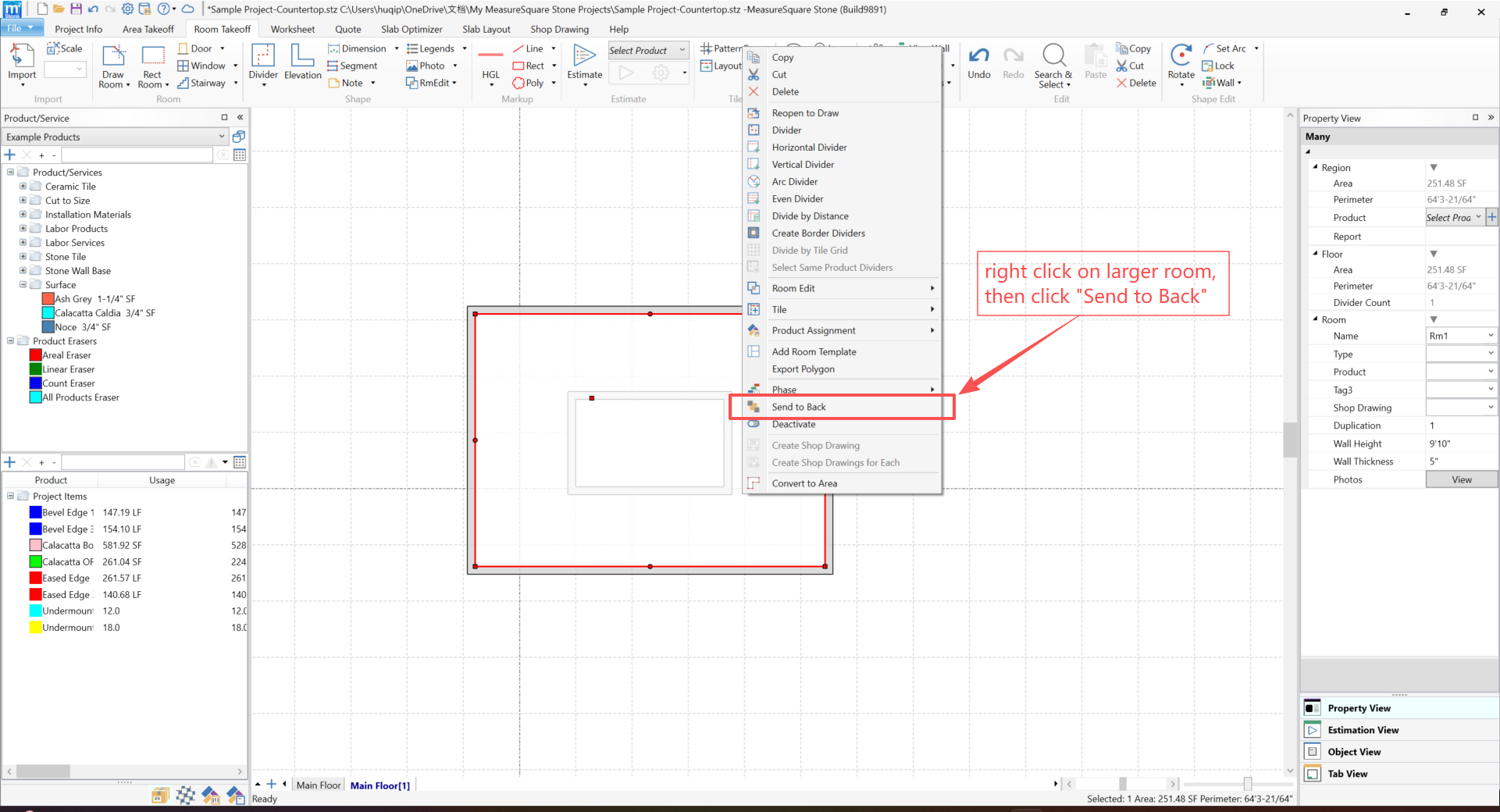

Step 1: Left click on the larger room > RmEdit > Send to Back
Note: Bring to front may be displayed instead of Send to back in step one. Select bring to front, then follow along with step 1 again to resolve.

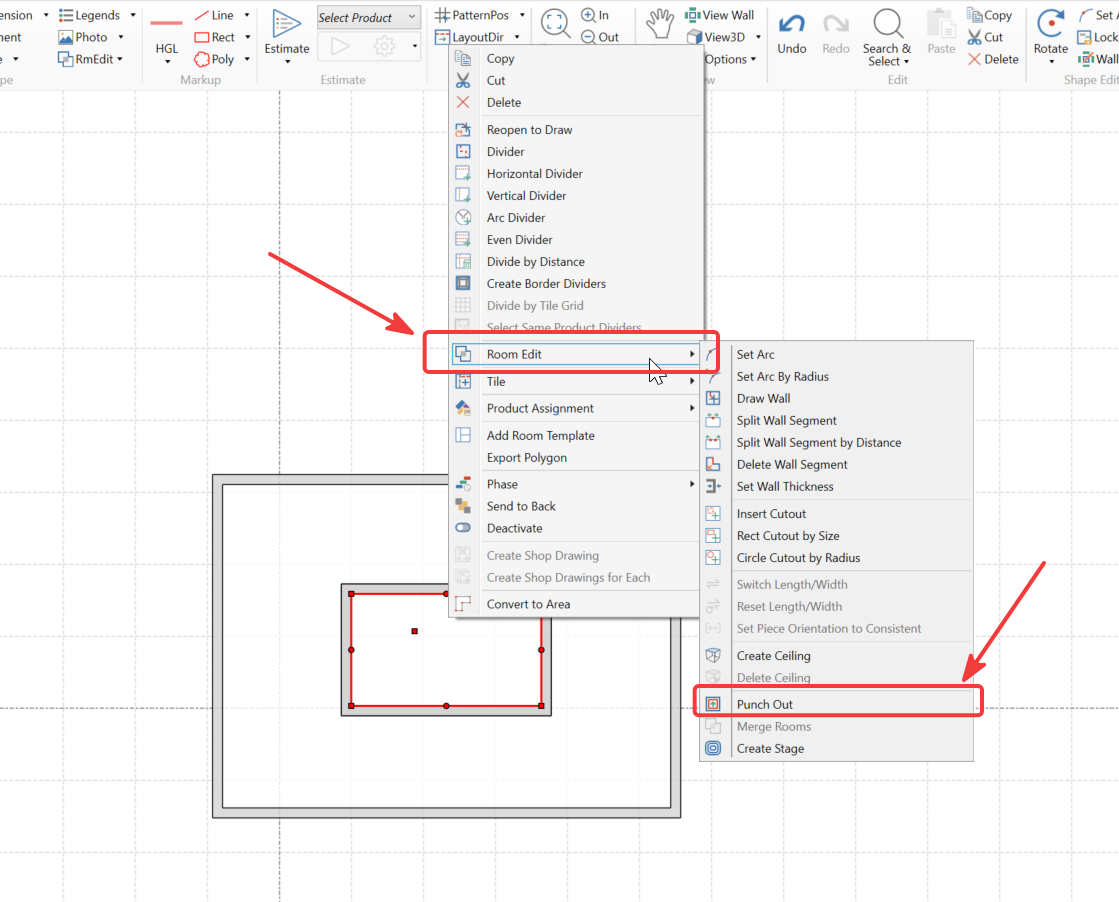

Step 2: Right click on the floating room > Room Edit > Punch Out

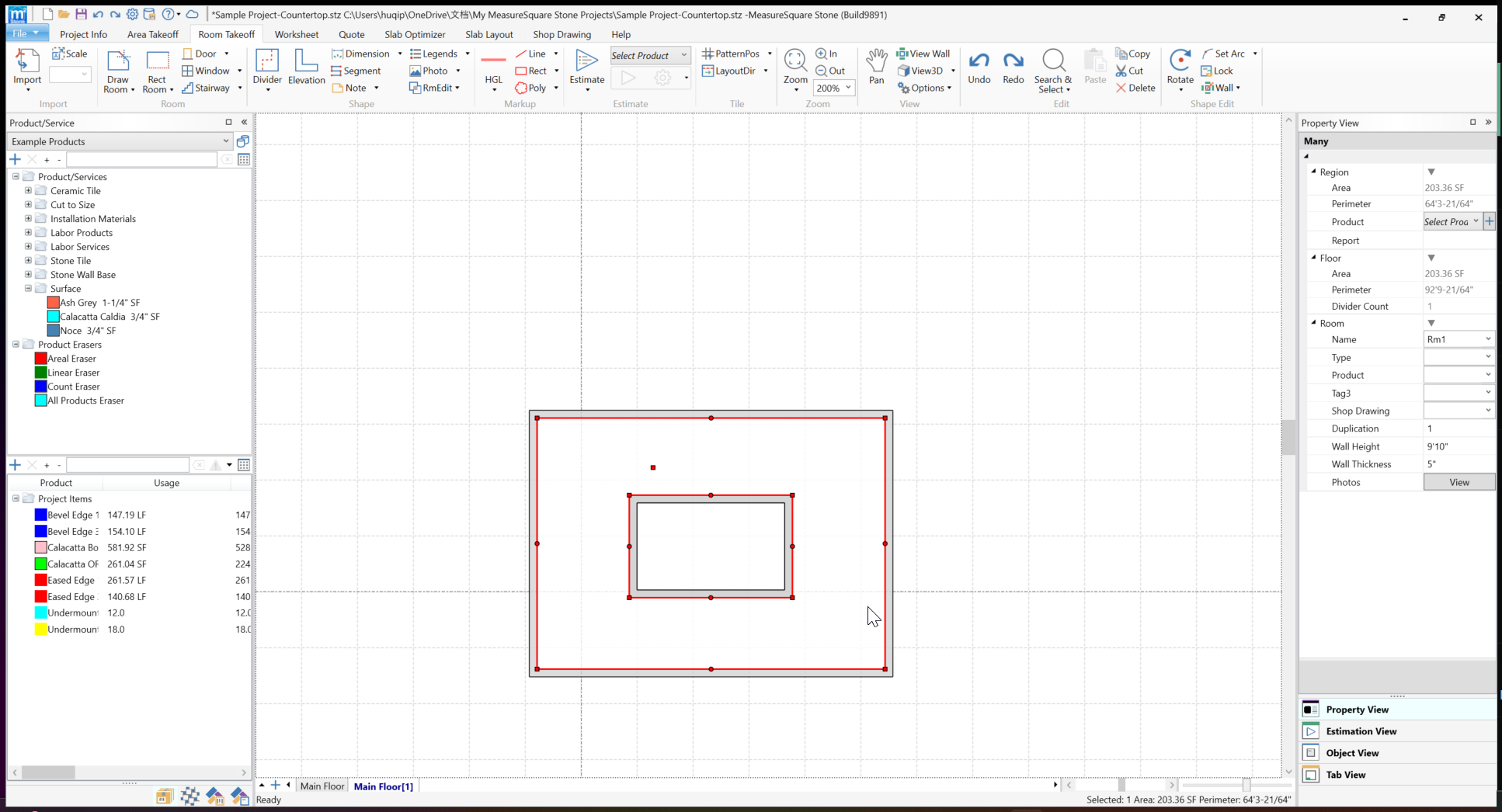

Step 3: Finished, now the two rooms merged together as one room.
Concept: When attempting to punch out a room in a way that would leave a gap, the action will not be able to complete. You may need to first punch out the gap separately.
