How to Create Border Dividers in MeasureSquare 8
This article will guide you through how to create border dividers on MeasureSquare 8.
---
Steps to Create Border Dividers:
Step 1:

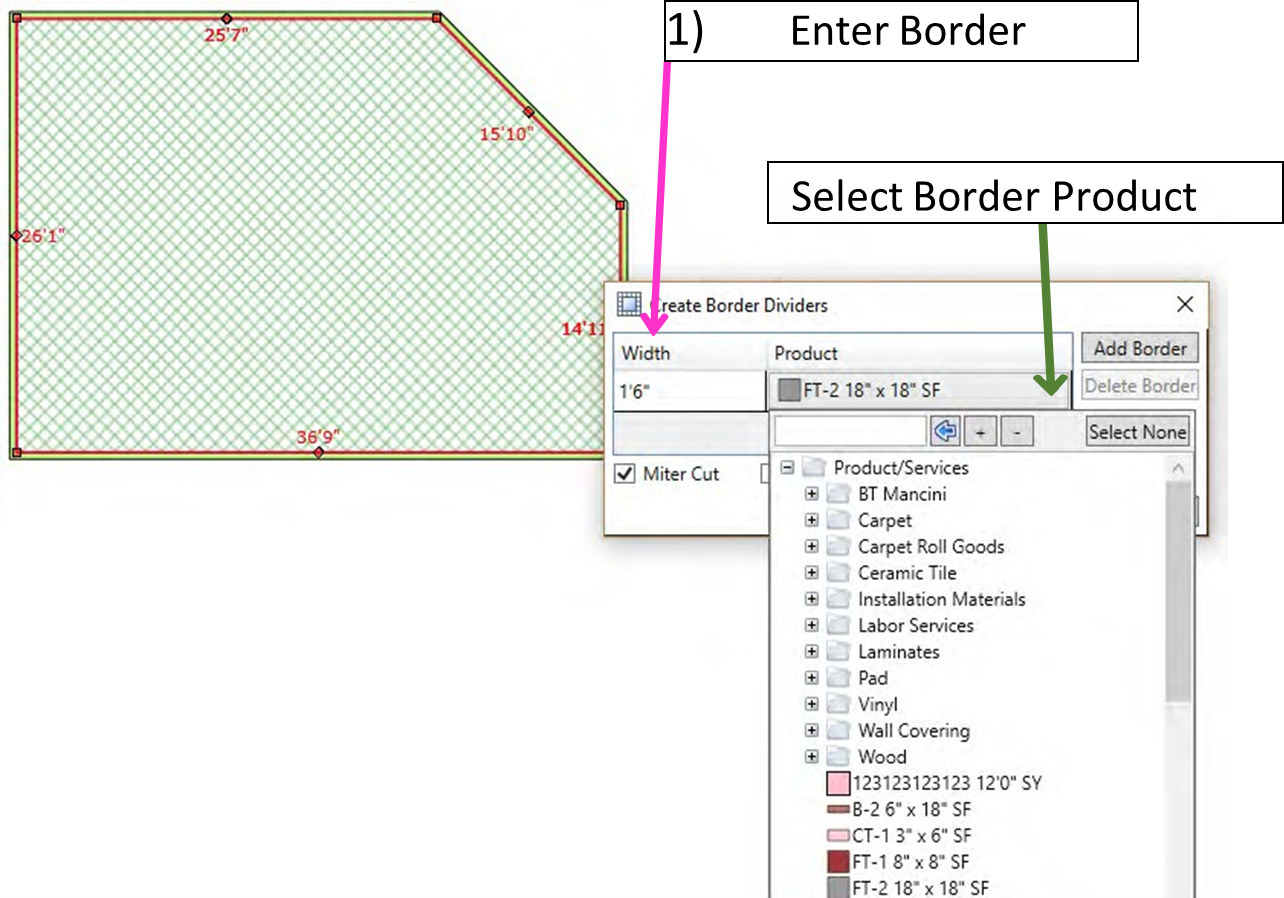

Left-click on the room where you want to add a border. Then, navigate to the toolbar and click on "Create Border Dividers" under the Divider menu, as shown in the first screenshot. This will open the Create Border Dividers dialog box.
Step 2:
In the Create Border Dividers dialog box, enter the desired border width in the Width field. For example, you can input "1'6" as shown in the second screenshot.
Next, select the border product from the product list by expanding the categories and clicking on the desired product.
Step 3:

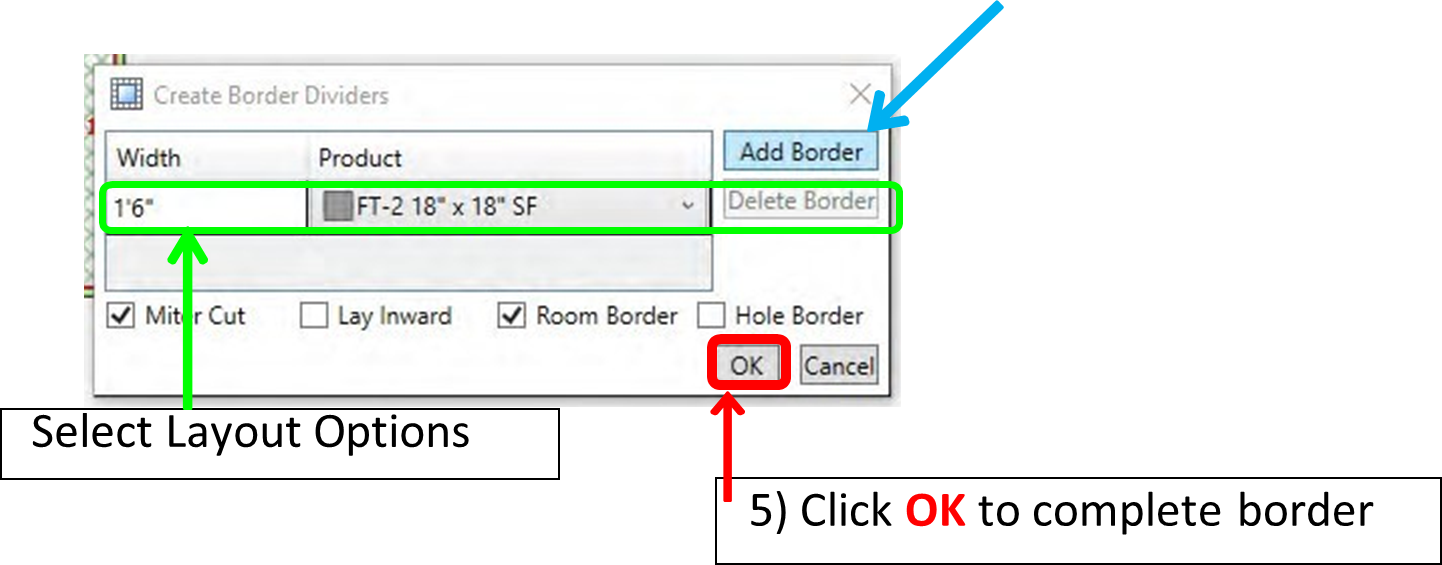

Once the width and product are selected, click the "Add Border" button to apply the border to the room. Ensure that the "Miter Cut" option is checked if you want the corners to be mitered.
Step 4:
After adding the border, click the "OK" button to confirm and apply the changes. The border will now appear around the room, as shown in the final screenshot.
Note: If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 or email support@measuresquare.com.
