How to correct a segmented wall into one uniform length

How to correct a segmented wall into one uniform length

In this article we will show you how to eliminate redundant wall segments in order to display one uniform length

This article applies to iPad users

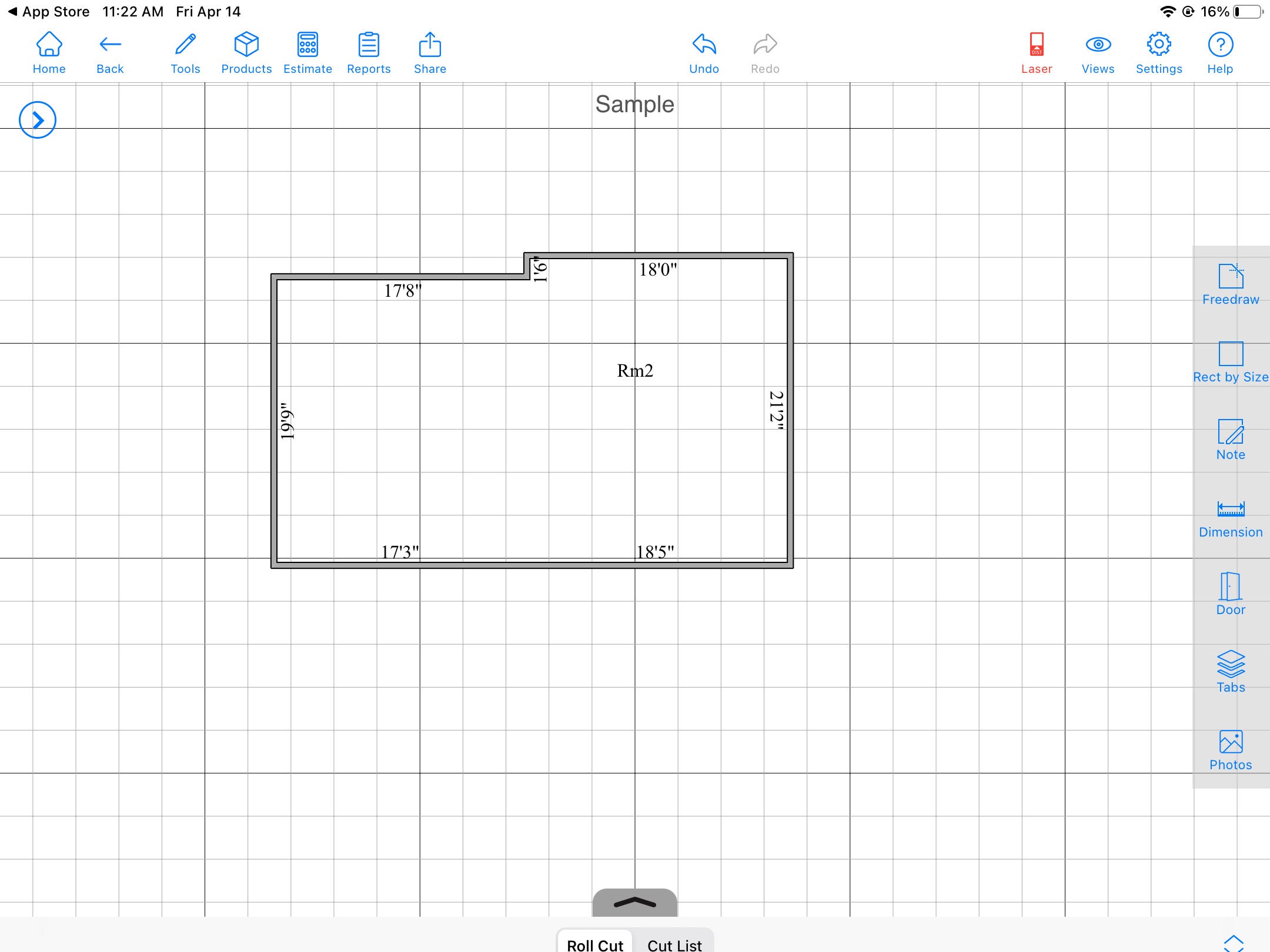

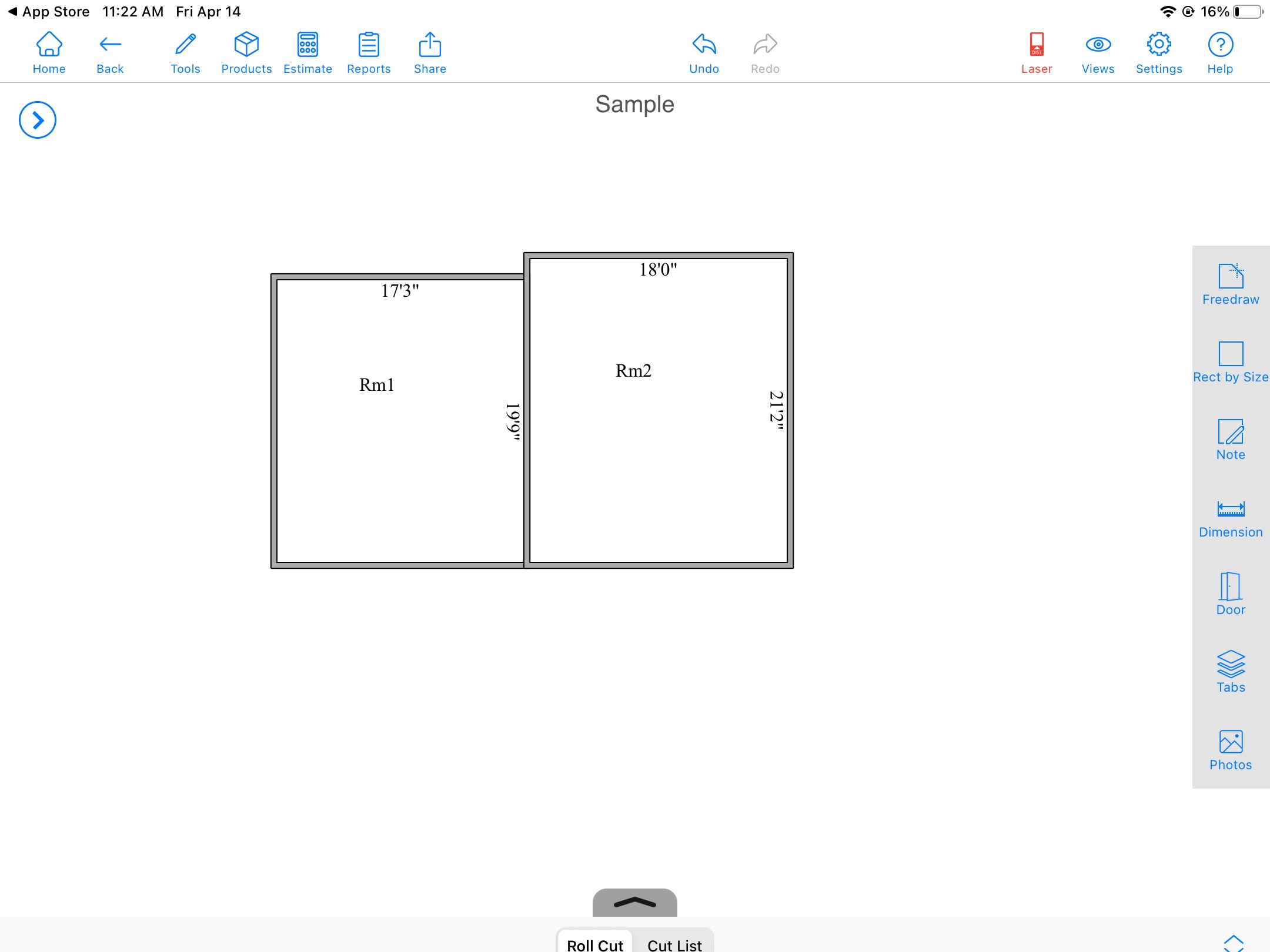

You may encounter split wall segments after merging a room

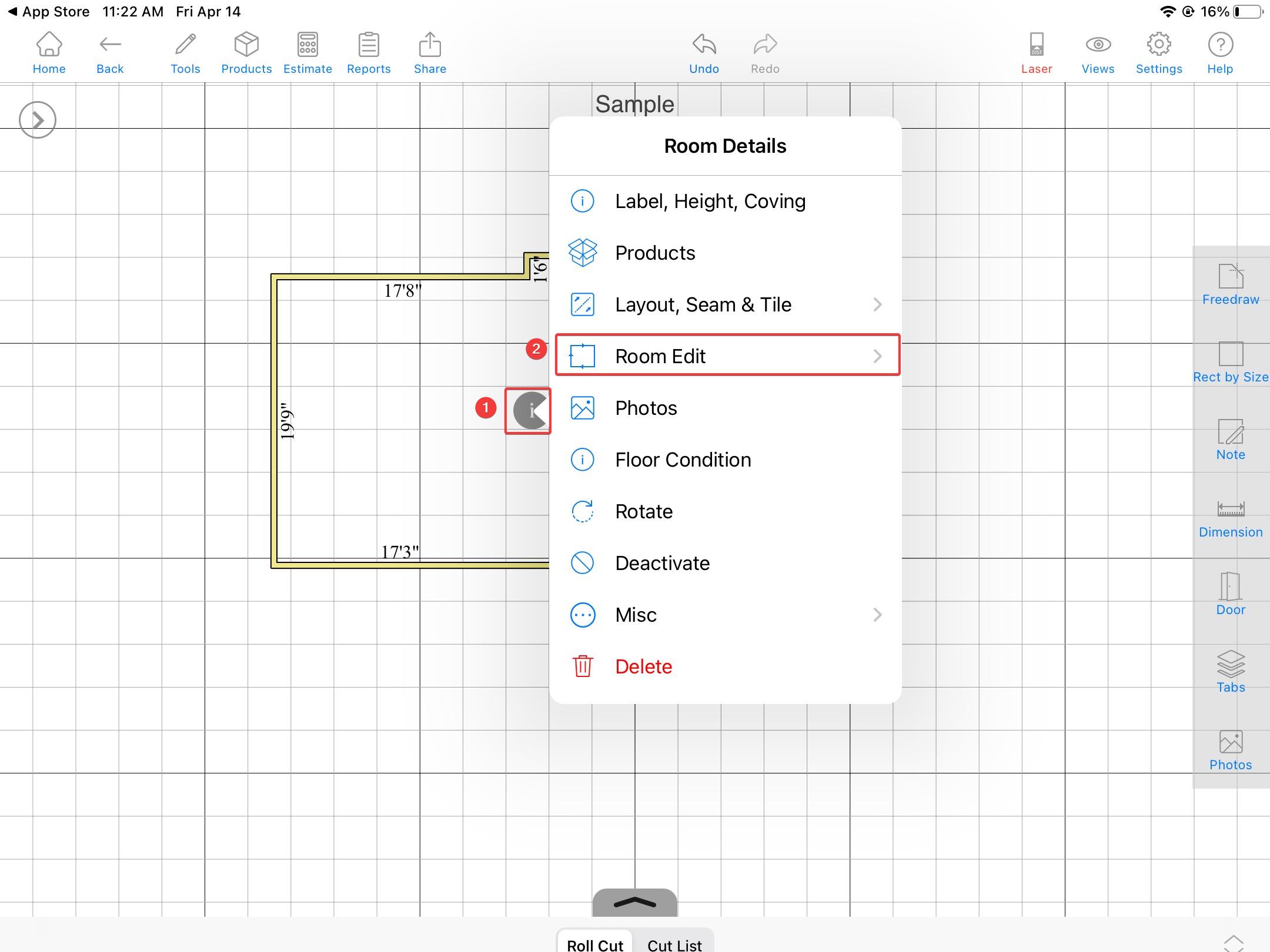

Step 1: Hit the information icon and click on Room edit

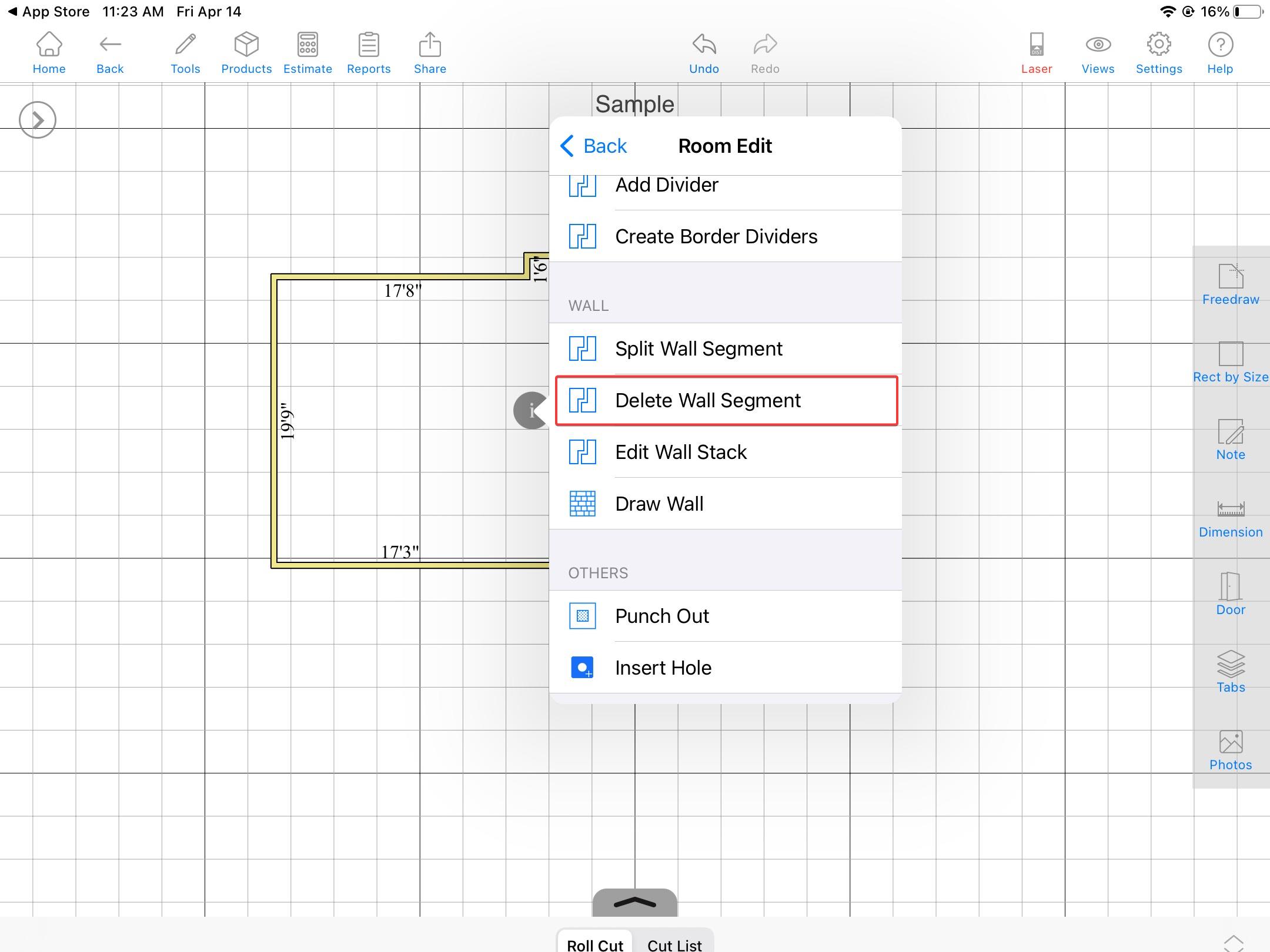

Step 2: Scroll down until you see the option for delete wall segment

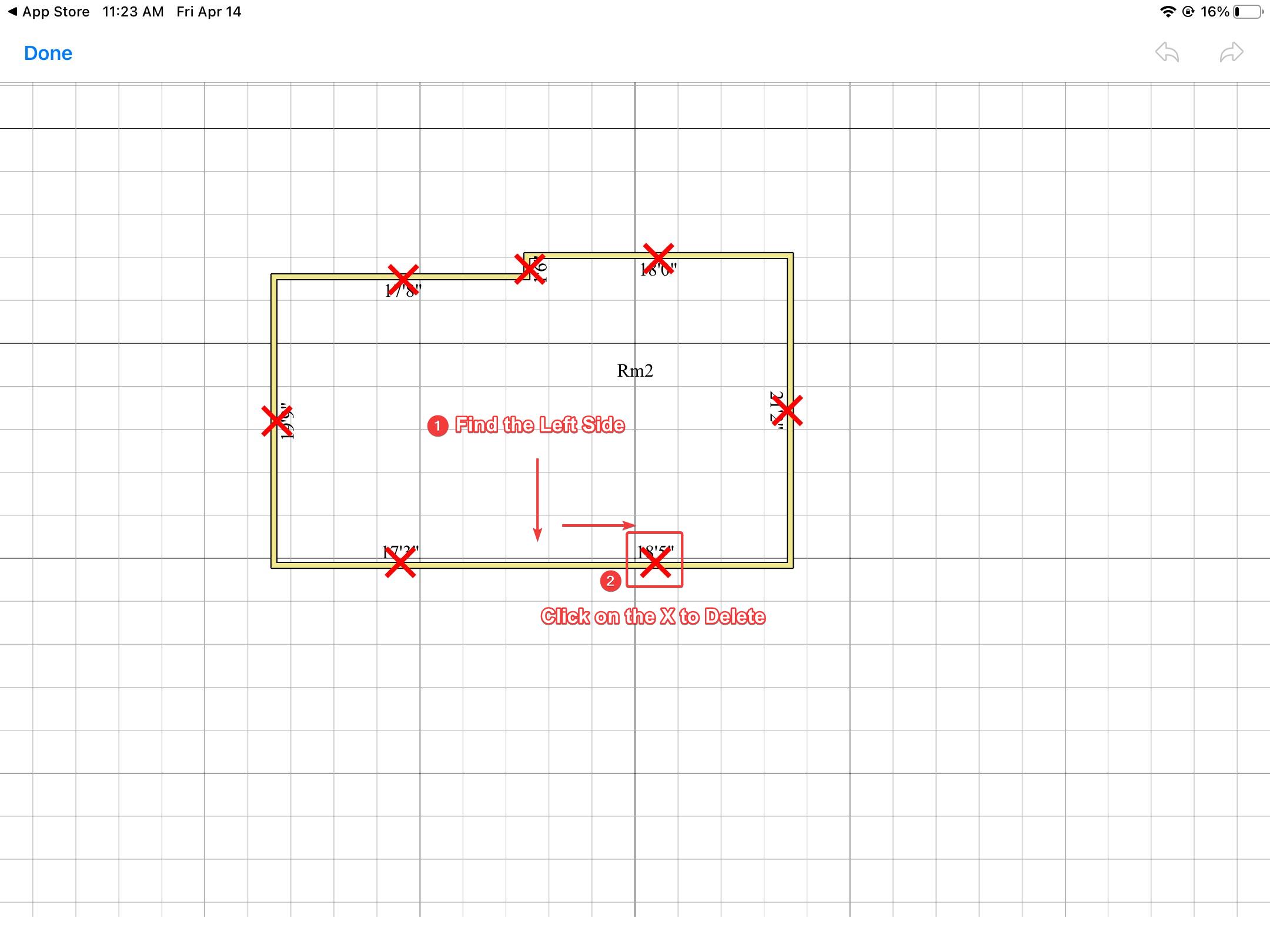

Step 3: Use the Delete wall segment tool on the wall segment further to the left for best results. The left side can be found by placing your point of view in the middle of the room facing out towards your wall.

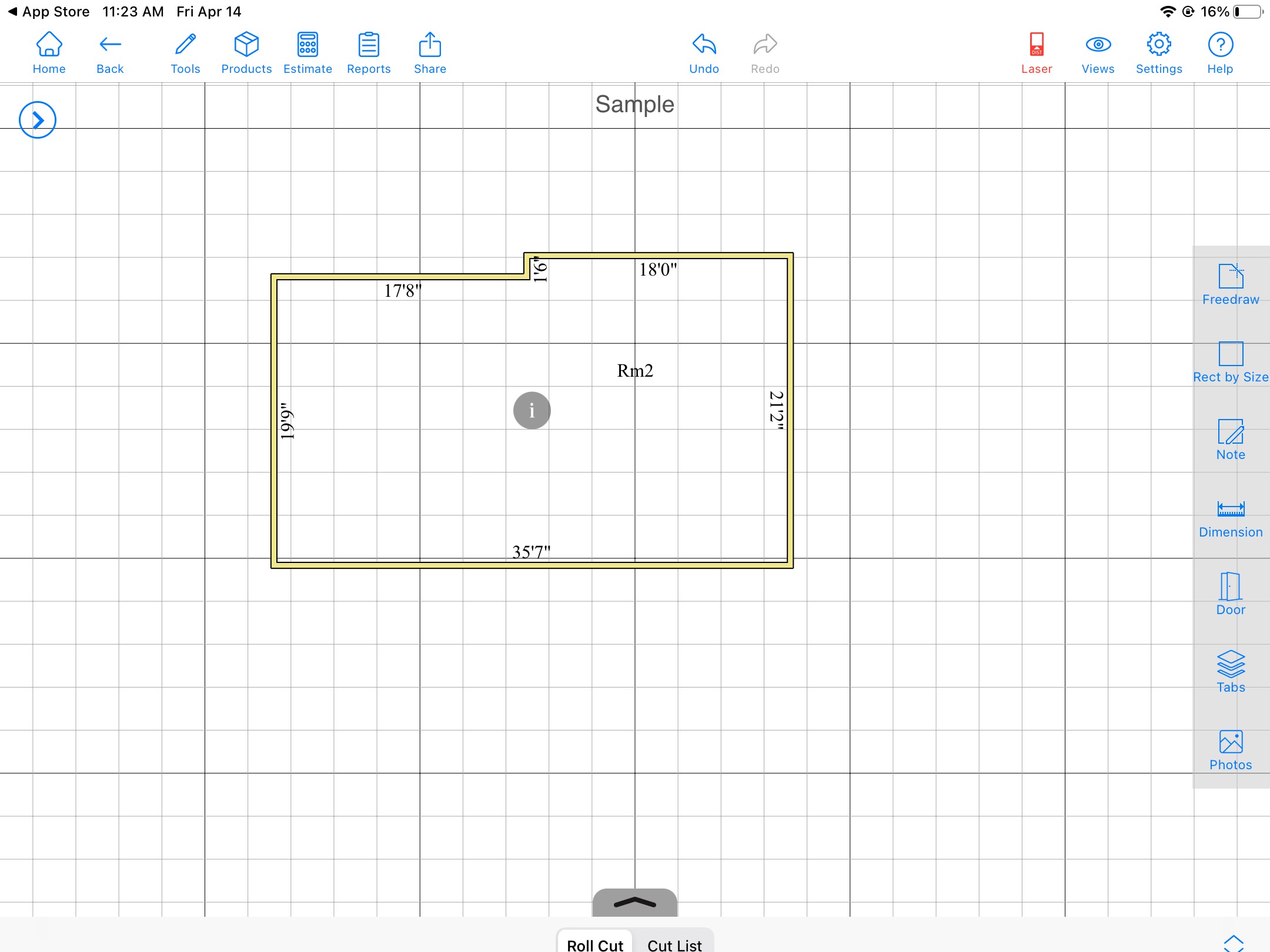

Here is the Result
