How to use Round Corner and Round all Corners in MeasureSquare Stone?
This article will guide you through the steps to round the corners of a slab in MeasureSquare Stone. Rounding slab corners is essential for creating smooth, professional designs for countertops and other stone projects.
Steps to Round Corner Your Slab
Step 1: Select the AreaEdit Tool

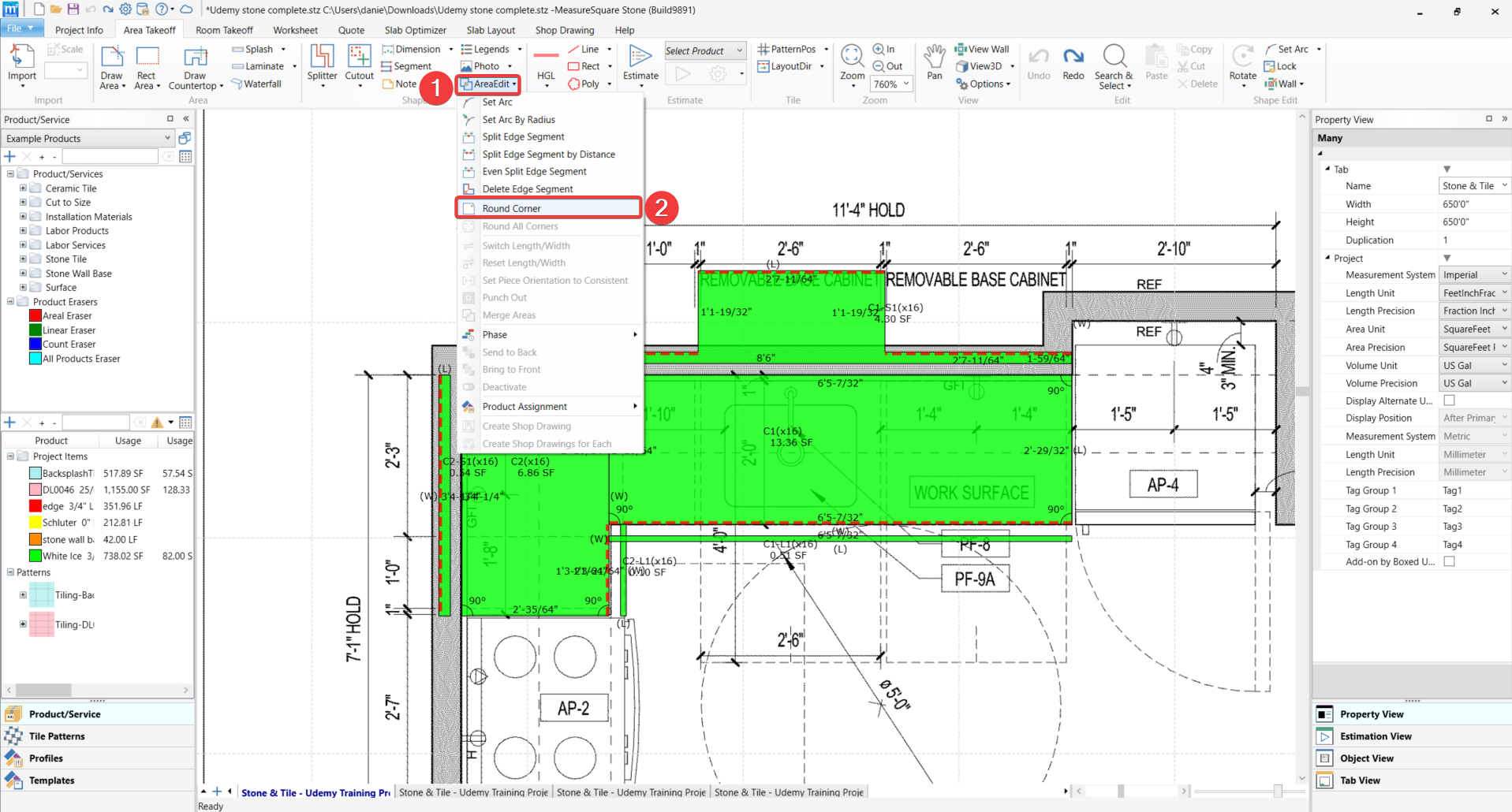

1. Navigate to the AreaEdit dropdown menu in the toolbar
2. From the dropdown menu, select Round Corner
Step 2: Set the Corner Radius

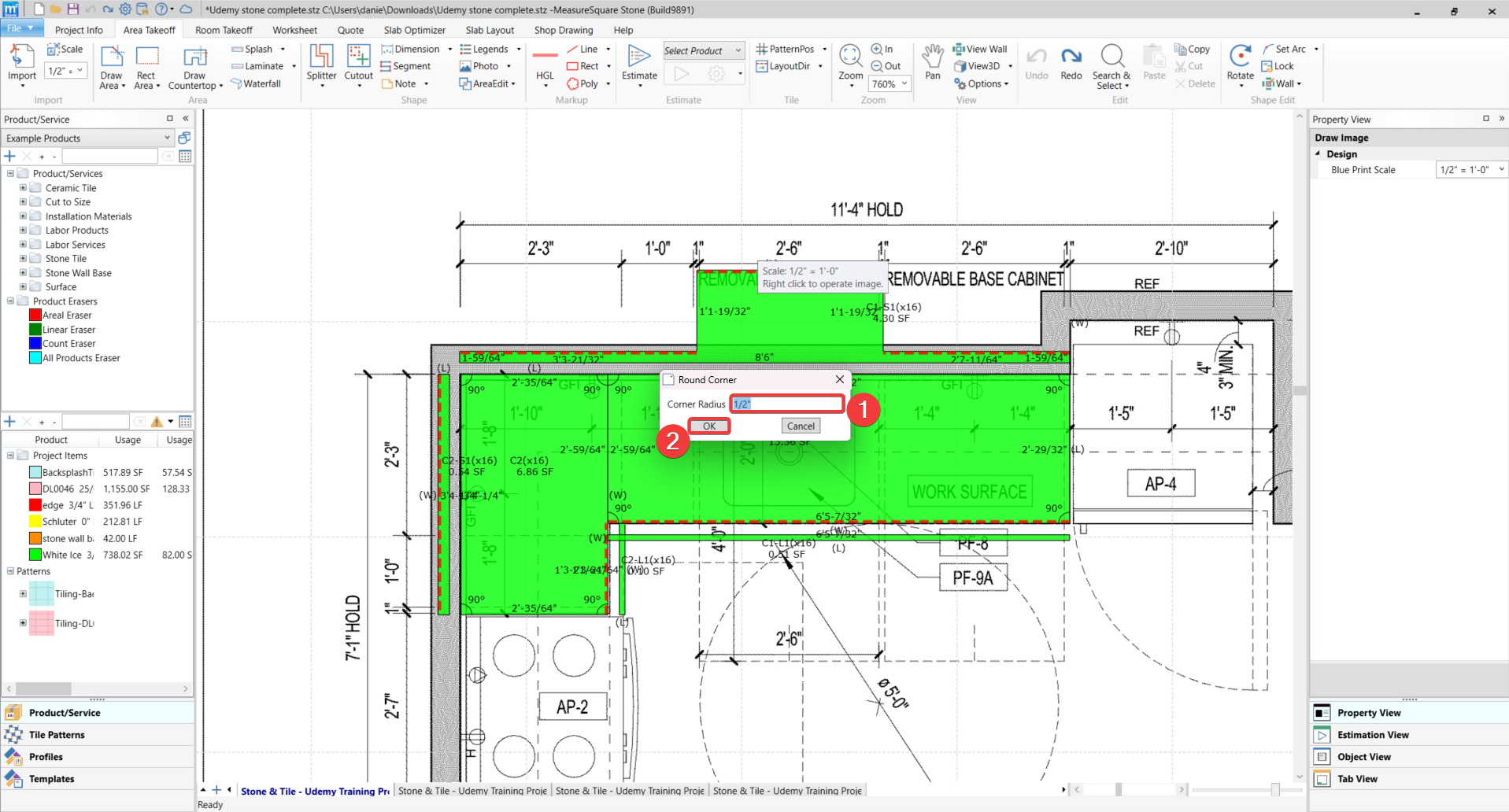

1. Enter the desired Corner Radius (e.g., 1/2") in the Round Corner window
2. Click OK to apply the corner rounding
Step 3: Verify the Rounded Corner
1. Zoom in on the corner you modified to verify the rounding.
2. The corner should now appear rounded, as shown in the screenshot below.

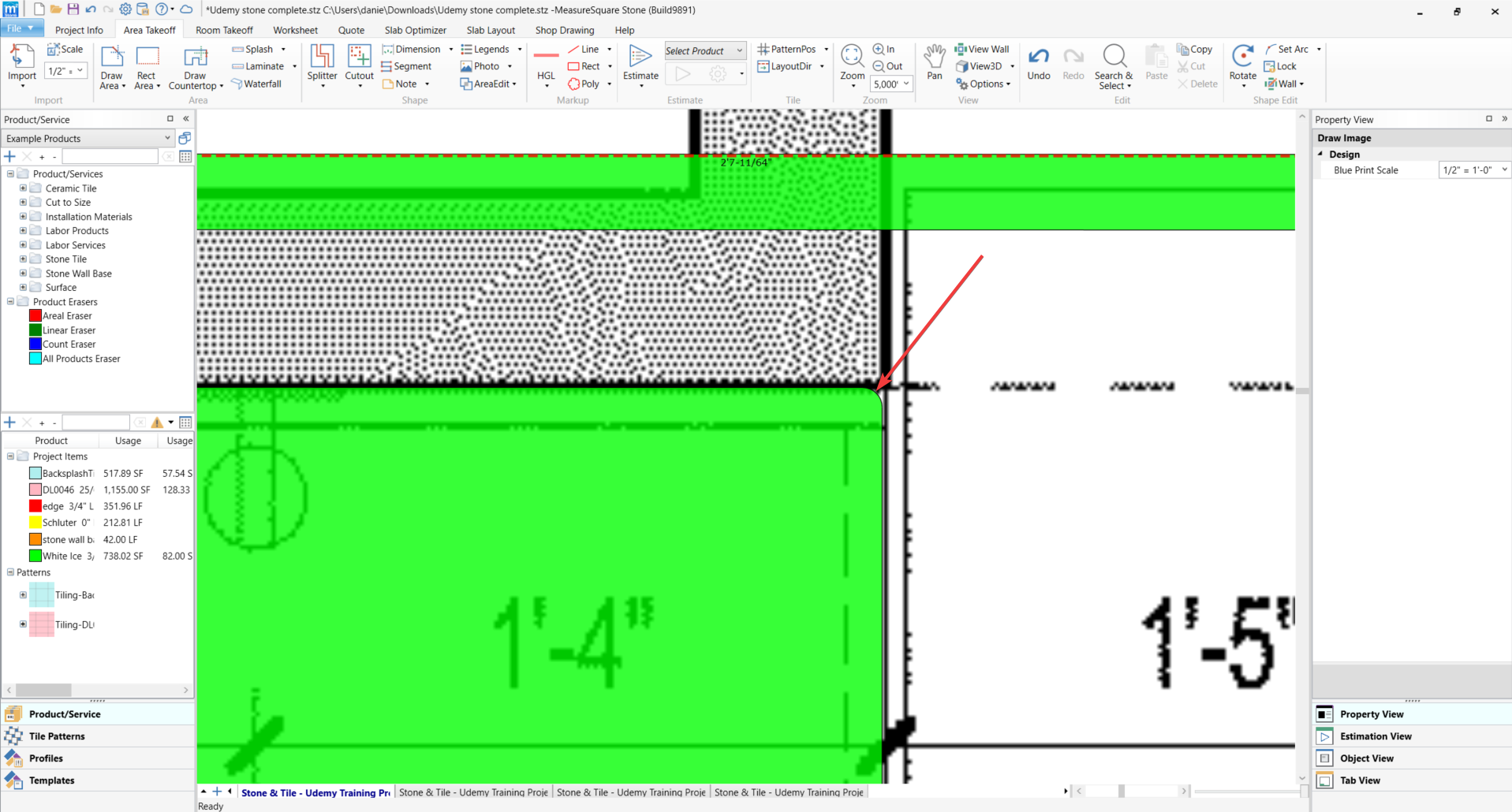

Before rounding (when hovering over the corner of the slab, notice there's a green highlight to verify rounding):

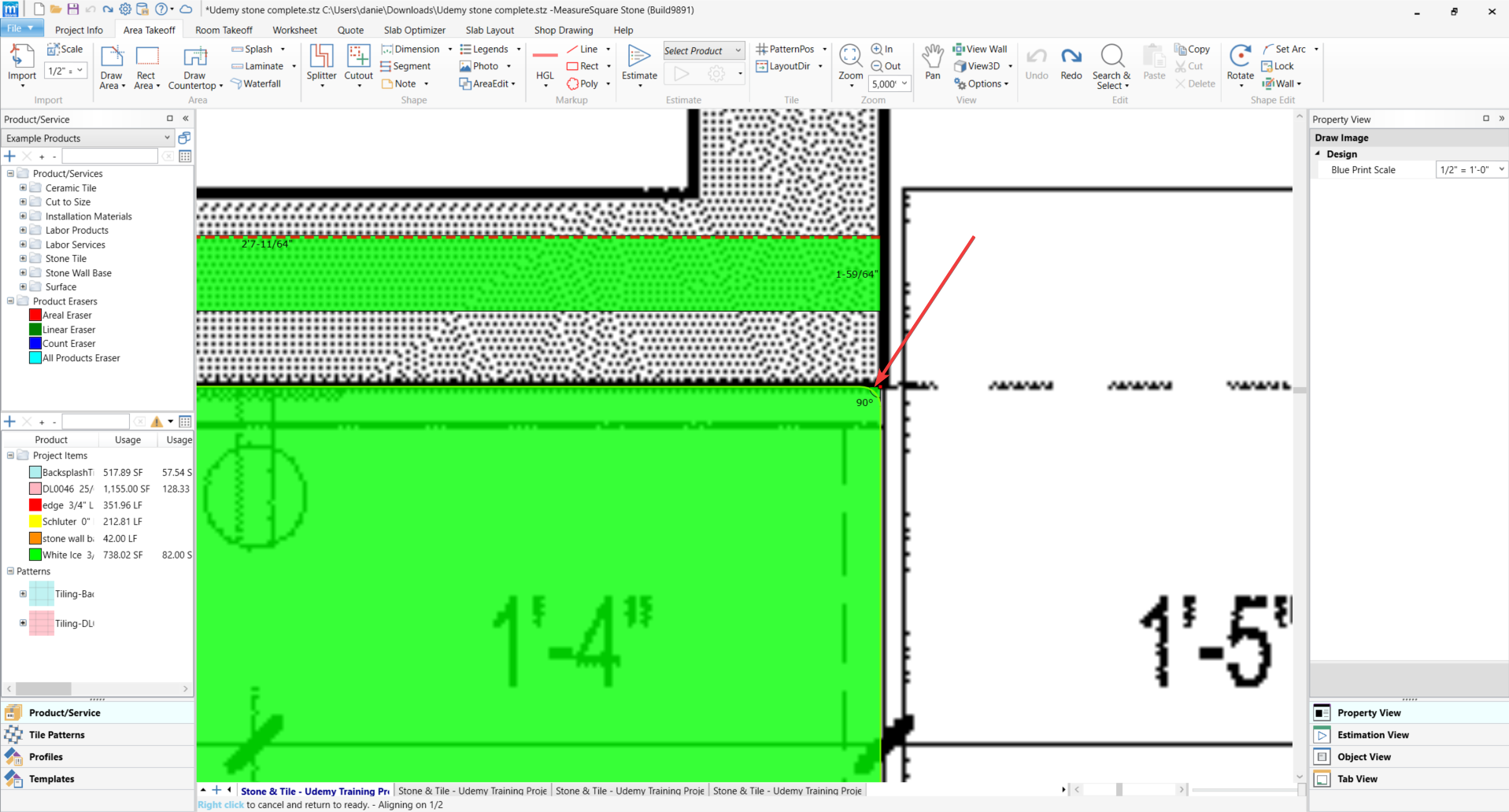

After rounding (After clicking on the corner of the slab, the corner of the slab will be rounded):

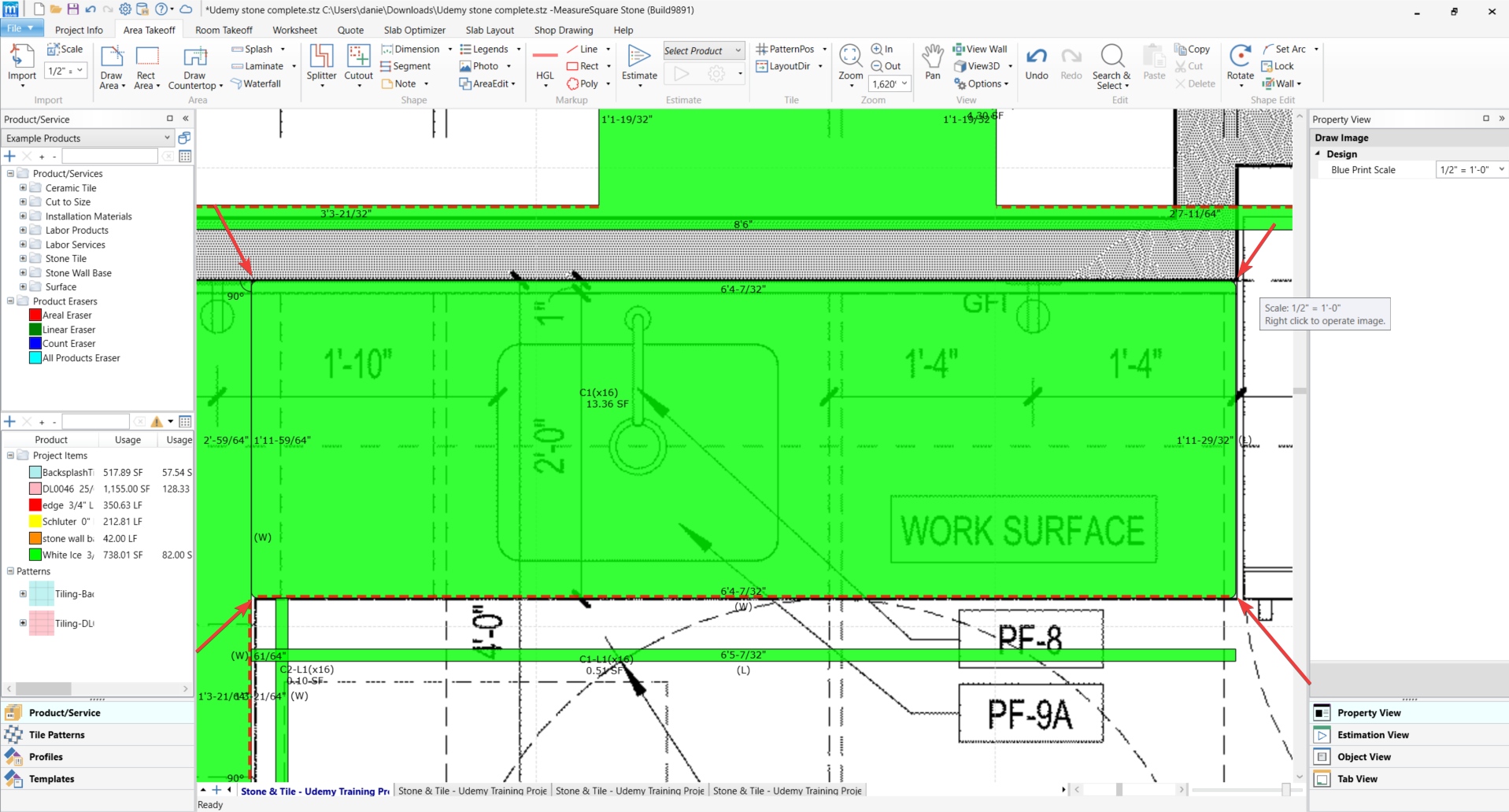

Round all Corners to Your Slab
Step 1: Select the AreaEdit Tool

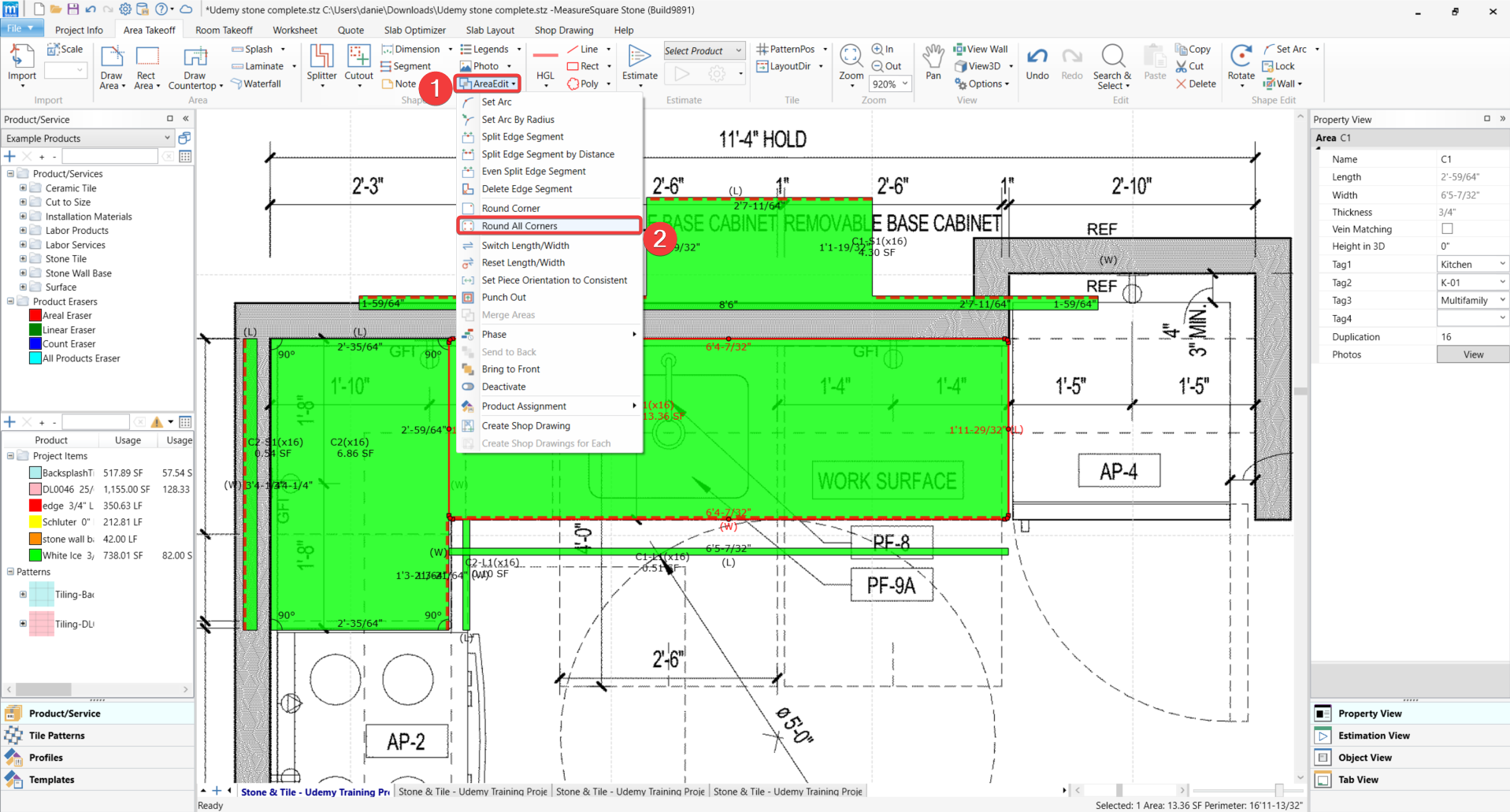

1. Navigate to the AreaEdit dropdown menu in the toolbar
2. From the dropdown menu, select Round All Corners
Step 2: Set the Corner Radius

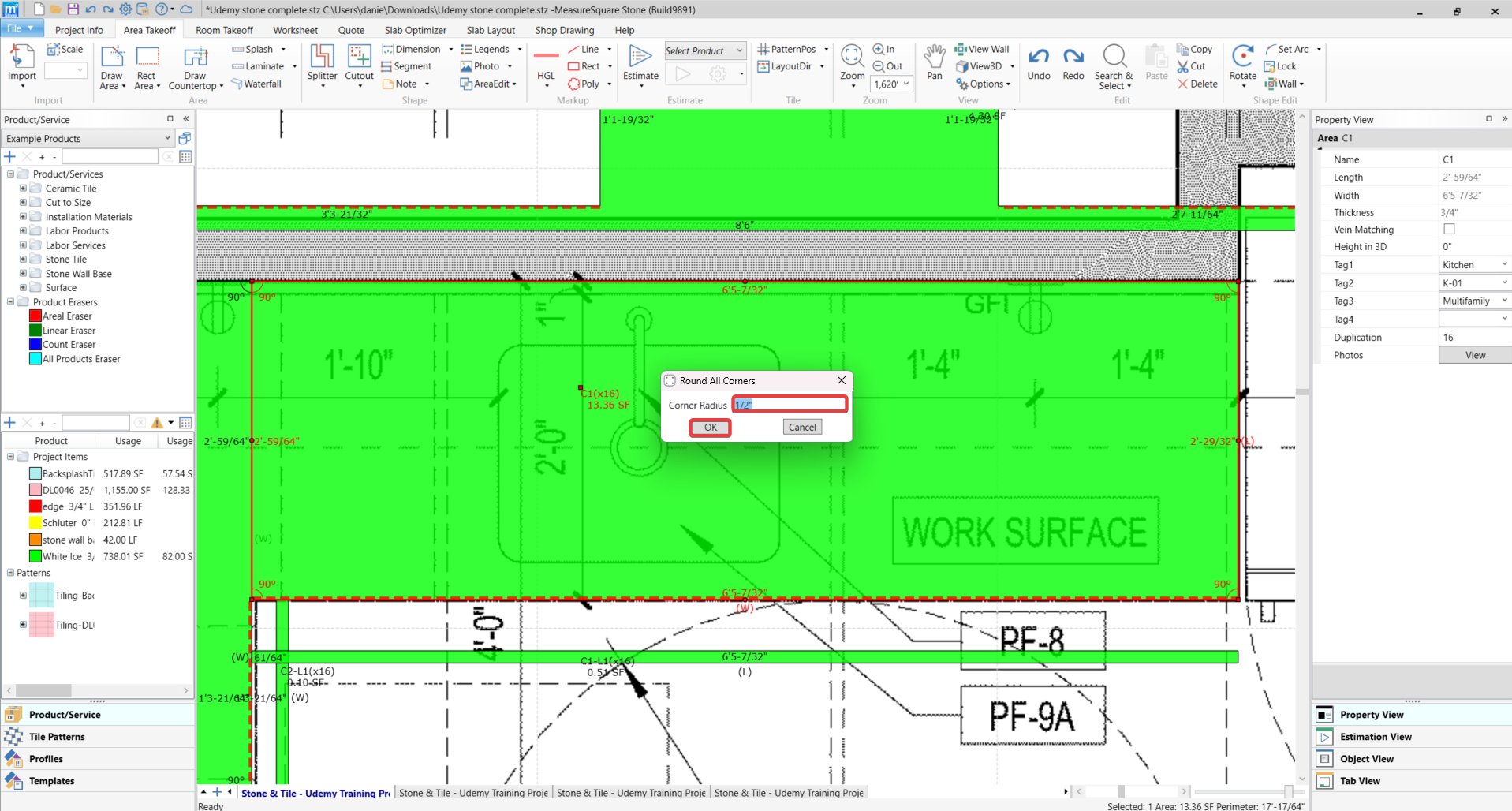

1. Enter the desired Corner Radius (e.g., 1/2") in the Round Corner window
2. Click OK to apply the corner rounding
3. Afterwards, all Corners of the Slab will be rounded
If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 ext. 3 or email support@measuresquare.com.
