How to Copy & Paste a Drawing into Another Tab on MeasureSquare 8

How to Copy & Paste a Drawing into Another Tab on MeasureSquare 8

This article will guide you through the process of copying and pasting a drawing into another tab in MeasureSquare 8.

This applies to MeasureSquare 8

Steps to Copy & Paste a Drawing into Another Tab:

Step 1: Select the Drawing
  1. Navigate to the tab containing the drawing you want to copy.

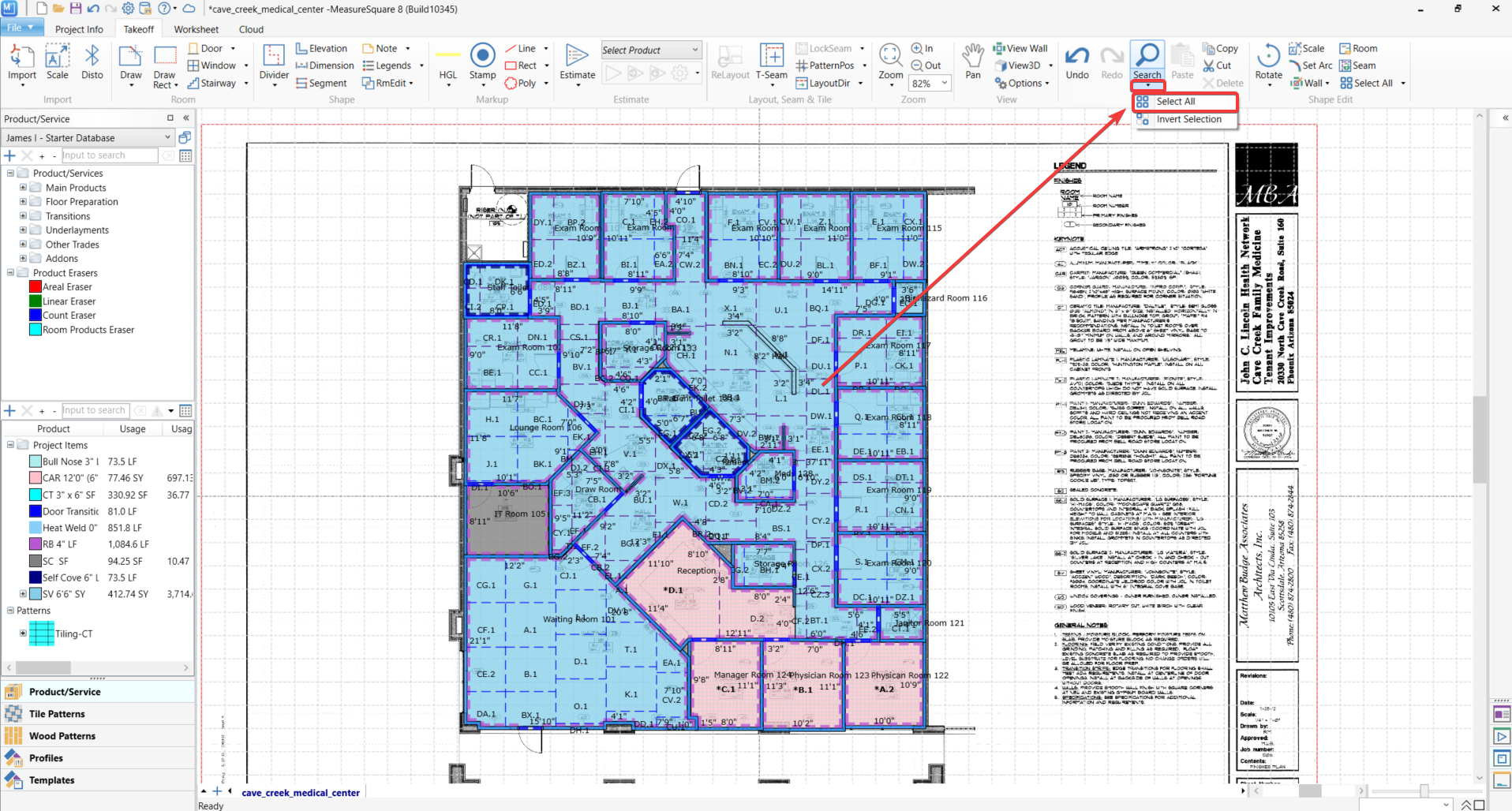

  2. Use the "Select All" tool located in the top toolbar under the đź”ŽSearch tool dropdown menu or press Ctrl+A on your keyboard to select the entire drawing.



Step 2: Copy the Drawing

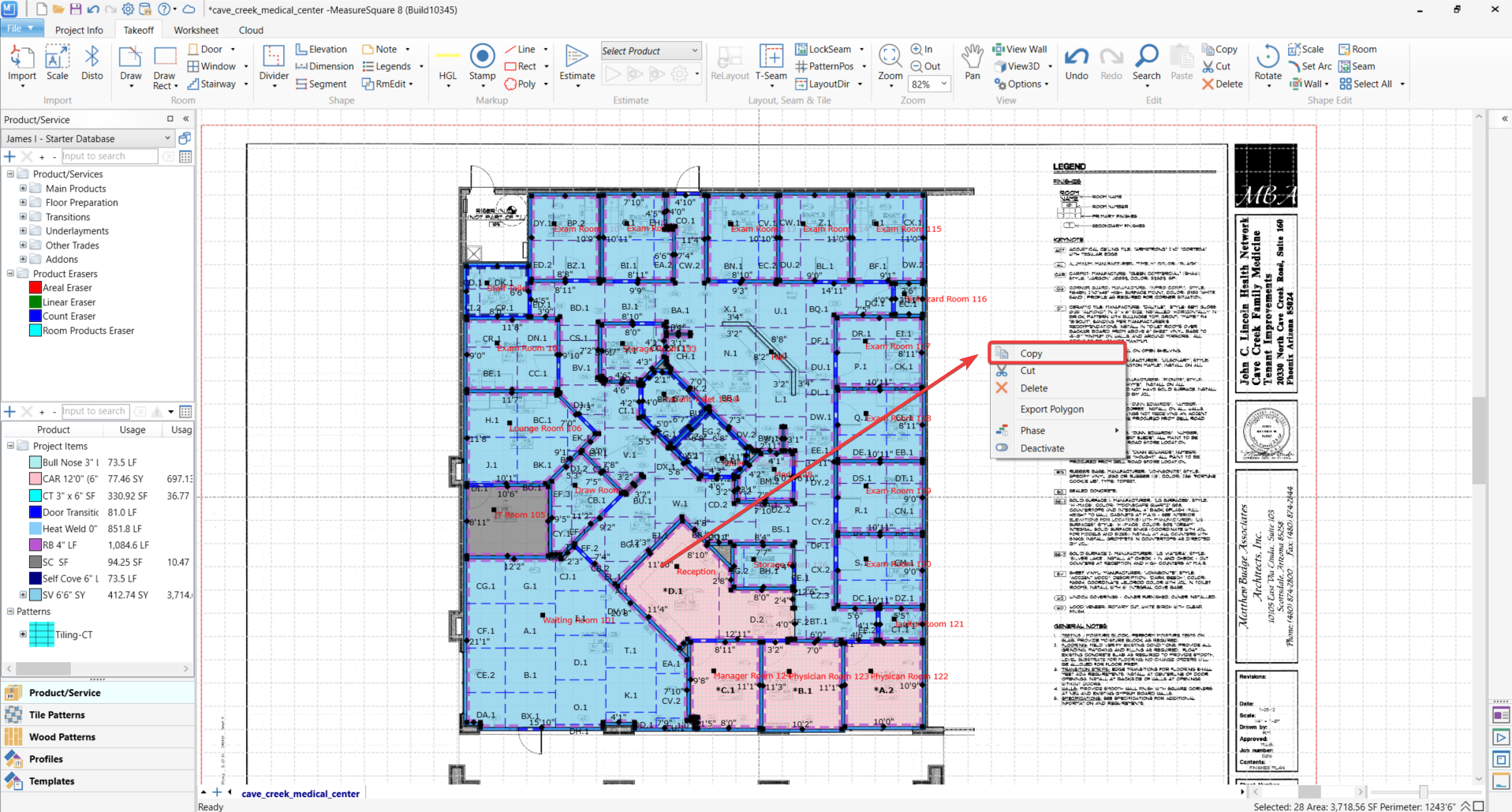

  1. Once the drawing is selected, right-click anywhere on the selected area and choose "Copy" from the context menu. Alternatively, press Ctrl+C on your keyboard.



Step 3: Create a New Tab

To paste the drawing into a new tab, first create a new tab:
  1. Click the "+" icon located at the bottom-left corner of the screen.

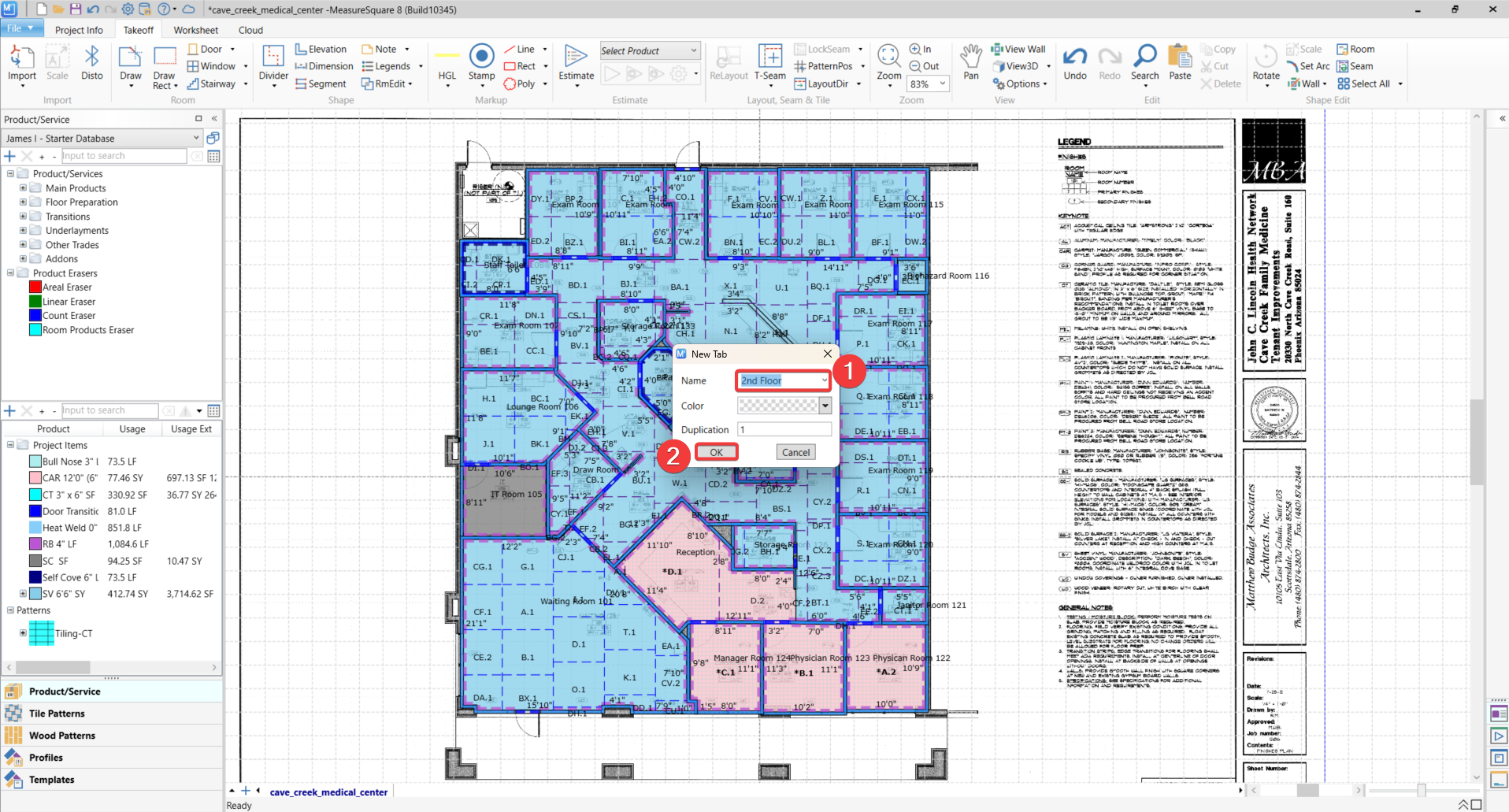

  1. In the "New Tab" dialog box, enter a name for the new tab (e.g., "2nd Floor") and click "OK"



The new tab will appear next to the existing tab at the bottom of the screen.

Step 4: Paste the Drawing into the New Tab
  1. Switch to the newly created tab by clicking its name at the bottom of the screen (e.g., "2nd Floor").

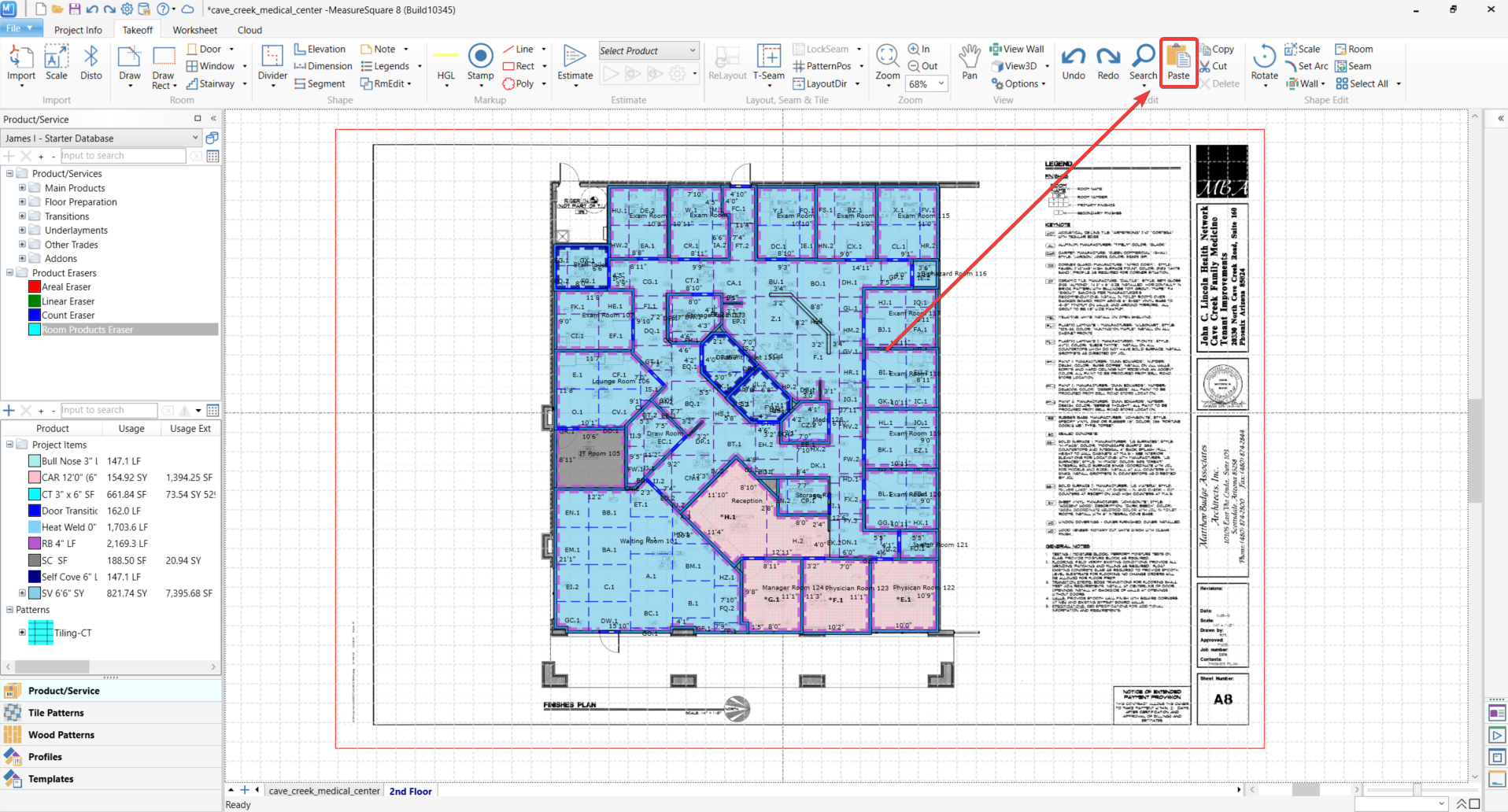

  2. Right-click anywhere on the blank grid and select "Paste" from the context menu, or press Ctrl+V on your keyboard.
The drawing will now appear in the new tab.



Info
If you want to erase the entire products from your previous tab, use CTRL+A and use the Room Products Eraser under Product Erasers.


"Additionally, you may reach out to our Support team at +1-626-683-9188 or anytime at support@measuresquare.com"
