How to Change Room Label Font and Color in MeasureSquare 8
This article explains how to customize the Room Label font style, size, weight, and color in MeasureSquare 8. Use this setting to improve readability or match your preferred drawing style.
Steps to Change Room Label Font

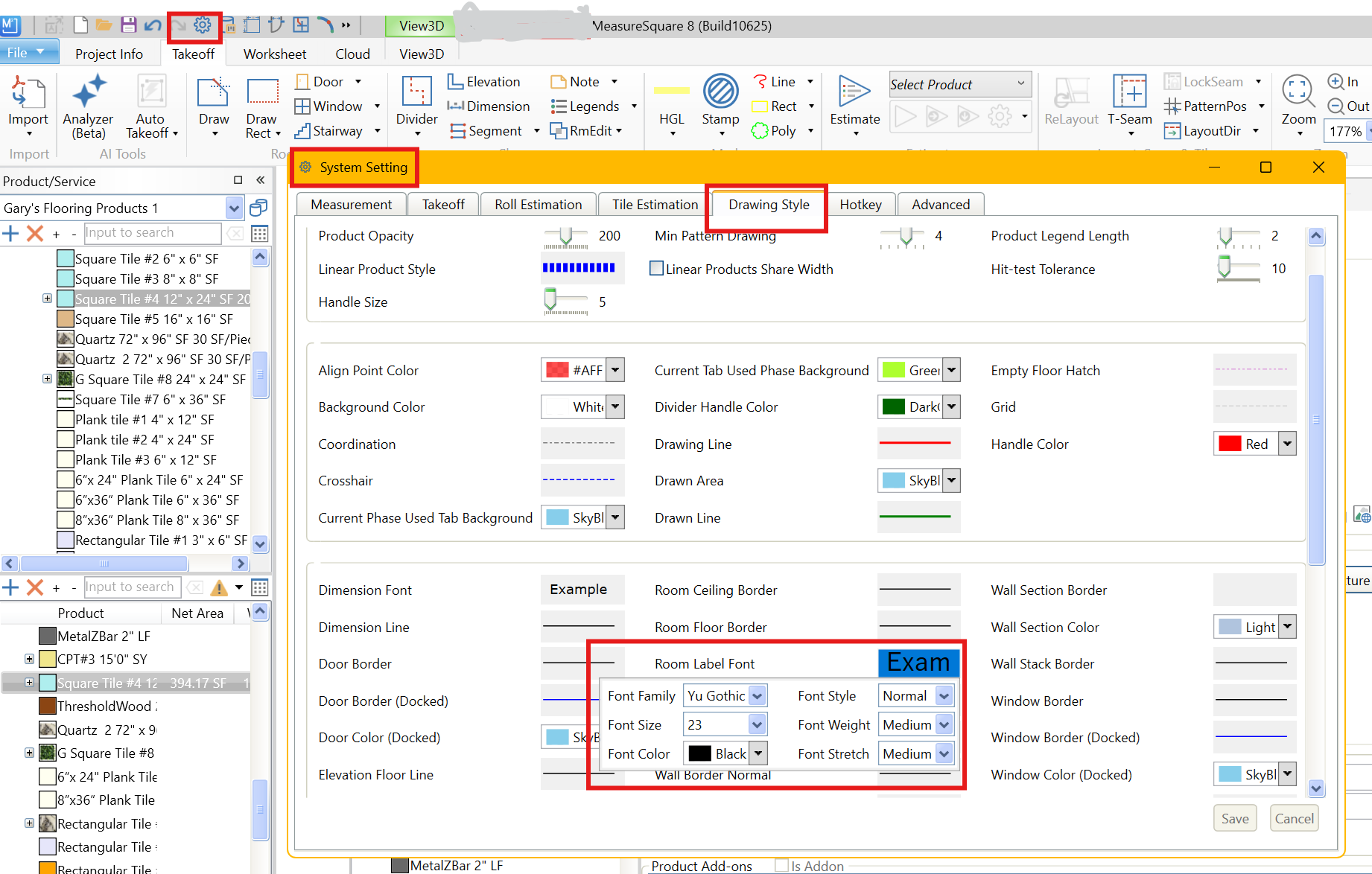

Step 1: Click the System Settings gear icon in the top toolbar to open the System Setting window.
Step 2: In the System Setting window, click the Drawing Style tab.
Step 3: Locate the Room Label Font row. Click the Exam button (the preview/edit button) to expand the font options dropdown.
Adjust the following settings as needed:
- Font Family — select your preferred typeface (e.g., Yu Gothic)
- Font Style — Normal, Italic, etc.
- Font Size — select a size from the dropdown
- Font Weight — Light, Medium, Bold, etc.
- Font Color — choose a color (e.g., Black)
- Font Stretch — Medium, Condensed, etc.
Click Save to apply the changes.
Note: If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 press 3 or email support@measuresquare.com.
