How to assign Room Names with OCR in MeasureSquare 8

How to assign Room Names with OCR in MeasureSquare 8

This article will show you how to assign room names using the OCR (Optical Character Recognition) feature in MeasureSquare 8.
This article applies to MeasureSquare 8 Build:10456 and above.

Assign Room Names with OCR While Drawing:

Step 1: Enable Image OCR

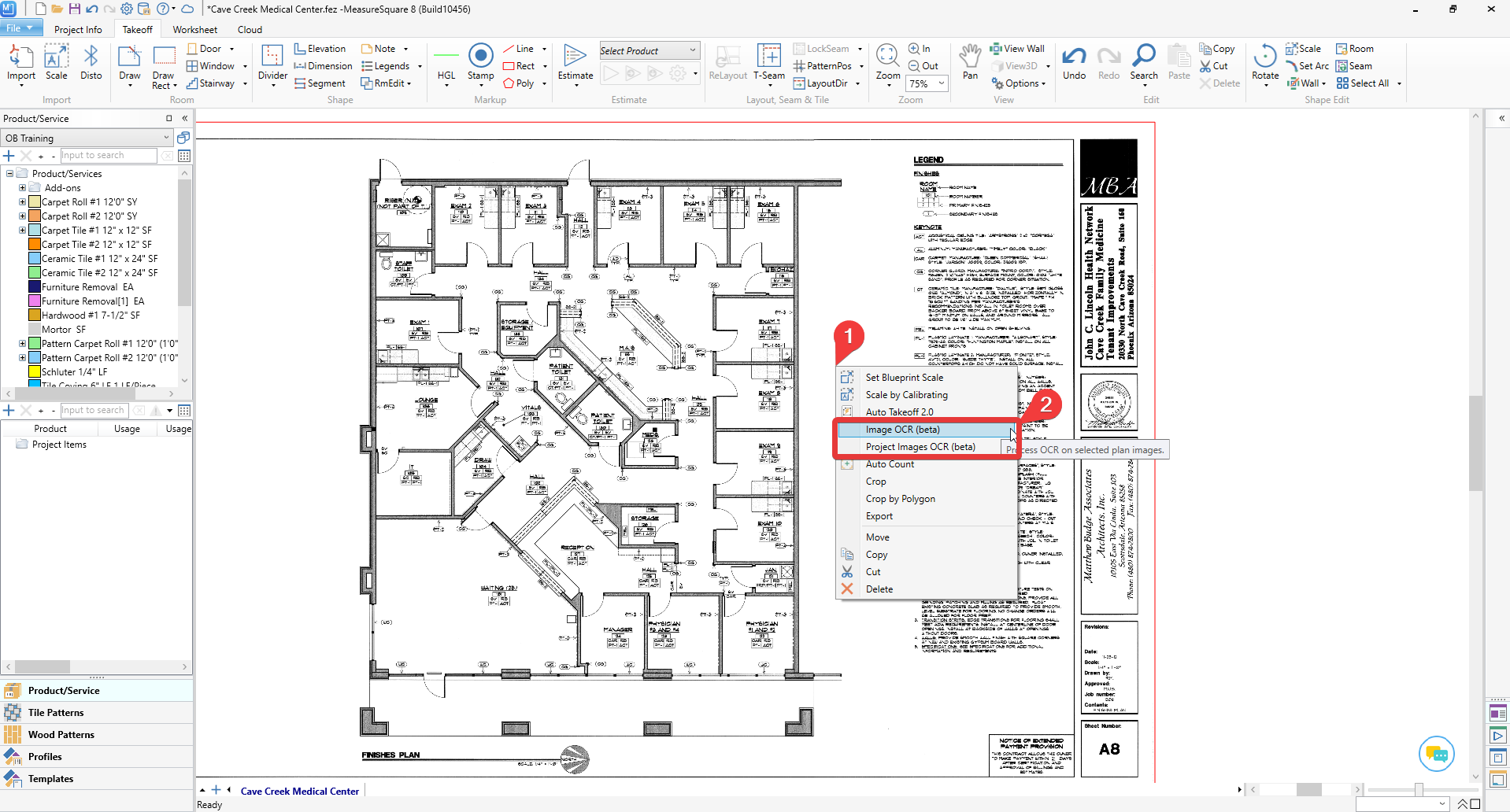

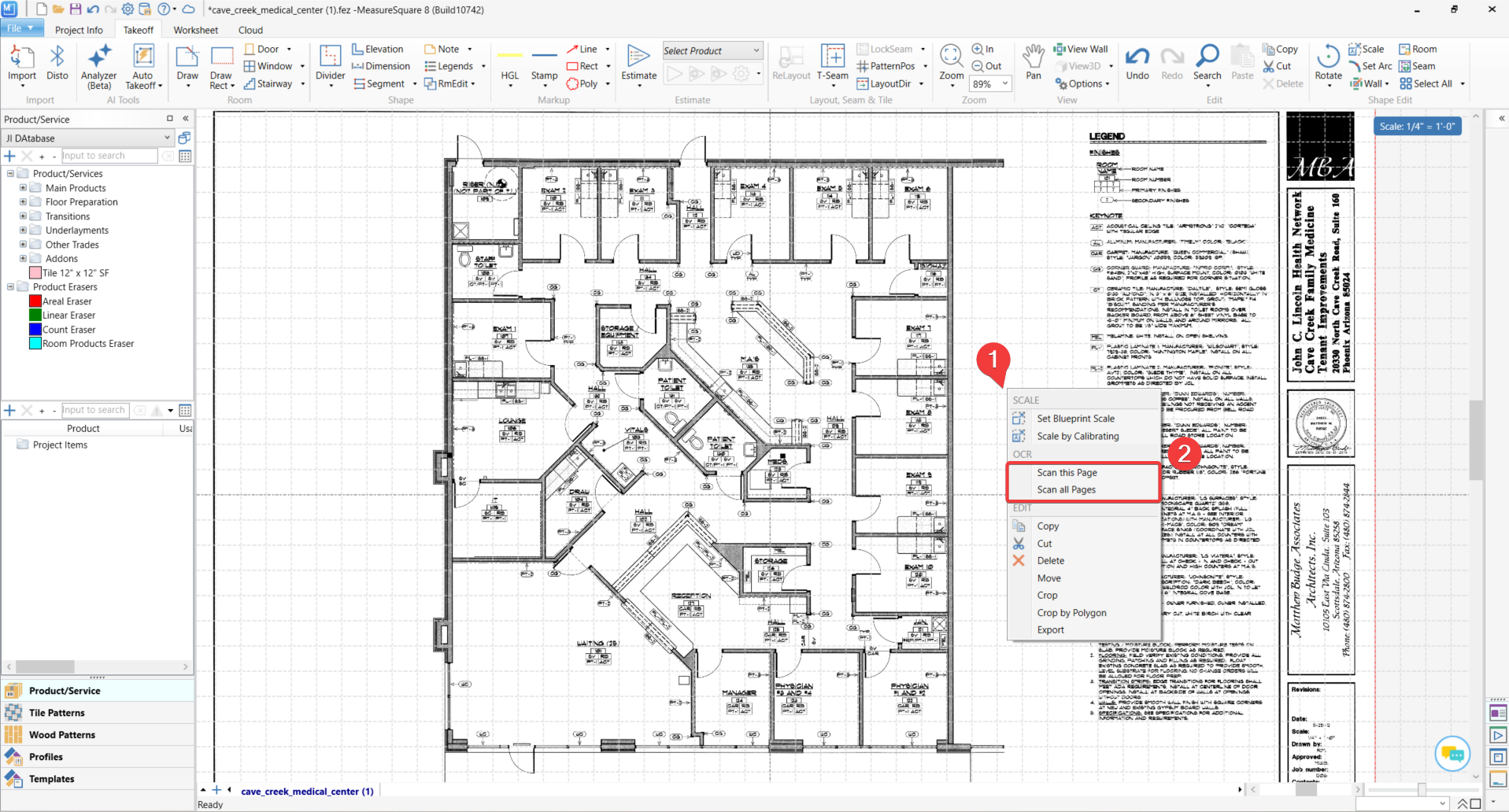

Right-click [1] on the blueprint image in your project and select Image OCR (Beta) or Project Images OCR (Beta) [2] from the dropdown menu. This will process the OCR on the selected plan images.



Step 2: Activate "Select PDF Text as Room Name"

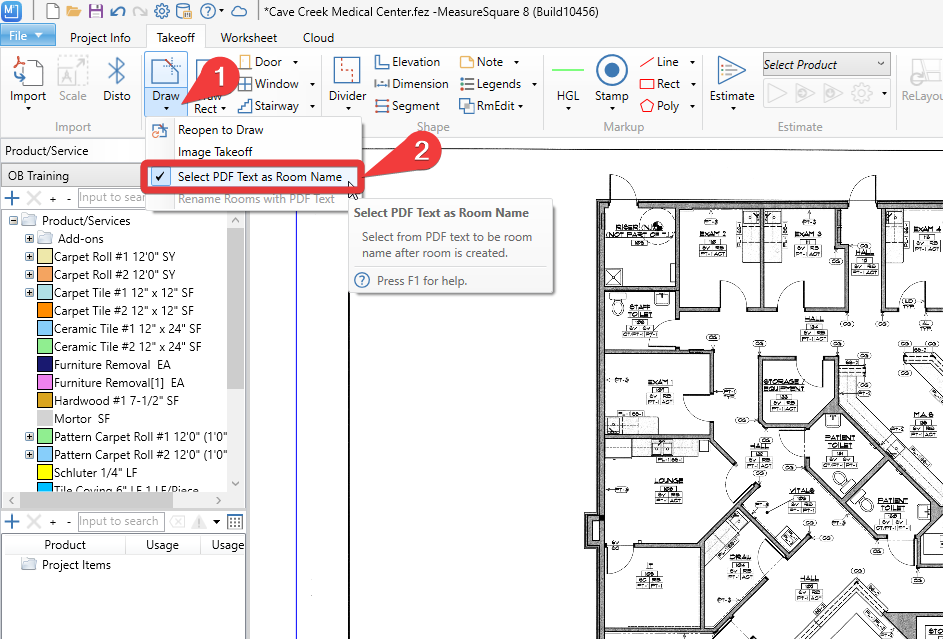

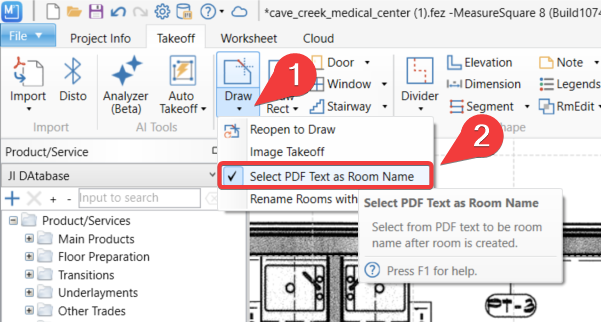

Navigate to the Takeoff tab in the toolbar. Under the Draw dropdown menu [1], check the option Select PDF Text as Room Name [2]. This enables the OCR feature to automatically assign room names based on the text in the blueprint.
Notes
Note: To turn off the pop-up for room naming. Uncheck this selection from step 2



---

Step 3: Draw the Room

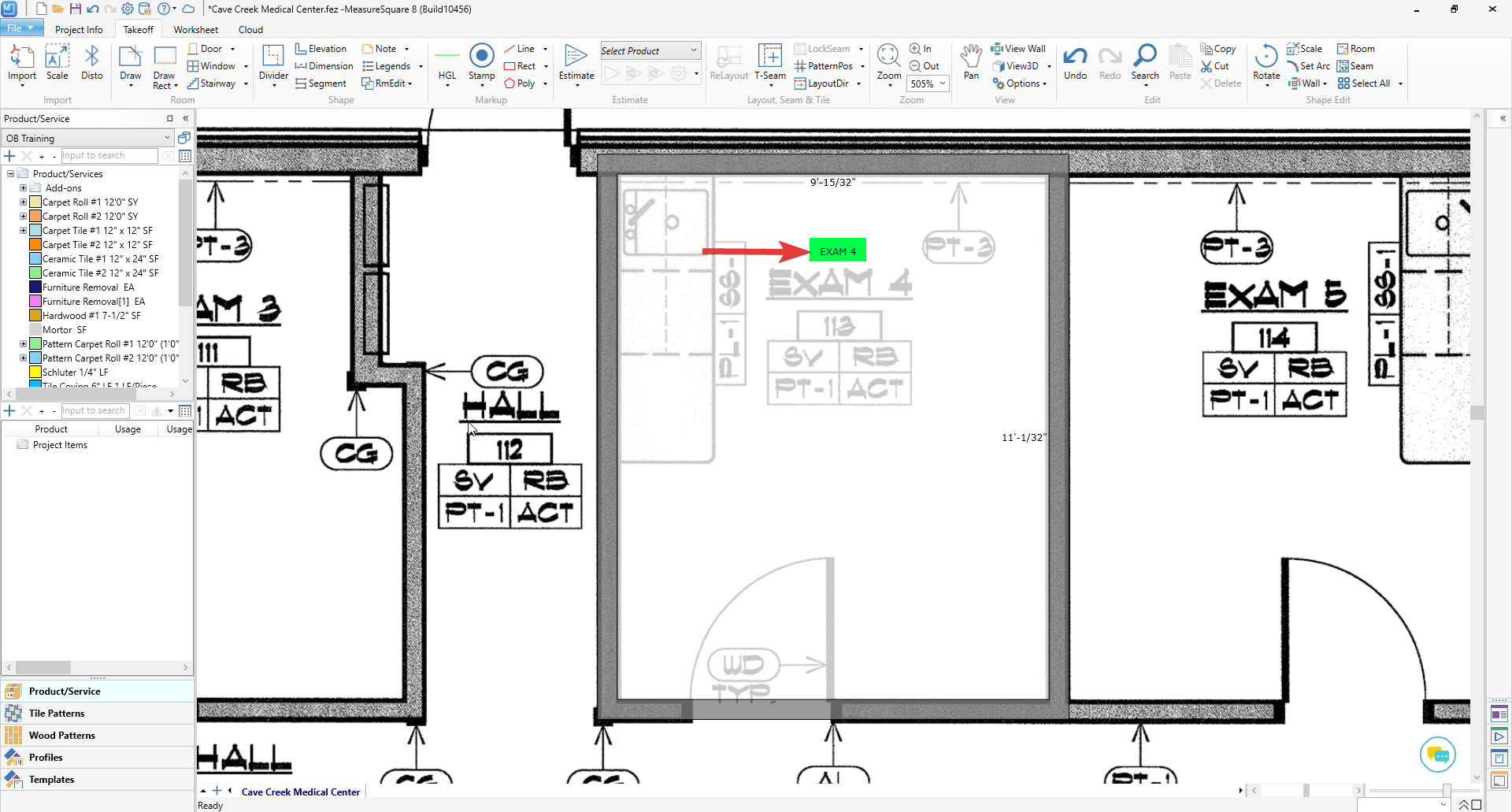

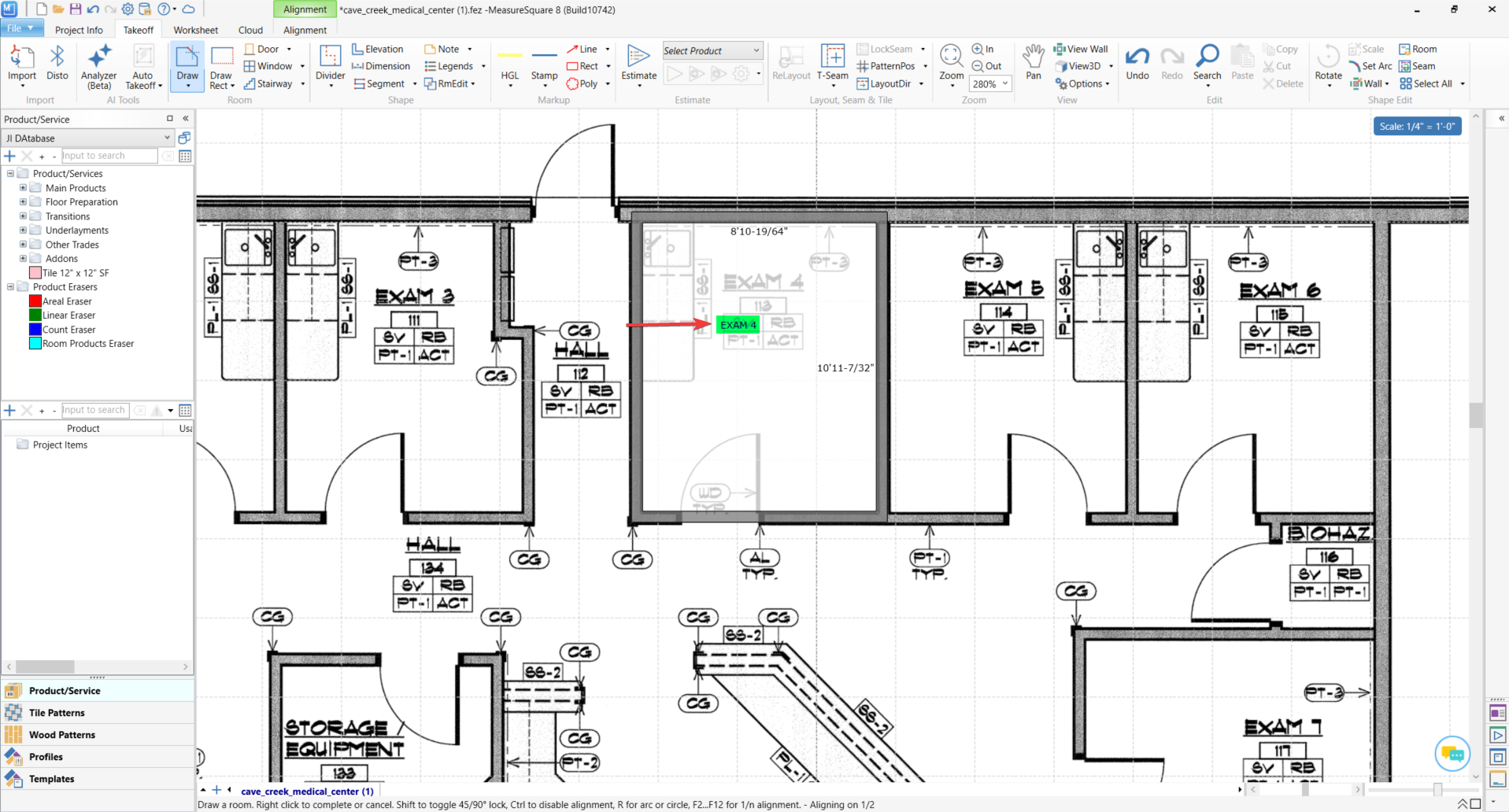

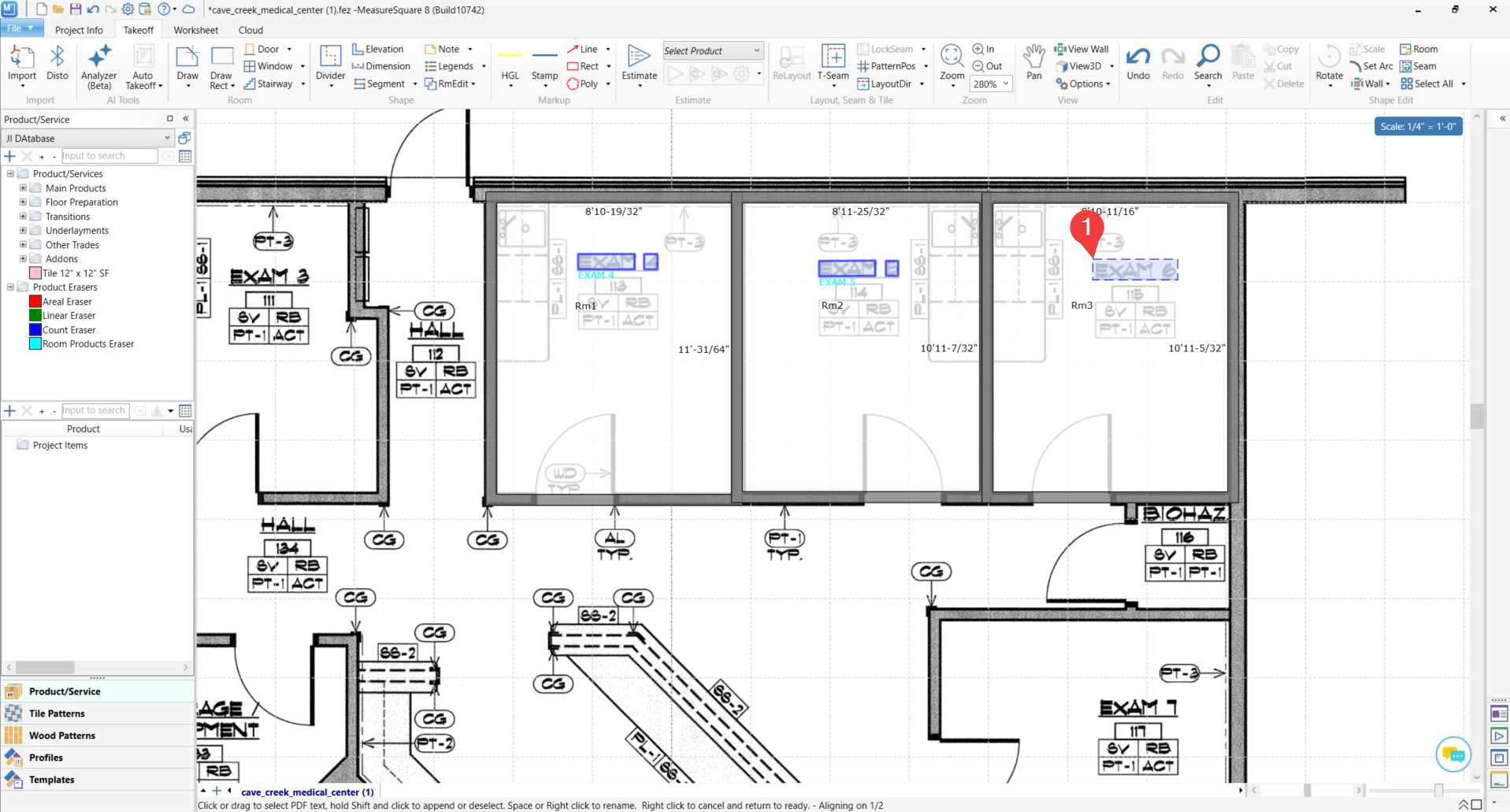

Start drawing, as you draw the OCR will detect the text within the room when you close it. The detected text will appear in a selection box, you then can select the text in the proper order then assign your selections as the rooms name by clicking OK.



Step 4: Confirm Room Name

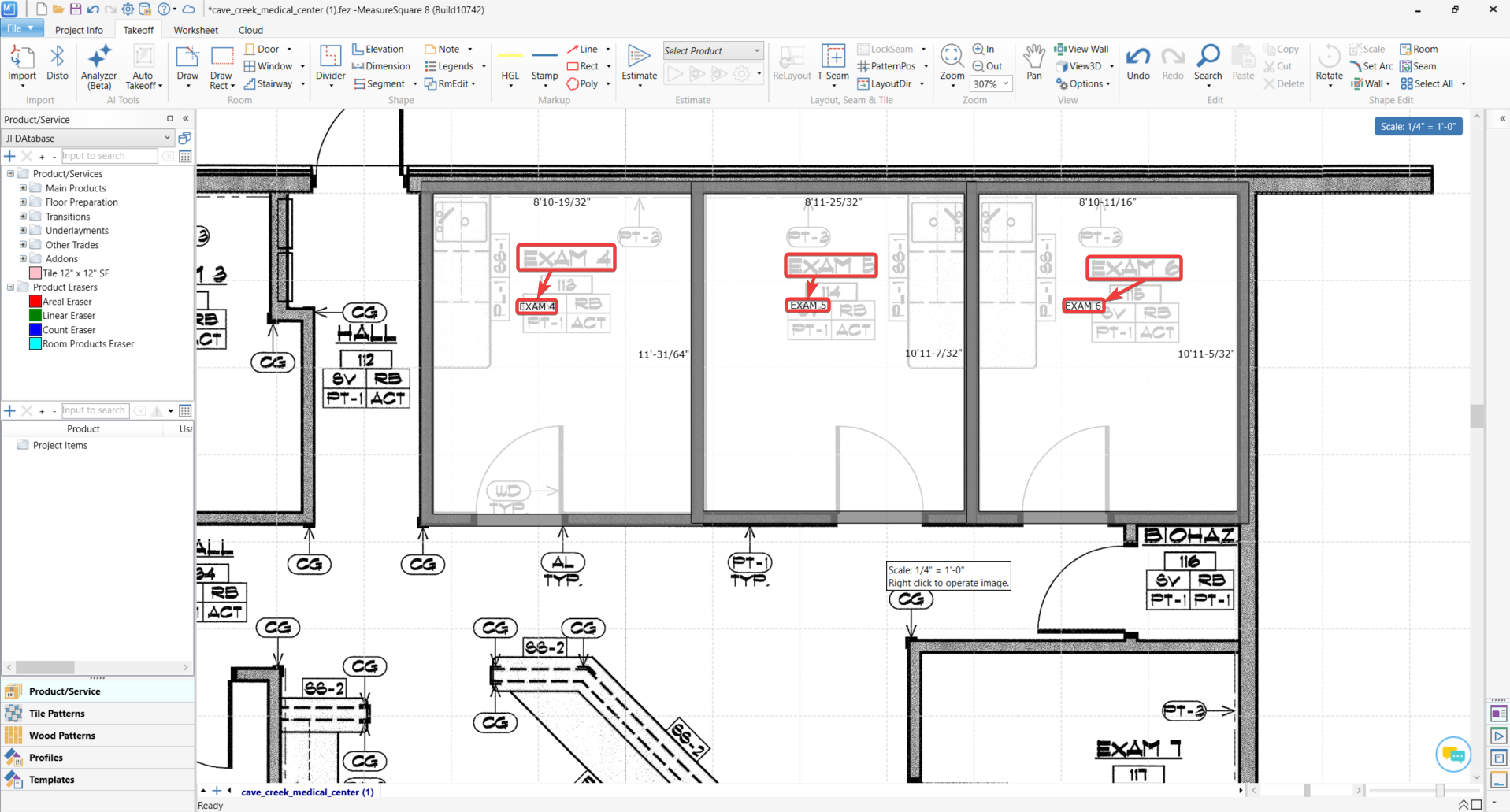

Once the room is drawn, the assigned name will appear in the room. The OCR feature will automatically label the room based on the detected text.




Rename Rooms with OCR After Drawing:

Step 1: Activate "Rename Rooms with PDF Text"

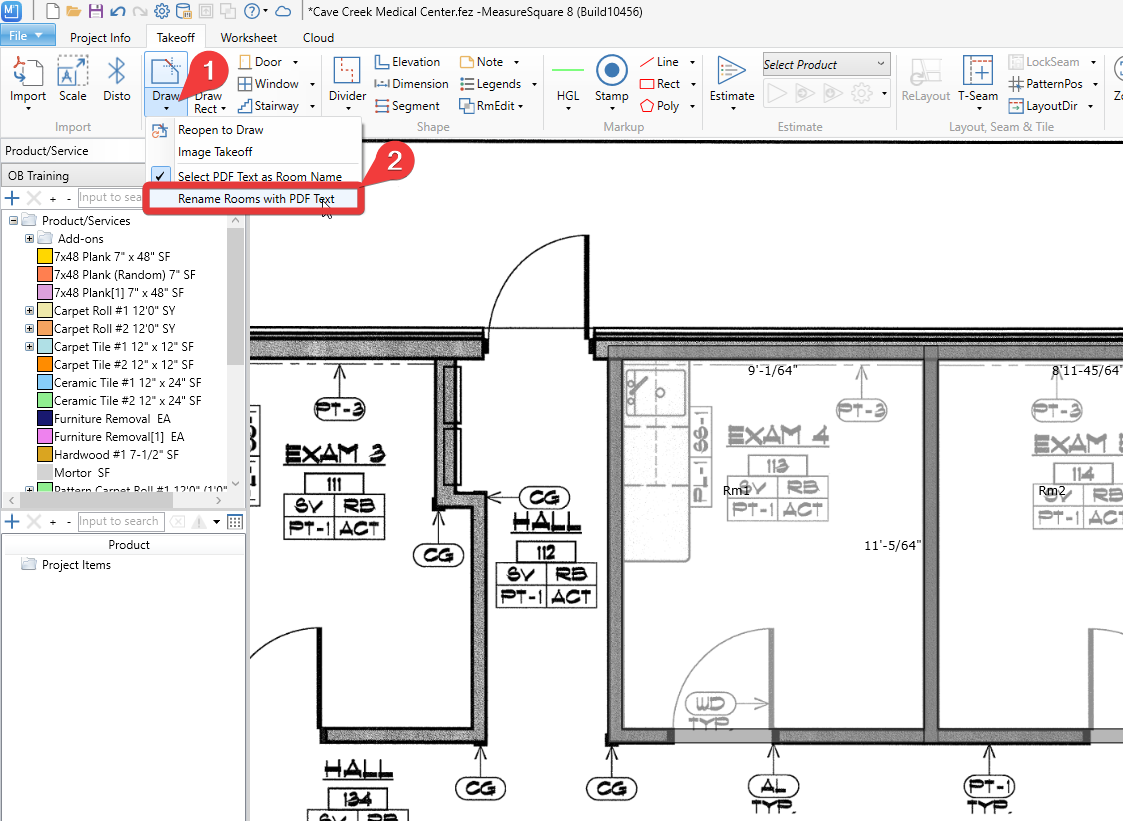

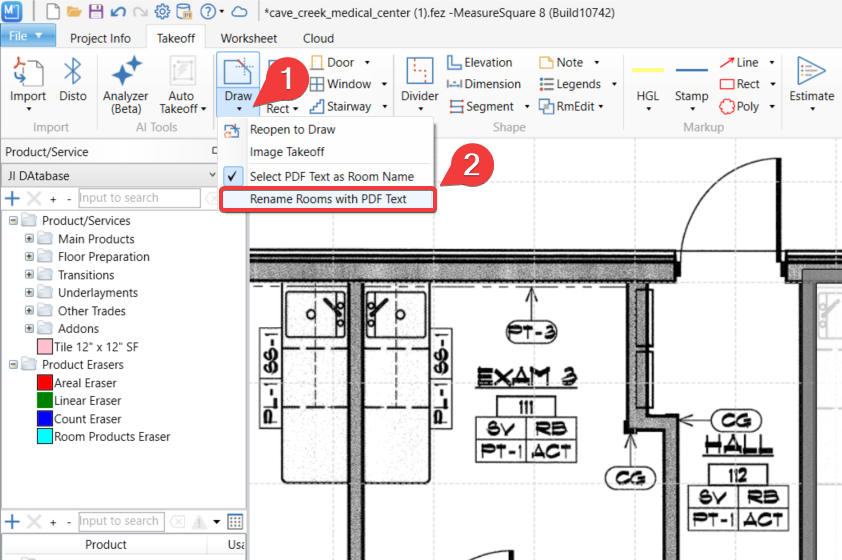

After running the Image OCR on the plan(s) navigate to the Takeoff tab in the toolbar. Under the Draw dropdown menu [1], check the option Rename Rooms with PDF Text [2]. This enables the OCR feature to read the text in the blueprint and assign it to the room that encompasses the text.



Step 2: Select the Text for the New Room Name

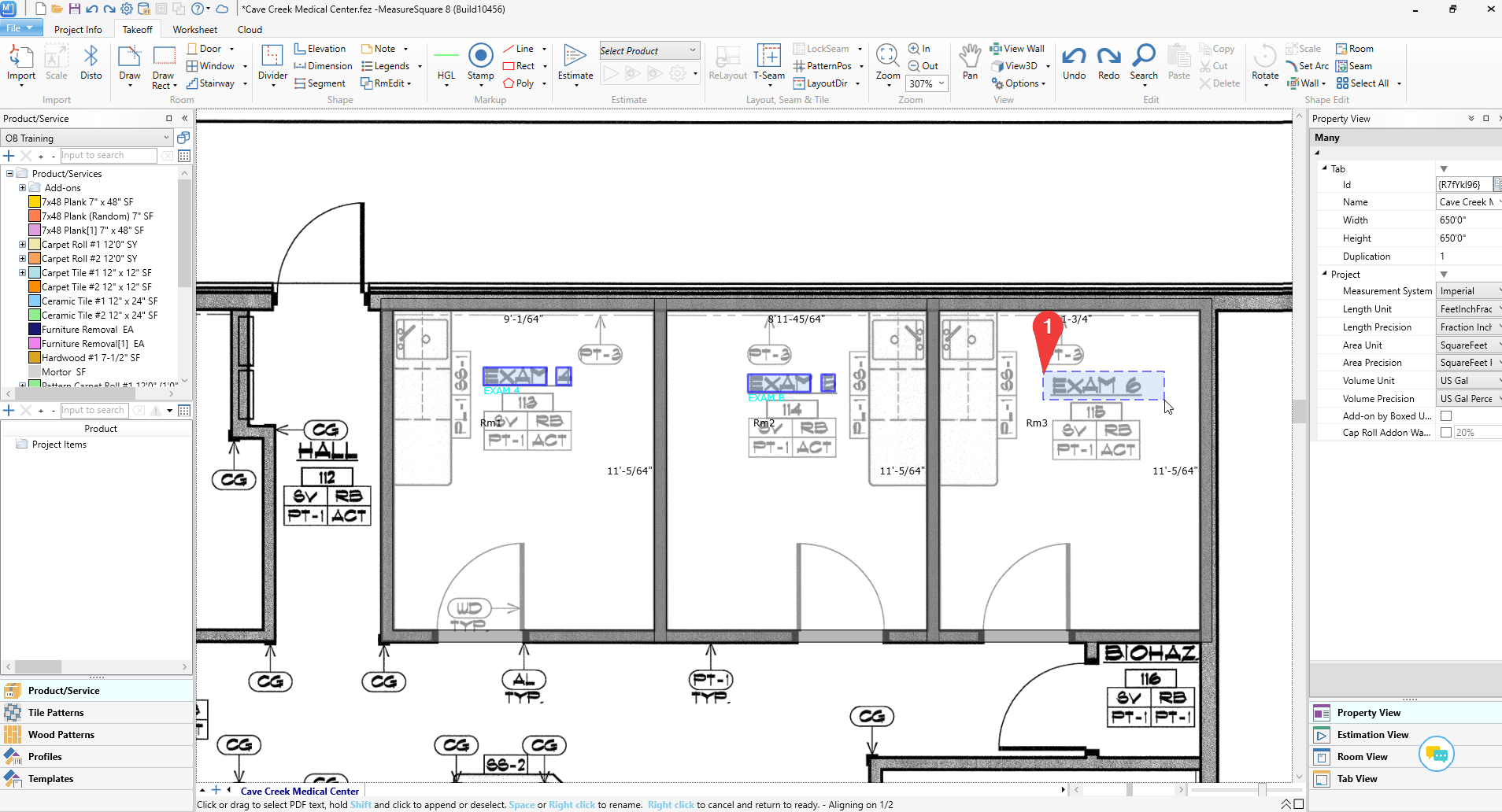

Left click each text, or left click and drag a selection box around the text inside of a room that you want to be used as the room's name [1].
Info
You are able to rename multiple rooms at the same time by selecting text in multiple rooms
Notes
The order each piece of text is selected is the order they will appear in the name.



Step 3: Close the Tool to Rename

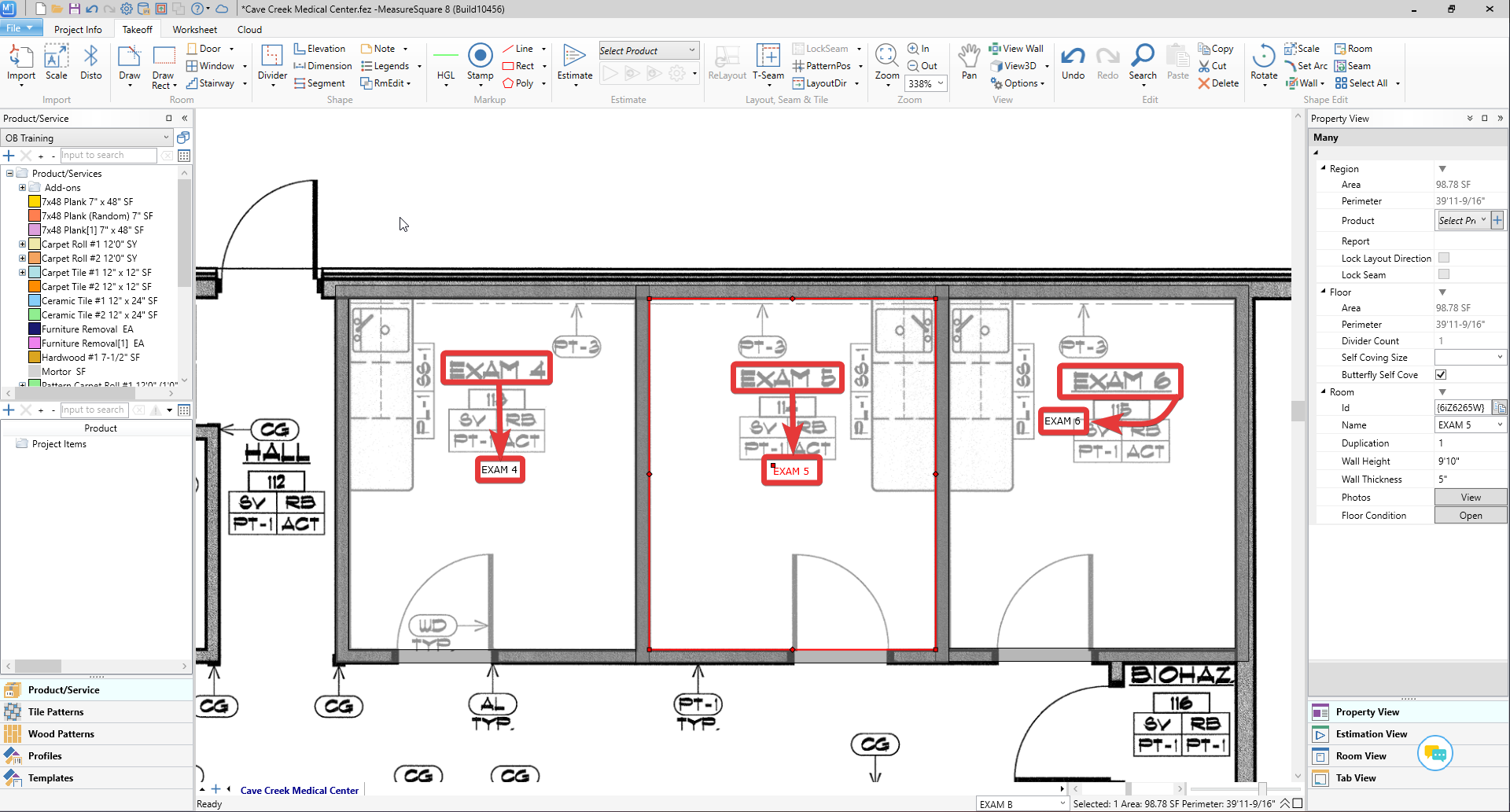

When you are finished selecting text, Right Click and all the selected text will be applied to their corresponding rooms.



When you are finished selecting text, Right Click and all the selected text will be applied to their corresponding rooms.

For any further questions, please reach out to our Support team
Monday - Friday from 7:30am-4:30pm PST: (626) 683-9188 ext. 3
All Hours: support@measuresquare.com
