How to apply weld at Tile Edges in MeasureSquare 8

How to apply weld at Tile Edges in MeasureSquare 8

This article will guide you through the process of applying a linear product to a vinyl tile grid in MeasureSquare 8. This is useful for scenarios where you need to associate linear products with a vinyl tile layout.

This article applies to MeasureSquare 8

Steps to Apply a Linear Product to a Vinyl Tile Grid


Step 1: Create & Select a Vinyl Tile Grid
- Open a project and apply a vinyl tile grid to the room.
- In the Product Items section, verify that the vinyl tile product is listed.

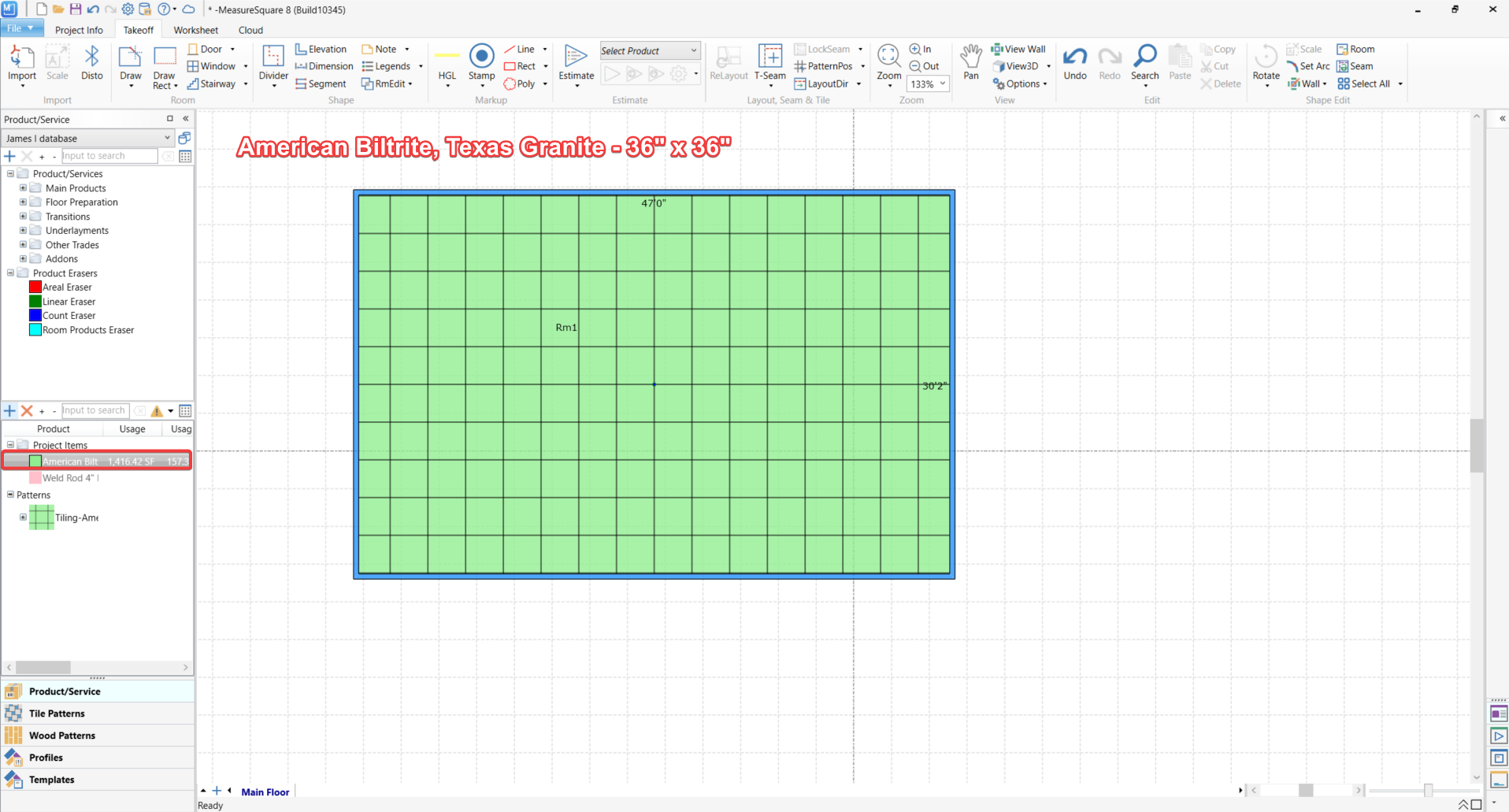

- Refer to the screenshot below for an example of a tile grid applied to a room.




Step 2: Create a Linear Product
- Navigate to the Product/Service section in the left panel.

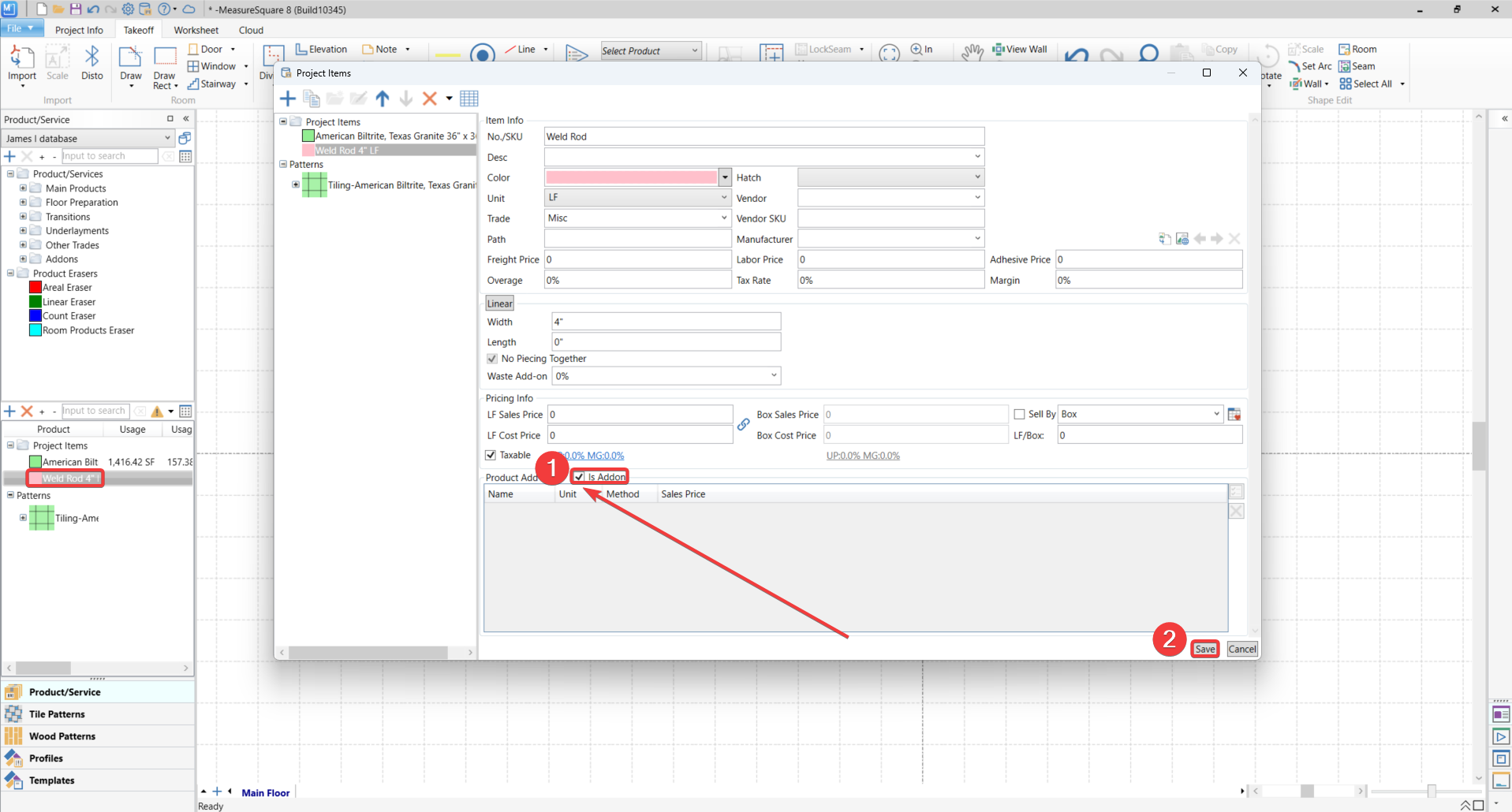

- Right-click and select New Product to create a linear product (e.g., "Weld Rod").
- In the product creation window:
      - Check the box for Is Addon.
      - Click Save to finalize the product creation.




Step 3: Associate the Linear Product with the Tile Grid
- Select the vinyl tile grid pattern from the Patterns section in the Product Items panel.
- In the pattern editing window:

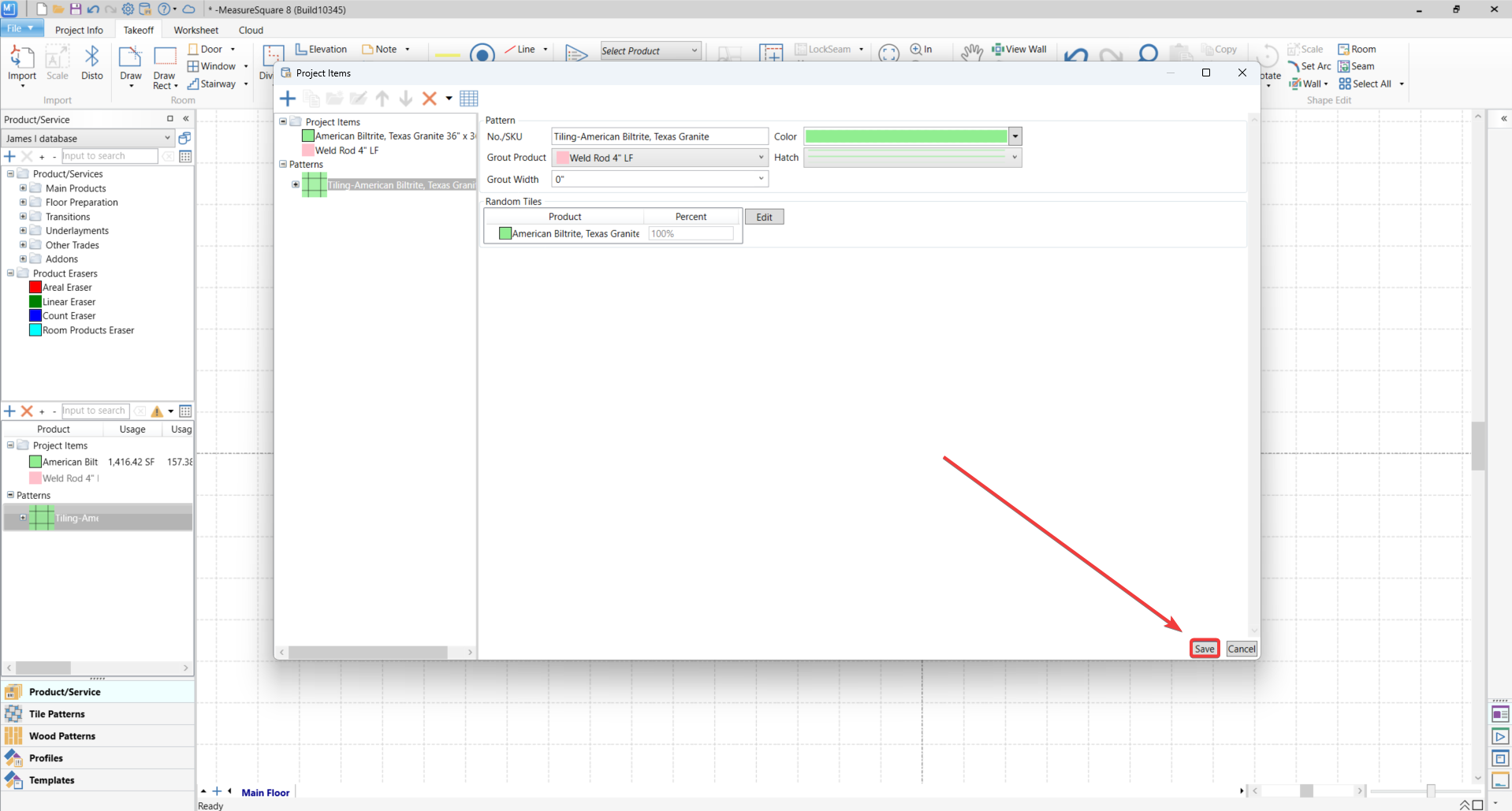

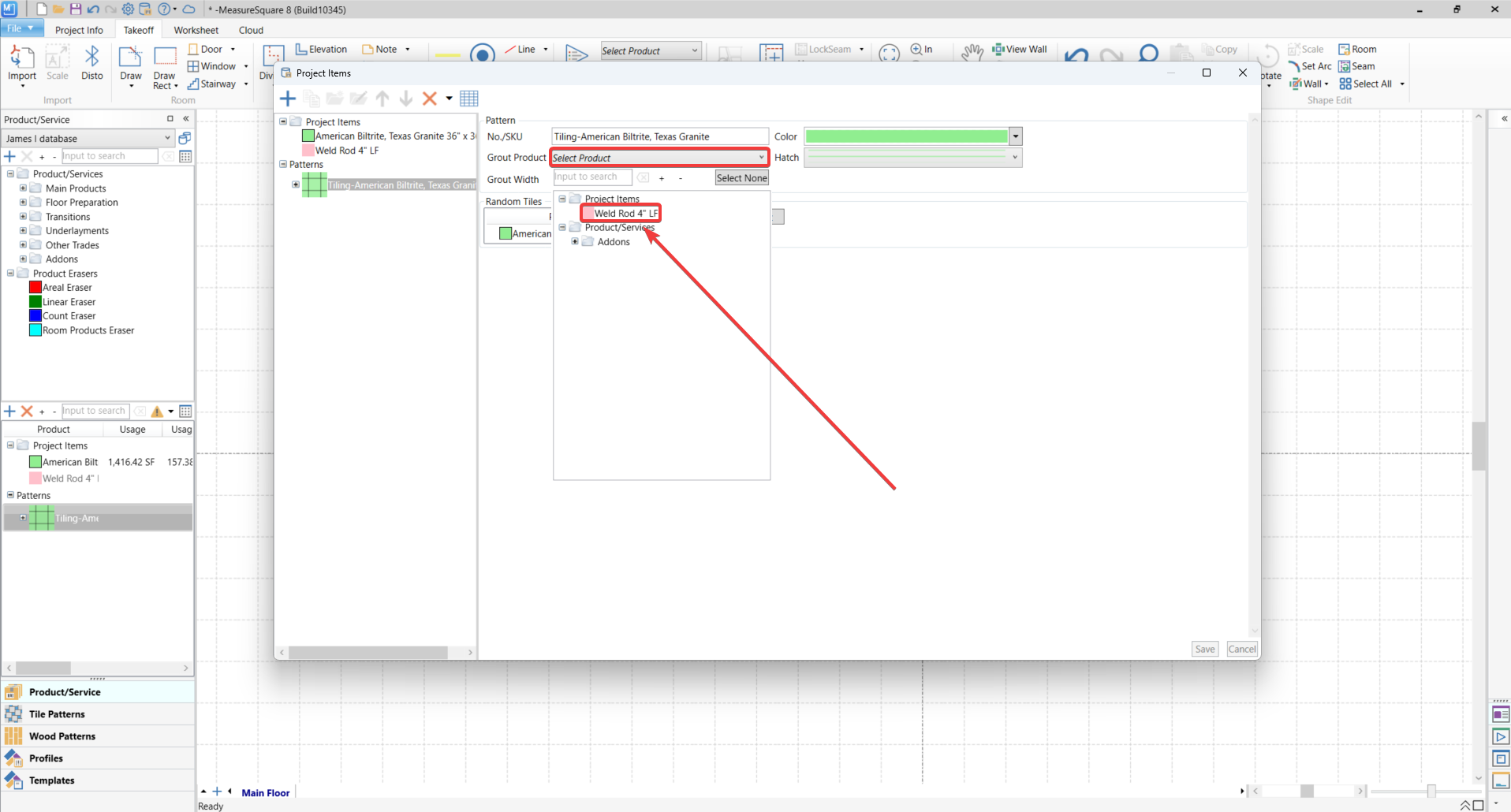

      - Use the Grout Product dropdown to select the newly created linear product (e.g., "Weld Rod").



   - Click Save to apply the changes.



Notes
Grout Width is set to 0" to maximize Vinyl Tile quantities since Weld Rod is being quantified for Vinyl Tile Grid.

Step 4: Verify the Linear Product Application

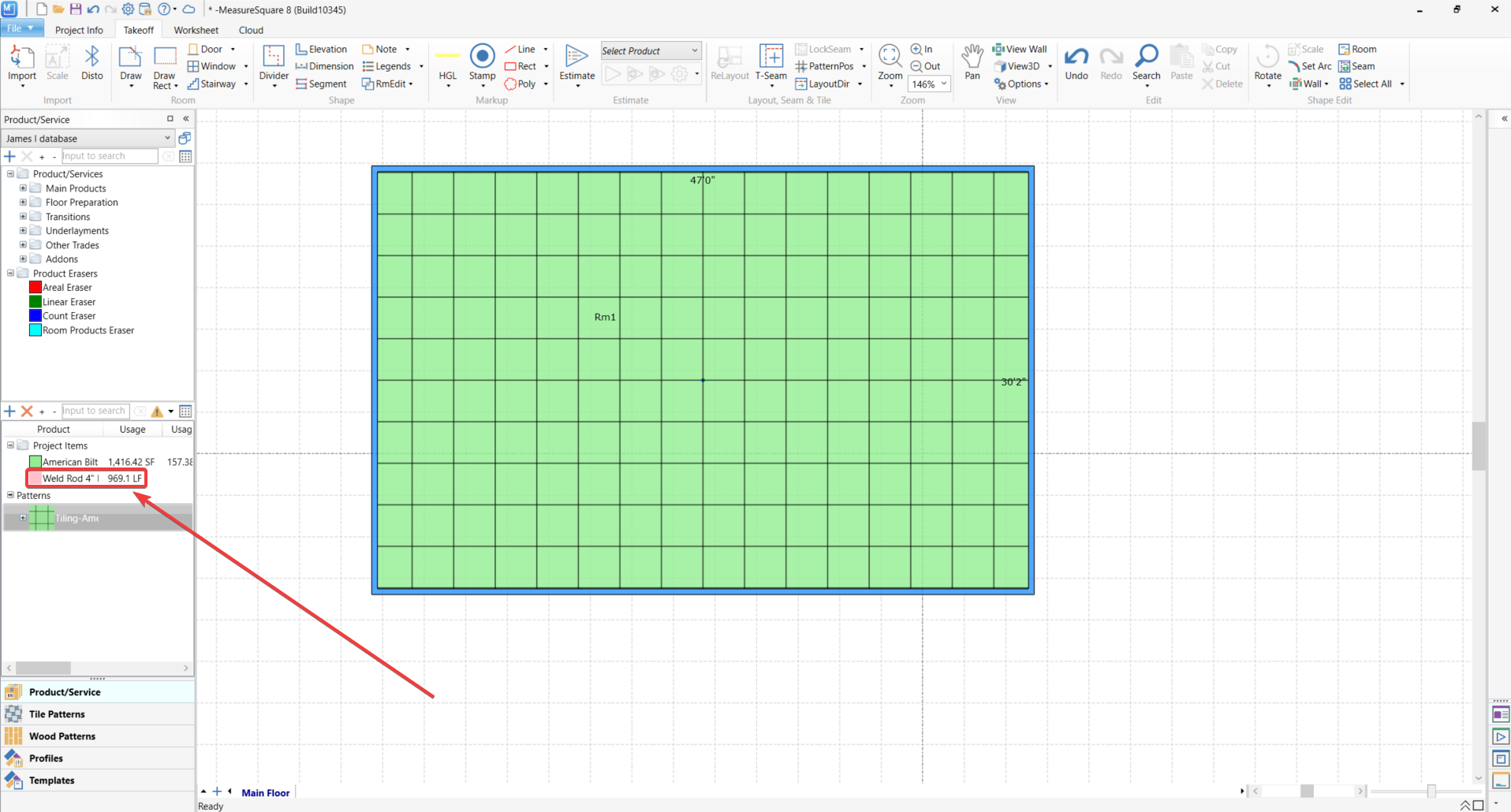

- Check the Product Items section to confirm.
- The usage of the linear product is calculated based on the vinyl tile grid dimensions.




If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 ext.3 or email support@measuresquare.com.
