How to Apply Tile Products as a Wall Base on MeasureSquare 8

This article will show you how to apply tile products as a wall base with grout calculation and how to apply a transition piece
This article applied to MeasureSquare 8 Commercial Edition build 10115 and newer

Note: This article assumes you have your Tile Wall Base already set up as a Tile Pattern with a Grout product already applied to it
https://measuresquare.zohodesk.com/portal/en/kb/articles/how-do-i-add-and-estimate-grout-product-in-measuresquare-8

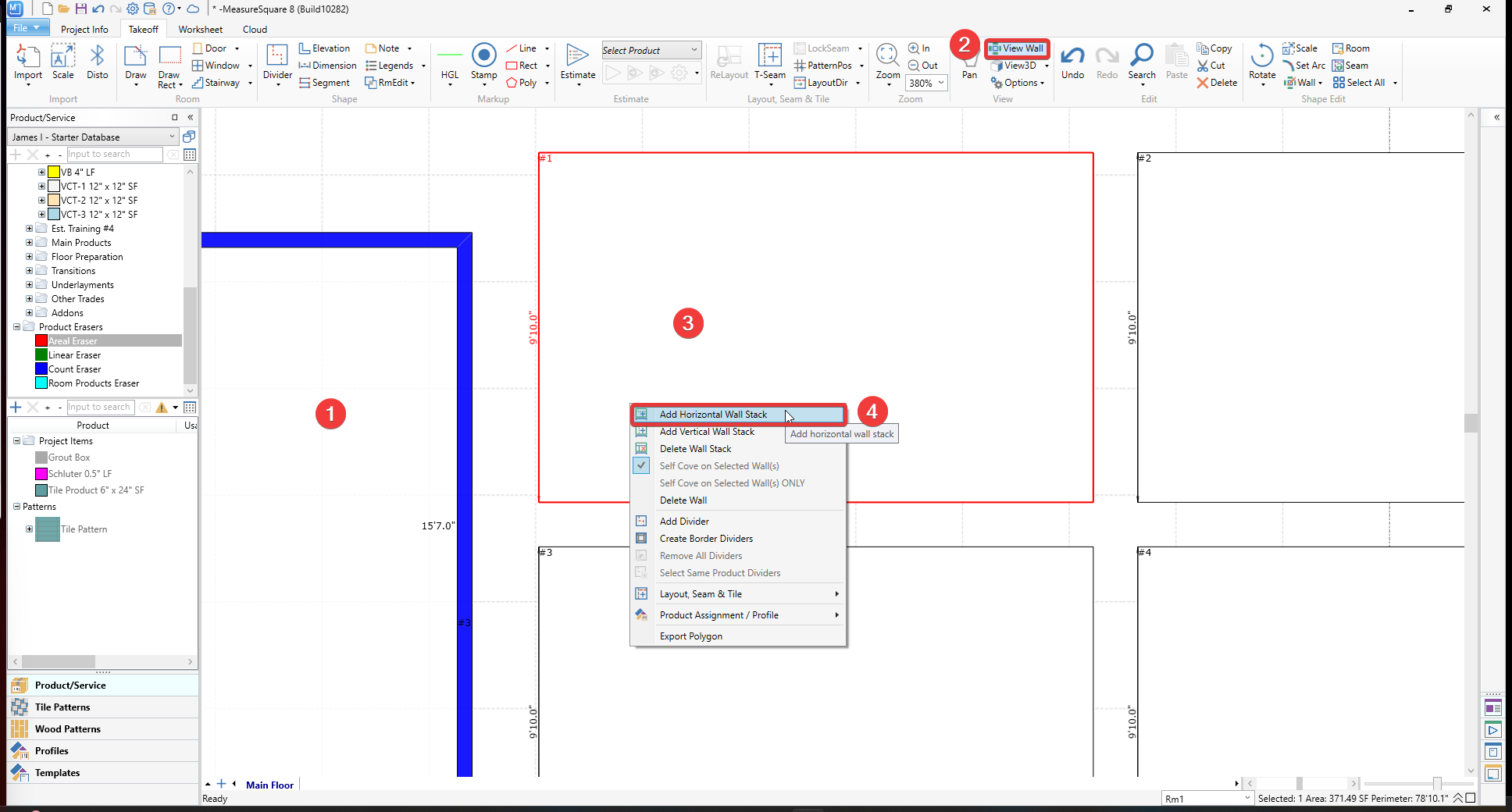

Step 1: Select the room you want to add the wall base to [1], enable the View walls [2] option.

Step 2: Right Click [3] on a wall you want to have the Wall Base on, select Add Horizontal Wall Stack []. Apply the Wall Stack to the desired height of your Wall Base.

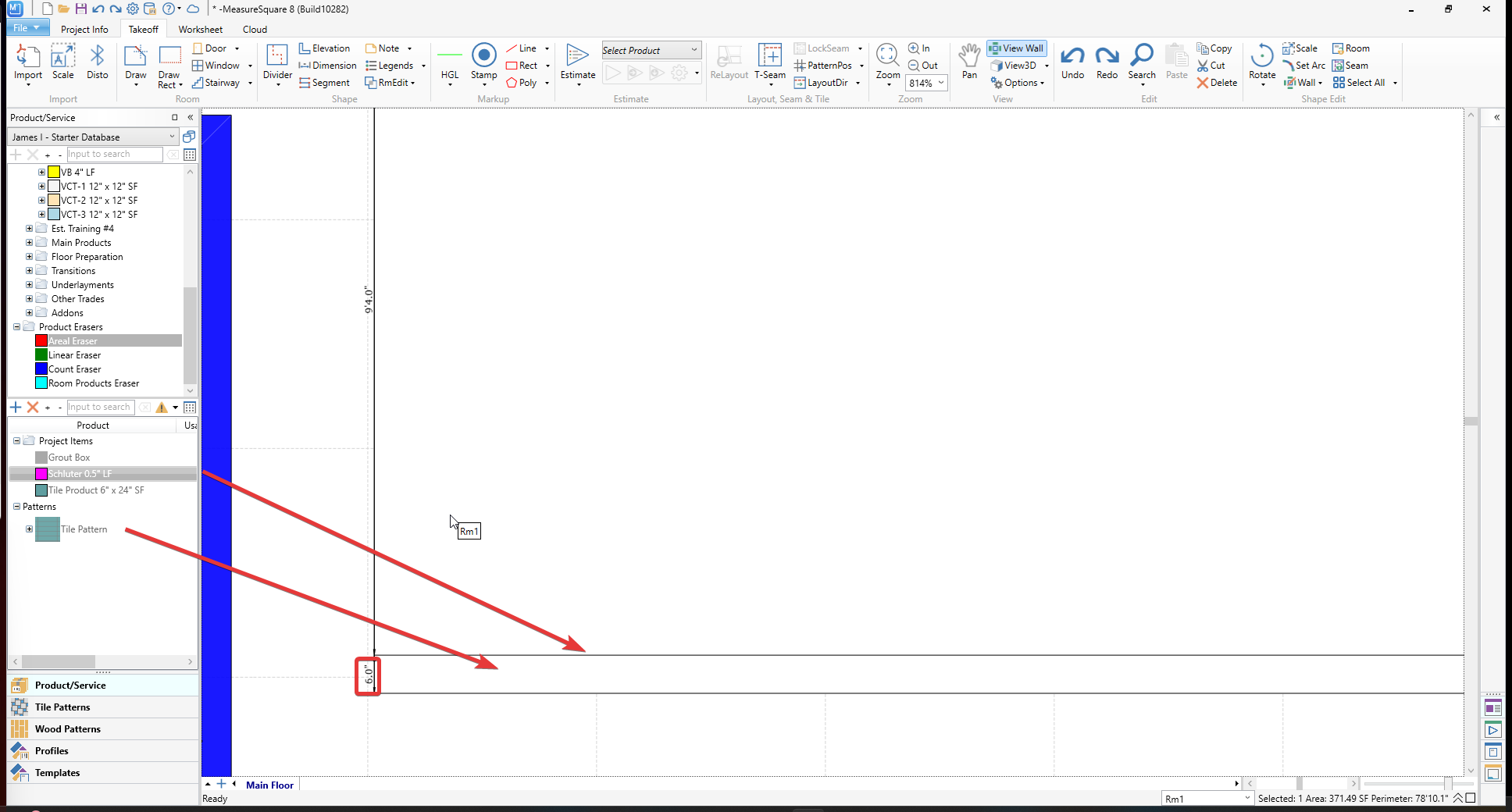

Step 3: Add your Tile Pattern of your Tile Wall Base to the base of the wall and add your Transition Product to the Top of the Wall Stack divider.

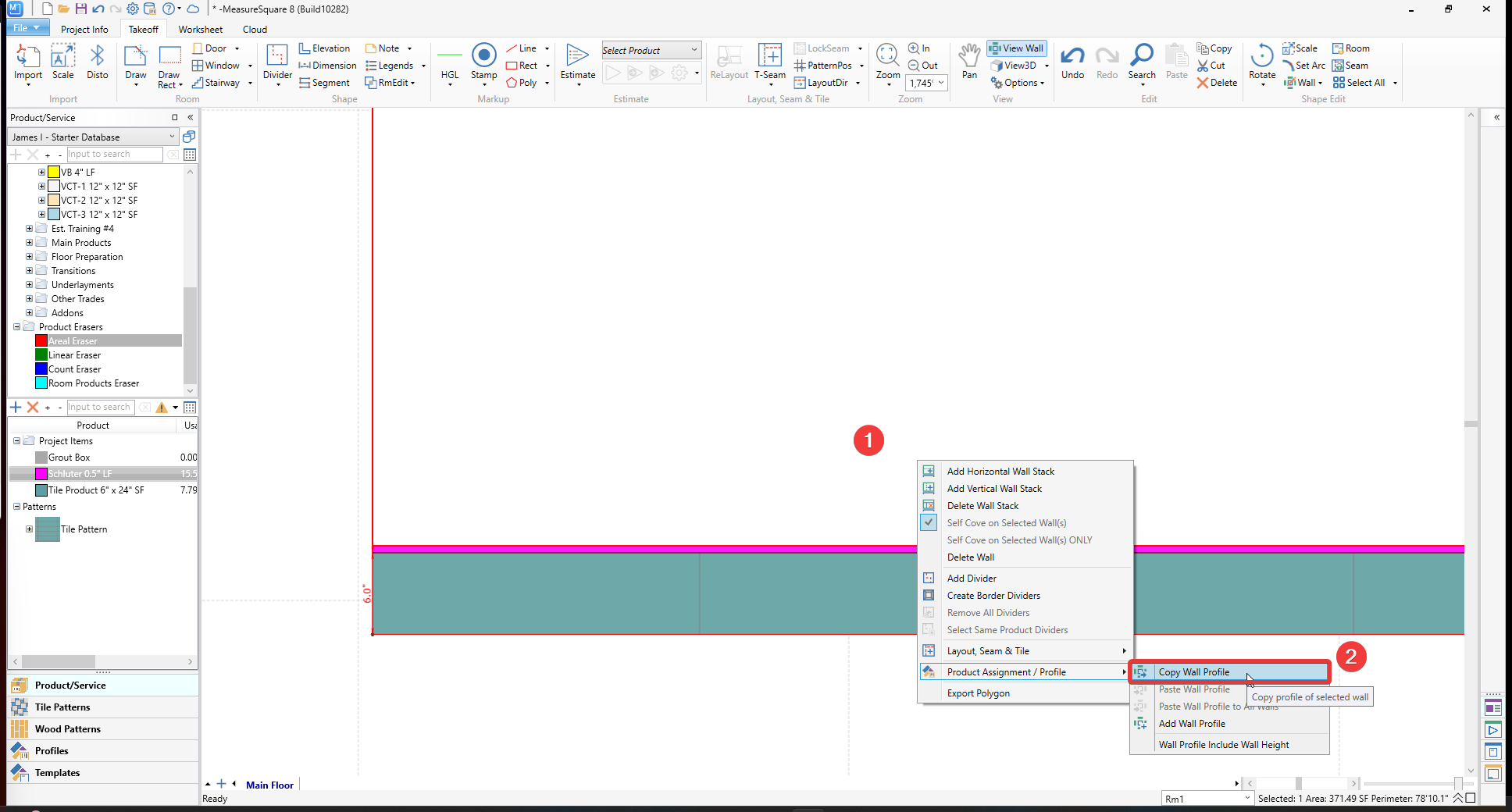

Step 4: To apply the wall base to the other walls Right Click [1] the wall go to Product Assignment/Profile and select Copy Wall Profile [2]



Step 5: Right Click [1] on another wall that you wish to apply the Tile Wall Base, go to Product Assignment/Profile and select  Paste Wall Profile to All Walls [2] to apply the Wall Base to all the walls in the selected room.

Note: If you only want to apply the Wall Base to some of the walls, in Step 5 select Paste Wall Profile instead. Repeat this on the individual walls you wish to add the Wall Base to.
