How to apply linear product to my Tile Grid in MeasureSquare 8?

This article will guide you through the process of applying a linear product to a tile grid in MeasureSquare 8. This is useful for scenarios where you need to associate linear products with a tile layout.

This article applies to MeasureSquare 8

Steps to Apply a Linear Product to a Tile Grid

Step 1: Create & Select a Tile Grid

- Open your project and ensure a tile grid is applied to the room layout.

- In the Product Items section, verify that the tile product is listed (e.g., "LVT").

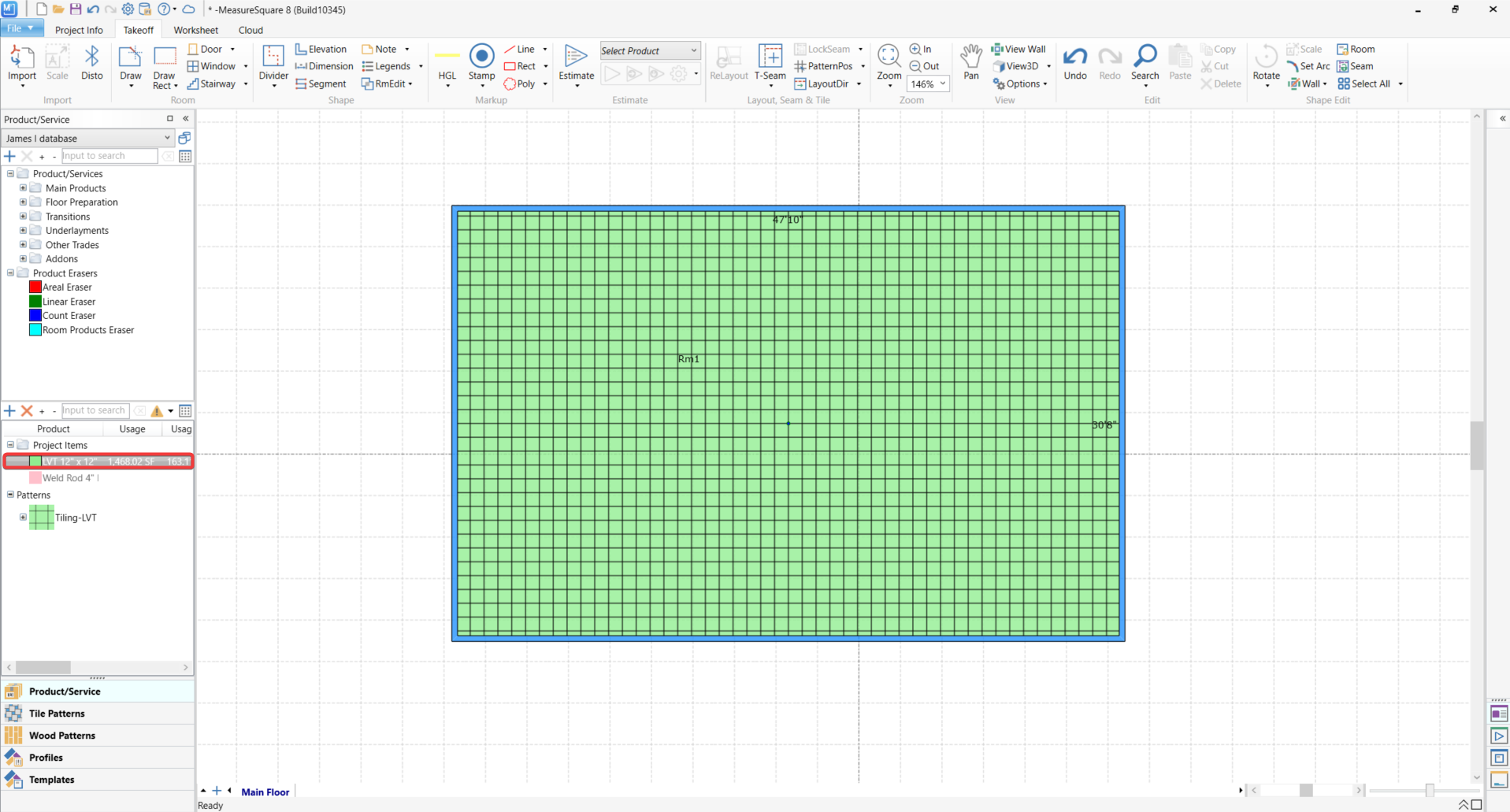

- Refer to the screenshot below for an example of a tile grid applied to a room.

Step 2: Create a Linear Product

- Navigate to the Product/Service section in the left panel.

- Right-click and select New Product to create a linear product (e.g., "Weld Rod").

- In the product creation window:

      - Check the box for Is Addon.

      - Click Save to finalize the product creation.

Step 3: Associate the Linear Product with the Tile Grid

- Select the tile grid pattern from the Patterns section in the Product Items panel.

- In the pattern editing window:

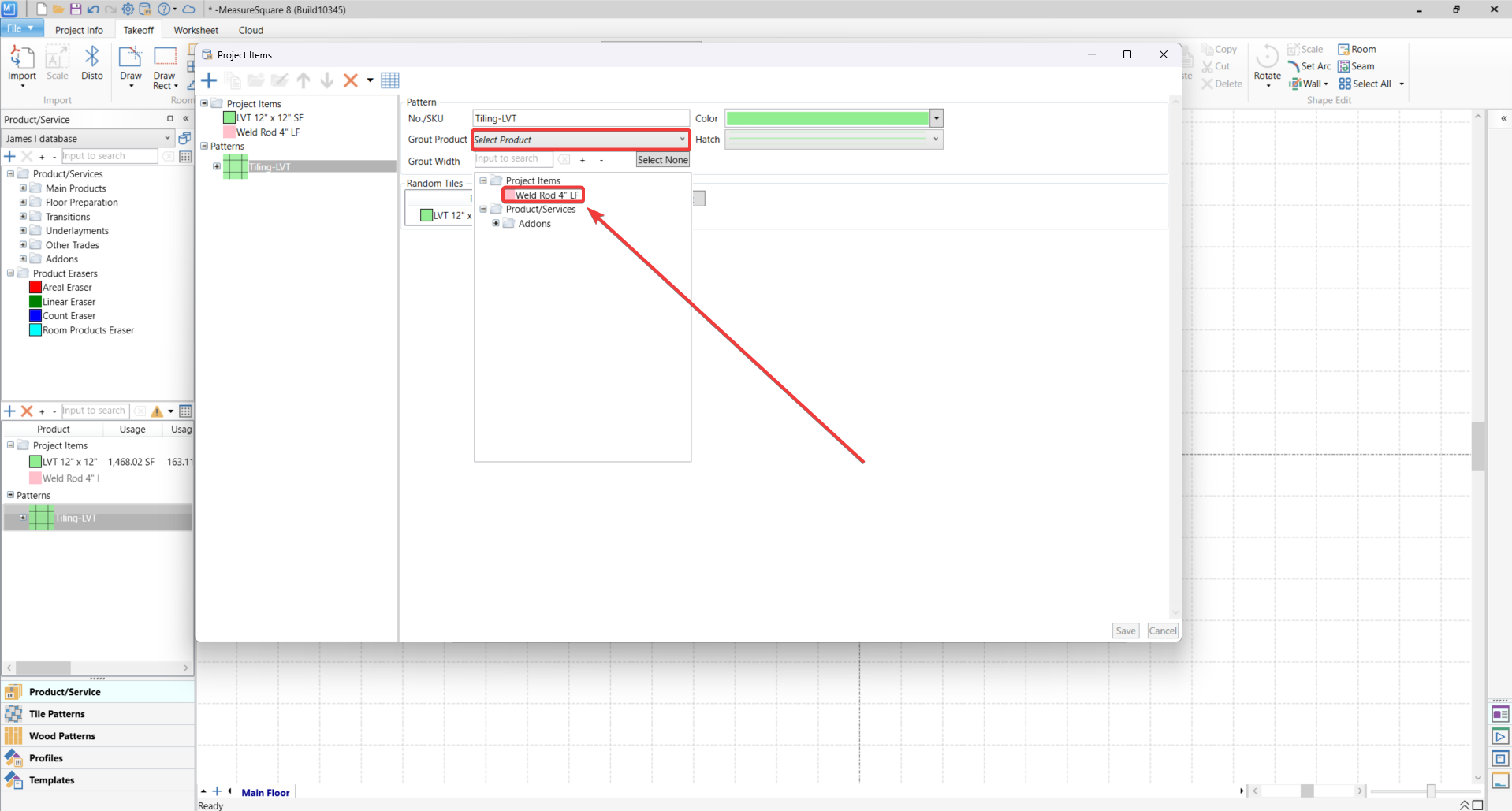

      - Use the Grout Product dropdown to select the newly created linear product (e.g., "Weld Rod").

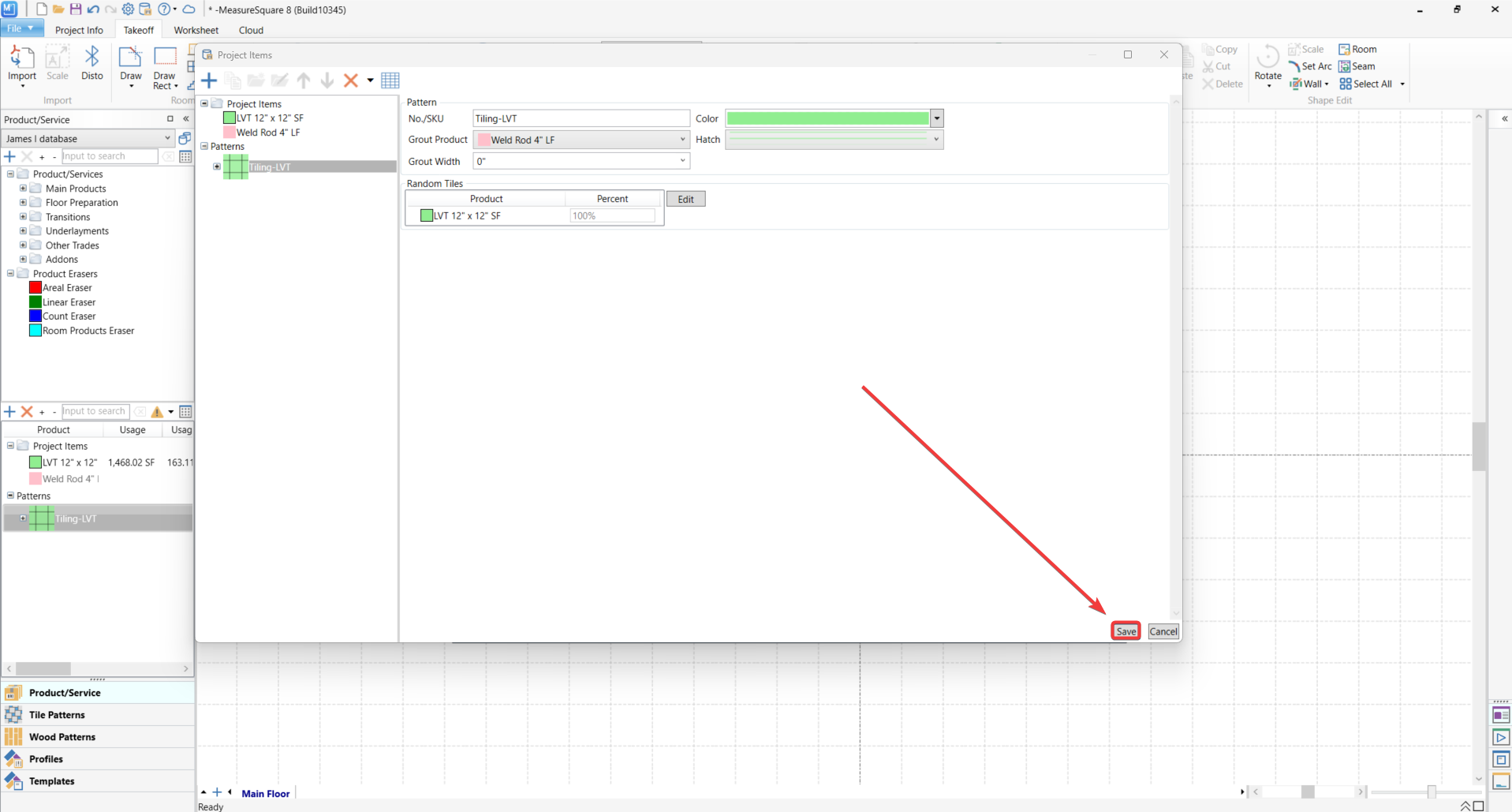

   - Click Save to apply the changes.

Grout Width is set to 0" to maximize Tile quantities since Weld Rod is being quantified for Tile Grid.

Step 4: Verify the Linear Product Application

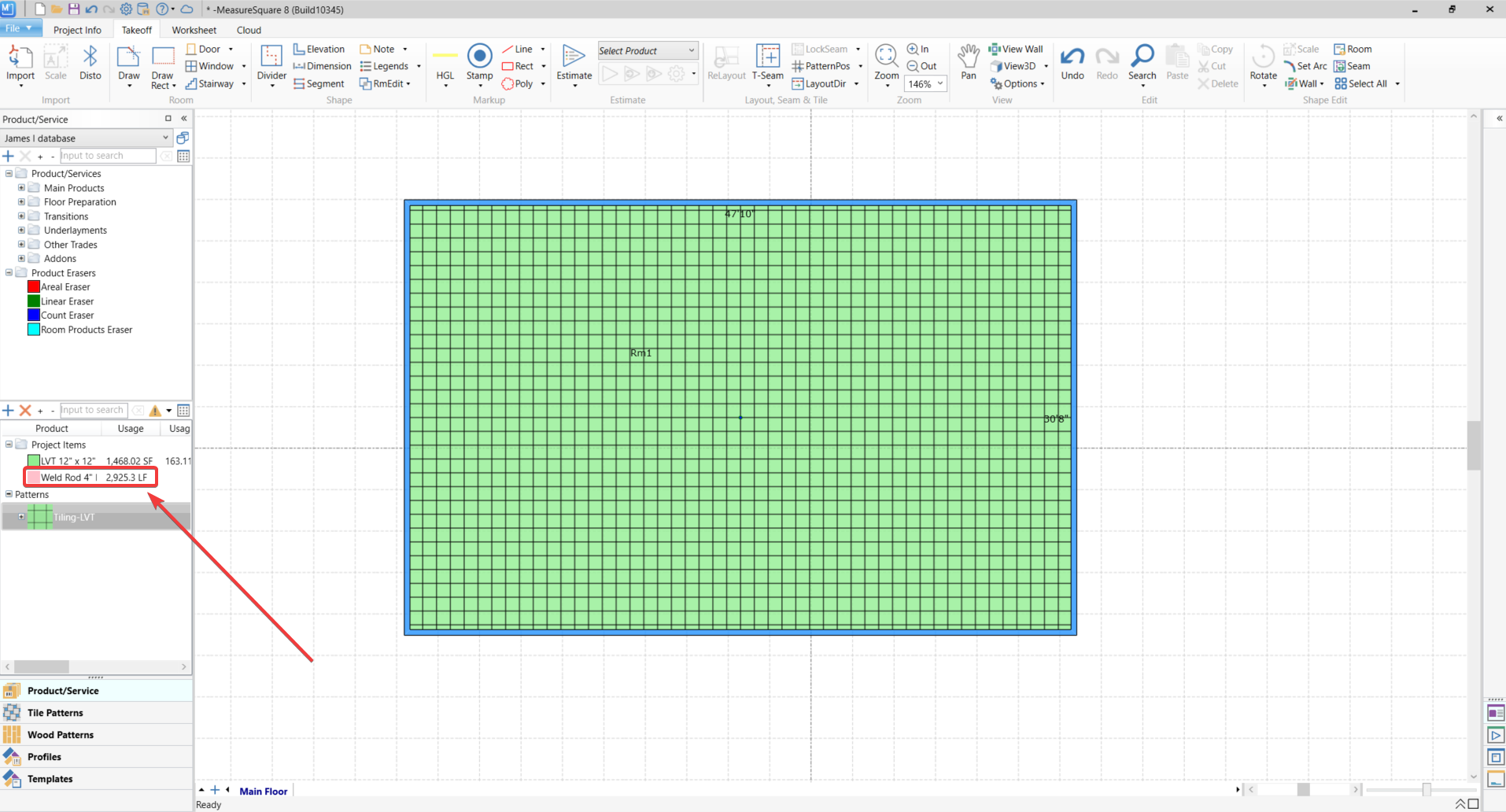

- Check the Product Items section to confirm that the linear product is now associated with the tile grid.

- The usage of the linear product will be calculated based on the tile grid dimensions.

If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 or email support@measuresquare.com.
