How Do I Show the Drawn Areas of My Takeoff That Don't Have Product?

How Do I Show the Drawn Areas of My Takeoff That Don't Have Product?

This article will go over how to show the drawn areas that have been completed.


This article is for all MeasureSquare 8 builds.

Step 1: Open your 'System Settings'
This can be done by selecting 'File' > 'System Settings' or by clicking on the gear icon in the top left.

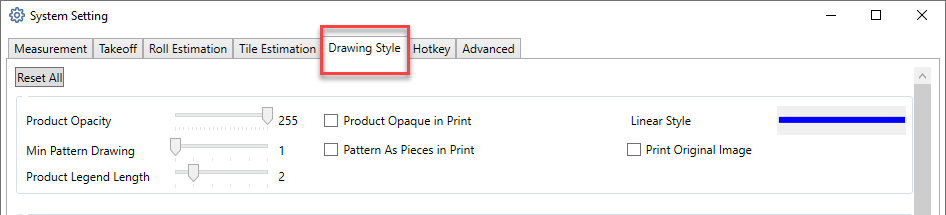

Step 2: Select the 'Drawing Style' tab

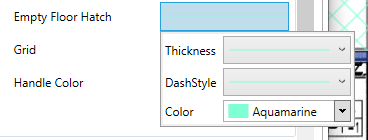

Step 3: Locate 'Empty Floor Hatch'


At default the color is set to transparent.

Step 4: From the drop down menu select a color.



Step 5: After selecting the color of your choice, you can now draw on your PDF's and know which rooms are completed.



This color does not mean that there is products assigned to the room. This is a visual effect.
