How do I make wall transparent in 3D view in MeasureSquare Mobile for iPad?

In this article, you will learn how to make a transparent wall in 3D view.

This article applies to MeasureSquare Mobile App for IOS

You can now make walls transparent so that you can see the wall tiles while reviewing your project. You can also turn on/off wall stack dimensions, underlying product, etc. The 3D view can now be printed in your report for your customers and installers.

1. Turn on/off wall stack dimensions.

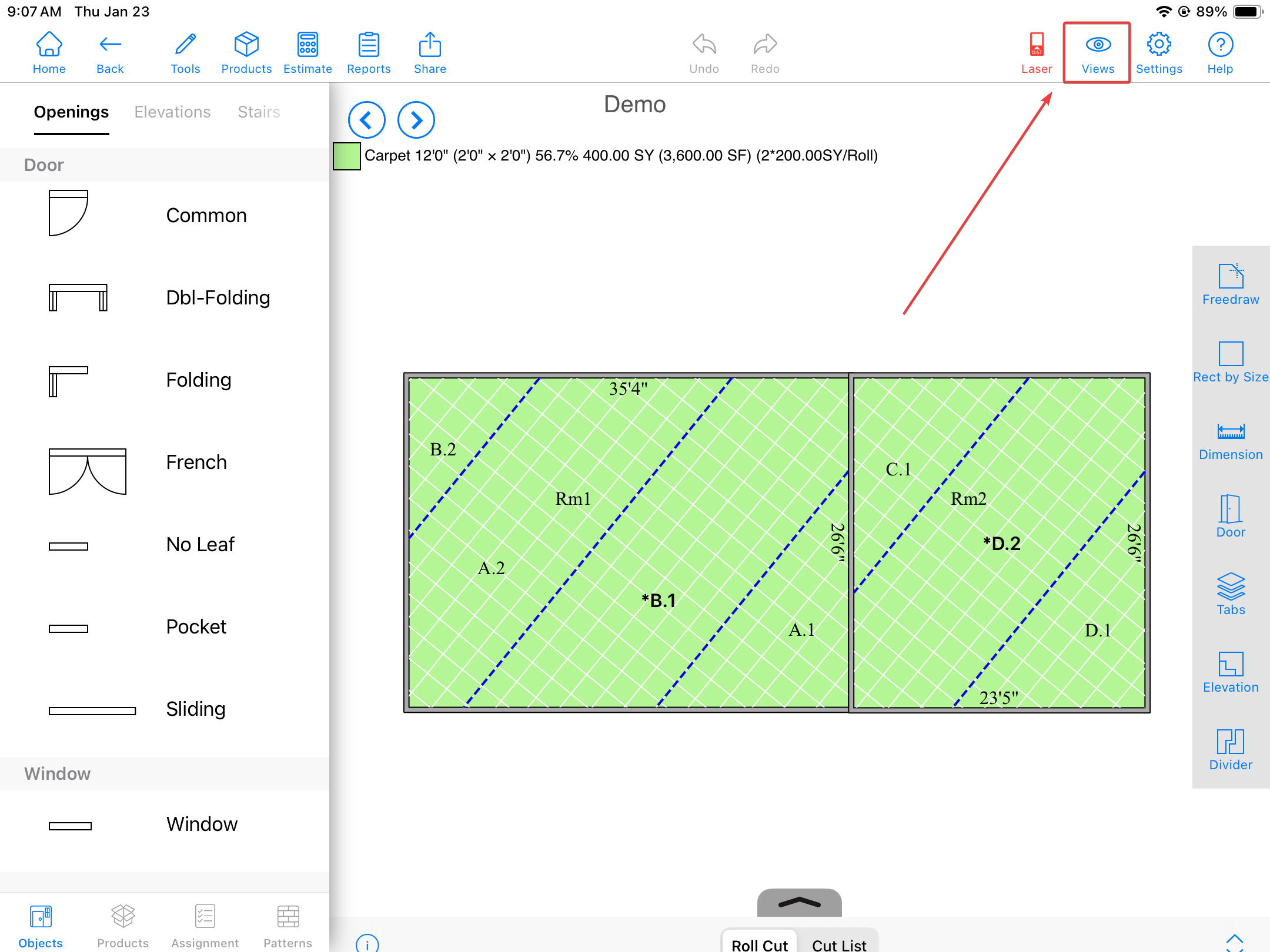

Step 1: Tap Views icon on the ribbon of the home screen, and click View Options.

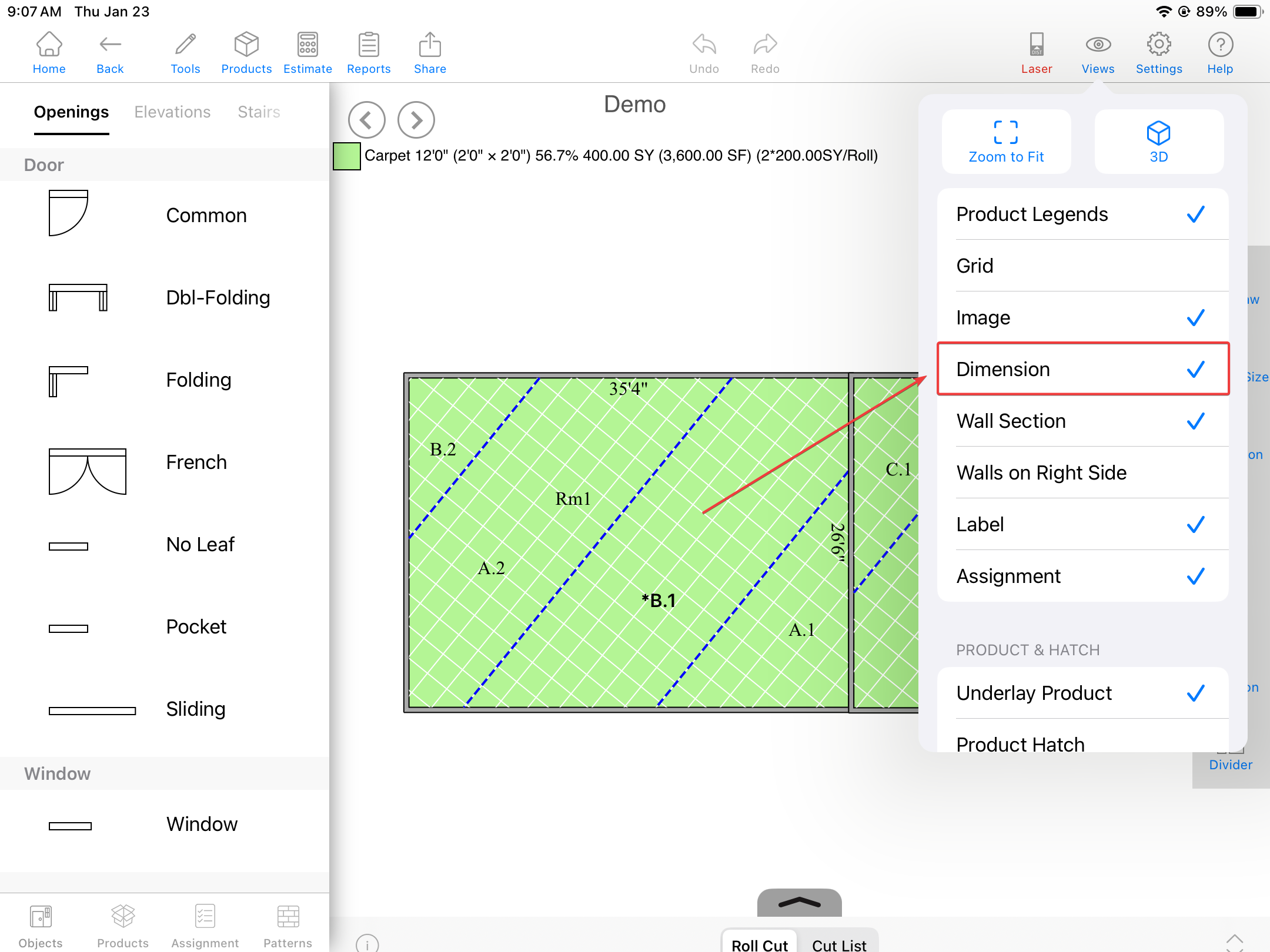

Step 2: Select the option Dimension.

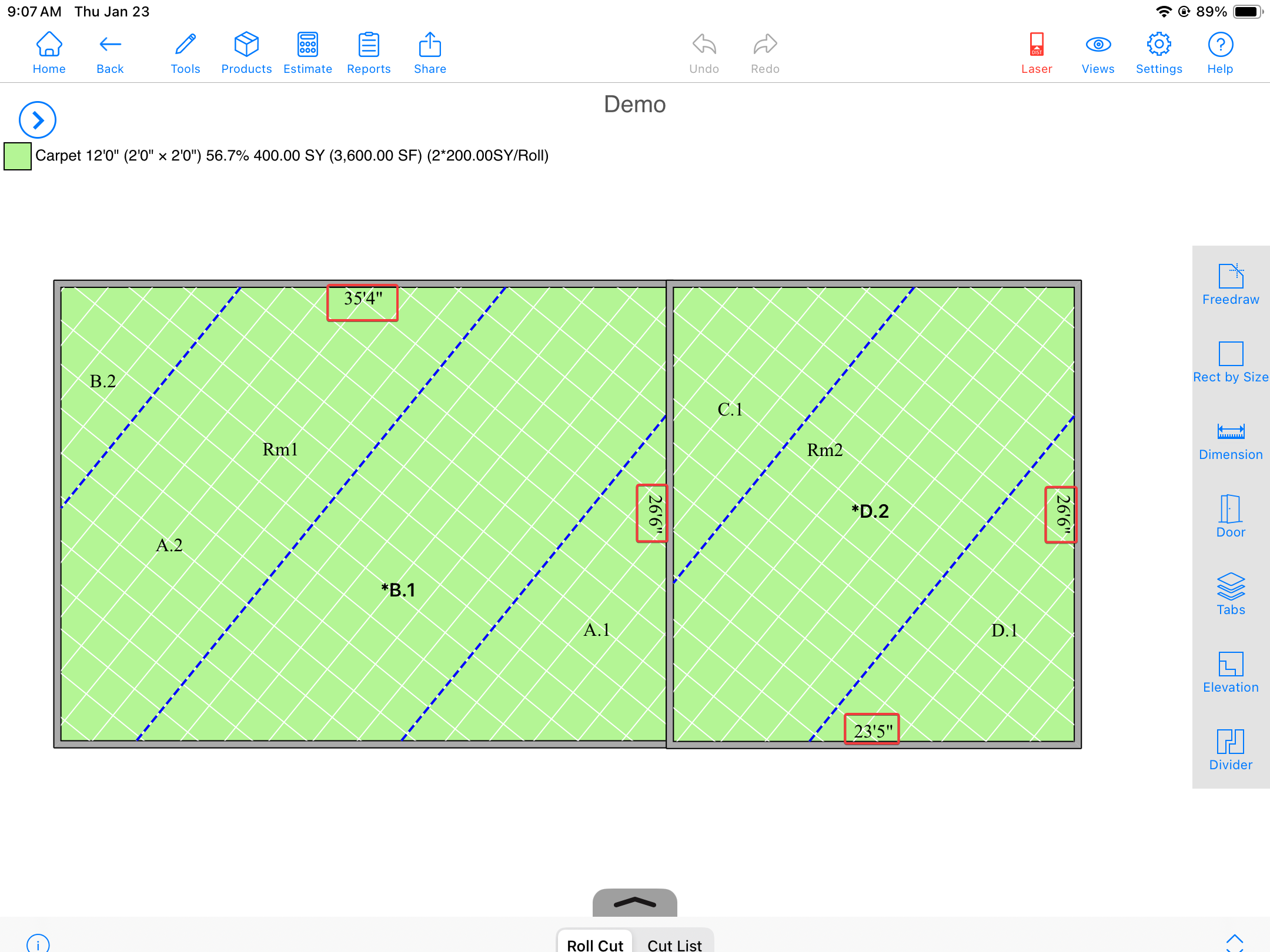

Step 3: See the dimension labels shown on the diagram.

2. Make walls transparent in 3D view.

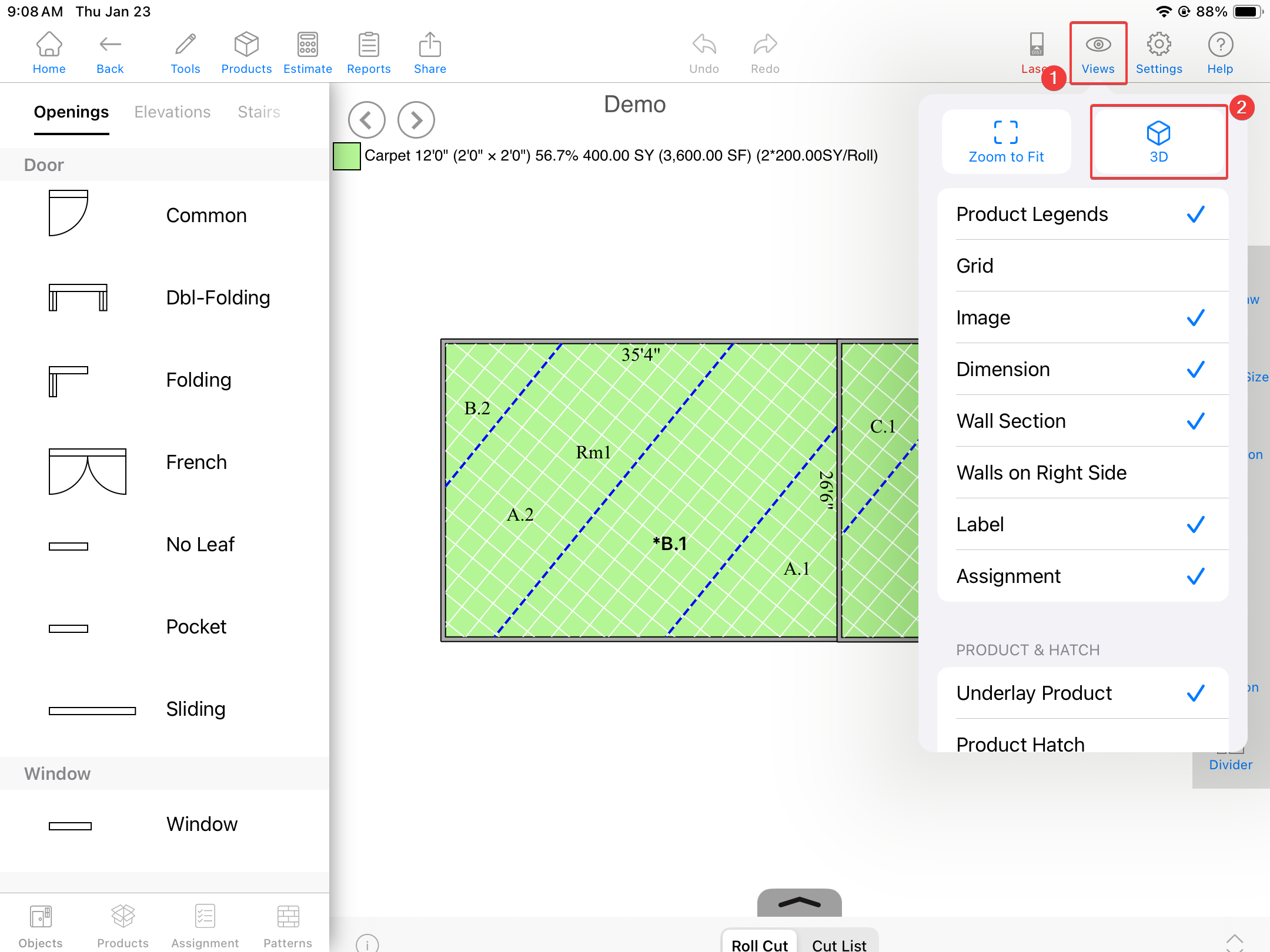

Step 1: Tap on Views icon on the ribbon of home screen, and select 3D View.

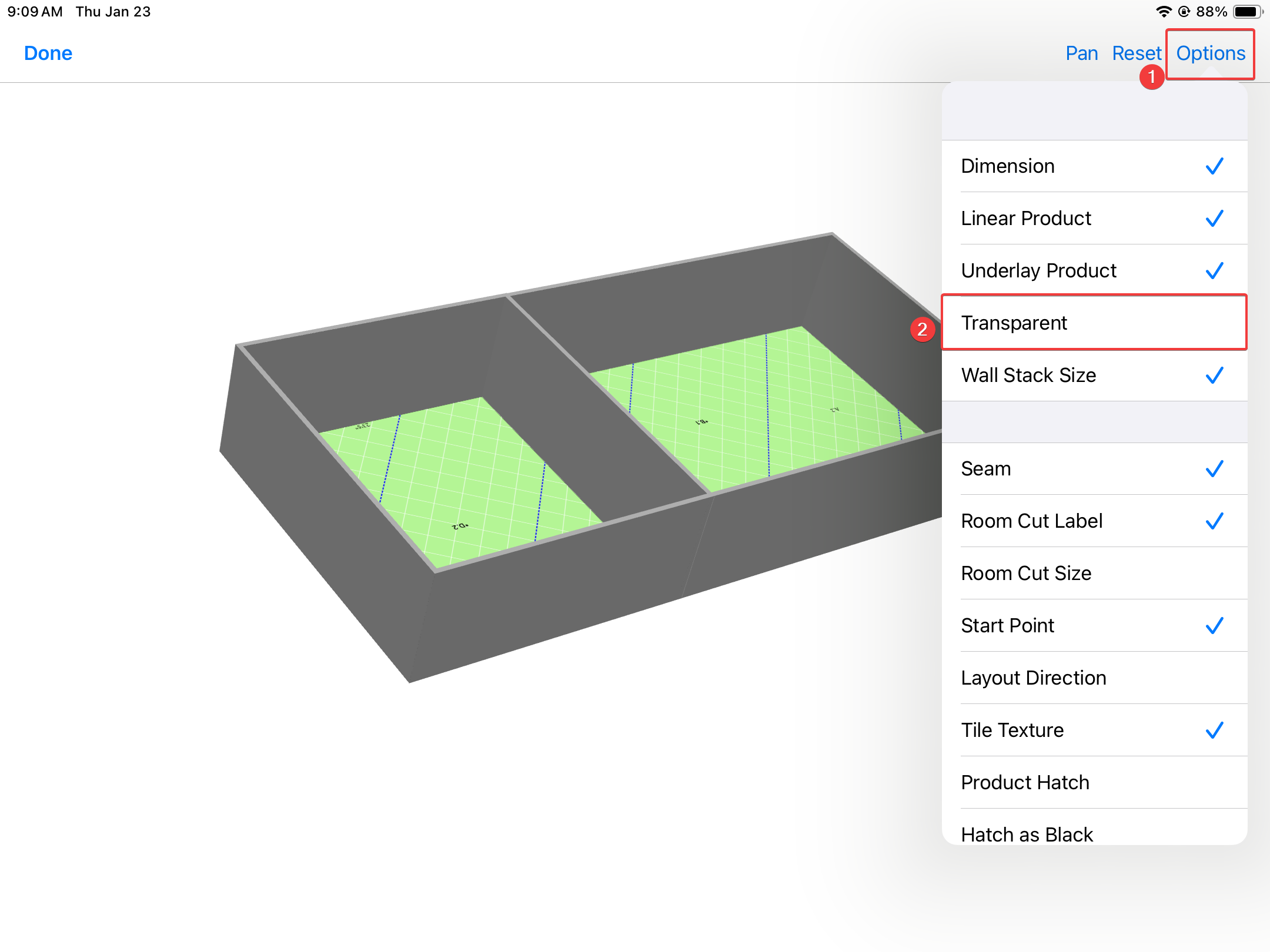

Step 2: Tap on Options icon on the top right corner, and select Transparent.

Step 3: Tap Done to go back to home screen.

Step 4: Tap on Reports icon, and select Print to present the 3D diagram in your report.
