How do I edit an individual wall height on Measure Square Stone?

How do I edit an individual wall height on Measure Square Stone?

This guide will show you how to edit an individual wall in a room you have created on the MeasureSquare Stone.

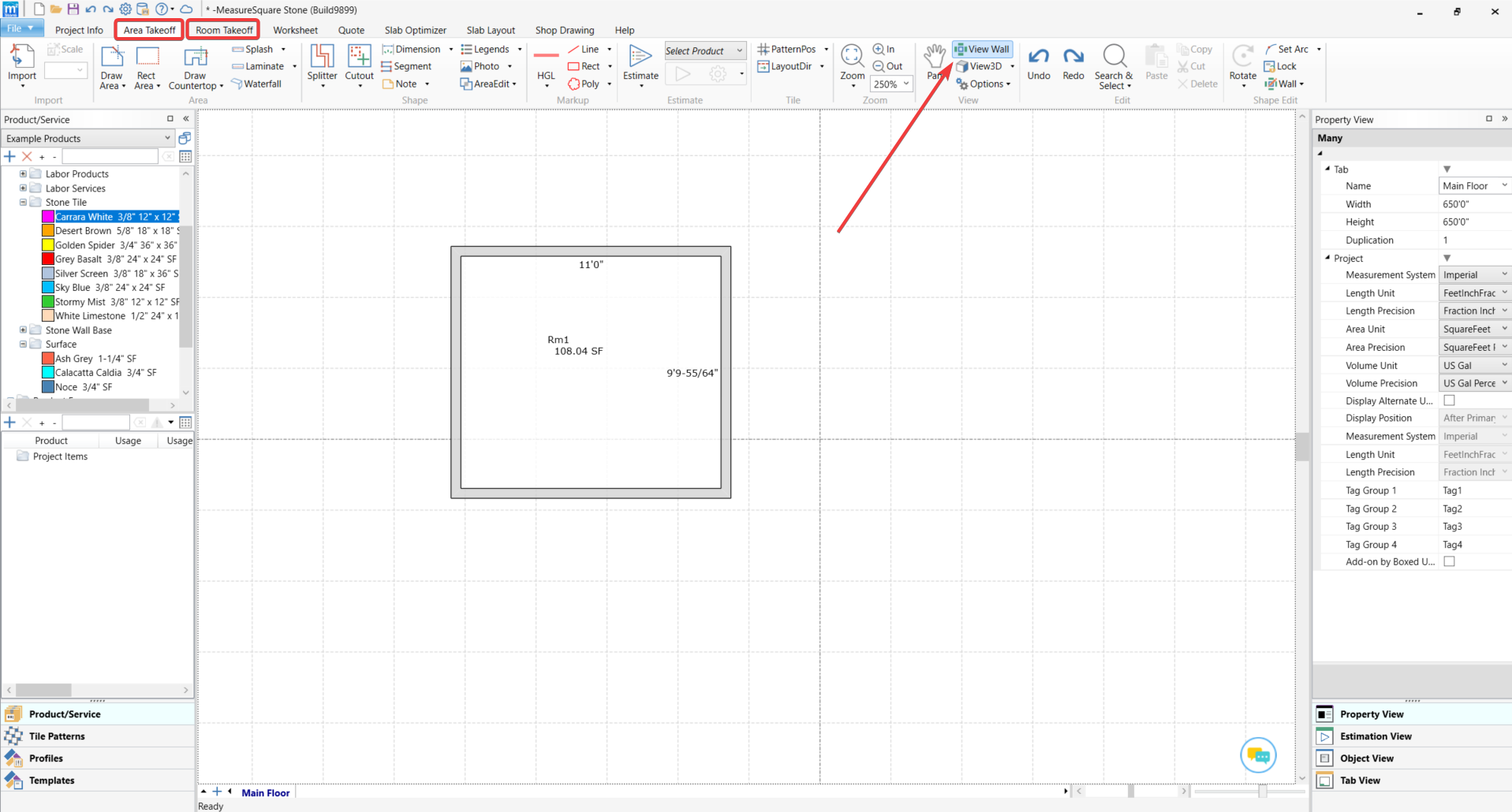

1. To edit a wall you must activate the view wall feature by clicking on the View Wall Icon at the top of your screen, located in the Area Takeoff & Room Takeoff tab.

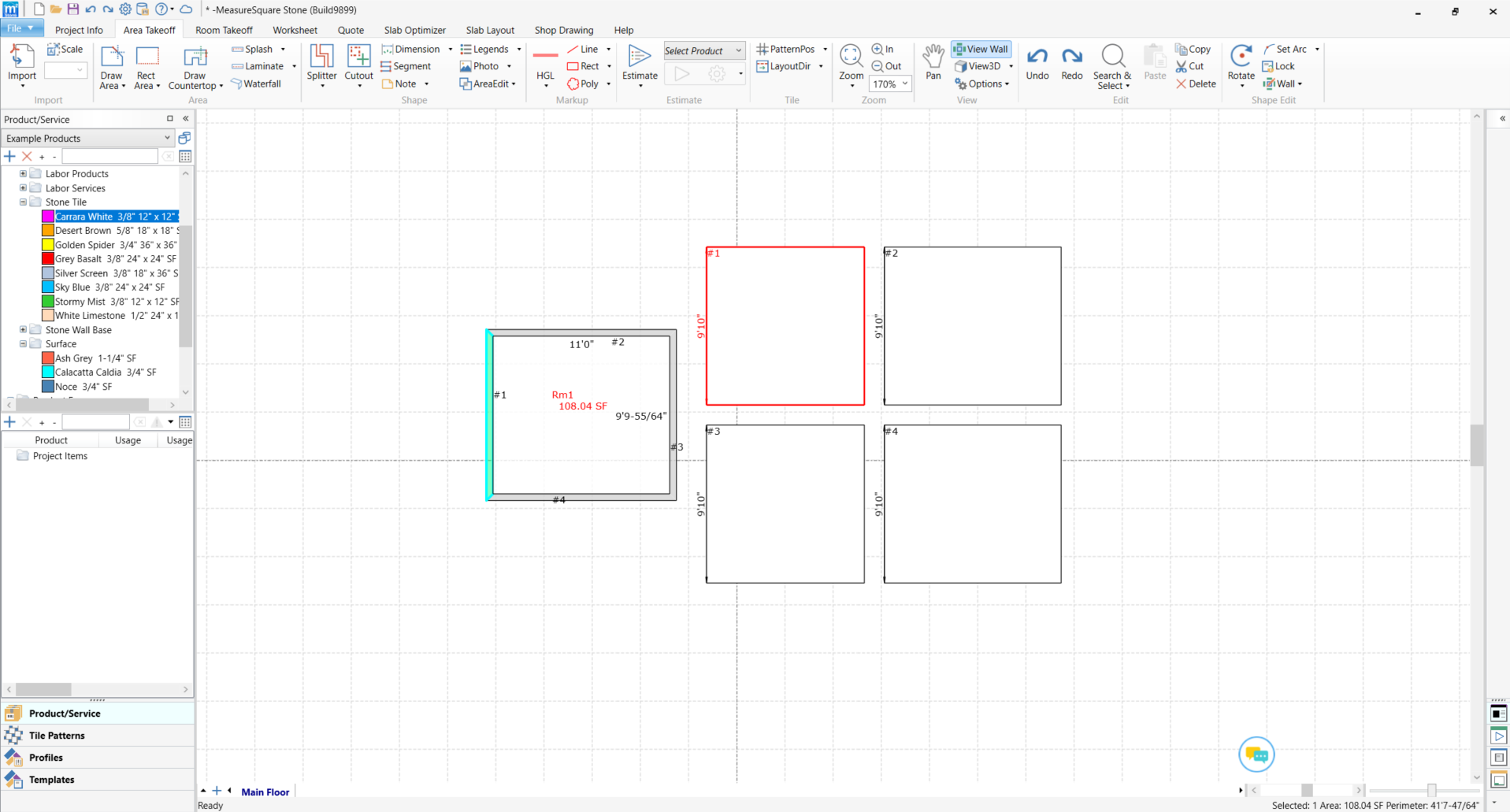

2. Click on the room you wish to edit. Once the walls have appeared, select the individual wall you wish you
to edit by clicking on it.

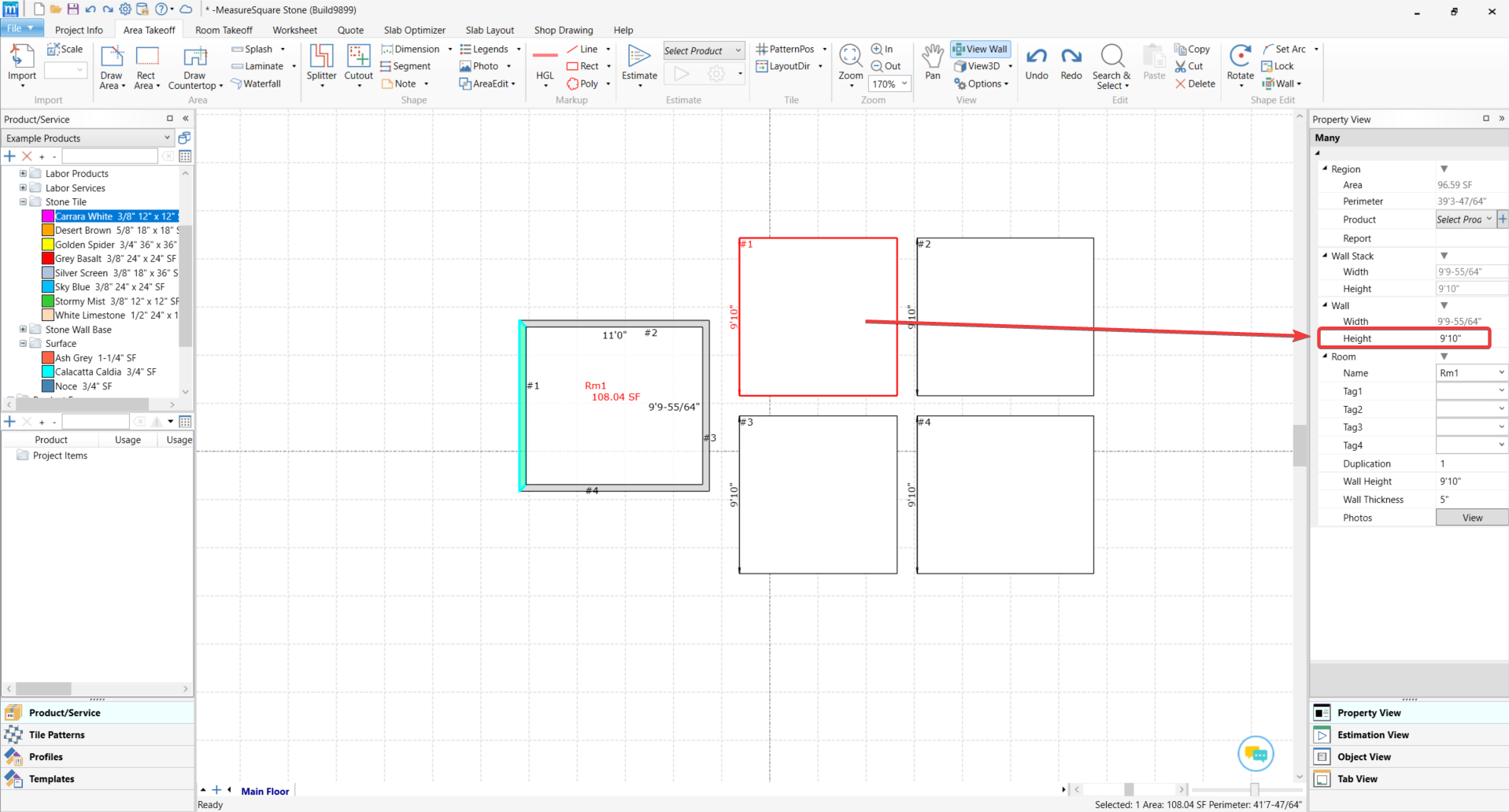

3. Expand your Property View menu by clicking on the “<<” button to the far right of the screen. In the property view panel edit the Height under the Wall section.


Notes
There's an option to include wall height in the wall profile pop up window

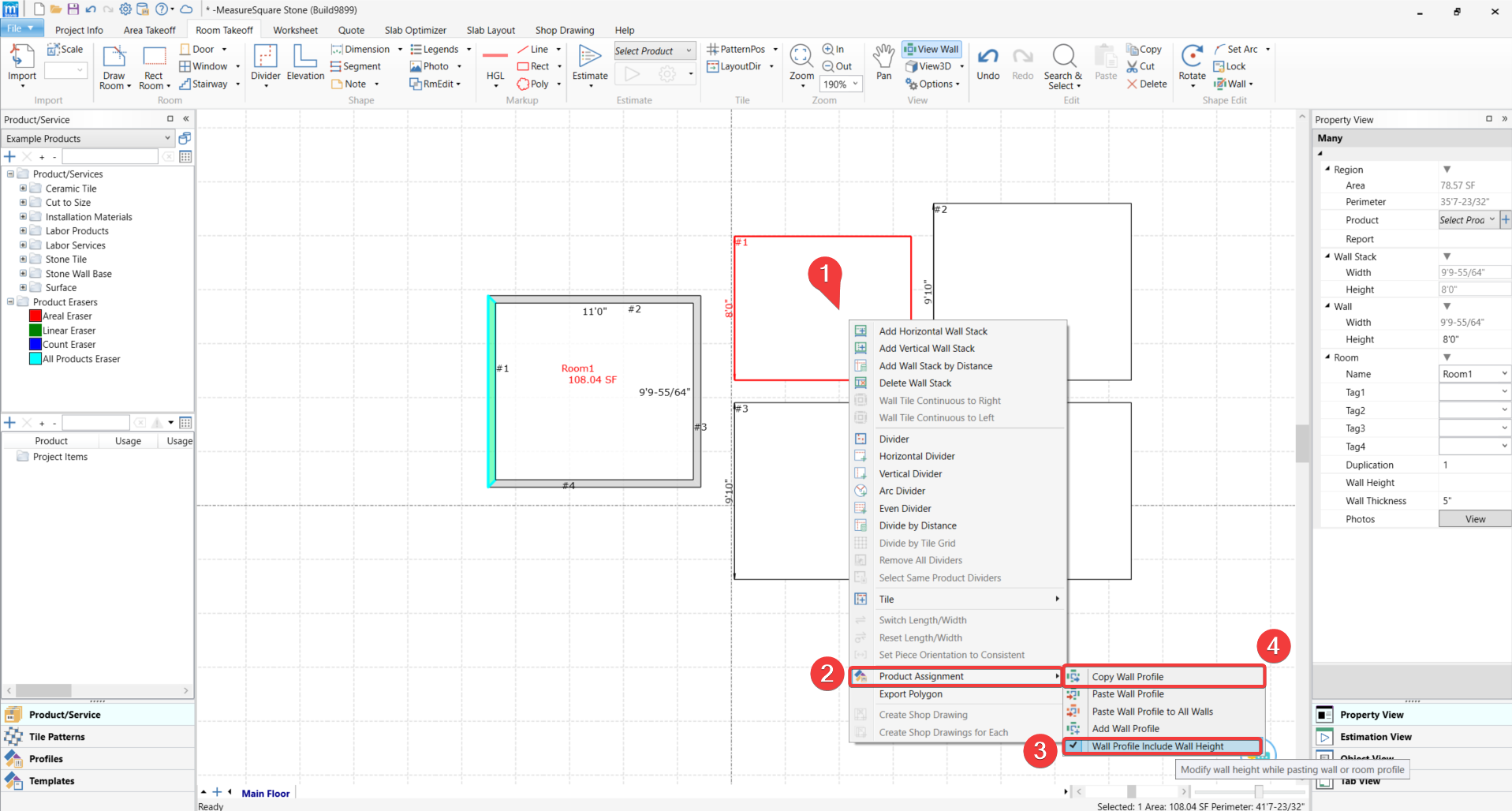

After adjusting the Wall Height for the selected wall in the Property View:
  1. Right click on the adjusted height wall of the room
  2. Hover over Product Assignment
  3. Toggle on Wall Profile Include Wall Height
  4. Click Copy Wall Profile

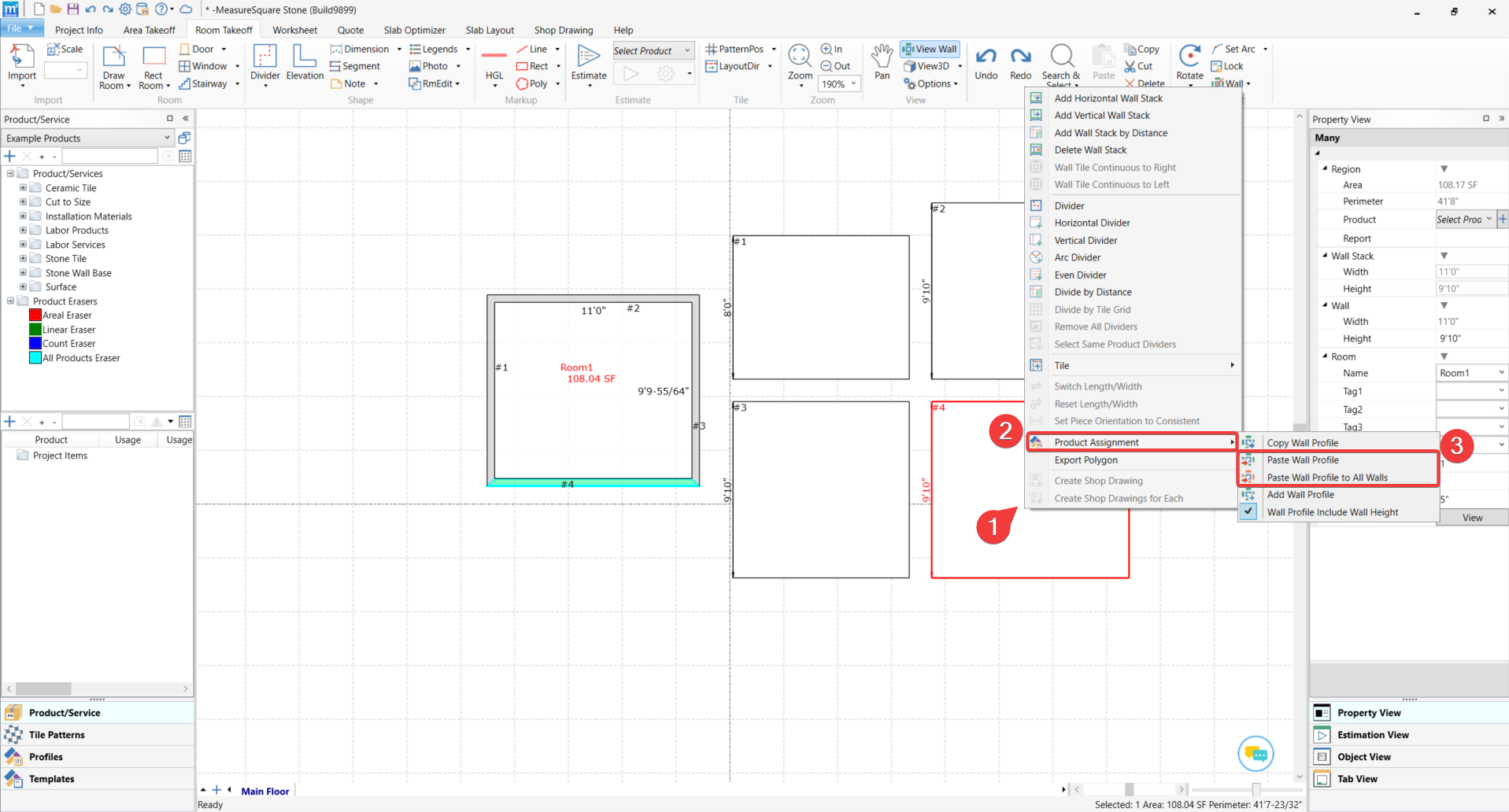

After Copying the Wall Profile with the Wall Height included:
  1. Right Click on any wall of the room
  2. Hover over Product Assignment
  3. Either Paste Wall Profile (one individual wall) or Paste Wall Profile to All Walls (all walls of the room)



Notes

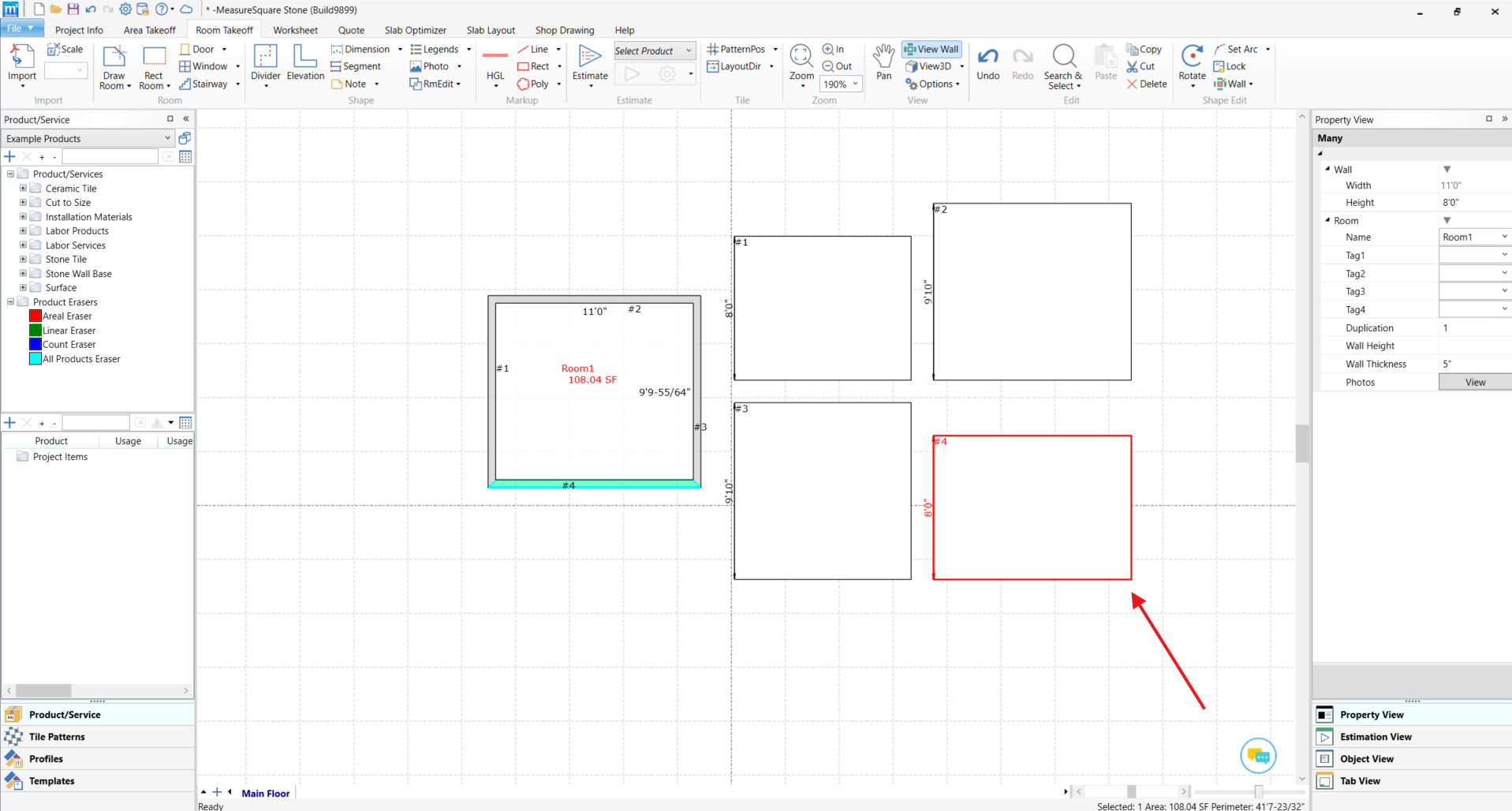

Ex. Wall #4 profile got wasted with the adjust wall height included from Wall #1.
