How do I Draw Stair Runners in MeasureSquare 8?
In this article, you will learn how to represent a stair runner in MeasureSquare 8.
This article applies to MeasureSquare 8, Build 8941.
From time to time, you may encounter a stair runner in your project, which is essentially a roll of carpet running down the stairs. Here is an example of a stair runner:
To best represent this stair runner, you can simply add a stair to your diagram and give it the same width as the stair runner, and not the true width of the actual stair.

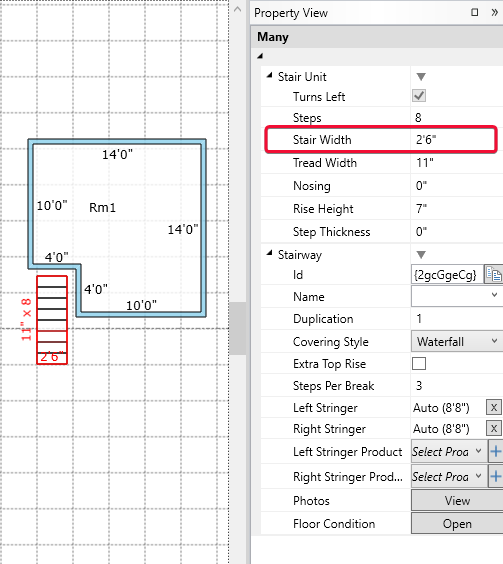

For example, if the width of your stair is 3'6" and your stair runner in 2'6", you can draw a stair and set its width to 2'6", as shown below:
