How do I draw an arced wall by using the Resize tool in MeasureSquare Mobile for iPad?

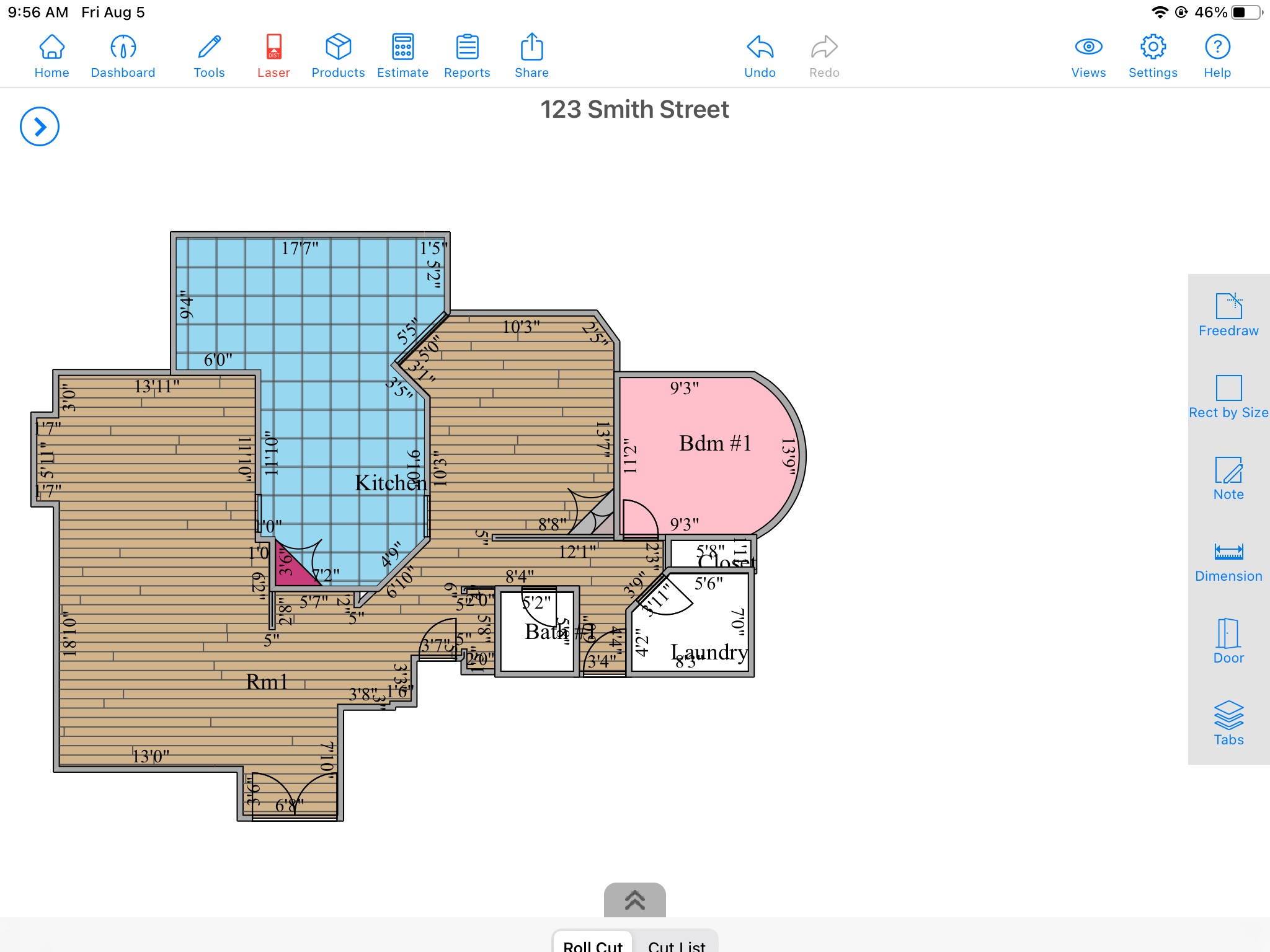

In this article, we will show you how to draw  a curved/arced wall by using the resize tool.

For MeasureSquare Mobile for iPad  Build 2.9.6  and newer.

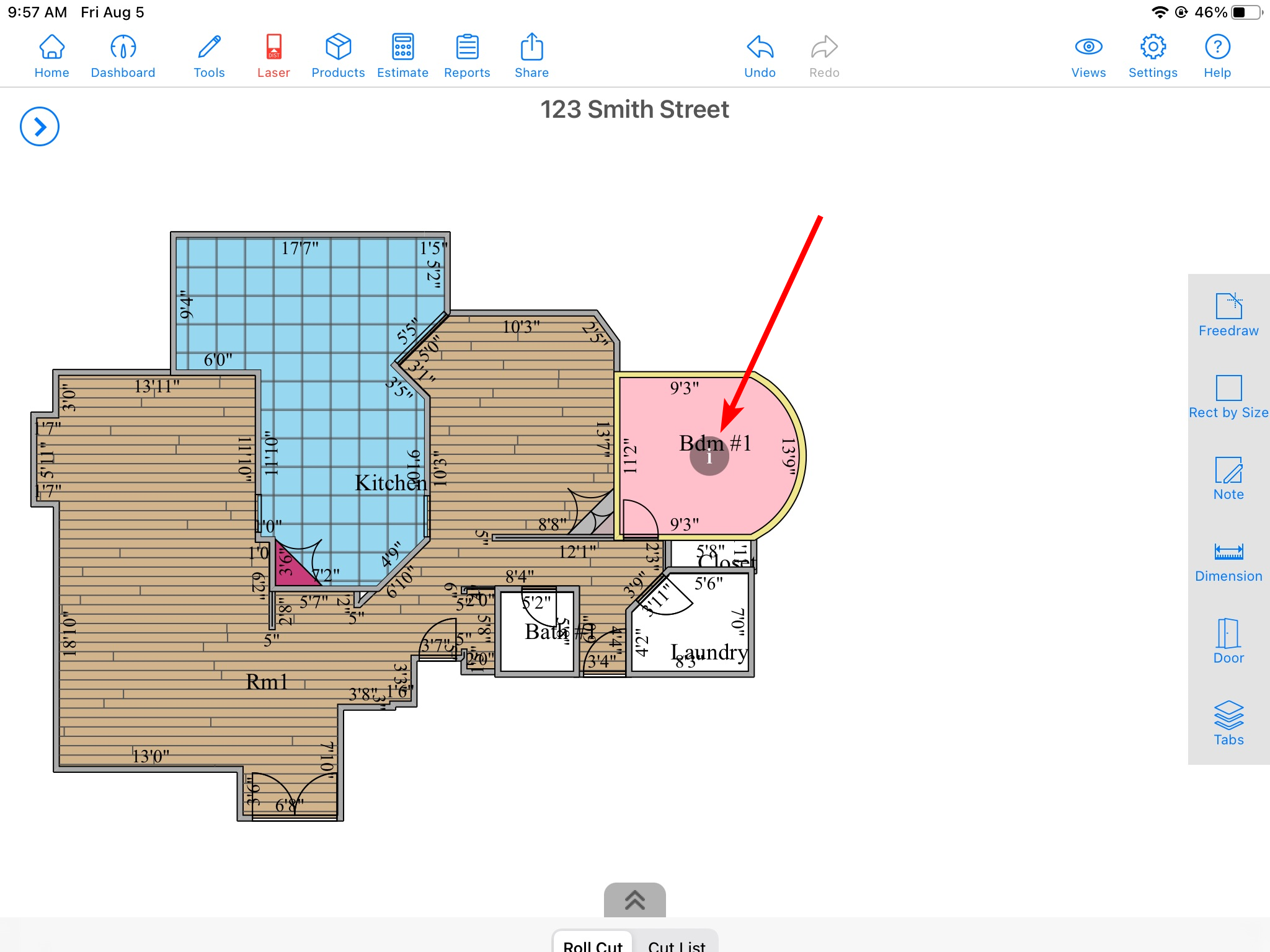

Step 1: Tap on the room > Info icon

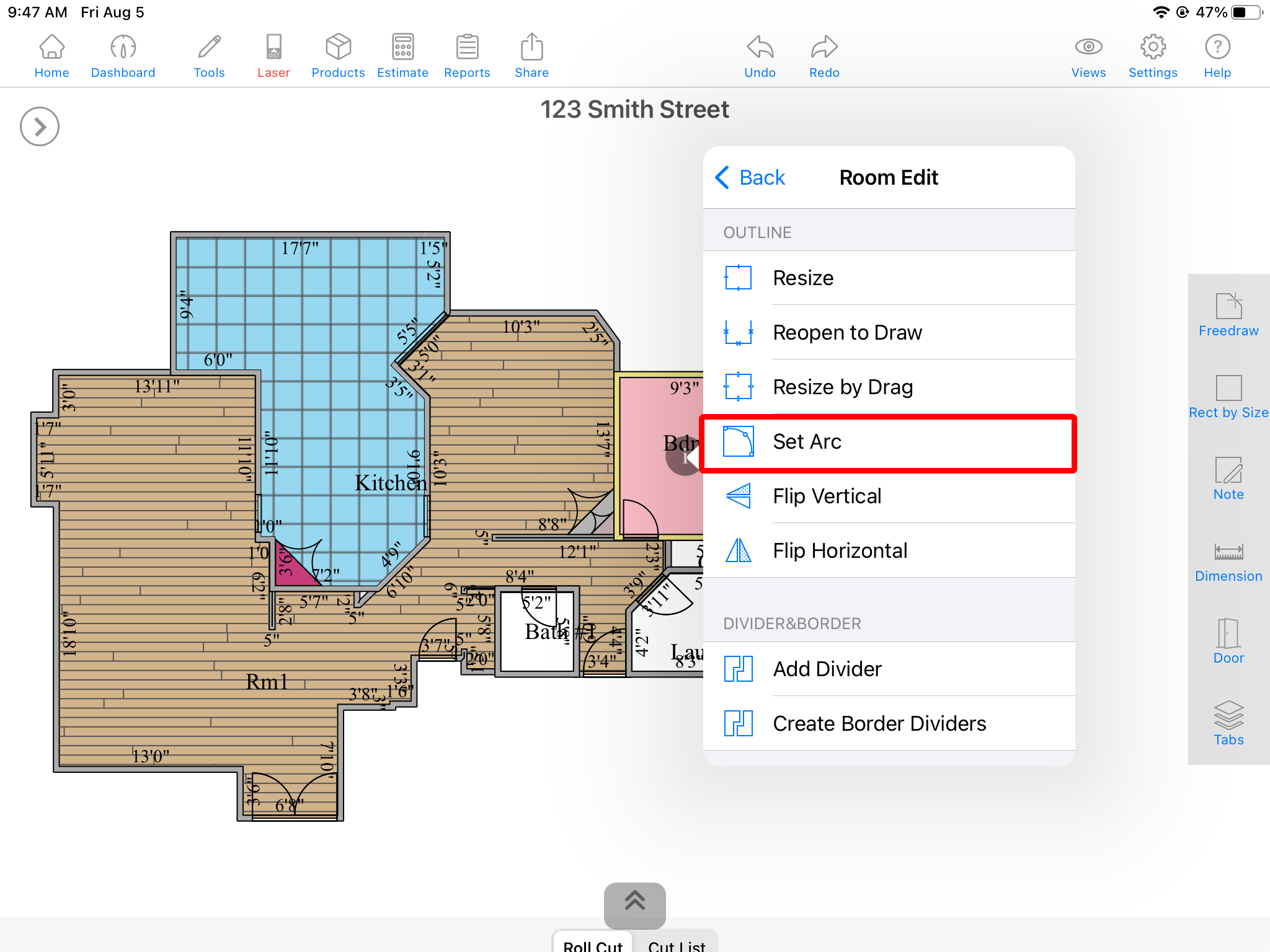

Step 2: Room Edit > Set Arc

Step 3: Drag the GREEN arrow out to create an arch and it displays the depth of the arch.

​
