How to Draw an Arc Room in MeasureSquare 8
This article explains how to draw a room with curved (arc) walls in MeasureSquare 8. Use this feature when a room or space has a rounded or semi-circular boundary, such as a bay area, curved alcove, or circular room.
Steps to Draw an Arc Room
- click the Draw button on the toolbar to enter Draw room mode.
- Click to place your starting point on the canvas and begin drawing the room outline as normal.

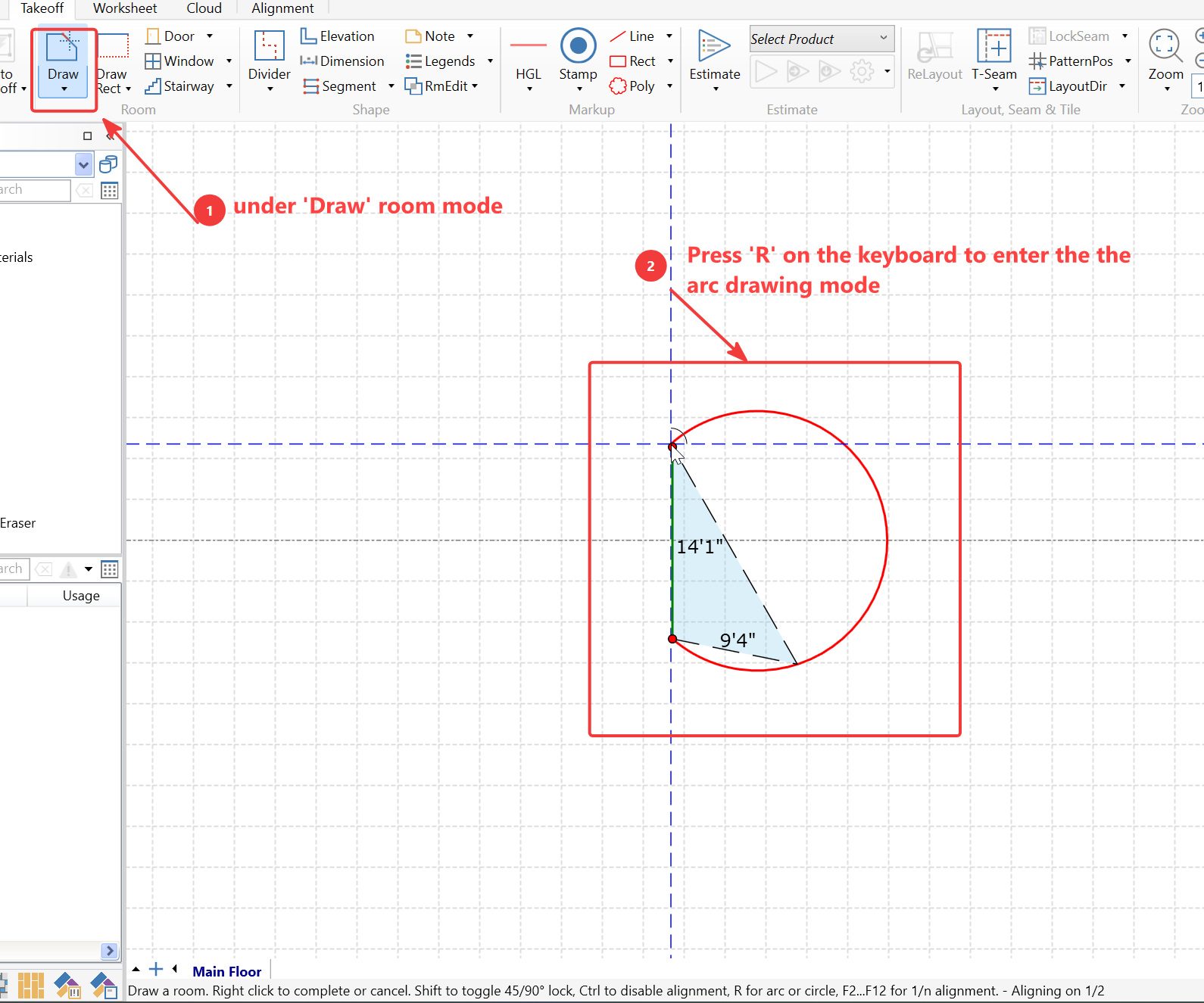

- When you reach the segment where you want a curved wall, press the R key on the keyboard to switch to arc drawing mode. The cursor will update to show arc preview geometry with radius indicators. (See Screenshot 1)
- Tip: The status bar at the bottom of the screen confirms: "R for arc or circle." You can press R again to toggle back to straight-line mode at any time during the same room.
- Click to set the arc endpoint. Right-click to complete and close the room.

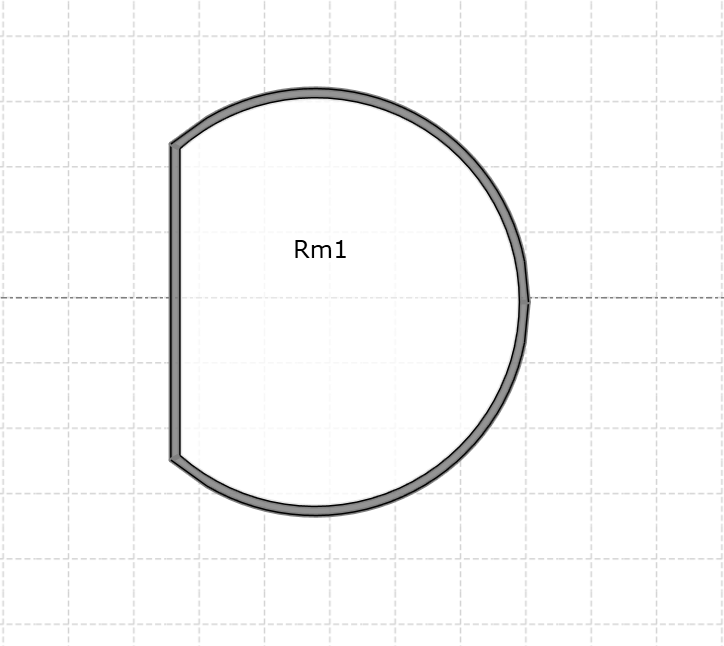

The finished room will display the curved boundary in the plan view.

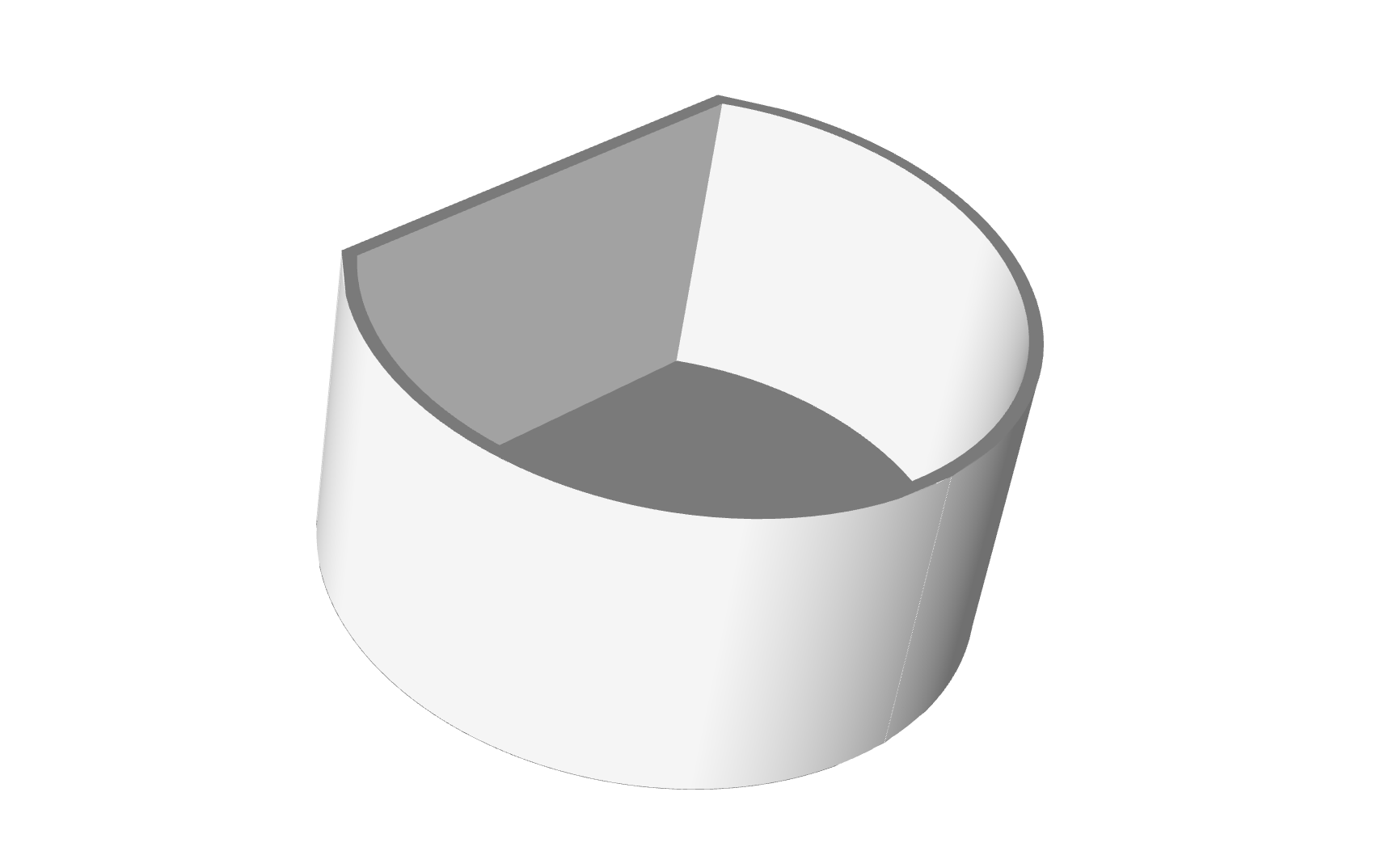

3D view:
This video will show you how to draw various room types including rooms with & without 90 degree turns, arcs & re opening to draw.
