How do I draw a cutout in my countertop?
In this article, we will go over how to draw a cutout in your countertop.
This article applies to MeasureSquare Stone Desktop Edition

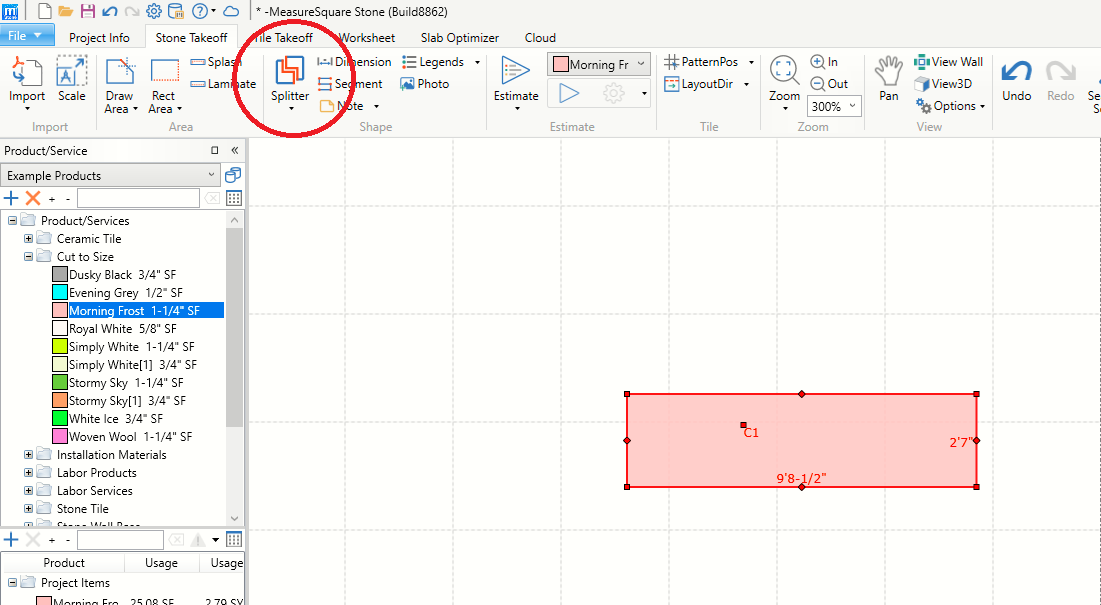

1. Click on the splitter tool located in the upper toolbar

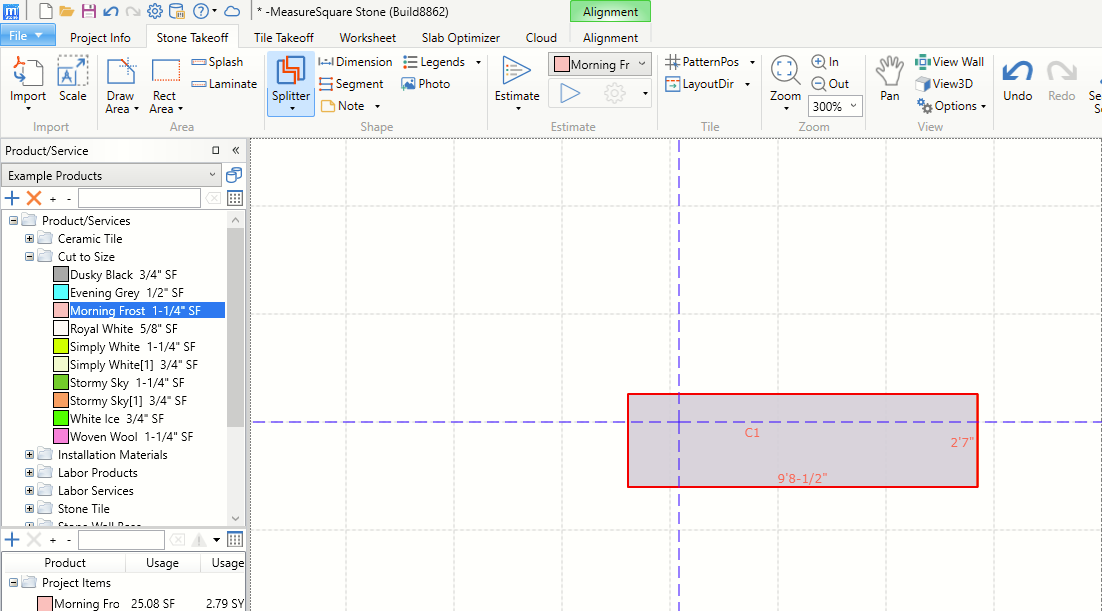

2. Using the crosshair, click to create your first drawing point.

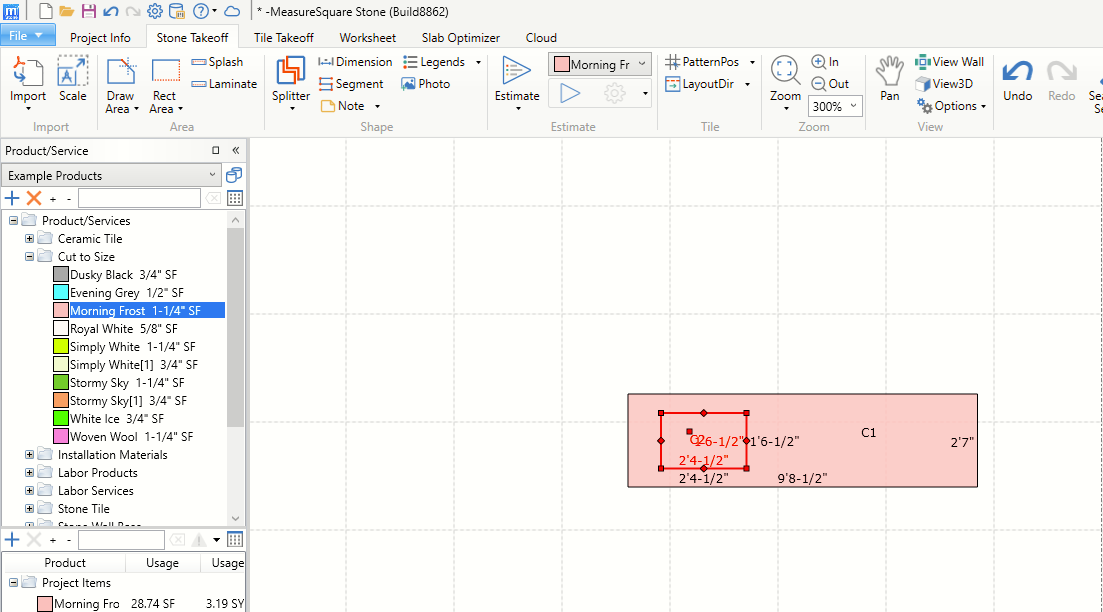

3. Click to draw each additional side of your countertop.
4. Right-click on the area inside the cutout, then click Delete.

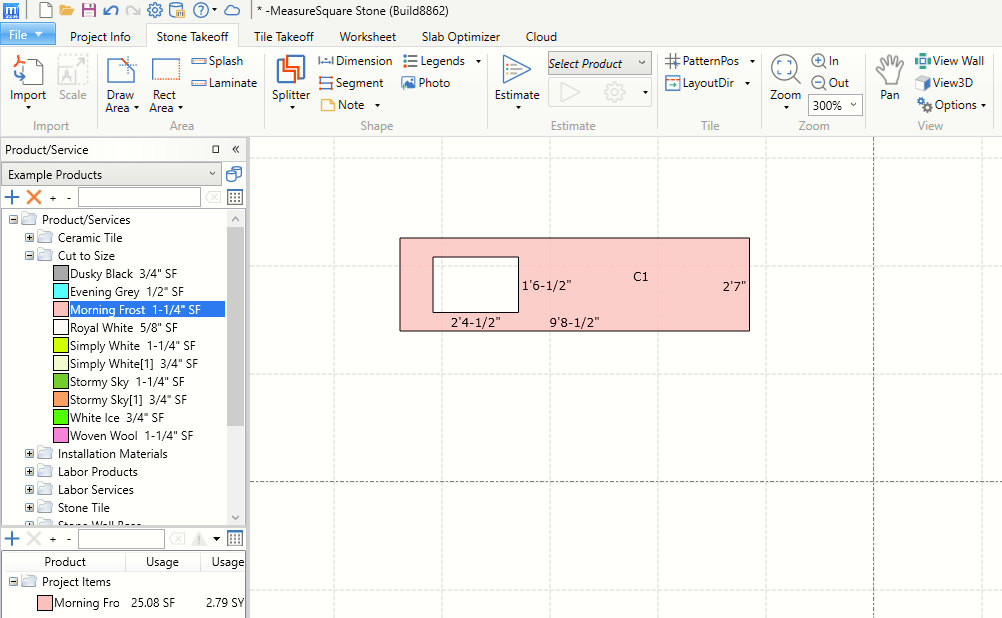

5. You should now see a cutout in your countertop with material removed.
