How Do I Create a Room Border in MeasureSquare 8?

How Do I Create a Room Border in MeasureSquare 8?

In this article we will cover how to add a border to a floor in MeasureSquare 8.


This article applies to Windows MeasureSquare 8.

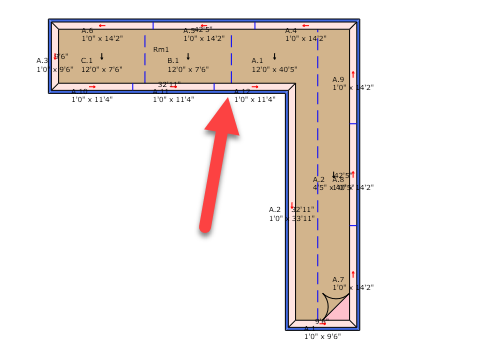

Step 1: Have your area drawn out > Apply your first product that will be in the center.



Step 2: Right click on the room and select 'Create Border Dividers'.

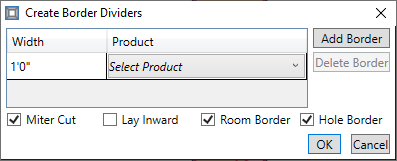

Step 3: In the 'Create Border Dividers' menu you have the ability to select the product that your border will be made out of. You can change the width as well.



Step 4: After applying the correct products and width measurements select 'Ok'.

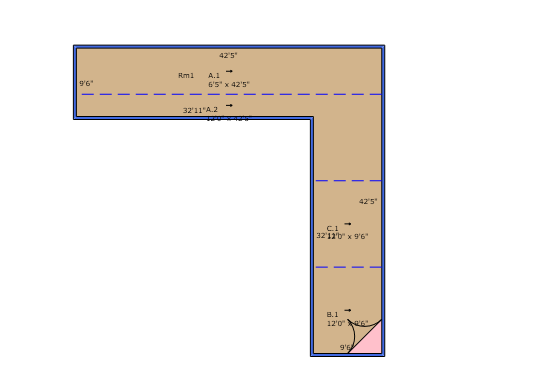

Once you select 'Ok' you will be taken to the takeoff screen and will see the new border around your room.




Below is a video tutorial for those who prefer step by step instructions with visuals/vocal instructions.
