How do I create a herringbone tile pattern in MeasureSquare 8?
In this article, we will show you how to design a herringbone pattern in MeasureSquare 8.
Version: This article applies to MeasureSquare 8

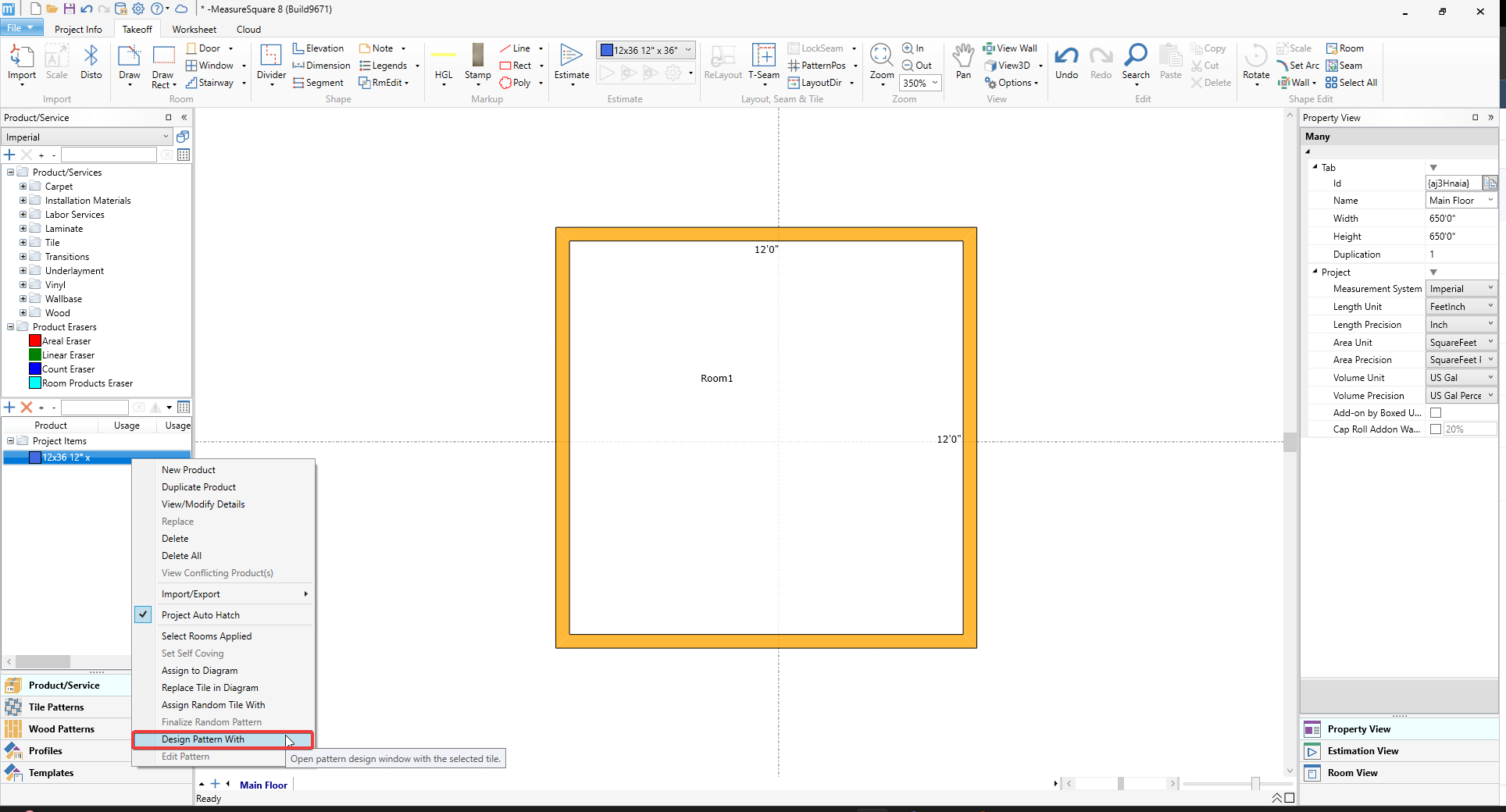

Step 1: Right click on the tile -> Design Pattern With.

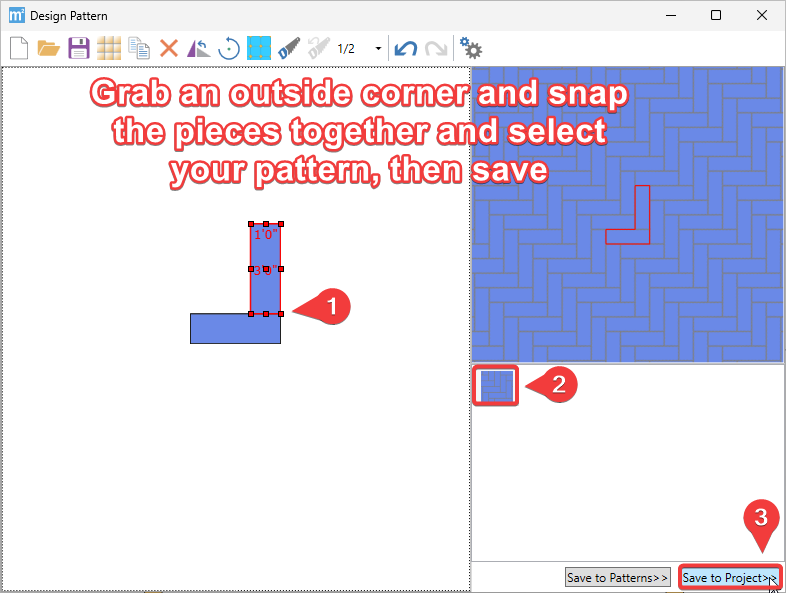

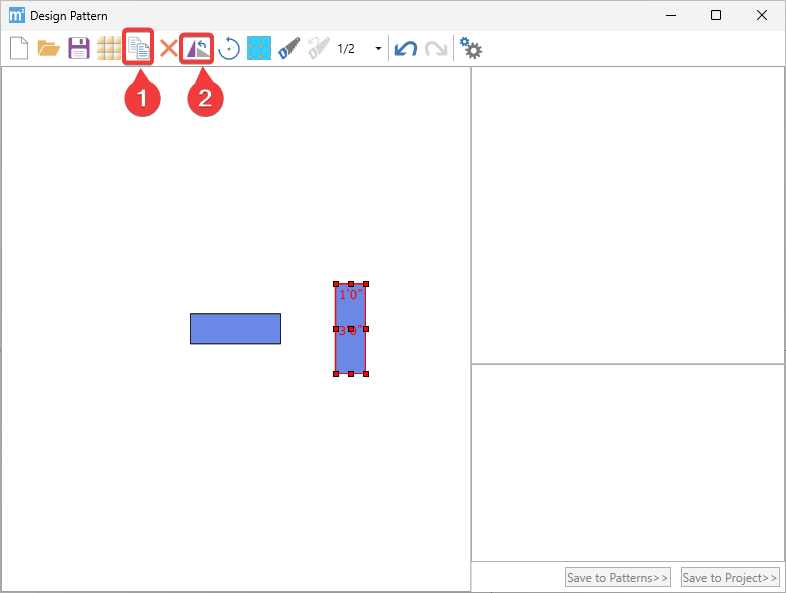

Step 2: Click the two paper sheets to duplicate the tile -> Use the rotate icon to rotate your second tile -> Position tiles into pattern -> Save to Project or Save to Patterns and Rename after you're done.

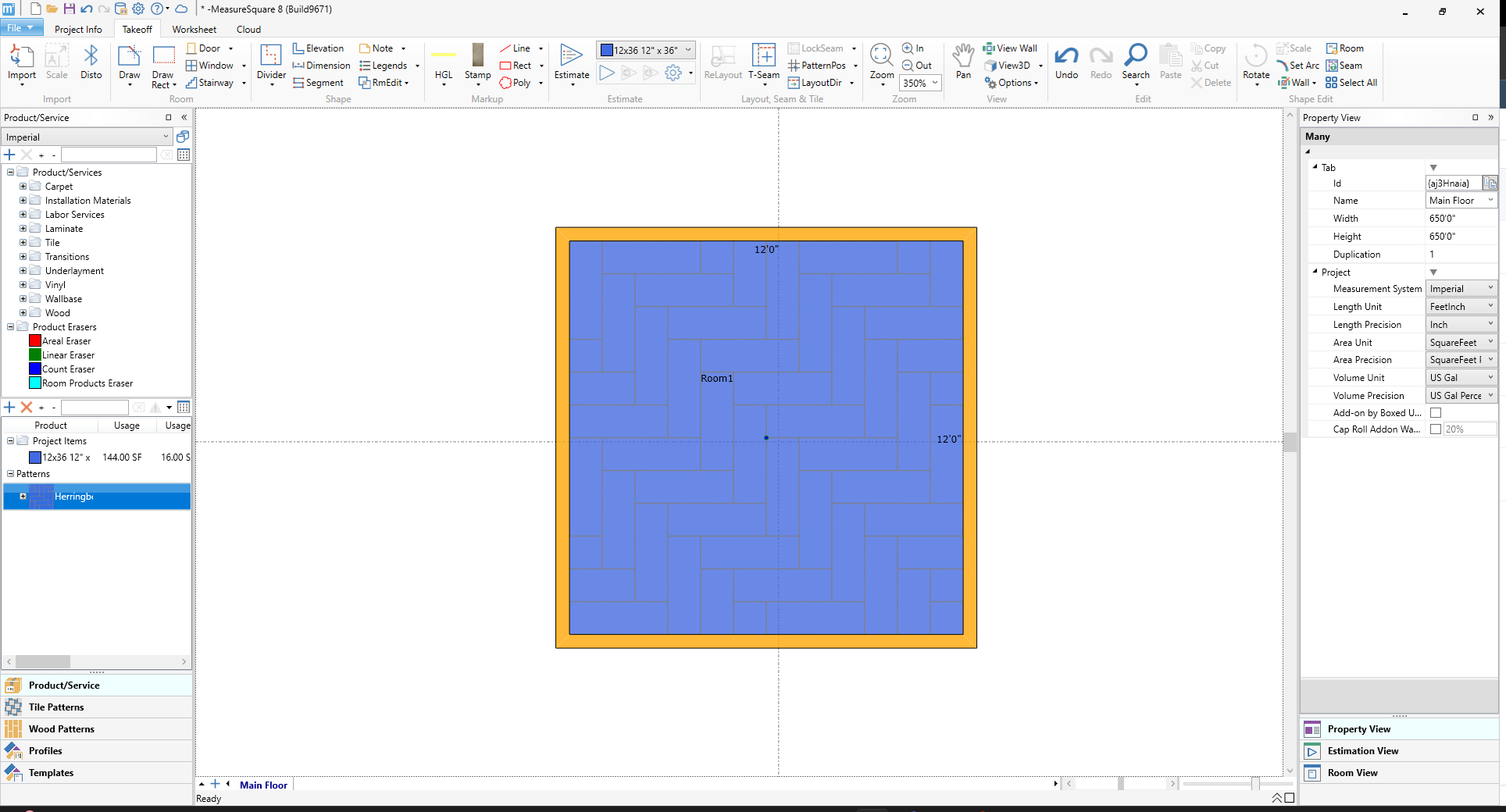

Step 3: Left click on the room to apply the herringbone pattern.
