How do I create a 1/3 offset tile pattern in MeasureSquare 8?

How do I create a 1/3 offset tile pattern in MeasureSquare 8?

This article shows you how to quickly create an offset pattern. This is not limited to just 1/3 offsets.

Version: All MeasureSquare 8 Builds

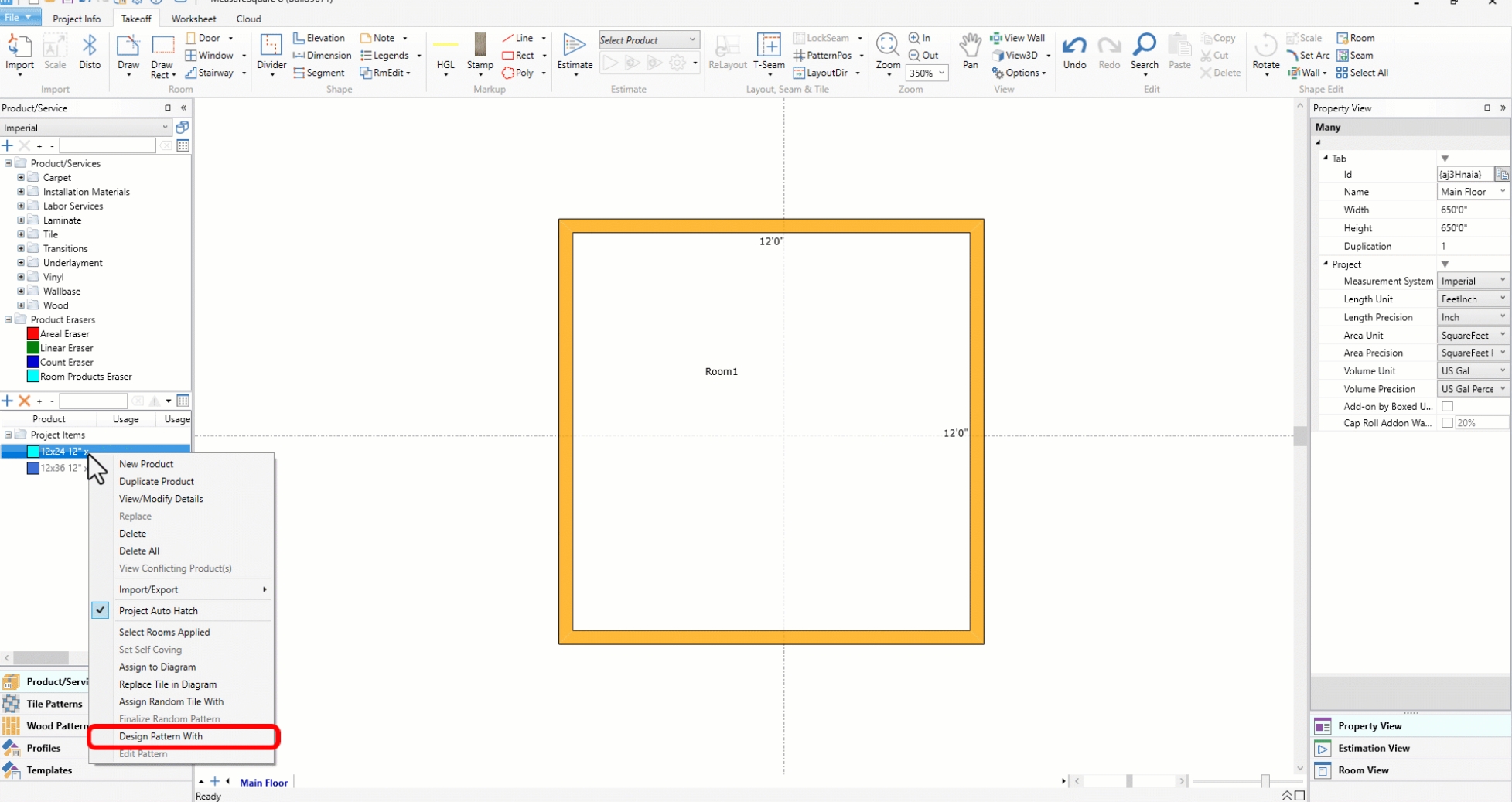

Step 1: Design pattern, right click on the tile product and select "Design Pattern With".

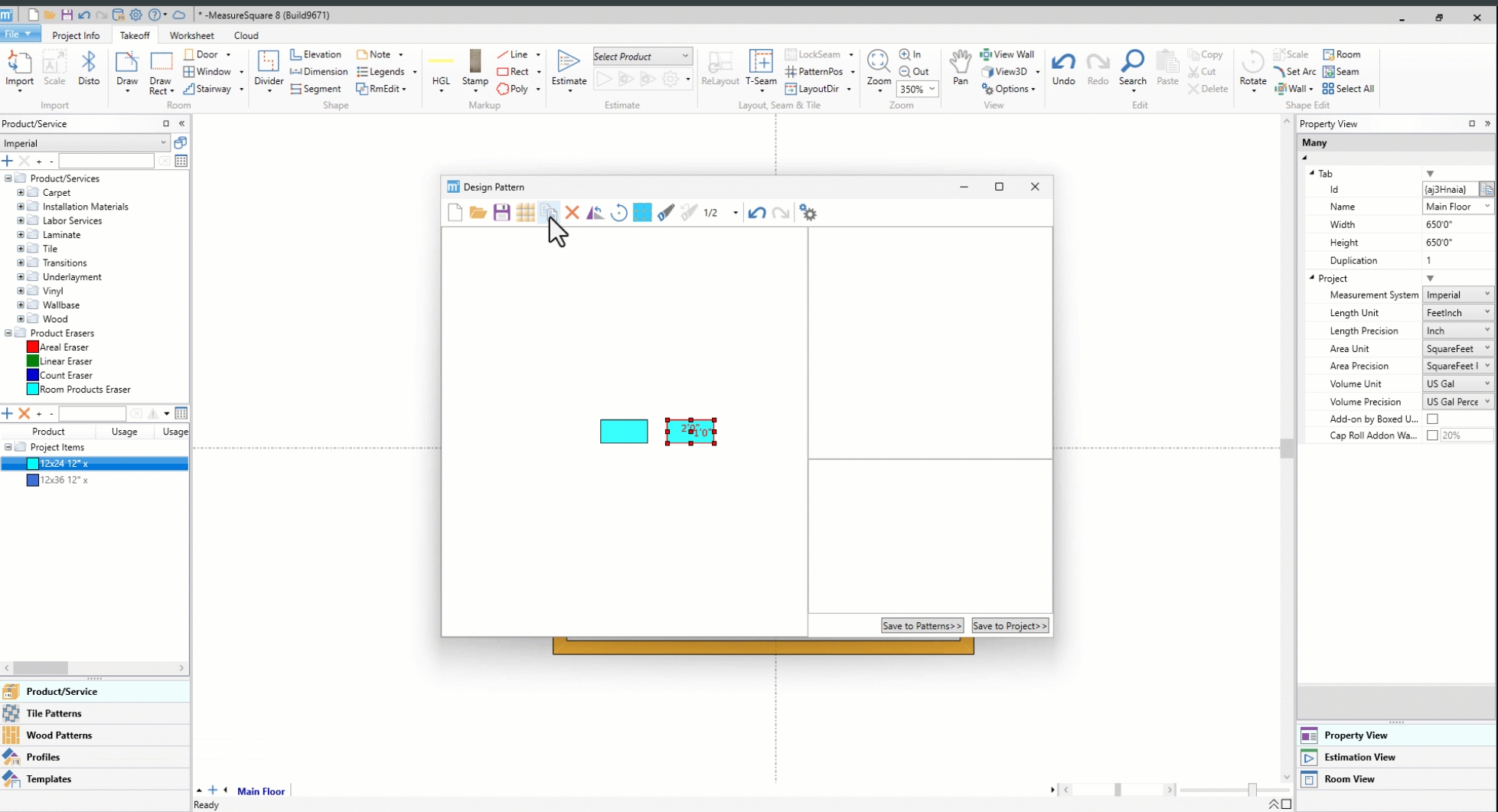

Step 2: Copy a single tile.

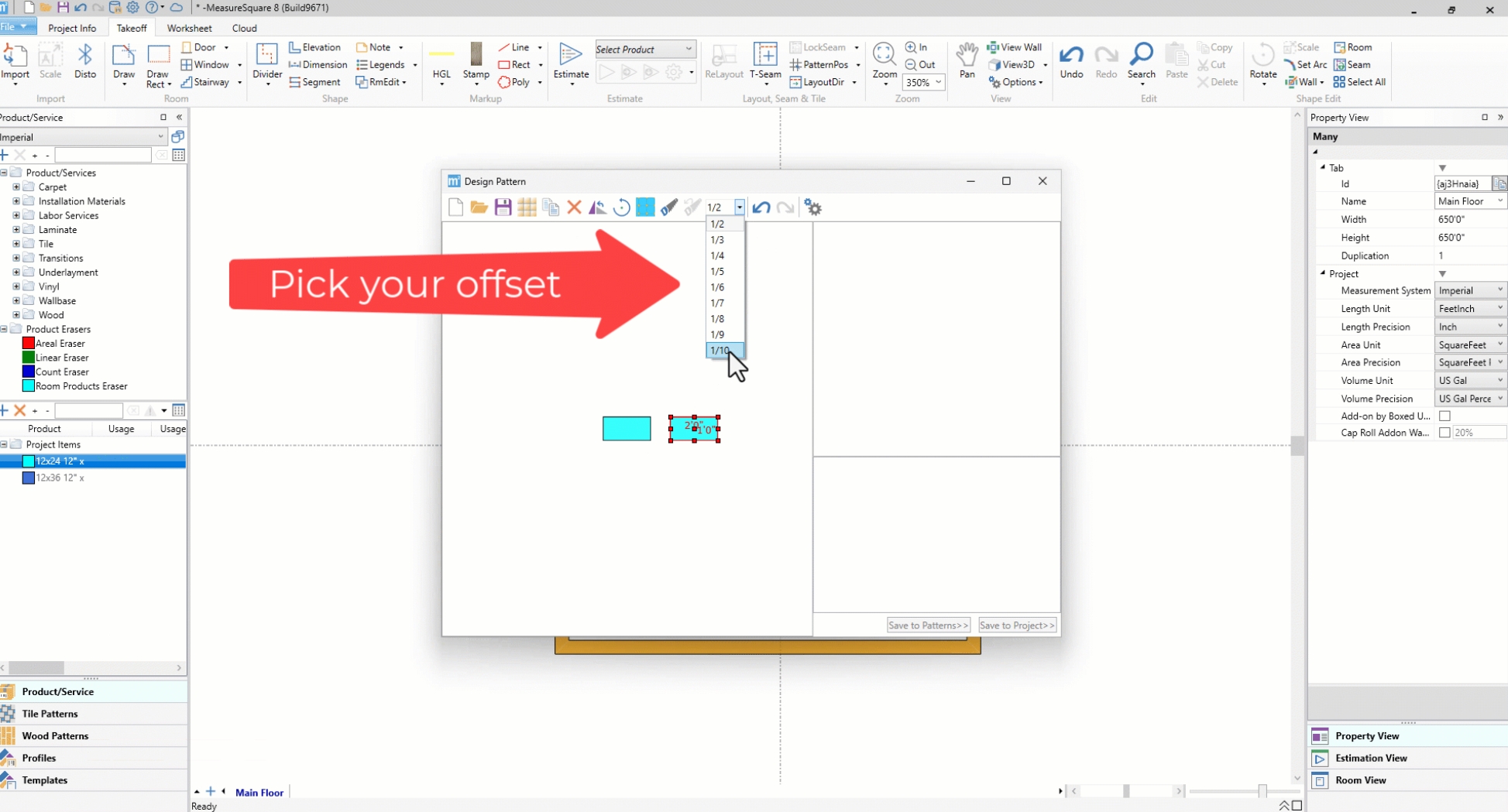

Step 3: pick the offset of the pattern

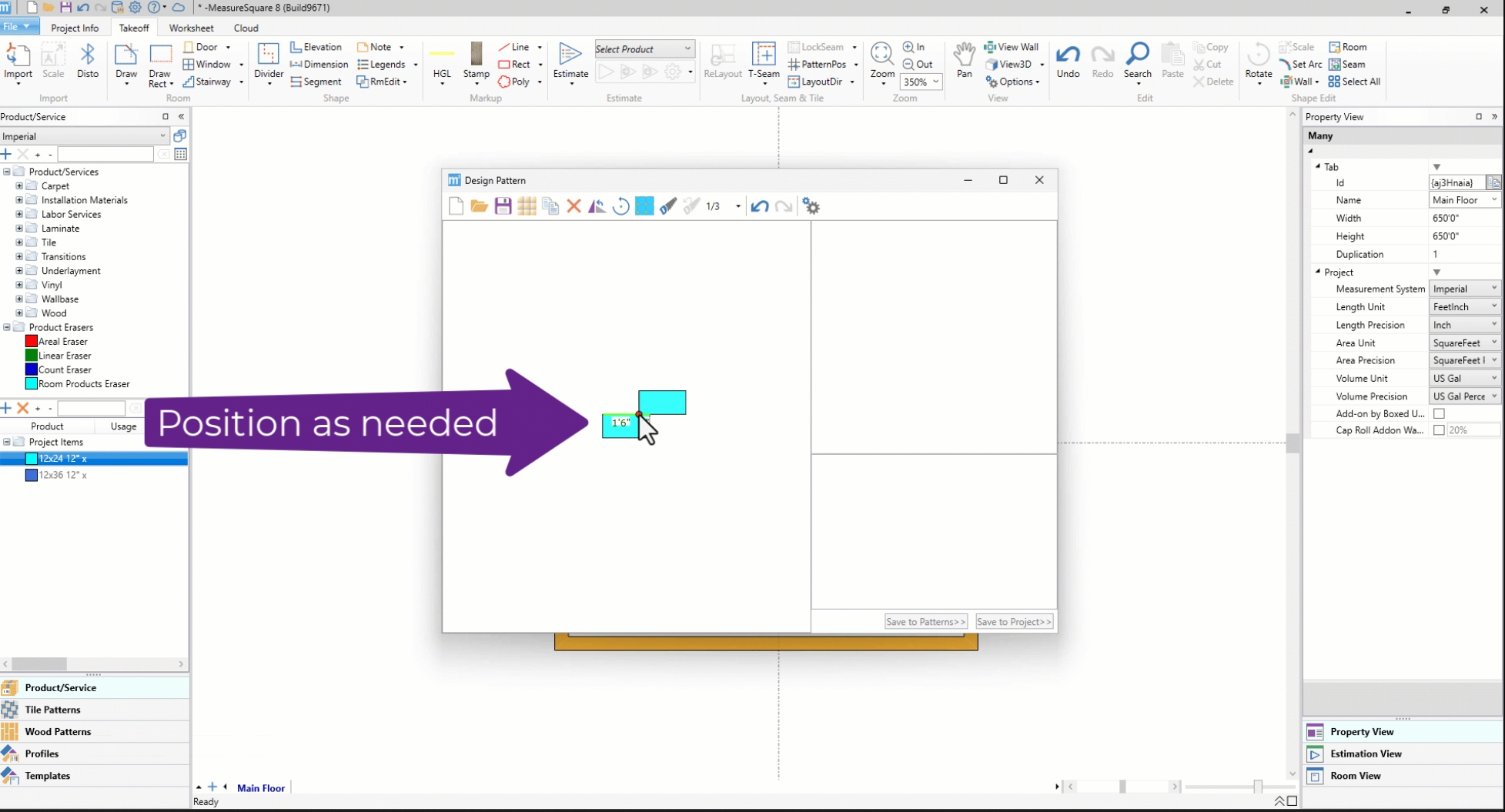

Step 4: drag the tile to align to a offset point.

Step 5: Save the pattern.

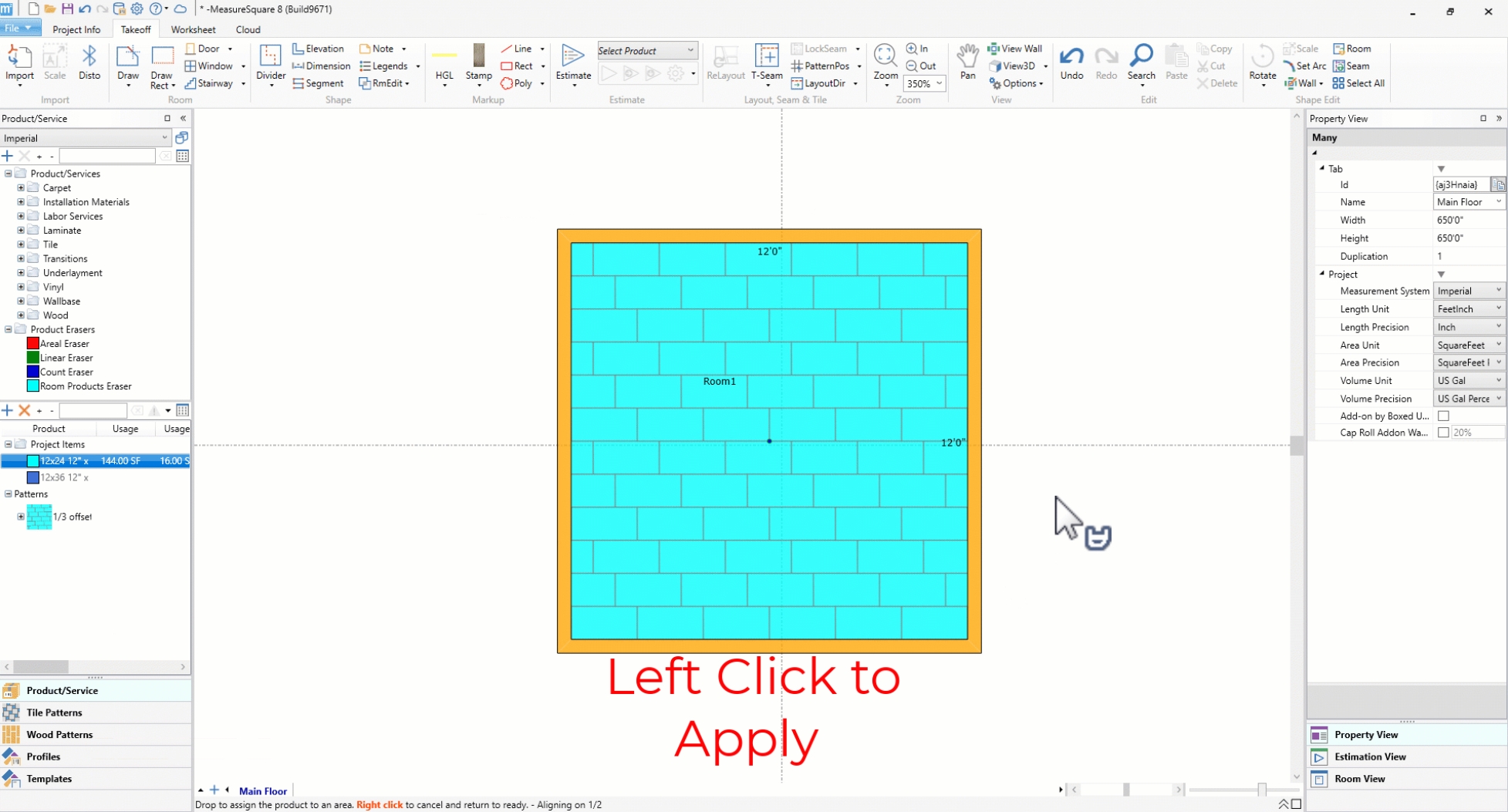

Step 6: apply the pattern to the floor by dragging and dropping.
​
