How do I change the thickness, style or color of a segment line in MeasureSquare 8?

This article will show you how to edit the details of a drawn segment line in MeasureSquare 8.

This article applies to MeasureSquare 8 versions

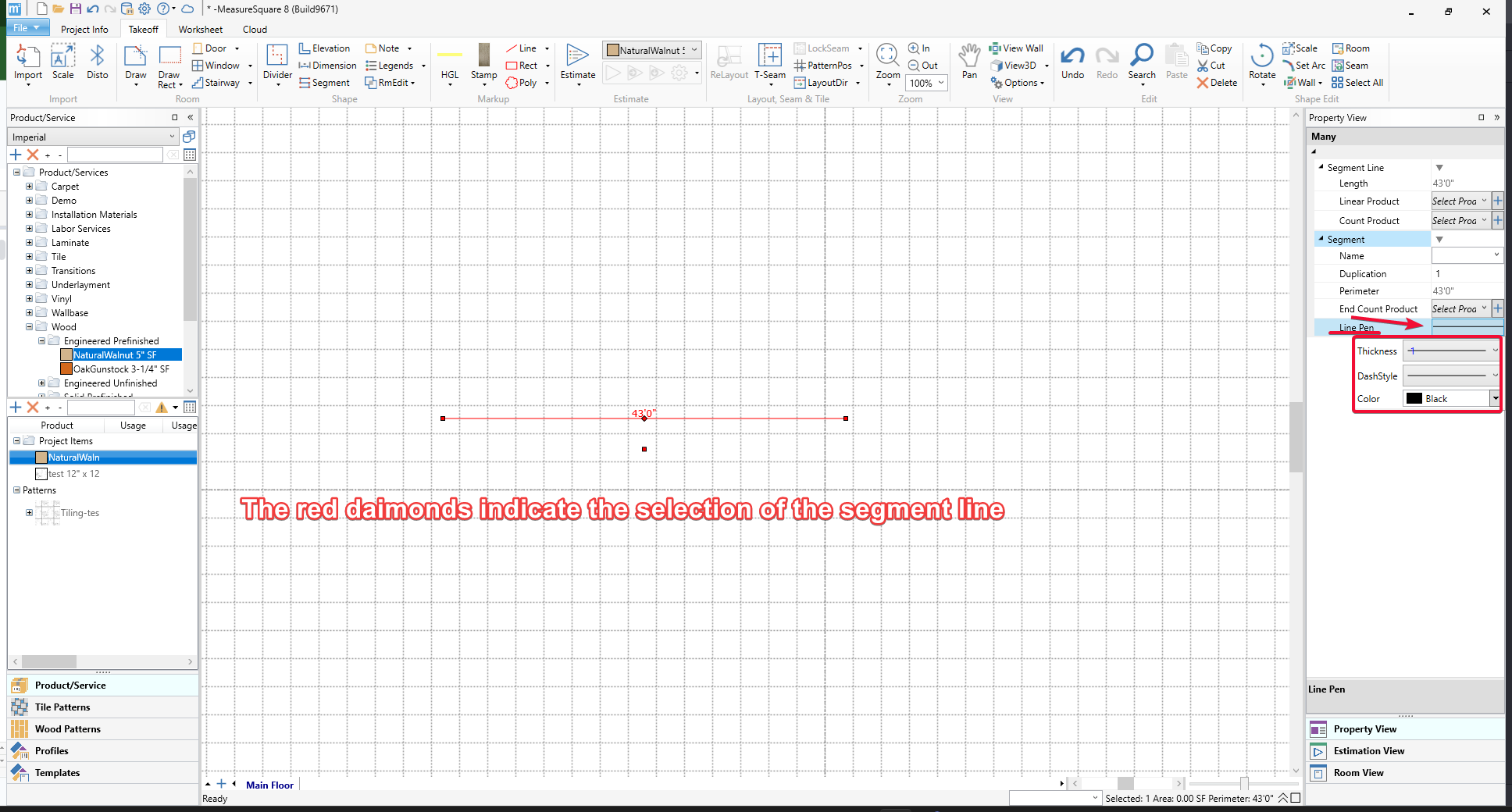

Step 1: Once the segment line is drawn, double click on the segment line to automatically pop out the property view on the right side.

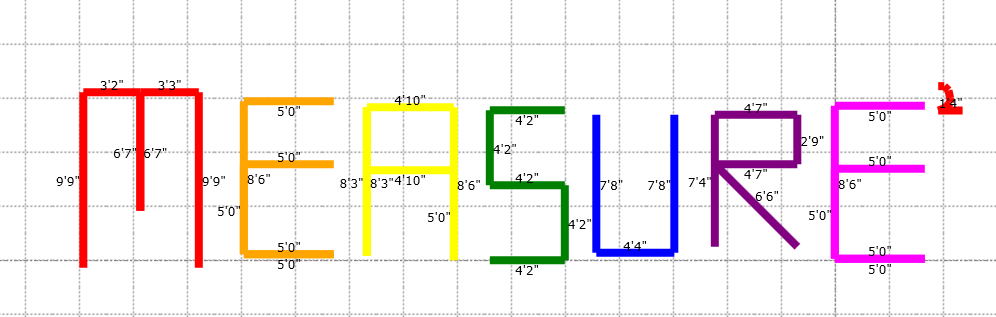

Step 2: Click on the line next to Line Pen to edit the Thickness, Dash-style and Color

Note: If the property view is already open, a single left click is only needed on the segment line.

Step 3: Click back onto the takeoff area for changes to take place
