How do I adjust pattern first cut options in MeasureSquare 8?

How do I adjust pattern first cut options in MeasureSquare 8?

In this article, we will explain the different options for pattern first cut.

Version: Build 7000 or newer

Step 1: To adjust the pattern first cut setting > click on the gear icon > click on the drop down to select the setting that works best for your project

The asterisk symbol next to the cut indicates that cut is a first cut

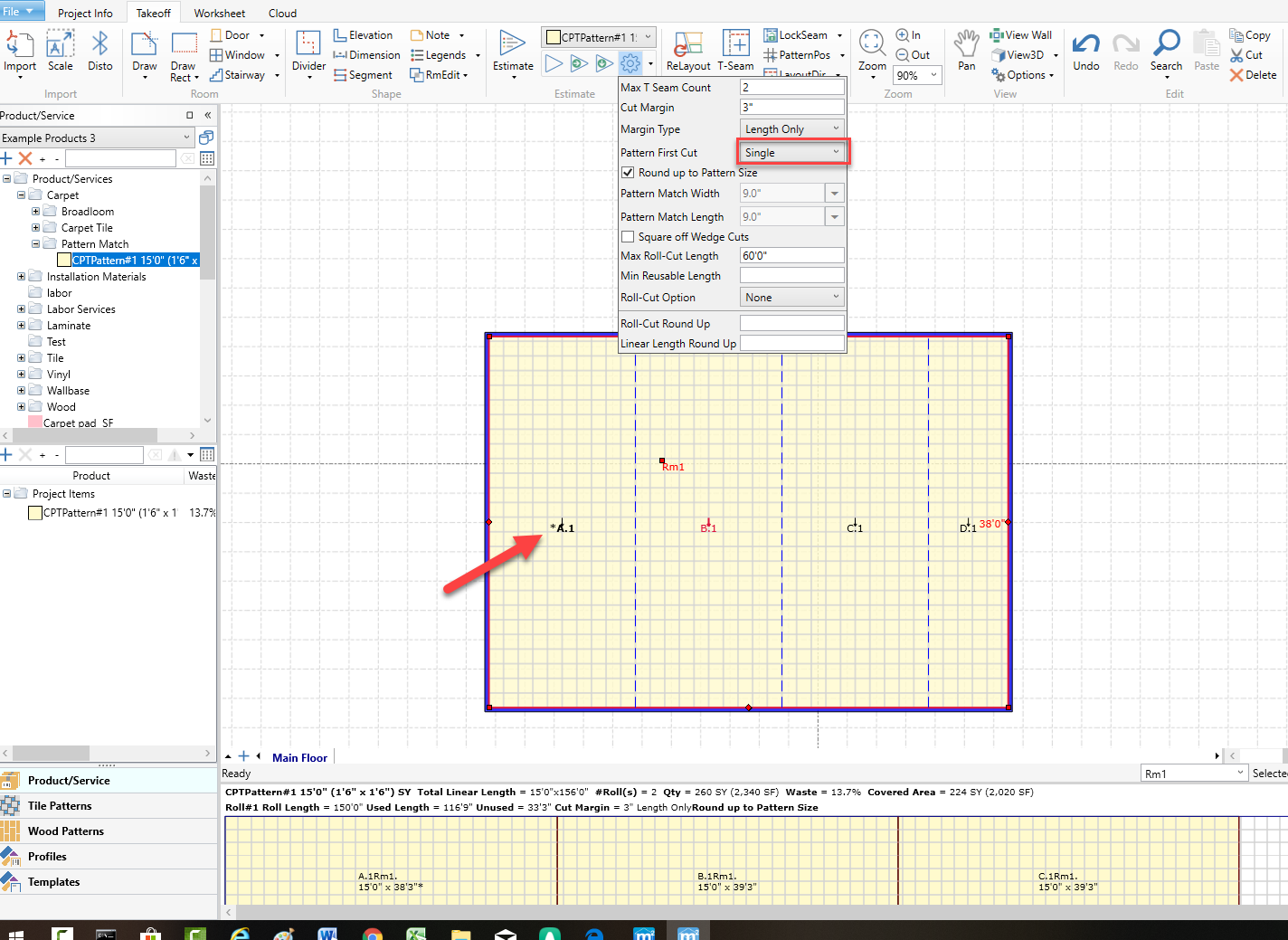

Single: There can only one first cut in a room/area

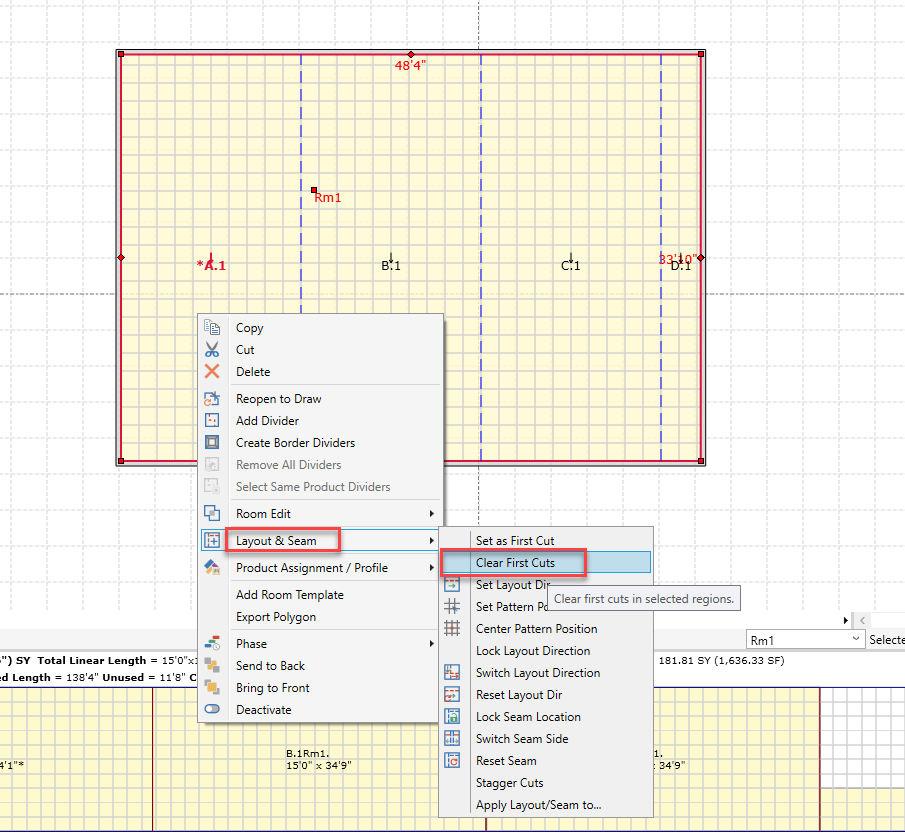

To clear the first cut > Right click on the cut that you want clear > Layout & Seam > Clear First Cut

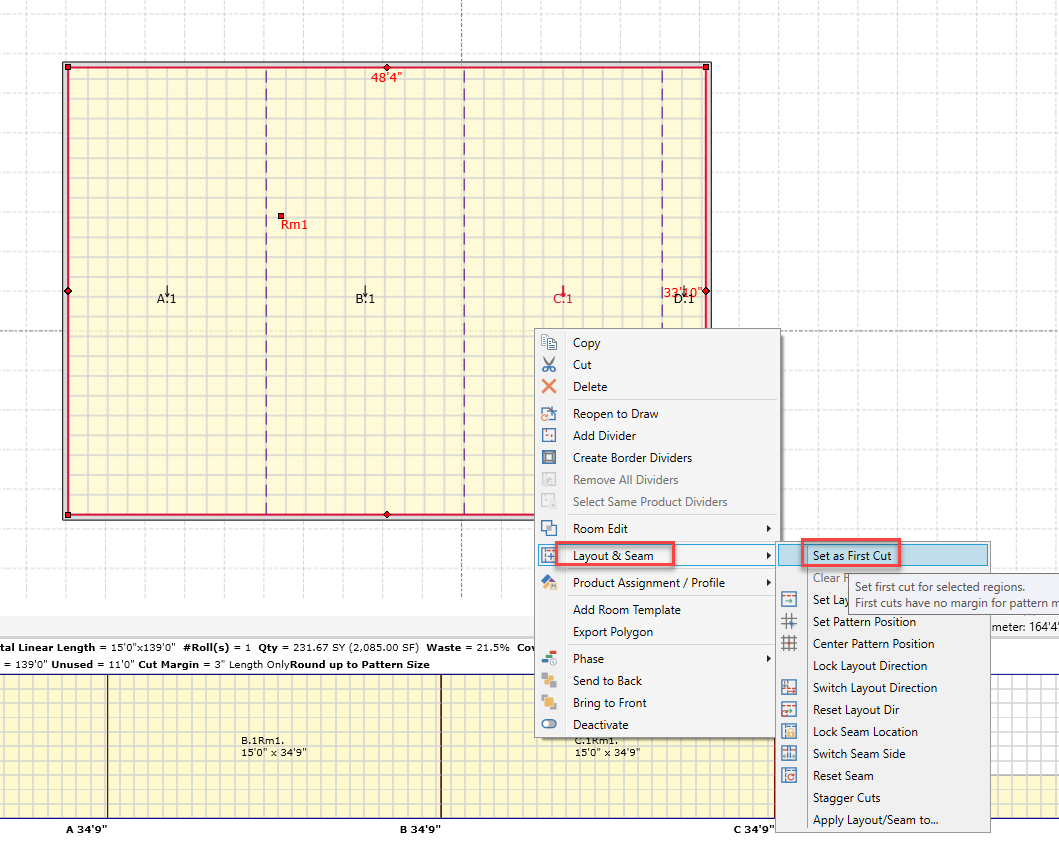

To set a first on a different piece > Right click on the cut that you want to set as a first cut > Layout & Seam > Set as First cut

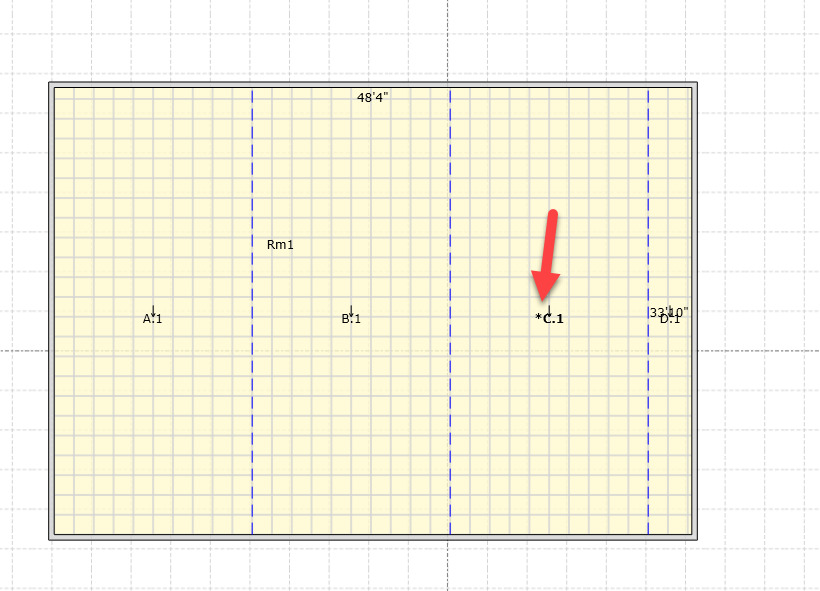

Now you can see A cut is no longer the first cut, C cut is the first cut now

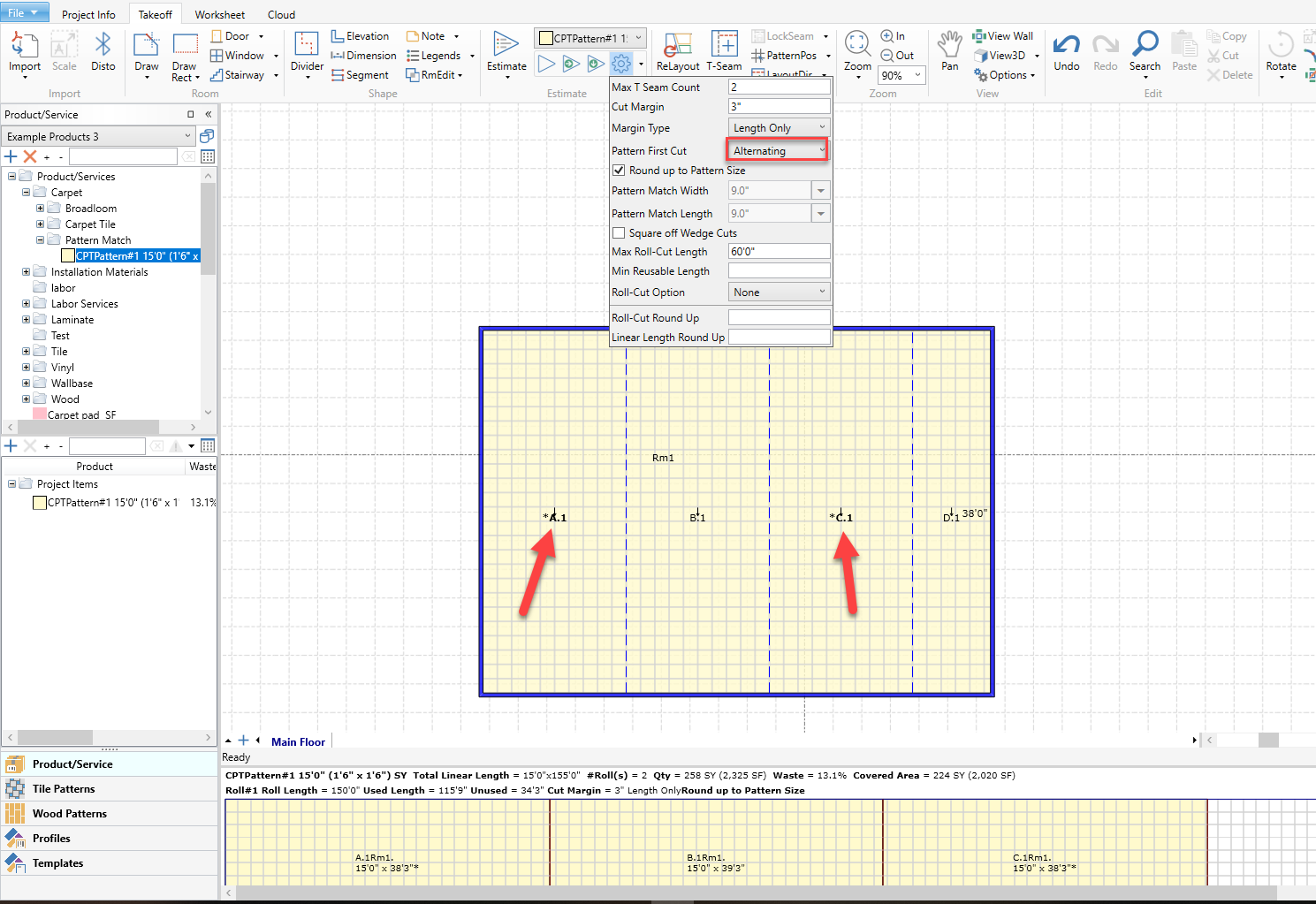

Step 2: Alternating: The first cut will be applied to every other cut
Doesn't work with B-Seam or T-seam

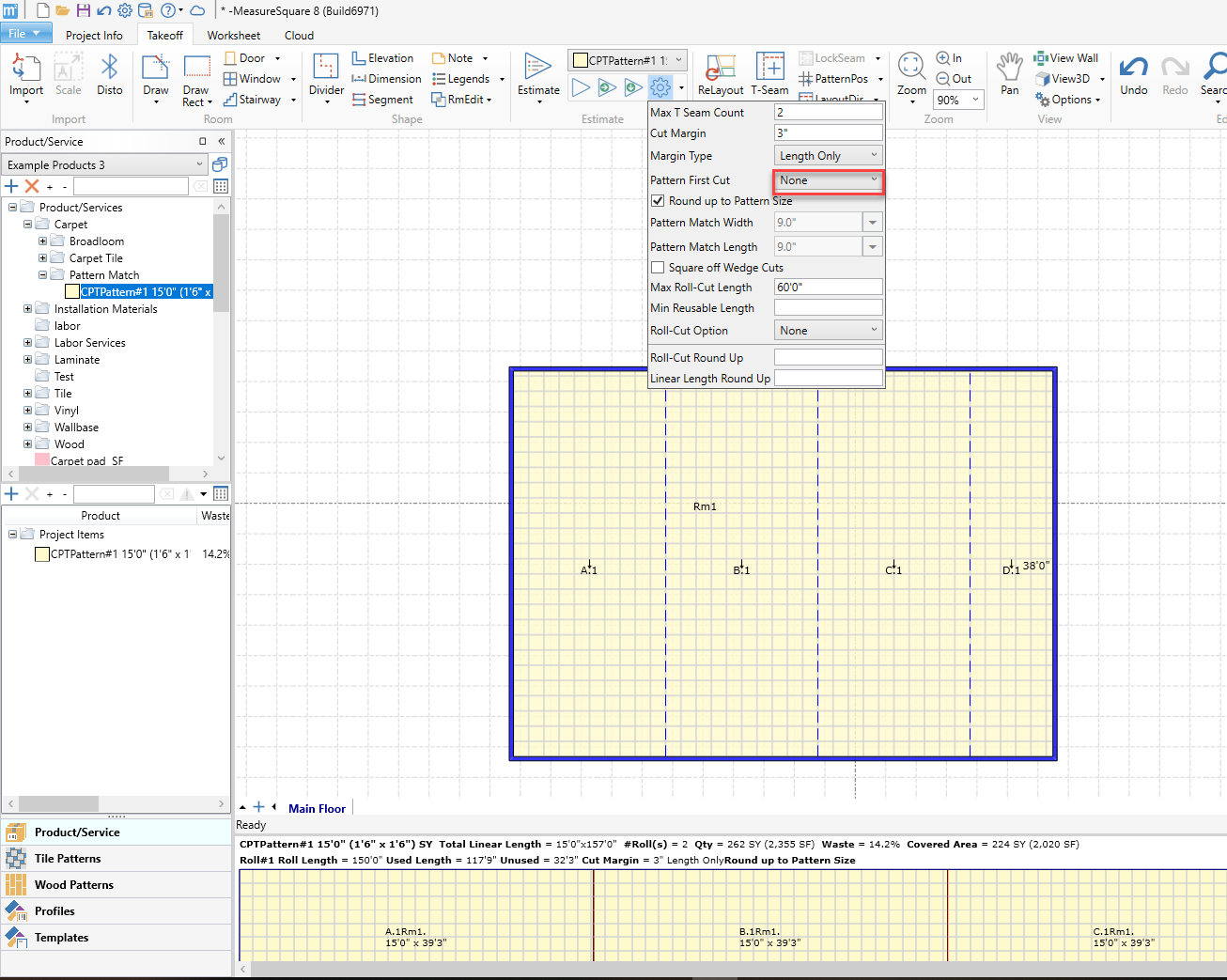

Step 3: None: No first cut allowed
