How do I adjust pattern first cut options for iPad?
In this article, we will explain the different options for pattern first cut.
This article applies to MeasureSquare iPad App
The asterisk symbol next to the cut indicates that cut is a first cut

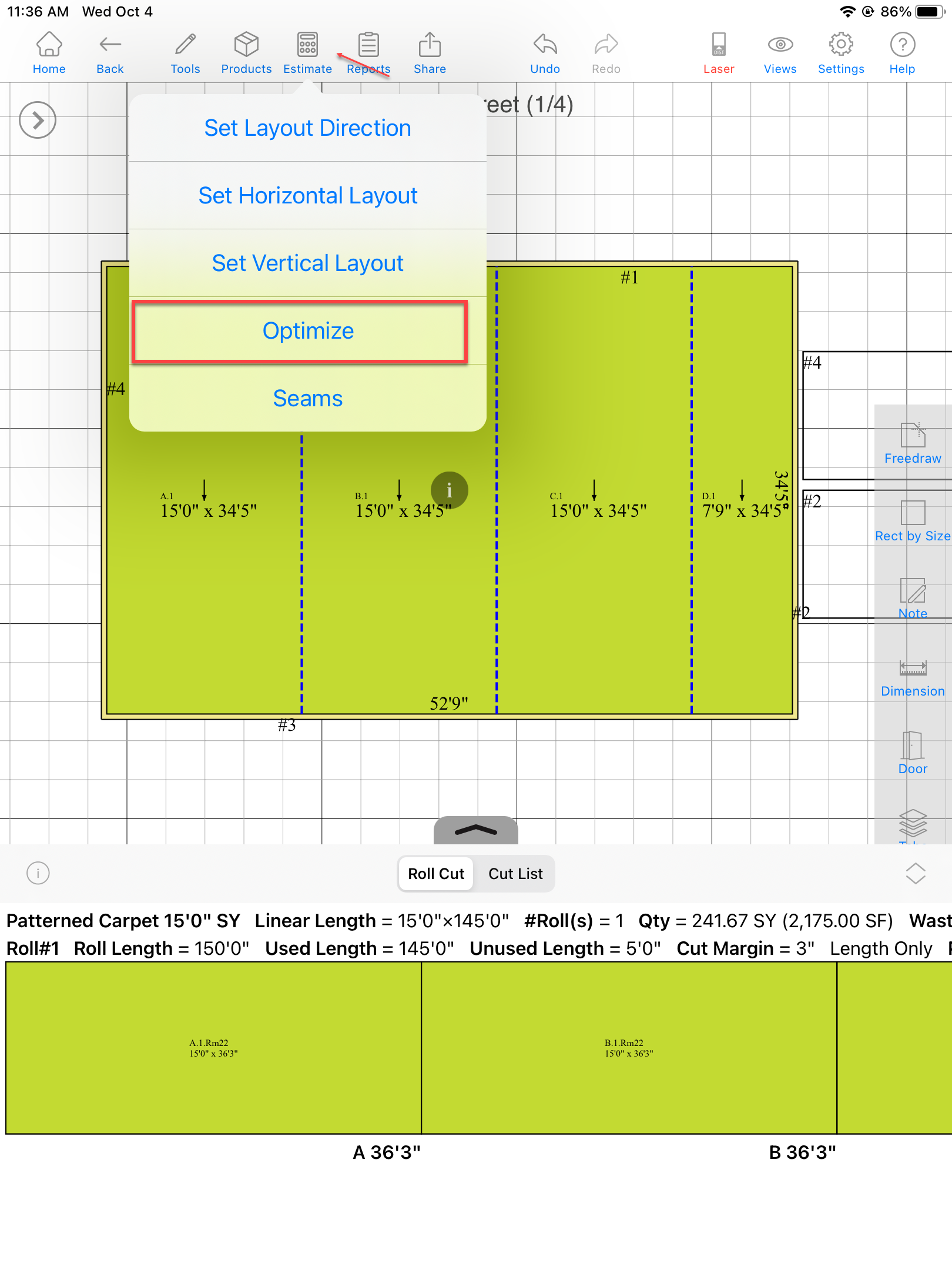

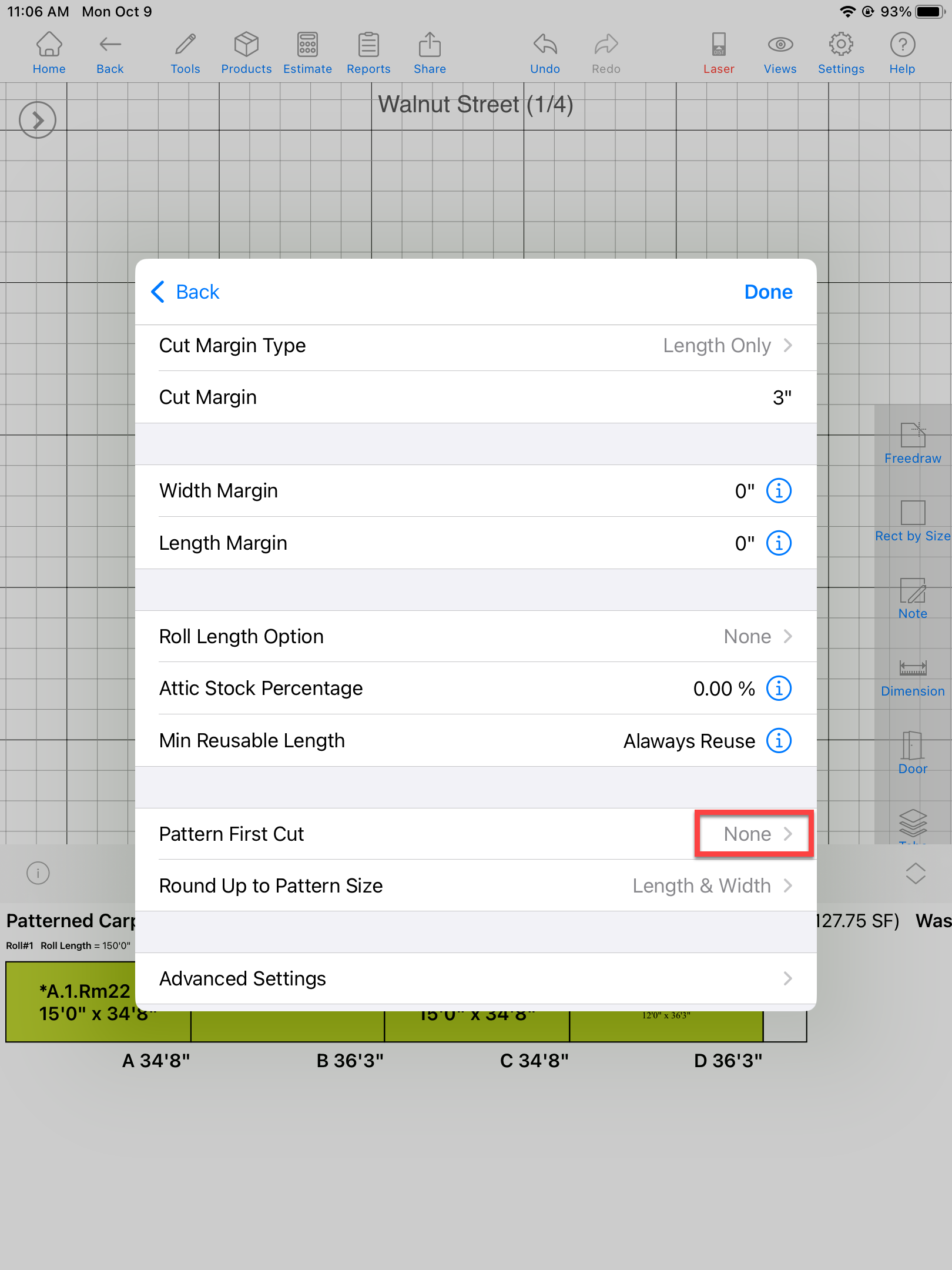

Step 1: To adjust the pattern first cut setting > tap on Estimate > Optimize > Pattern First Cut > Single

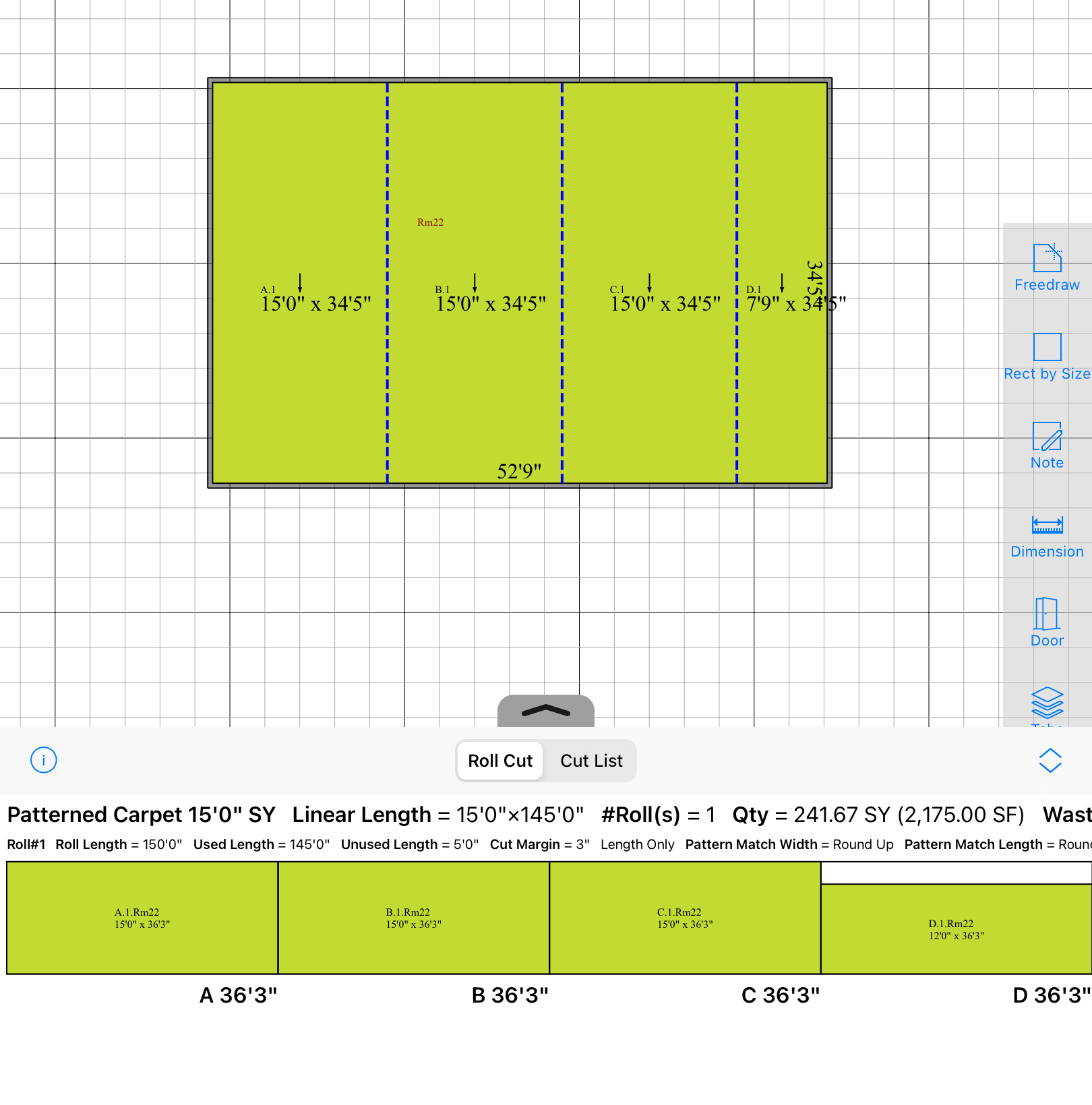

Single: There can only one first cut in a room/area

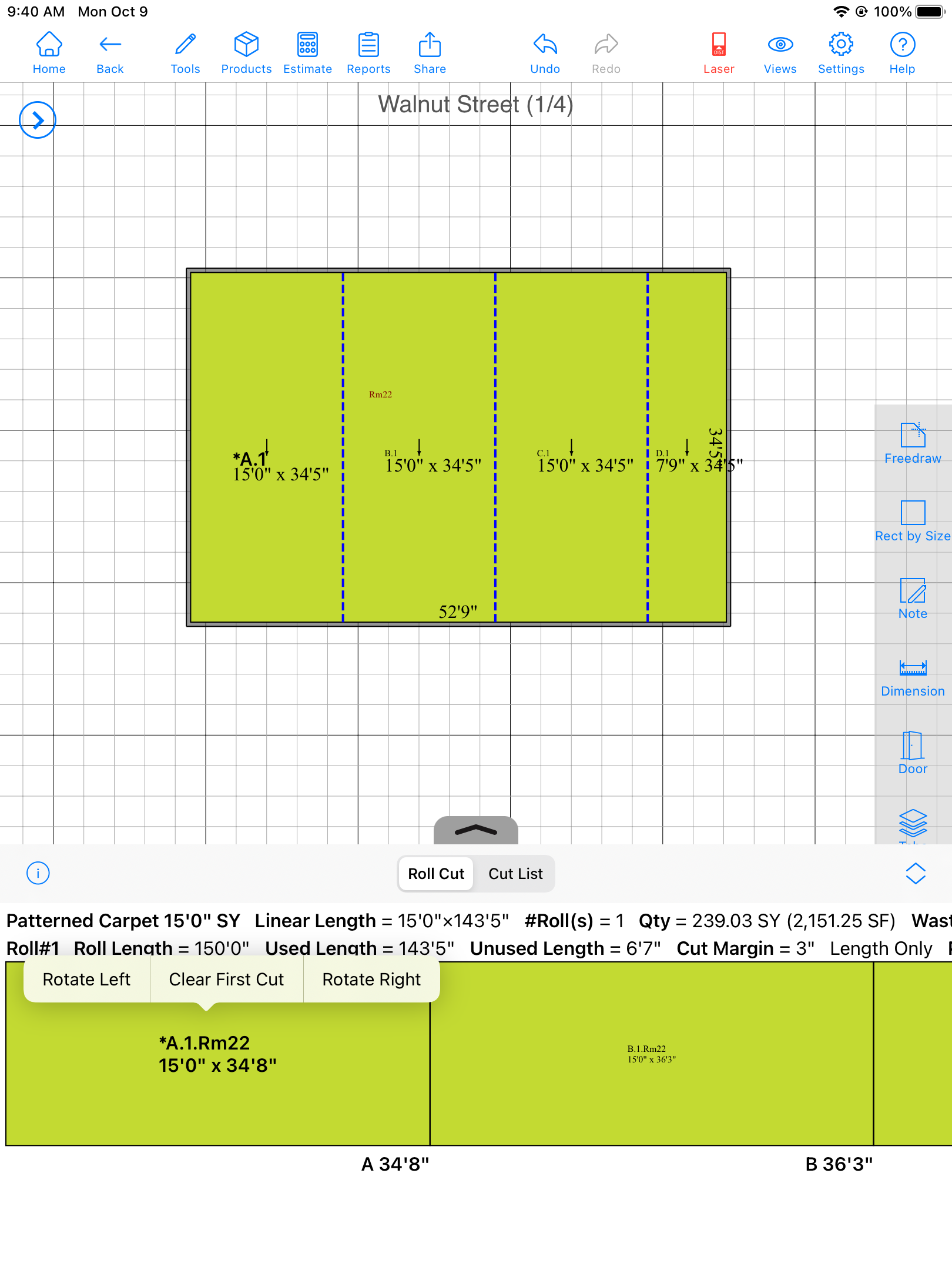

To clear the first cut > Tap on that first cut > Select Clear First Cut

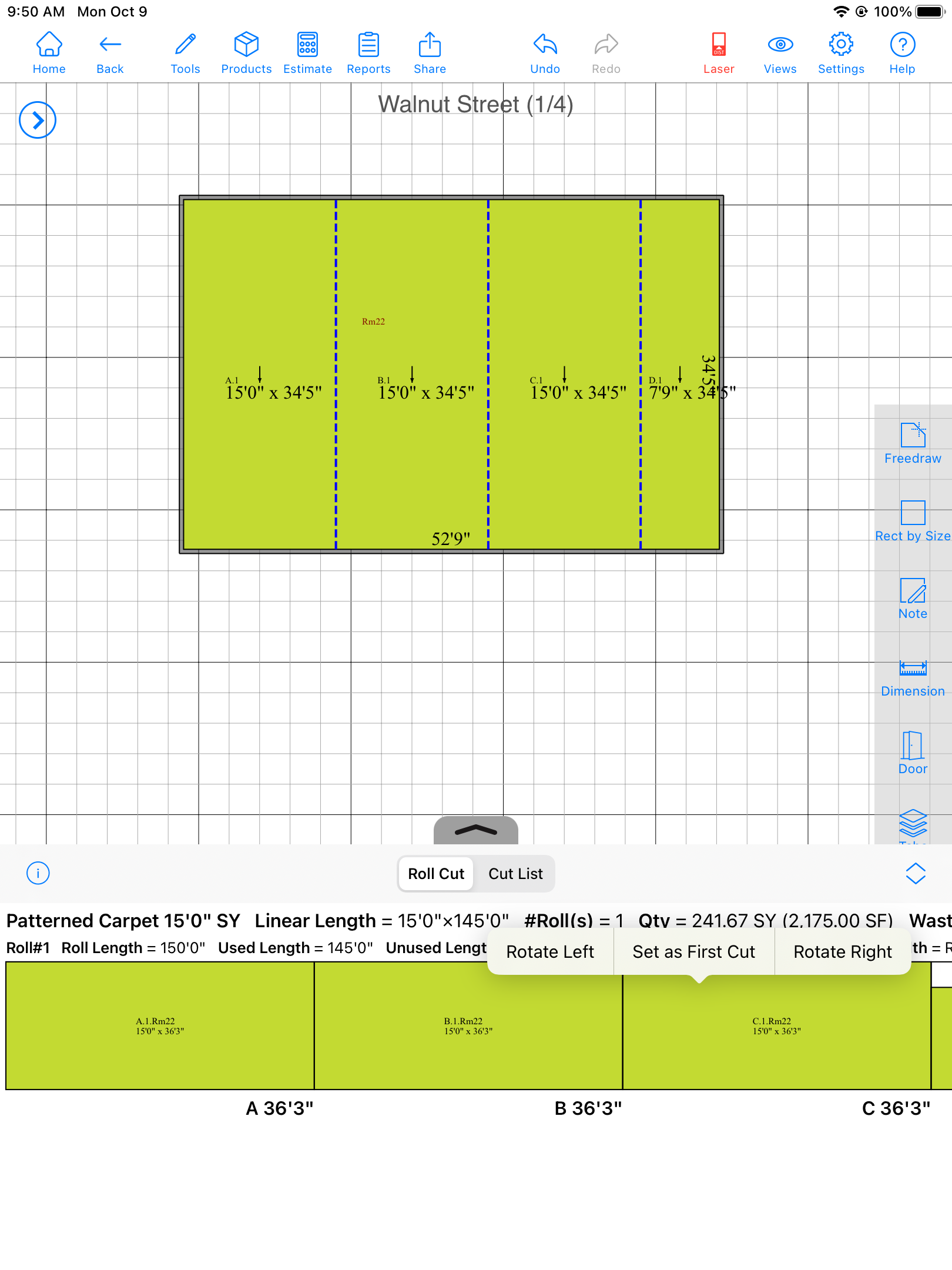

To set a first on a different piece > Tap on the cut that you want to set as a first cut > Set as First Cut

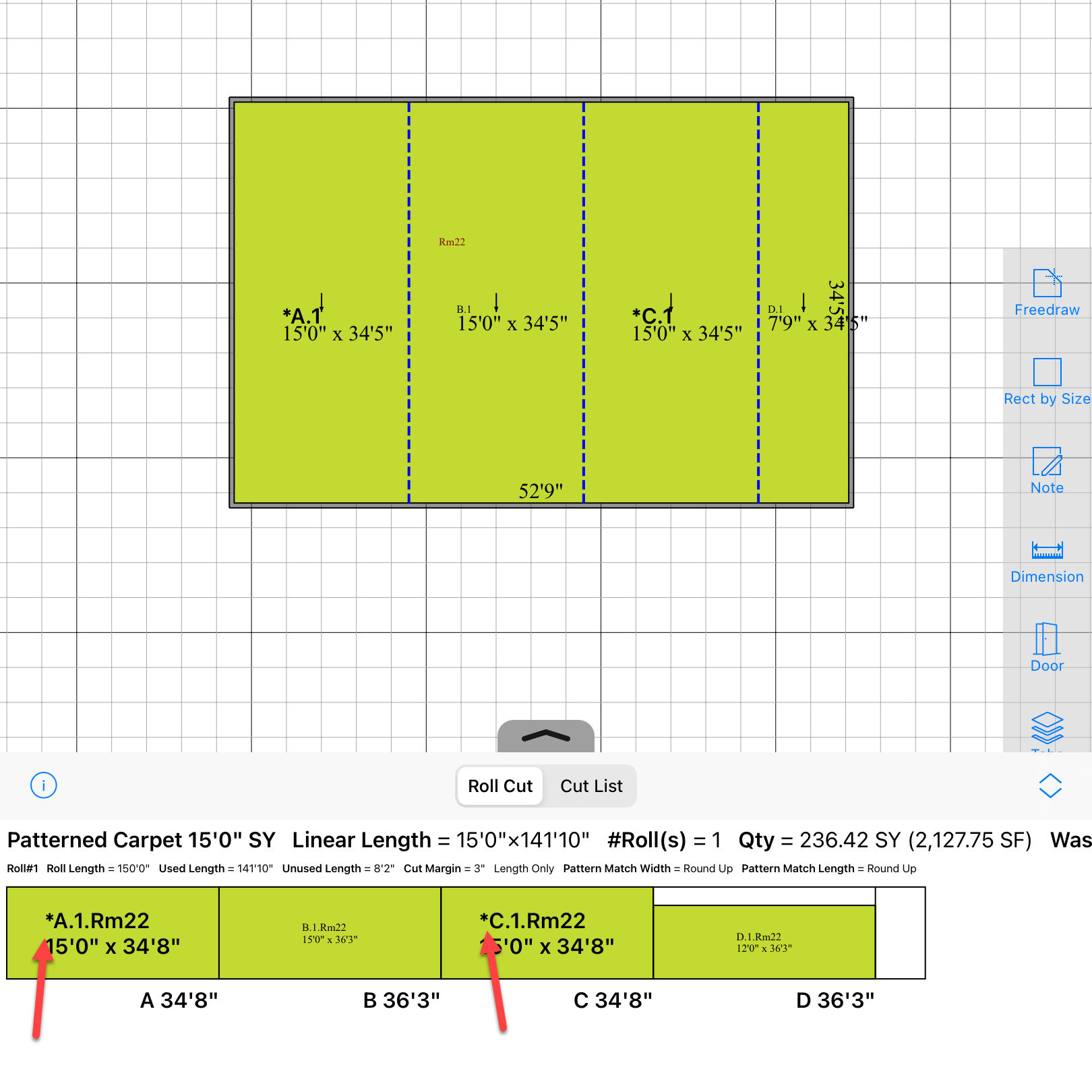

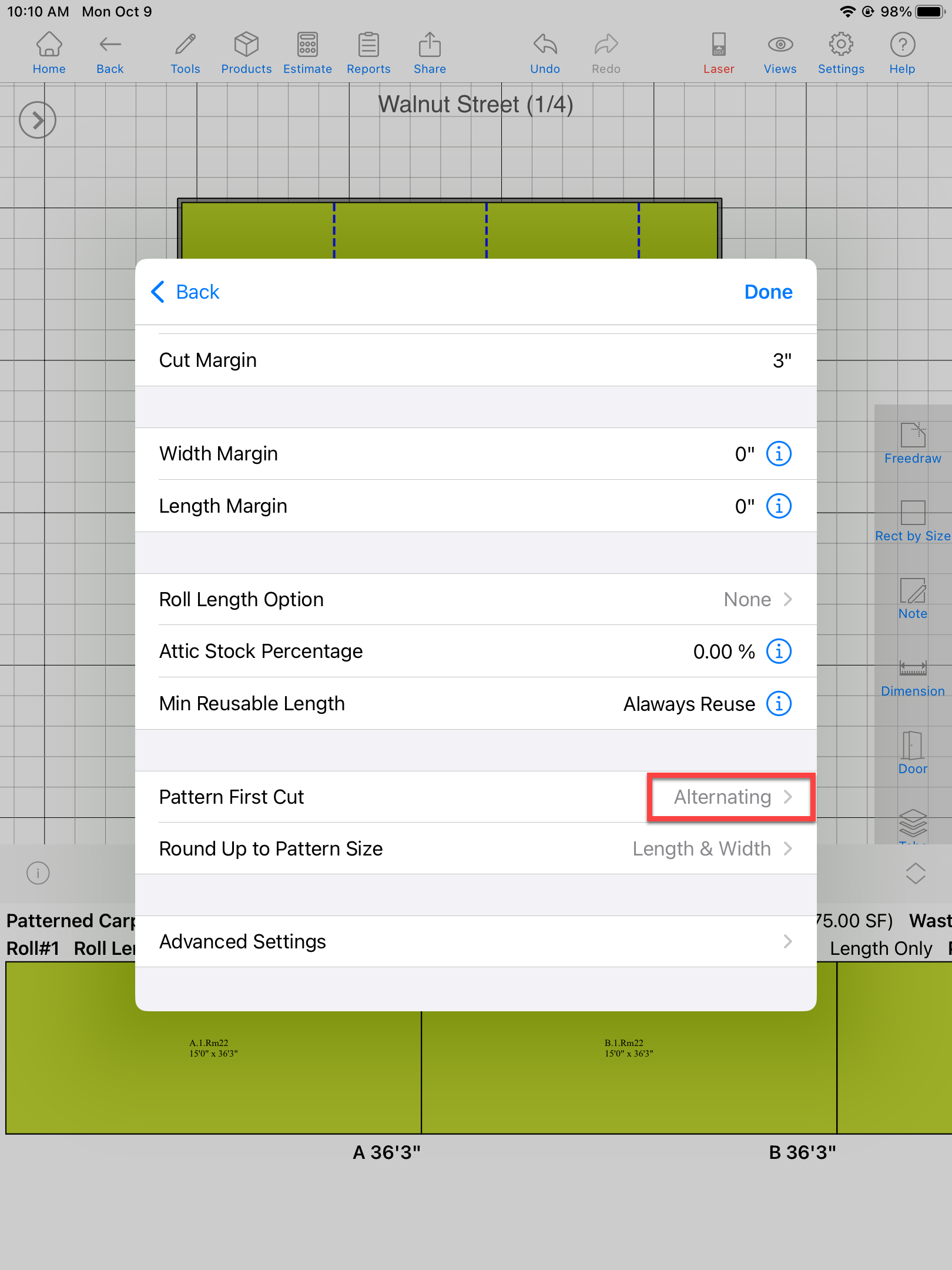

Step 2: Alternating: The first cut will be applied to every other cut
Doesn't work with B-Seam or T-seam
Step 3: None: No first cut allowed
