How Do I Add Notes and Legends in MeasureSquare Stone?
In this article, we will show you how to use Notes and Legends tool inside MeasureSquare Stone.
Add a Product Legend
1. Click Legends from the toolbar.

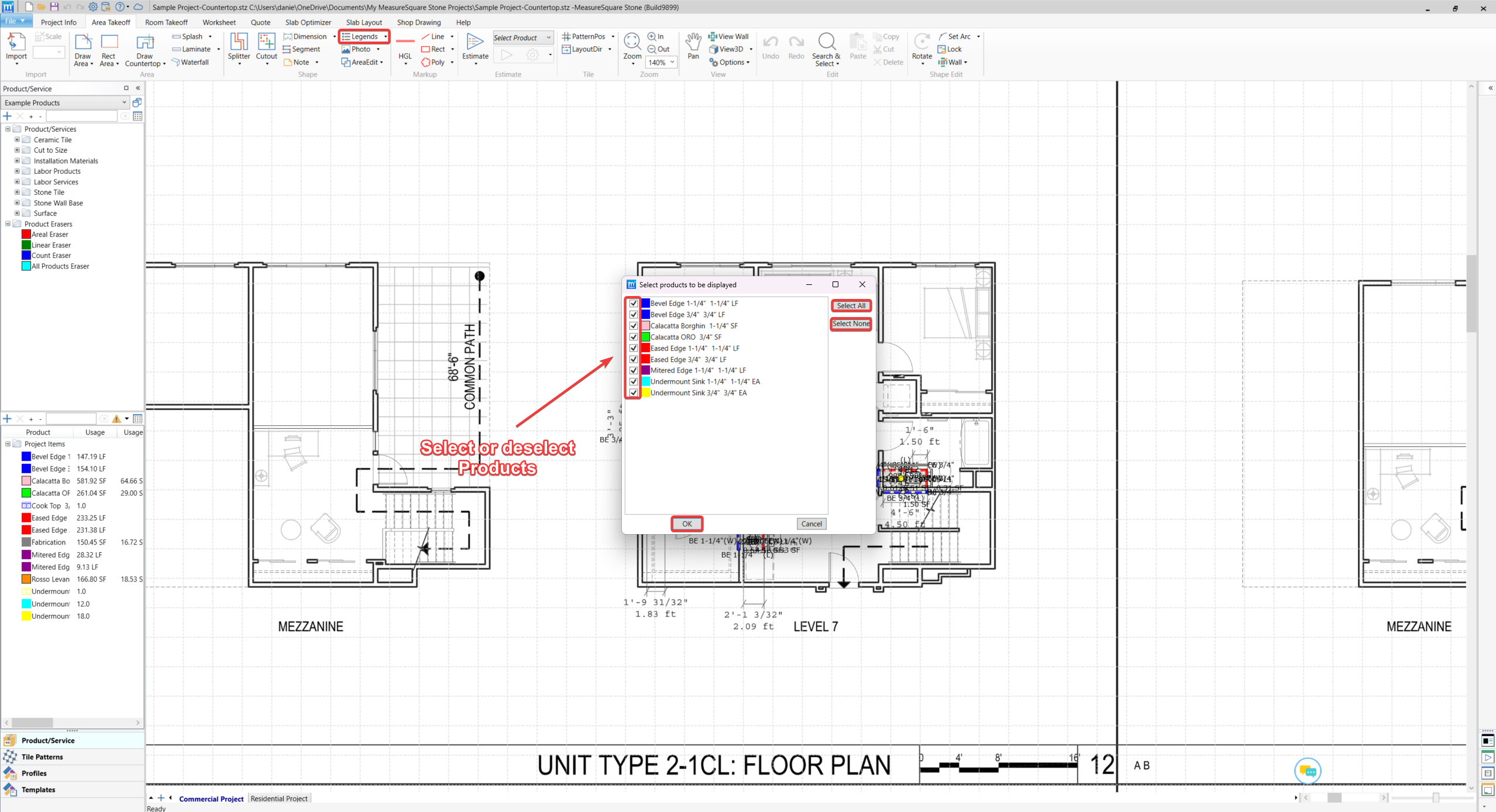

2.In the product selection window, check or uncheck the products you want to show.
3. Use Select All or Select None if needed.
4. Click OK.

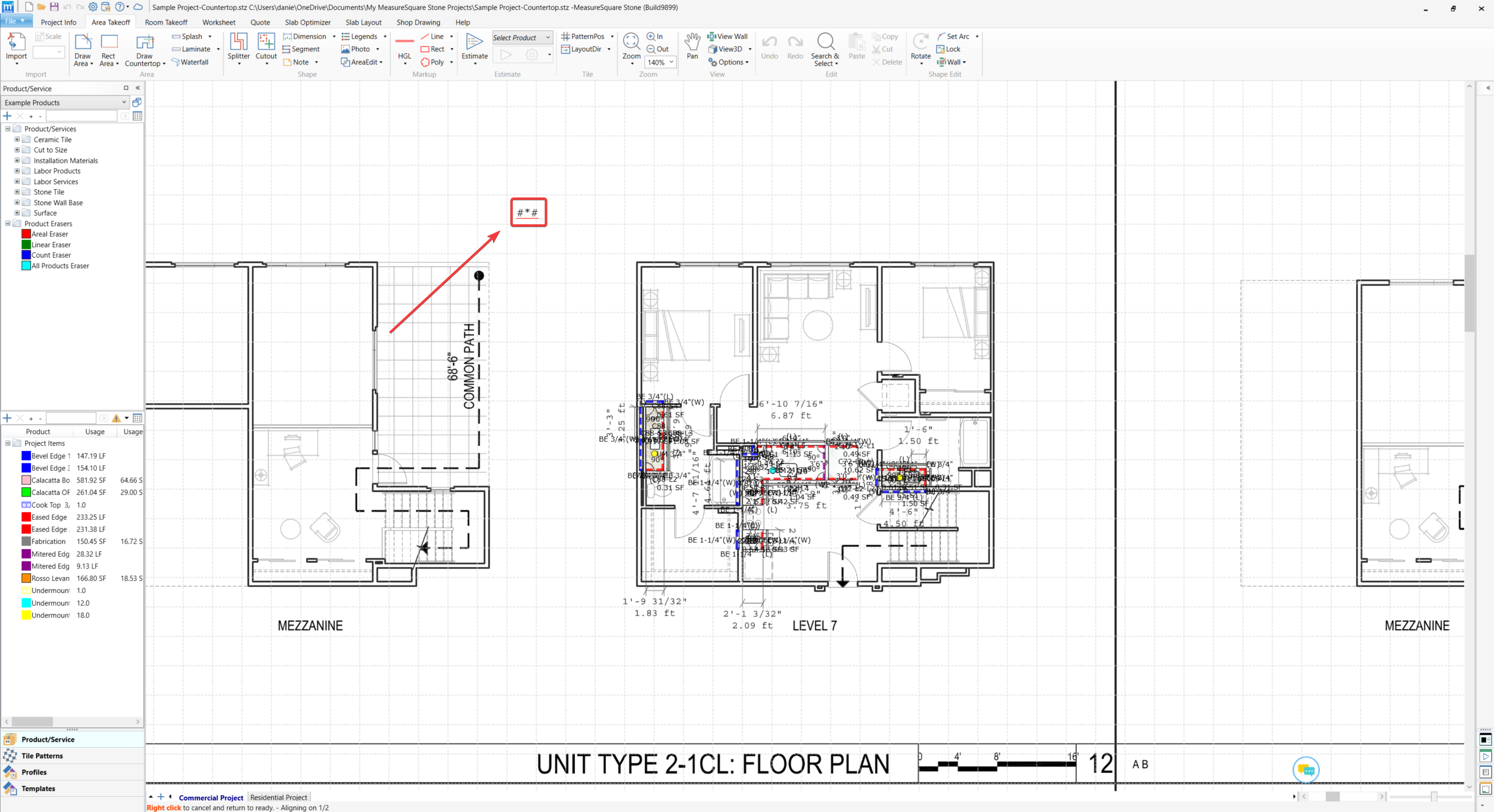

5. Left-click on the diagram to place the legend and drag the legend to reposition it.

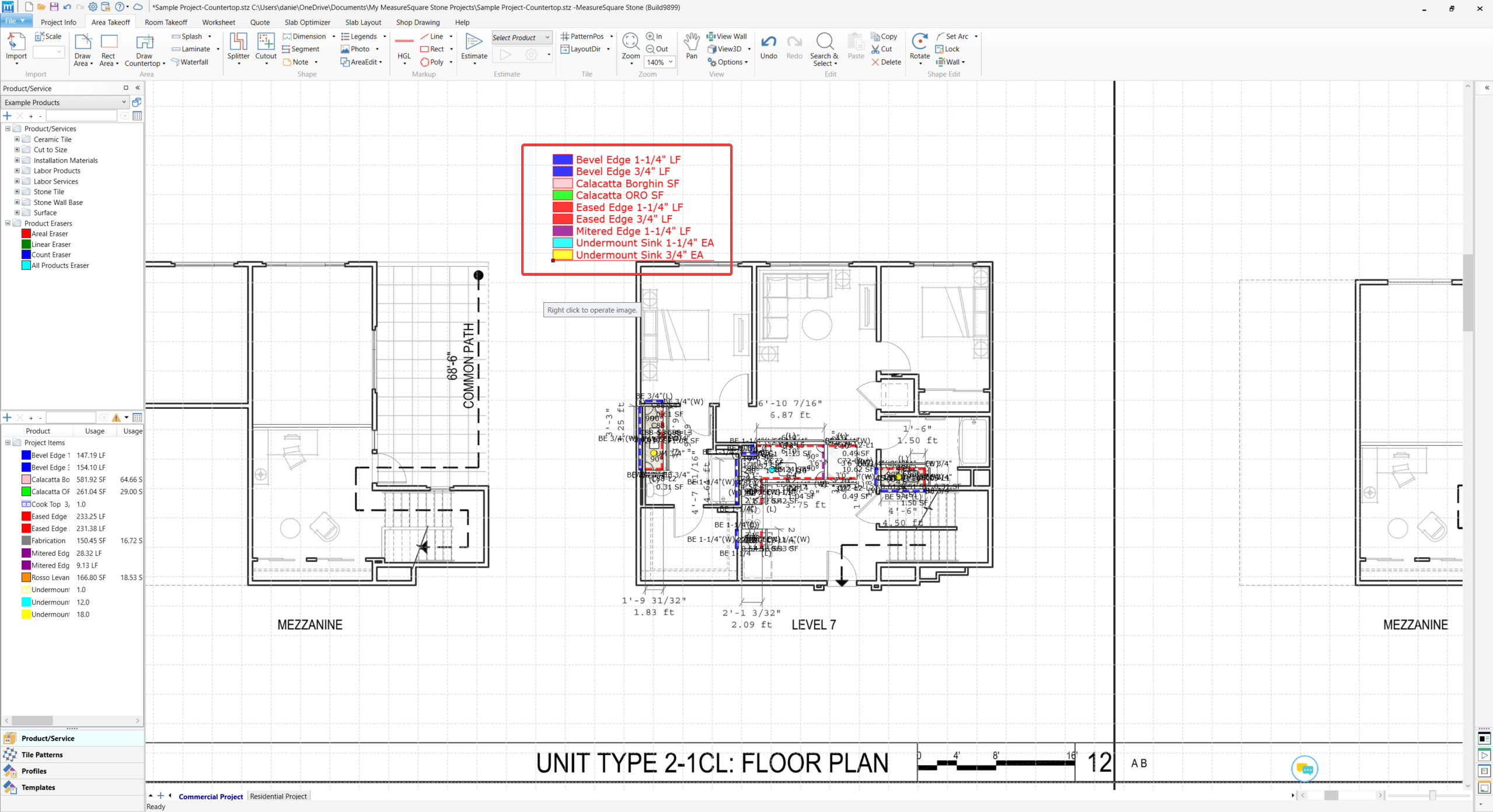

6. The legend can display selected products on the diagram.
Add a New Note

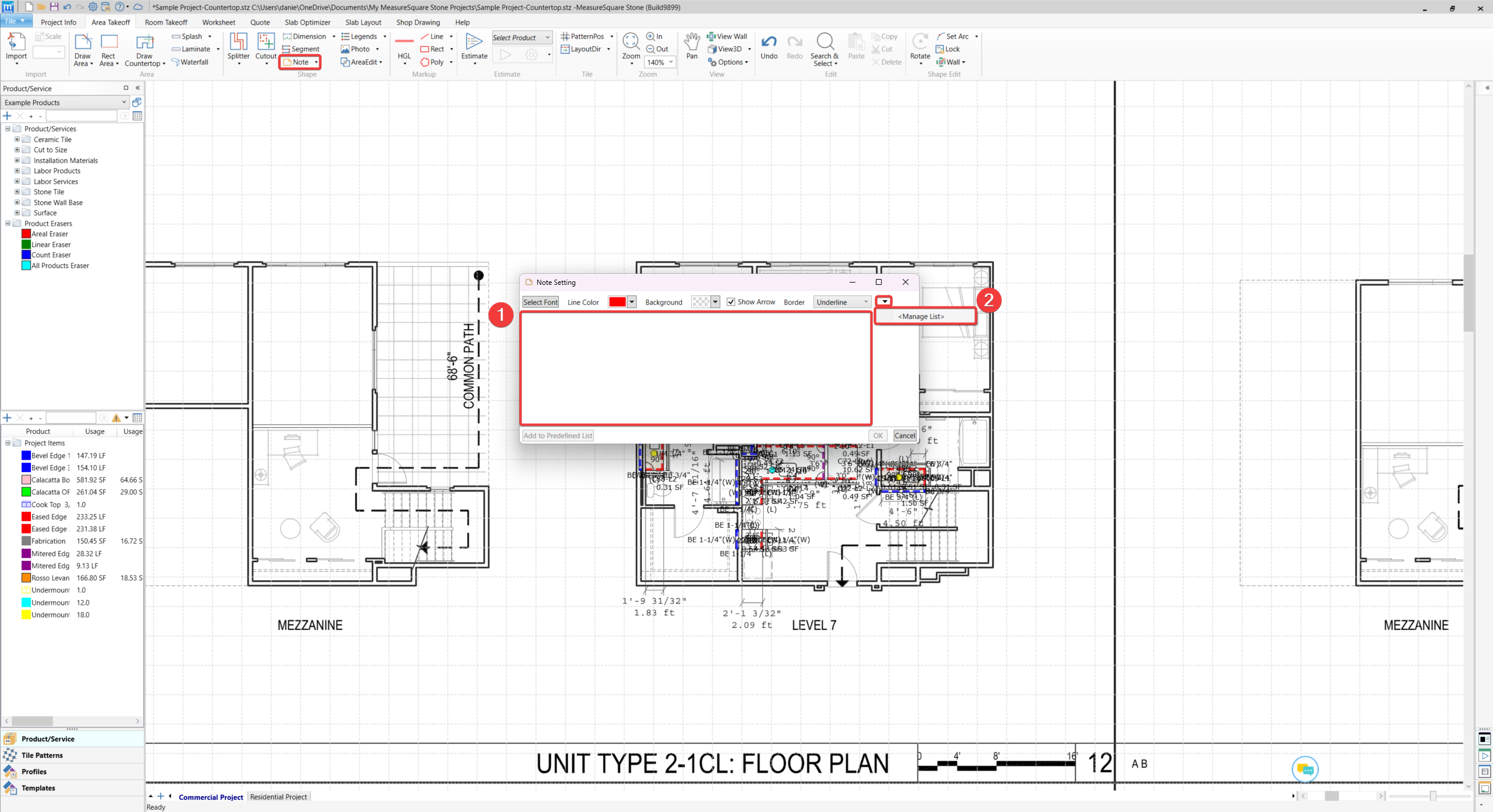

Click Note from the toolbar.
- Option 1: Type inside the text inside the note box.
- Click OK to finish the note.
- Option 2: Adding in a list of text inside Notes through Manage List.

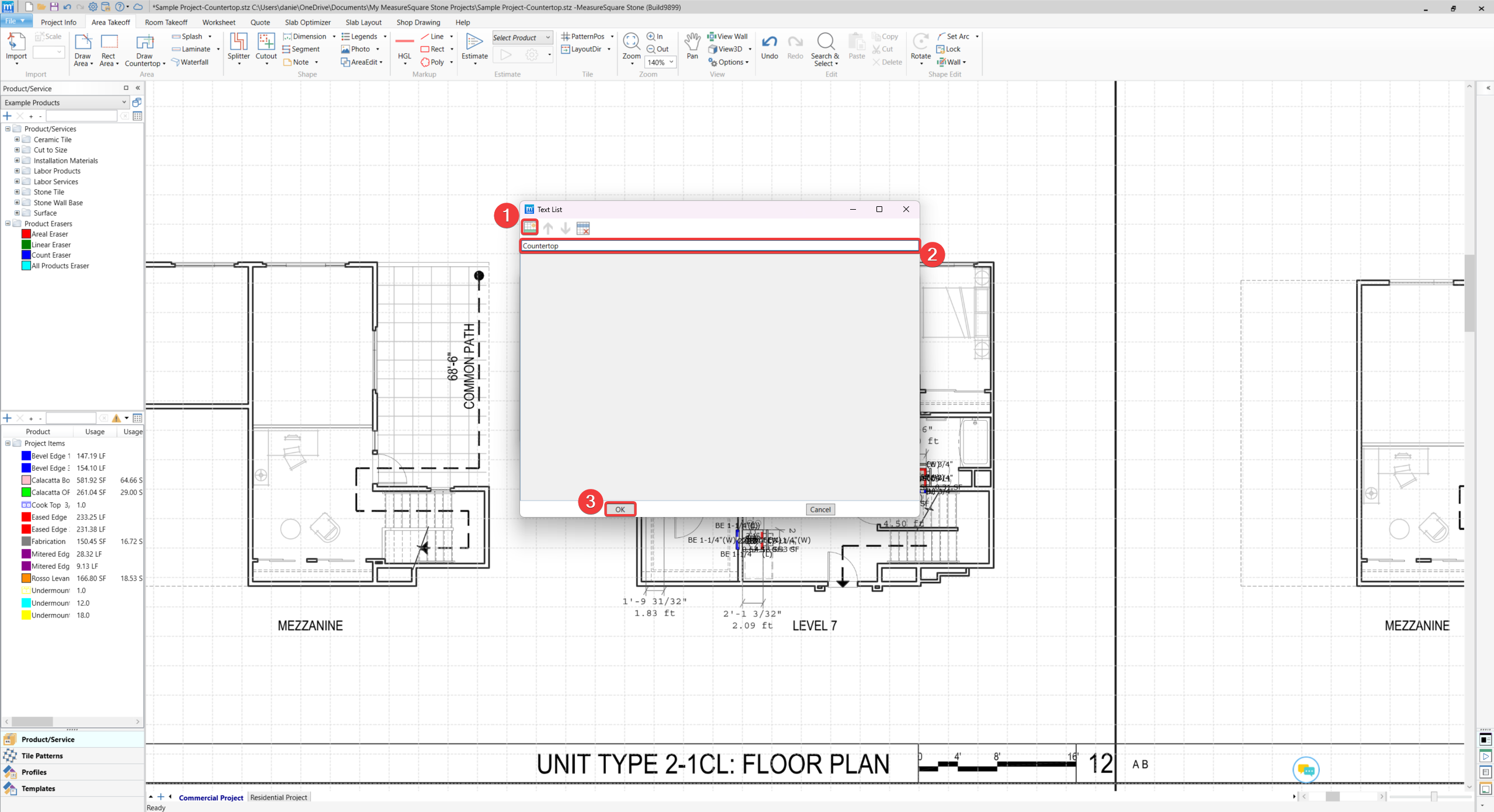

- After clicking Manage List, a Text List window will pop up to input a list of notes.
- In the Text List window, click the Grid button on the top left corner.
- Type the note text, such as “Countertop.”
- Click OK to save the template.
Listed notes inside Manage List will be saved in future projects.

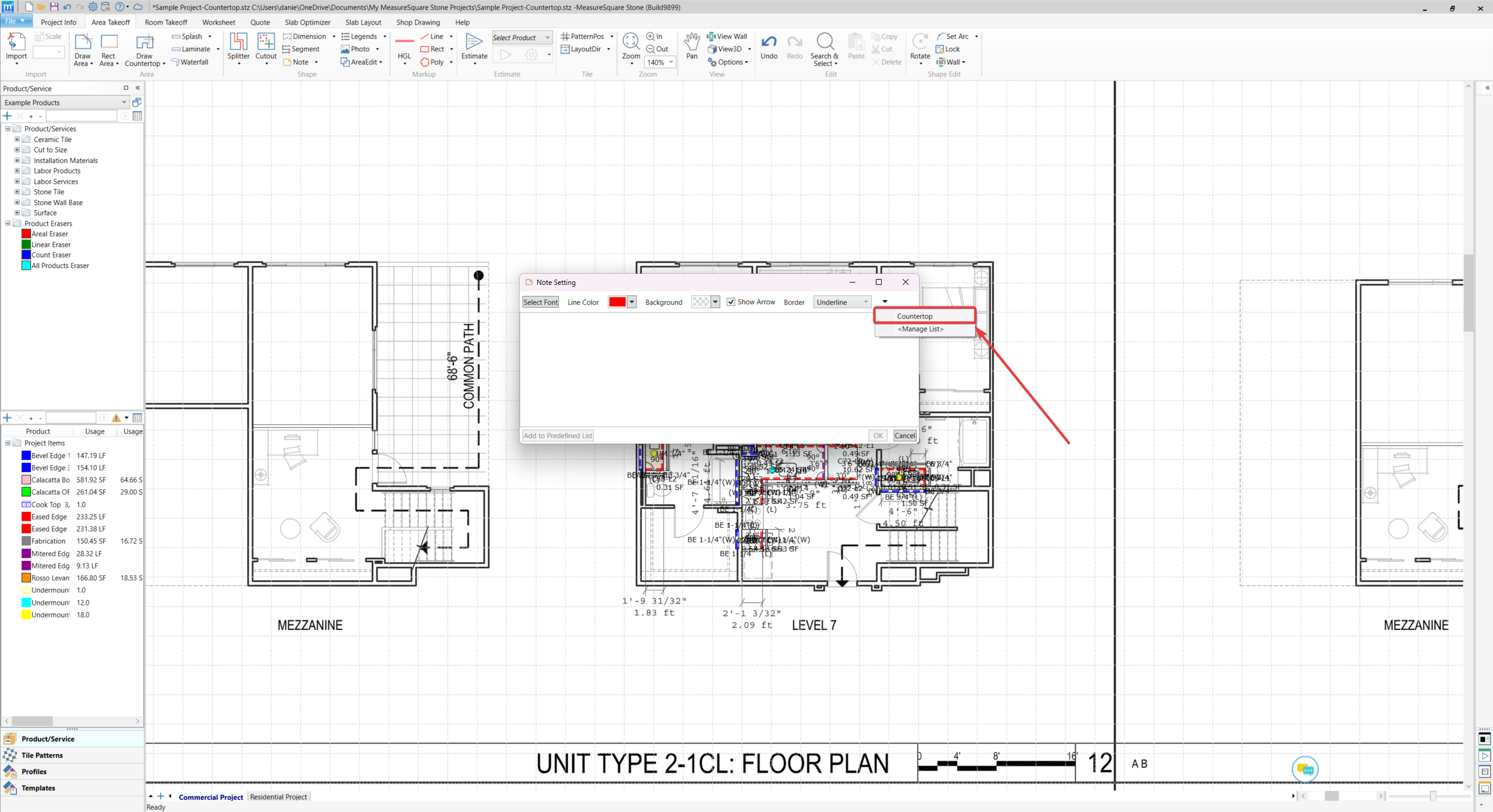

- After clicking OK, when click on the down arrow icon, the inputted list displays in the Manage List menu.

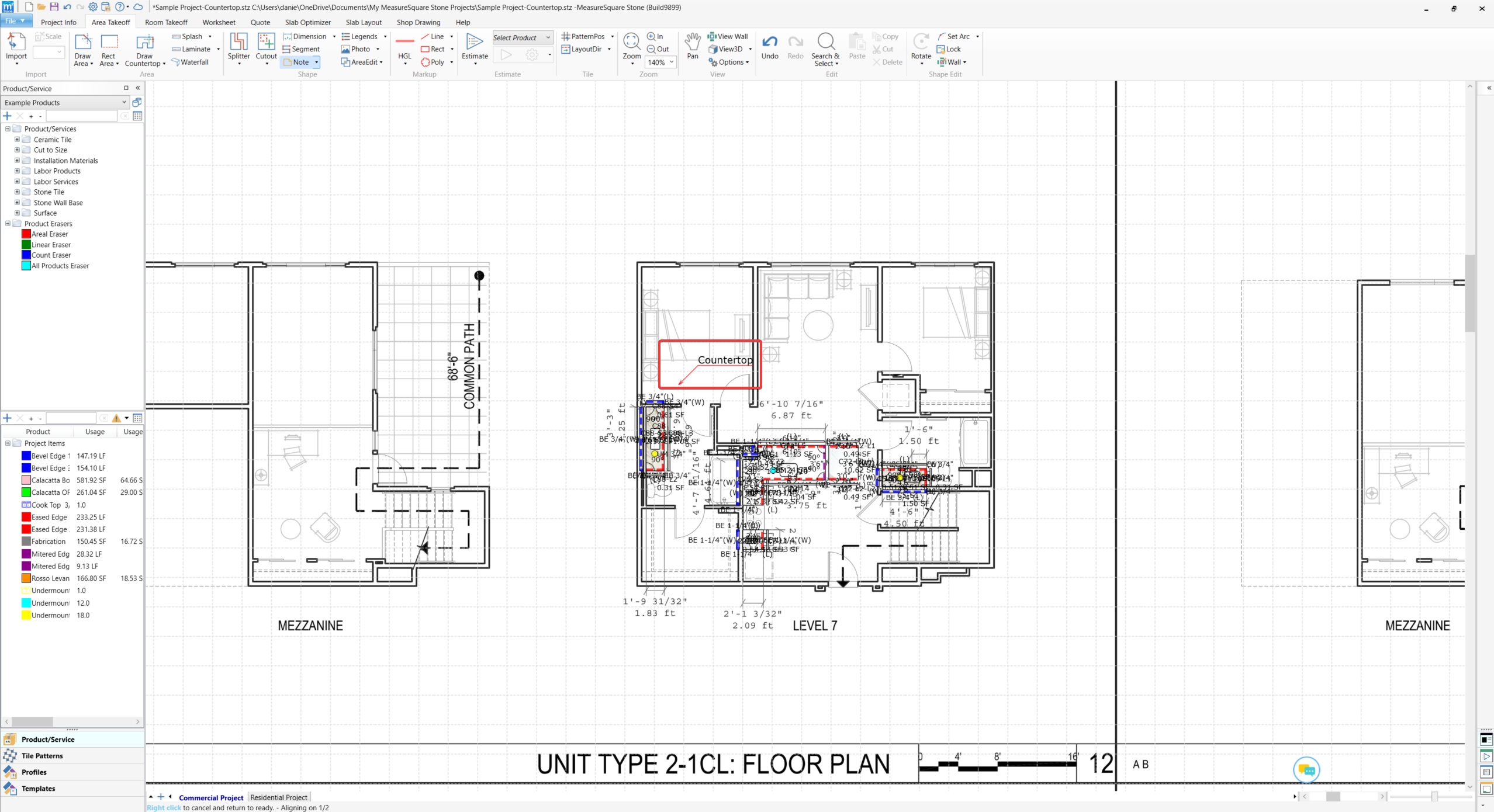

- After clicking OK in the Note Setting Window, drag and place the Note onto the desired spot in the Takeoff.
The note text is editable right away after placement.
For any further questions, please reach out to our Support team
