How Can I Remove White Streaks From My Print Diagram?

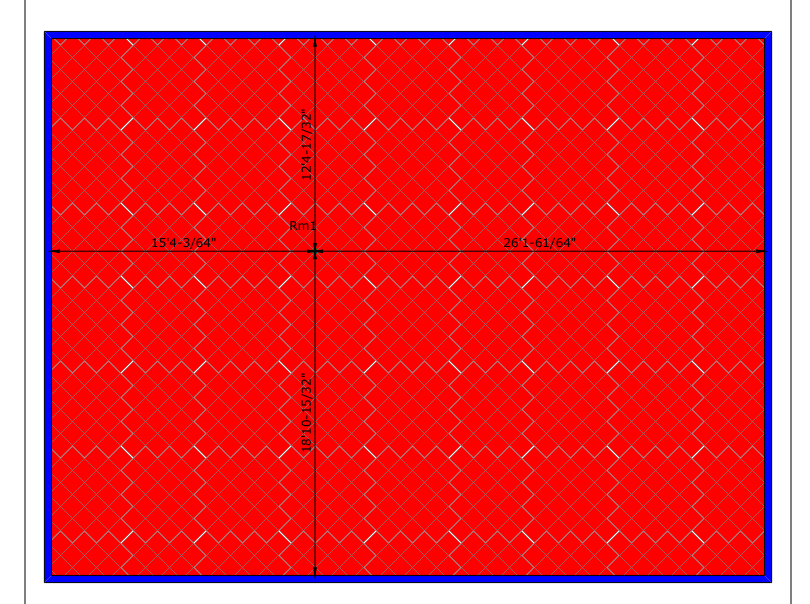

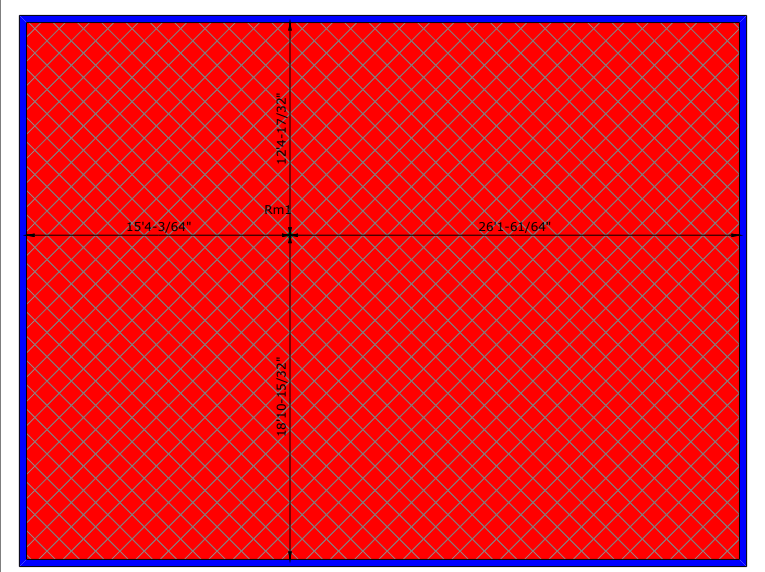

This article will cover how to stop white streaks from showing up on product in your print diagrams.

This article applies to MeasureSquare 8 desktop version

​

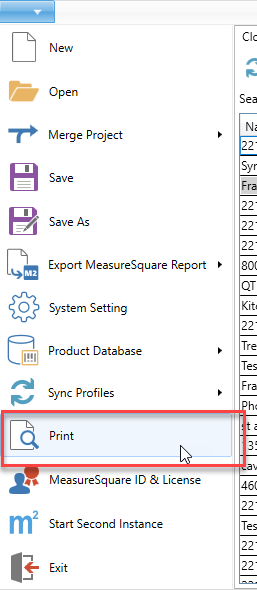

Step 1: Select File, and then Print

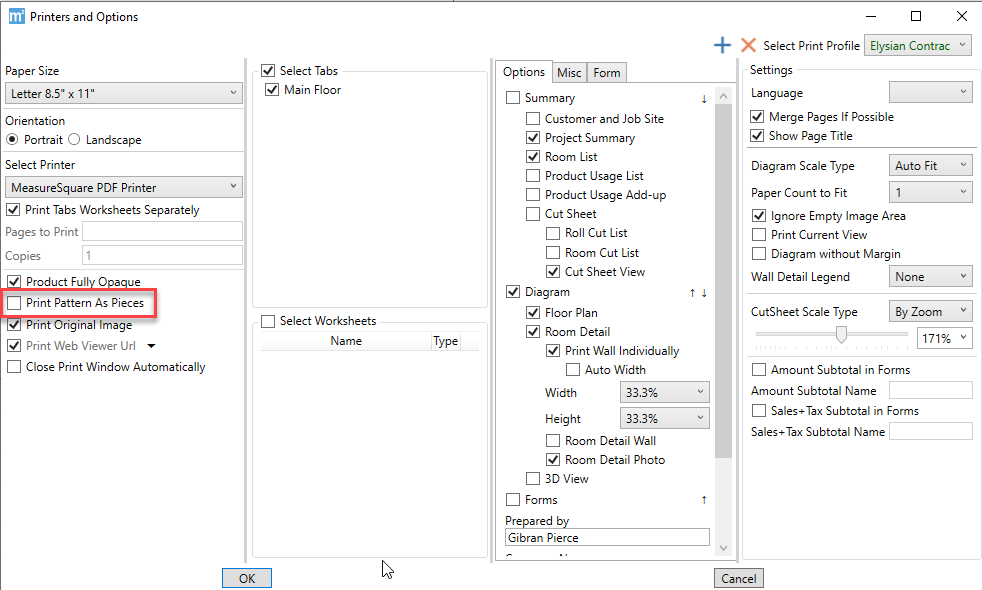

Step 2:  On the left side of the Printers and Options menu, make sure the checkbox for Print Pattern as Pieces is enabled.
