How Can I Apply Transitions with Door Application on MeasureSquare 8?

This article will go over how to add door transitions to your doors so you can quickly apply both at the same time.

This article applies to MeasureSquare 8.

Step 1: Have all rooms drawn out and select the 'Door' tool.

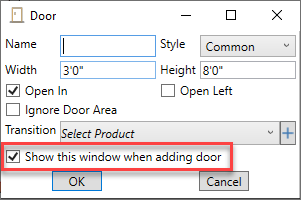

Make sure that you receive the door pop up menu. If you do not receive the pop you will have to press 'C' on your keyboard and check off the 'Show this window when adding door' option.

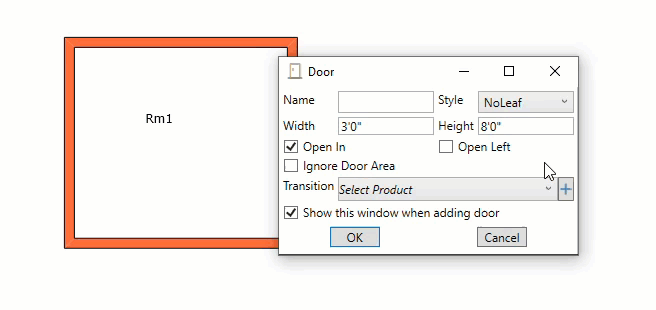

Step 2: On the 'Door' pop up locate the 'Transition' section. Click on the 'Select Product' drop down and pick the correct transition material that you would like to include.

Step 3: Once you have all of your setting applied you can then select 'Ok' and place the door in the correct location.
