This article will guide you through understanding room and object relationships in MeasureSquare 8, including how to differentiate between inside and outside measurements and how to use tools effectively.

---

Steps to Understand Room and Object Relationships


Step 1: Identify Room Boundaries

- the entire area that highlights with red handles along the perimeter when clicked is considered one room

Notes
Note: Elevations will also highlight with red handles along the perimeter when clicked. Elevations may also contain some of the other objects in the same way a room does

Step 2: Identify Objects

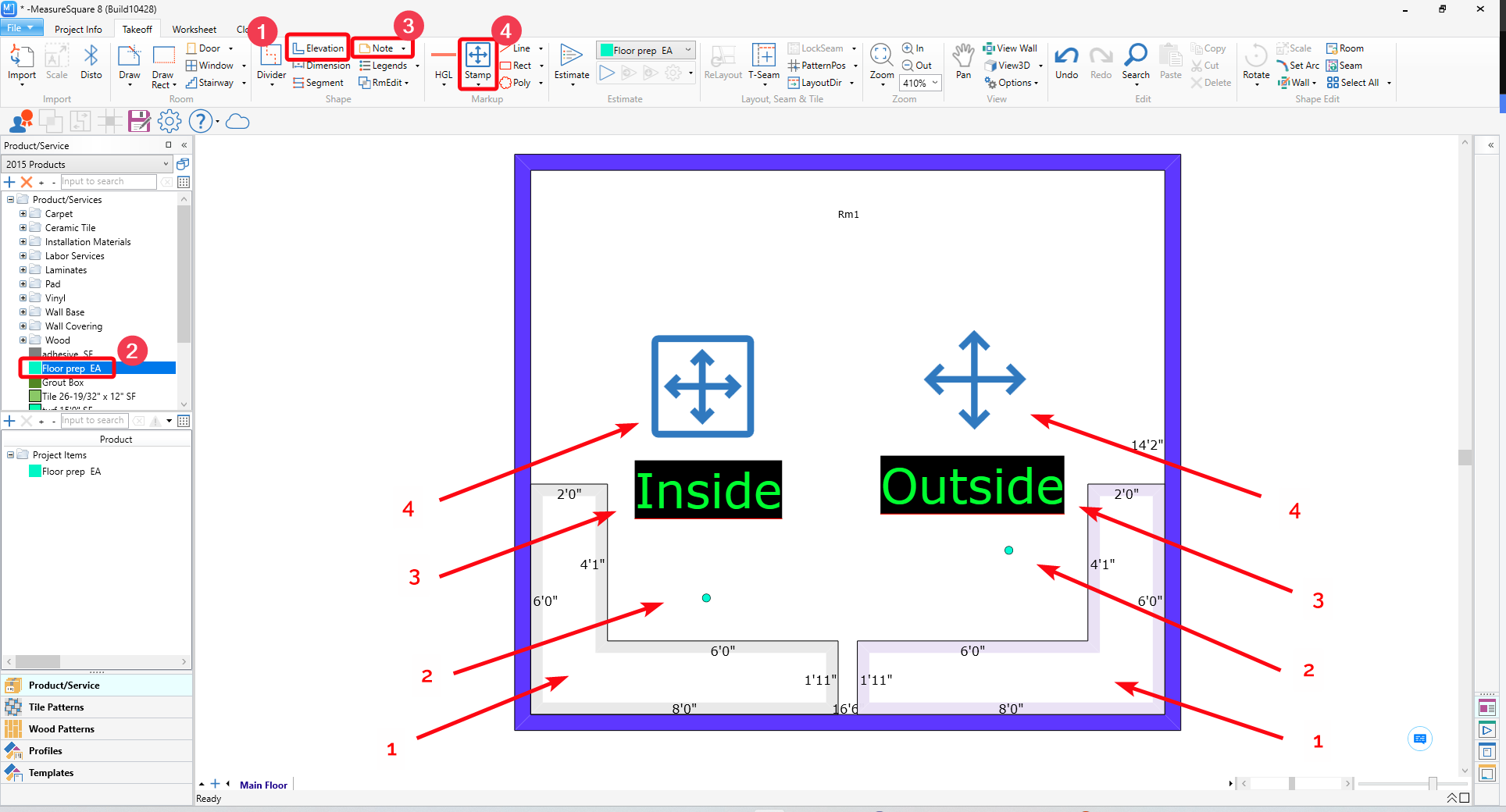

-[1] Elevation
- [2] Count Type Product
- [3] Note
- [4] Stamp

Idea
Notice the Purple Border for the Outside Elevation

Step 3: Inside VS Outside

- The Inside
  1. These Objects were created within the confines of the Room
- The Outside
  1. These Objects were created outside the confines of the Room, then dragged and dropped into place

Step 4: Differences in behavior

- The behavior for all Inside Objects is the same
- The behavior for all Outside Objects is the same

- When an object is moved outside the confines of the Room
  1. Inside Objects will be deleted
  2. Outside Objects will be placed in the Outside Location
Notes
Note: For Outside Objects, they can be dragged to an empty area or another room. If placed into another room, they will again be considered as an Outside Object
- Outside Elevations Specifics
  1. Walls and Floor are not deducted when Product is added in these areas
- Outside Count type Product Specifics
  1. Count type product will not show up in reports being listed where other products in Rm1 can be found

---

Note:

If you need further assistance, contact MeasureSquare Customer Support at +1-626-683-9188 or email support@measuresquare.com.

Let me know if you need additional clarification or examples! 😊
